Kelvinator
Gas Range

Model # CG300SP2Y1 Official Kelvinator gas range - 5995222972

Here are the diagrams and repair parts for Official Kelvinator CG300SP2Y1 gas range - 5995222972, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

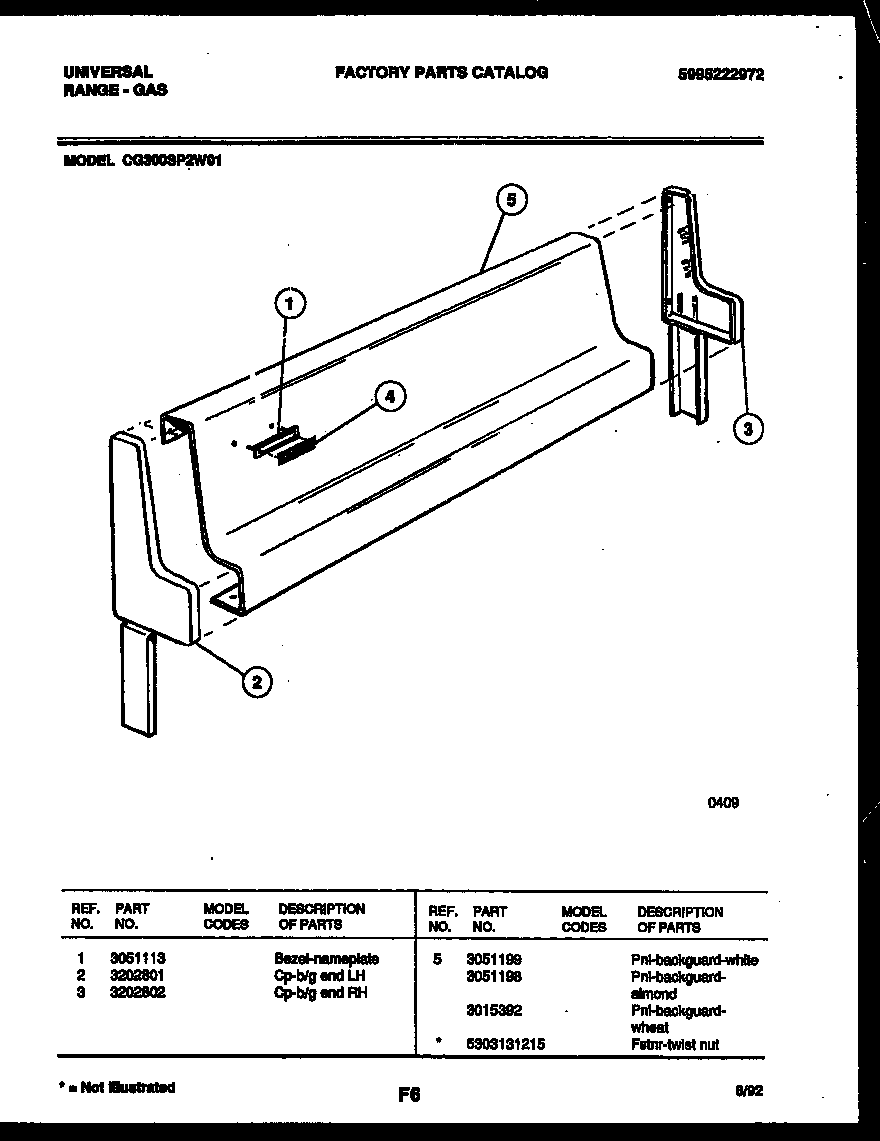

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Range Surface Burner Head, Front 316039002
#15

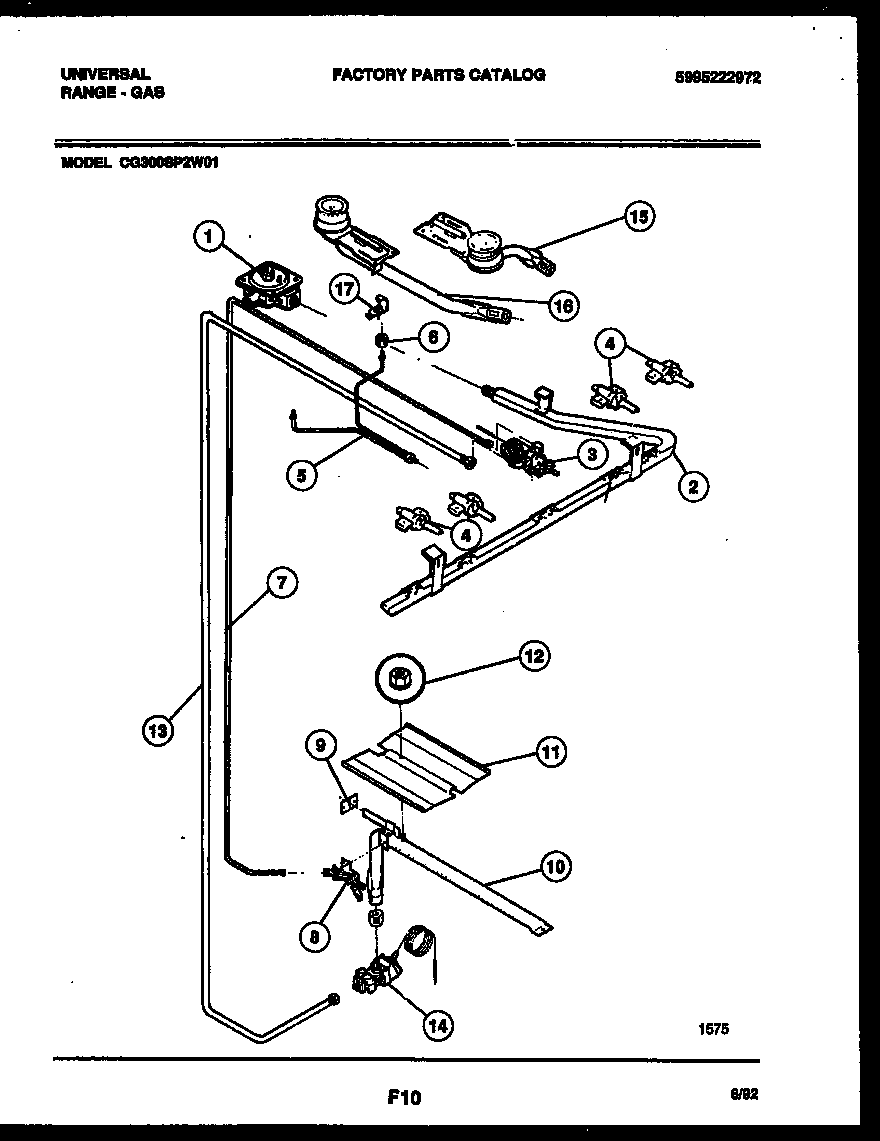

Burner, manifold and gas control diagram

Range surface burner head, front

Part #316039002

Replaced by #5304506427

?
Manufacturer substitution
This part replaces 316039002. Substitute parts can look different from the original.
$63.08 |
9% OFF Phone Price : $69.08
In Stock
Range Hex Nut 5303013272
#12

Burner, manifold and gas control diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Screw 5303051818
#12B

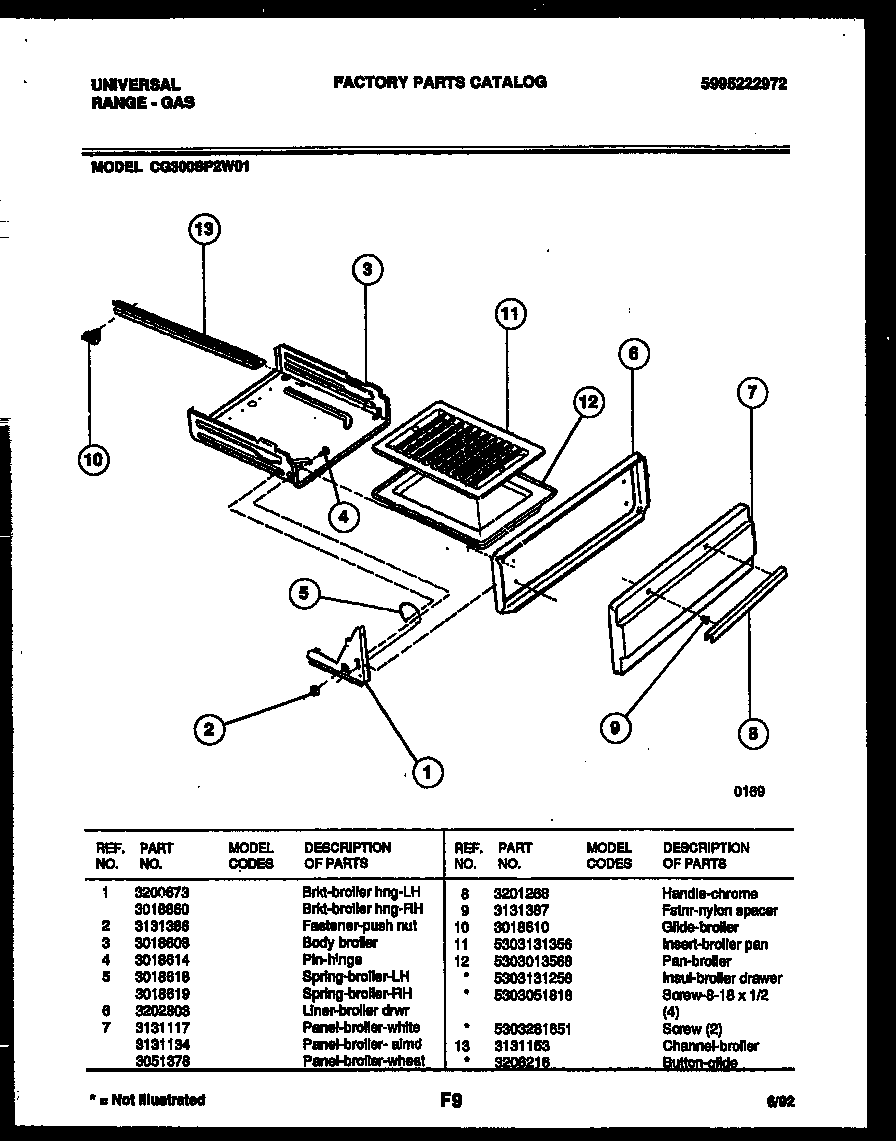

Broiler drawer parts diagram

Screw

Part #5303051818

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 5303051818. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Oven Rack 5303281625
#13

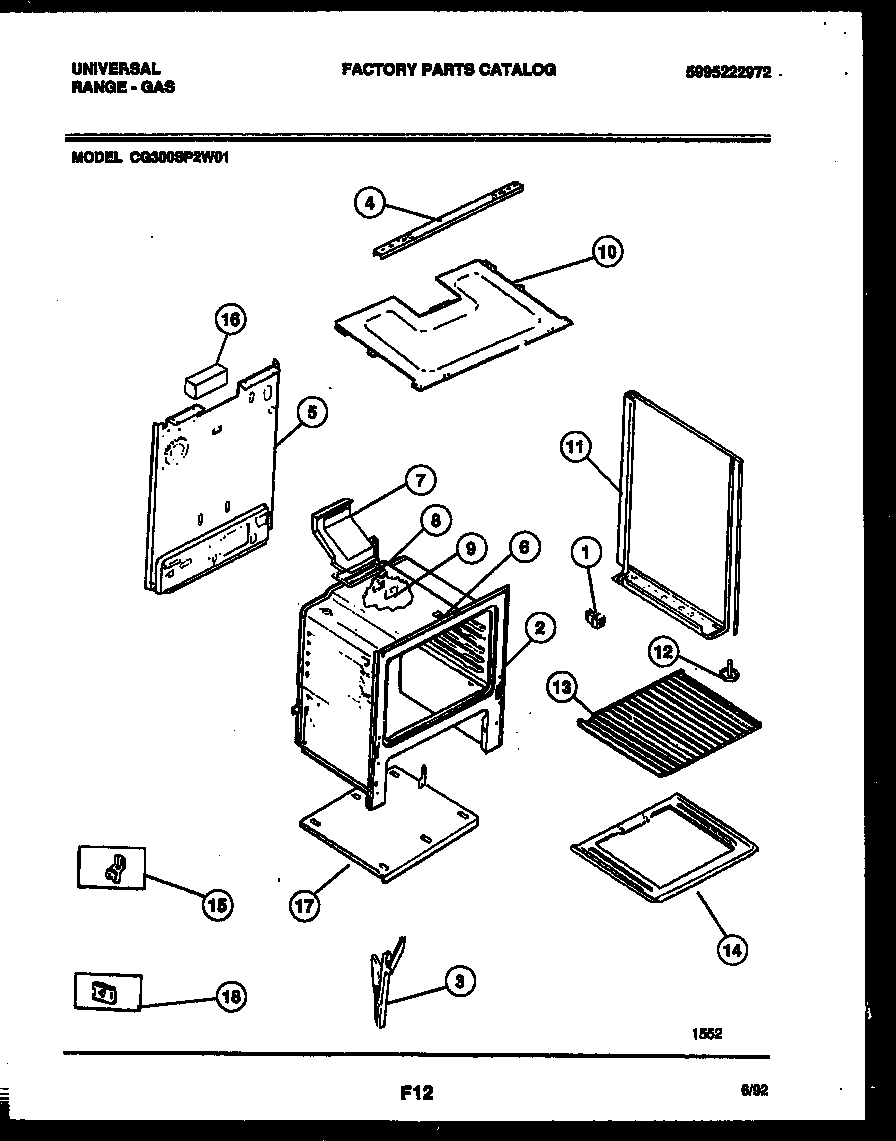

Body parts diagram

Oven rack

Part #5303281625

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 5303281625. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock

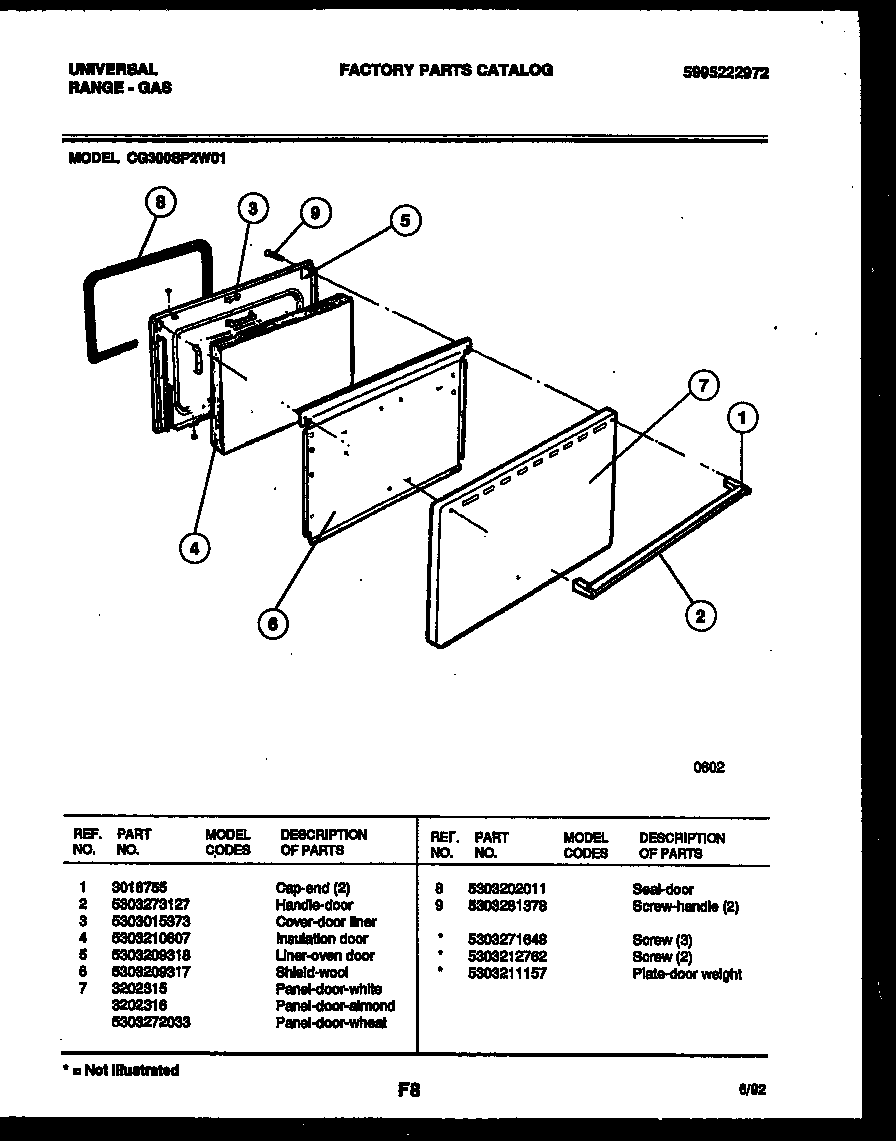

Screw 5303212762

#NI

All parts diagram

Screw

Part #5303212762

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 5303212762. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Gasket 08067965
#8

Body parts diagram

Gasket

Part #08067965

Replaced by #316542102

?
Manufacturer substitution
This part replaces 08067965. Substitute parts can look different from the original.
$12.51 |
14% OFF Phone Price : $14.51
In Stock
Grate 5303012700
#4

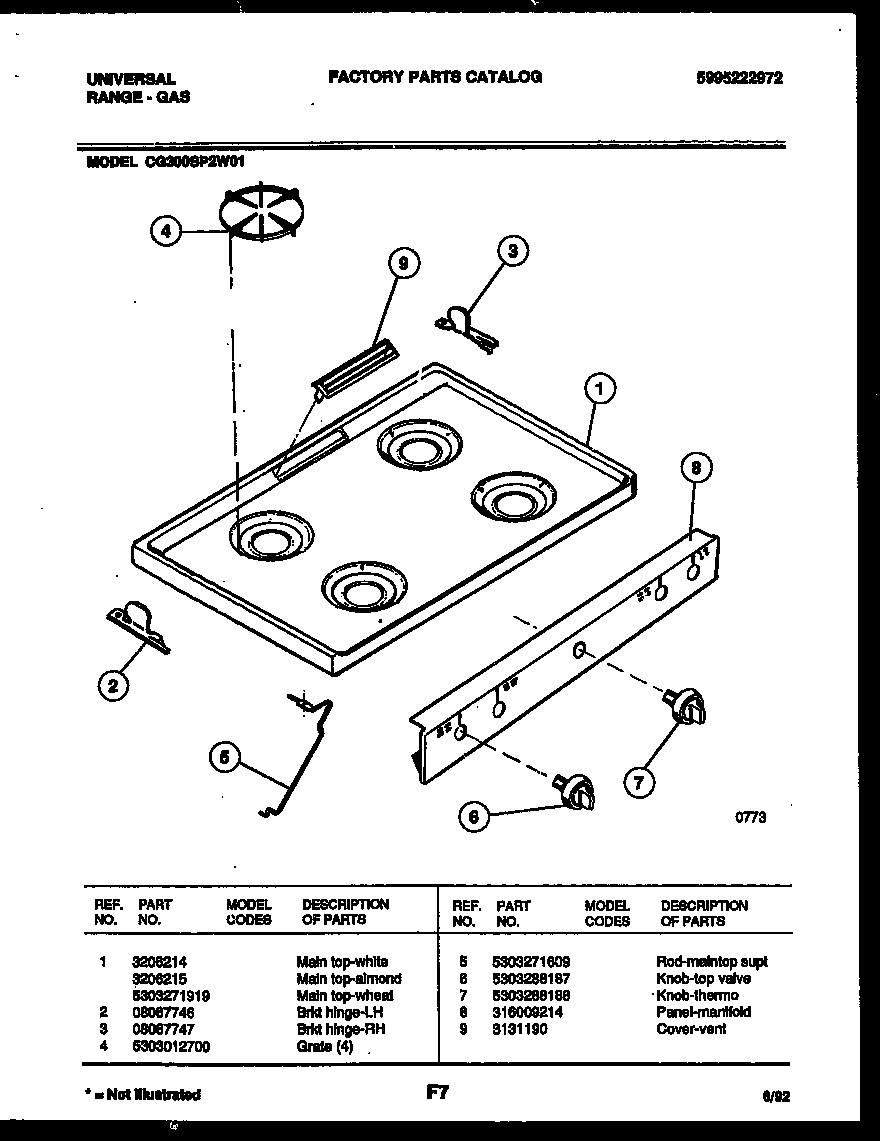

Cooktop parts diagram

Grate

Part #5303012700

Replaced by #316055800

?
Manufacturer substitution
This part replaces 5303012700. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Cover-flue 3131191
#16

Body parts diagram

Cover-flue

Part #3131191

This item is not returnable
$3.99
In Stock
Range Oven Burner Pilot Assembly 5303280589
#8

Burner, manifold and gas control diagram

Range oven burner pilot assembly

Part #5303280589

$95.59
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
#15

Body parts diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
