Tecumseh
Lawn & Garden Engine

Model # TYPE 640-07B Official Tecumseh engine

Here are the diagrams and repair parts for Official Tecumseh TYPE-640-07B engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Seal 510105
#12

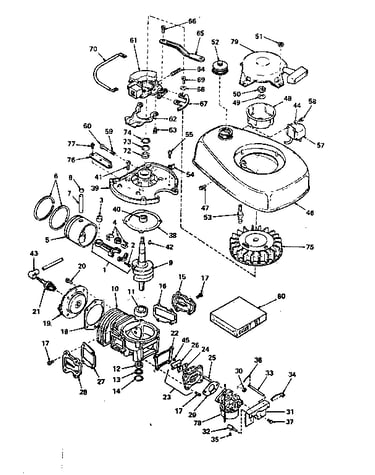

Basic engine diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Crnksft Seal 510242
#72

Basic engine diagram

Crnksft seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

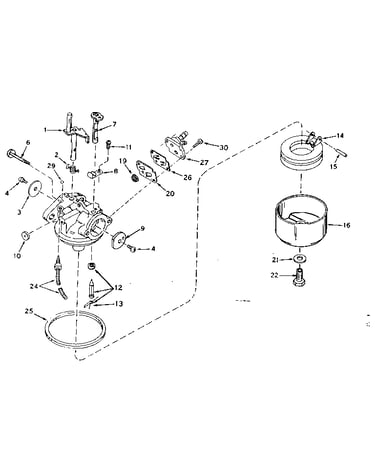

Carburetor diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Dog Sprng Rh 590412
#5

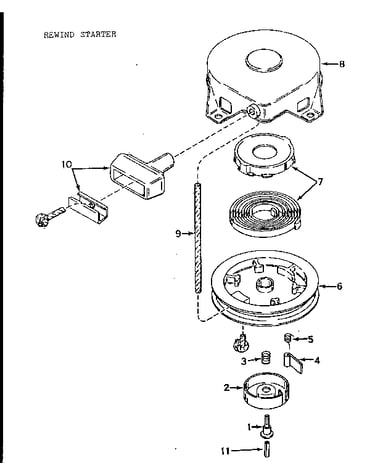

Rewind starter diagram

Dog sprng rh

Part #590412

The manufacturer no longer makes this part, and there's no substitute part

Retainer 510106
#13

Basic engine diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#14

Basic engine diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

Shutter 630758
#9

Carburetor diagram

Shutter

Part #630758

The manufacturer no longer makes this part, and there's no substitute part

Retainer 590410
#2

Rewind starter diagram

Retainer

Part #590410

The manufacturer no longer makes this part, and there's no substitute part

Brake Spring 590411
#3

Rewind starter diagram

Brake spring

Part #590411

The manufacturer no longer makes this part, and there's no substitute part

Ring Set 310239
#6

Basic engine diagram

Ring set

Part #310239

The manufacturer no longer makes this part, and there's no substitute part
