Model # BV200 TYPE 1 (RECON) Official Weed Eater blower

Here are the diagrams and repair parts for Official Weed Eater BV200-TYPE-1-RECON blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

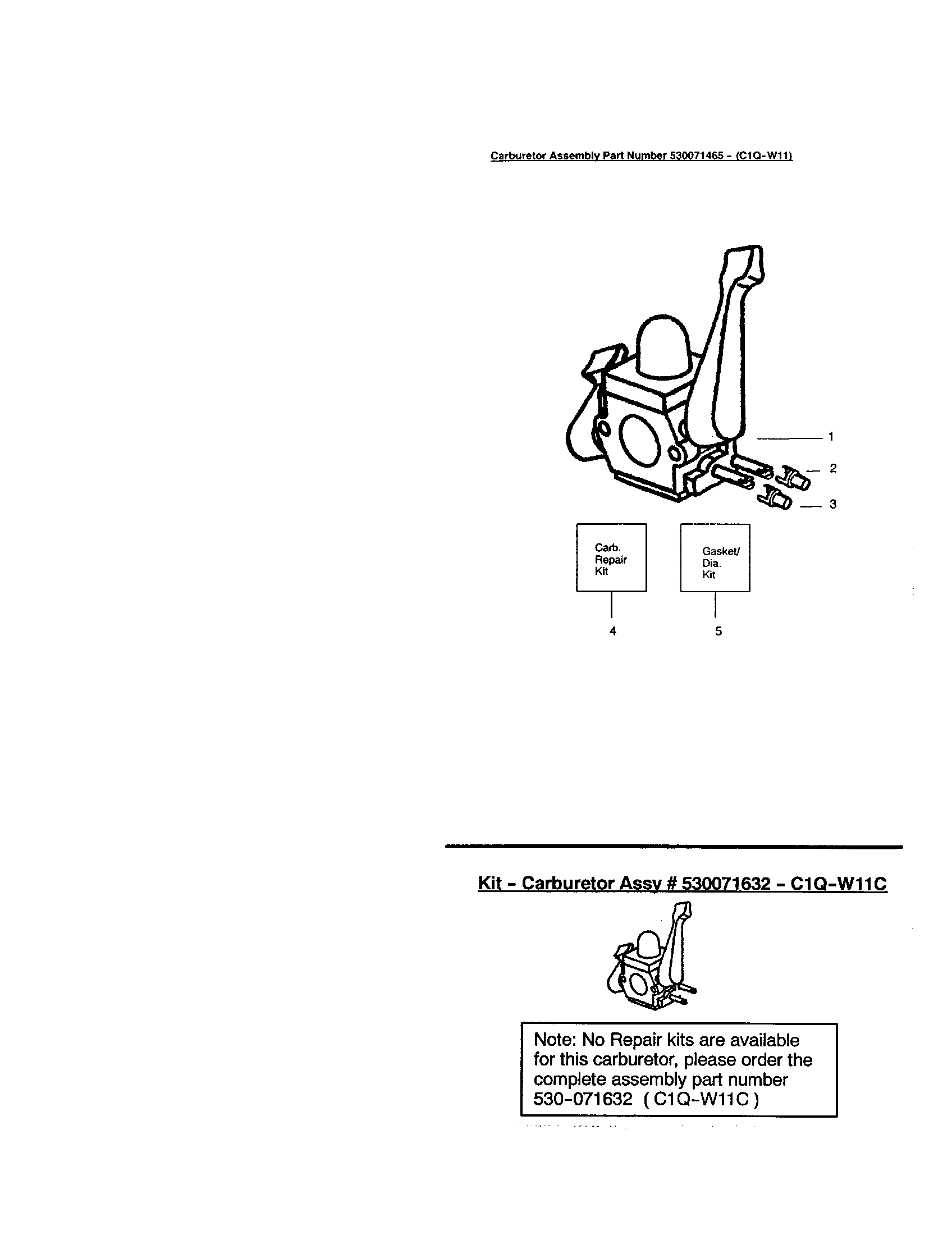

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#32

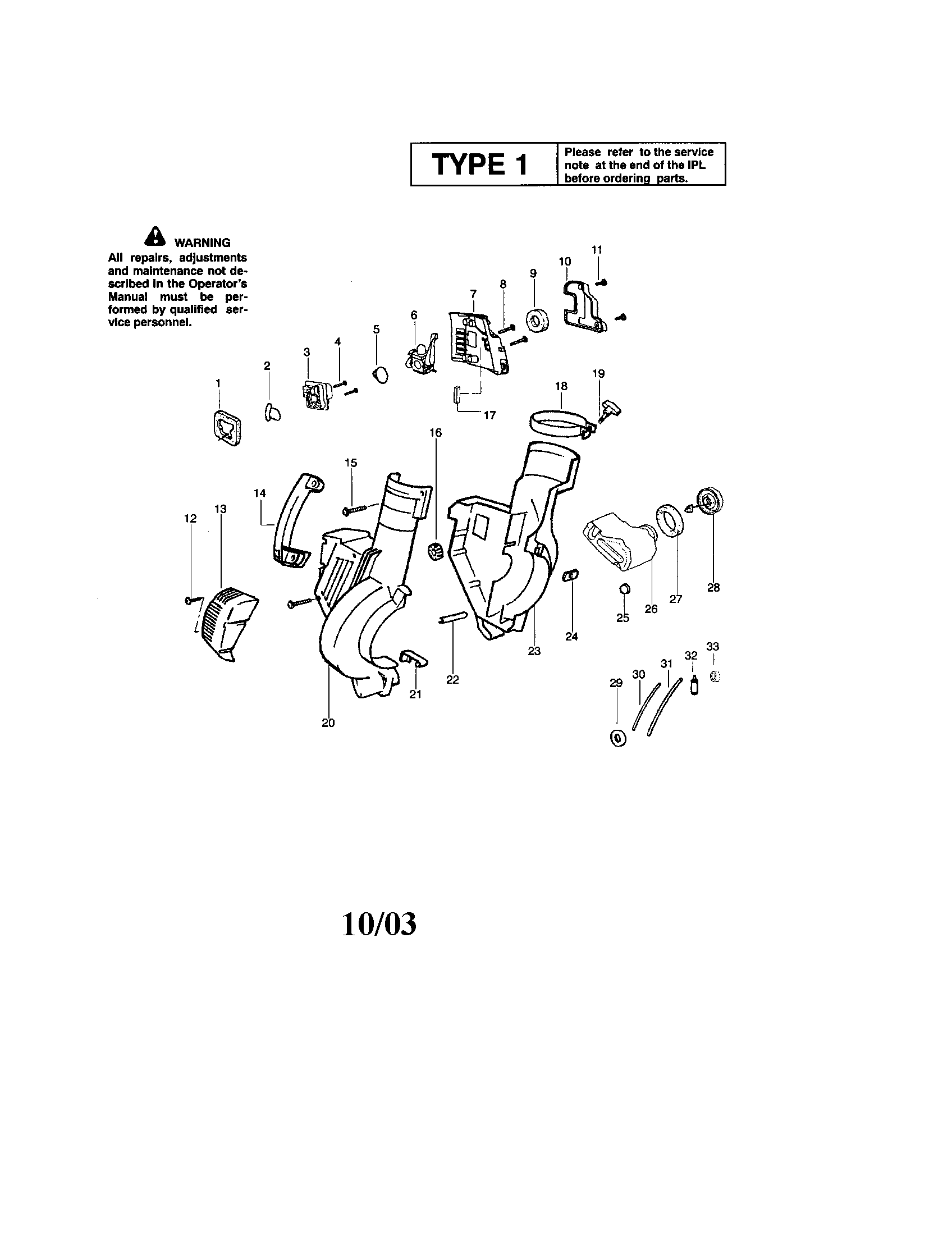

Housing/crankcase/fuel tank diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#30

Housing/crankcase/fuel tank diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#31

Housing/crankcase/fuel tank diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Leaf Blower Vacuum Bag (replaces 530-095564, 530095599, 53095564) 530095564
#1

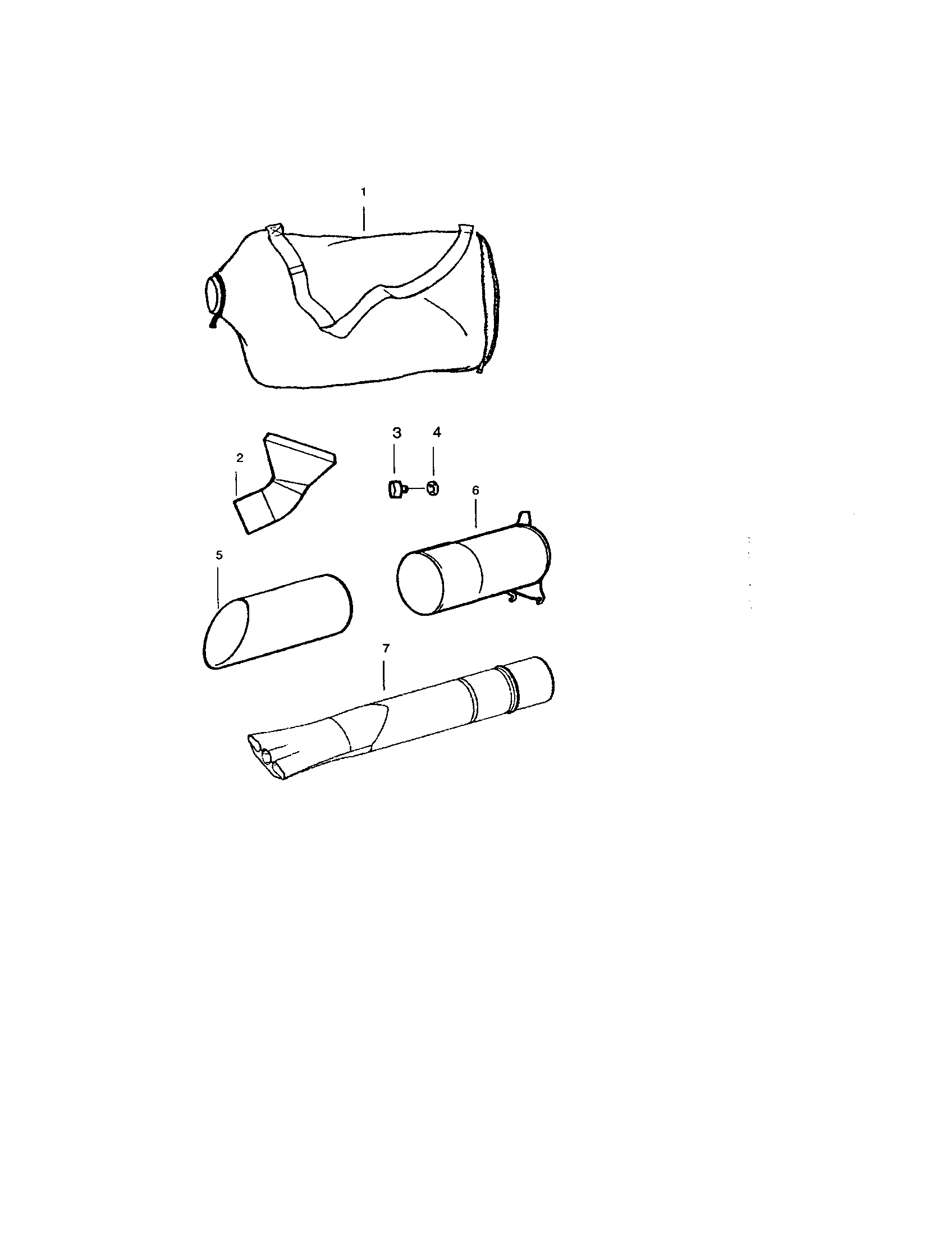

Vacuum diagram

Leaf blower vacuum bag (replaces 530-095564, 530095599, 53095564)

Part #530095564

BEST SELLER

Get free shipping with Automatic Reorder

$35.25 |
15% OFF Phone Price : $41.25
In Stock
Piston Kit 530069812
#15

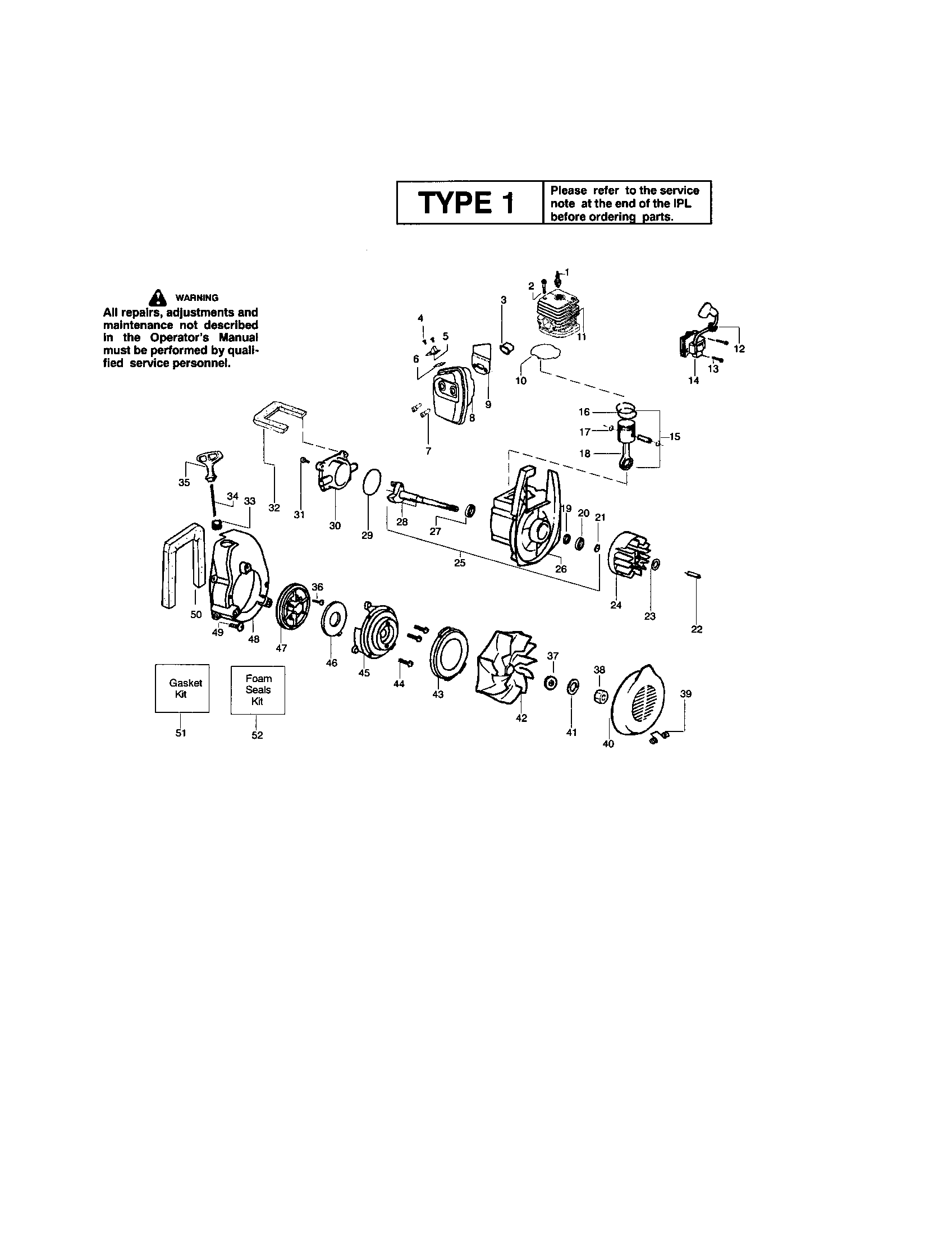

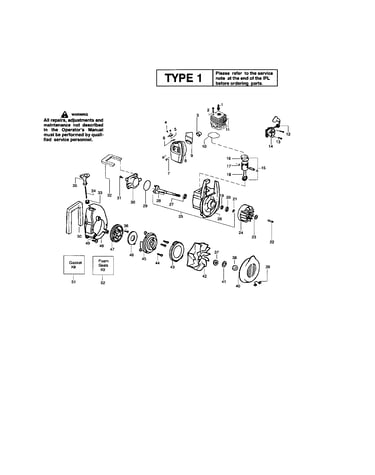

Cylinder/flywheel/crankshaft diagram

Piston kit

Part #530069812

Replaced by #530071833

?
Manufacturer substitution
This part replaces 530069812. Substitute parts can look different from the original.
$30.33 |
17% OFF Phone Price : $36.33
In Stock
Lawn & Garden Equipment Head Bolt 530015953
Lawn & garden equipment head bolt

Part #530015953

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Muffler Screw 530016341
#7

Cylinder/flywheel/crankshaft diagram

Muffler screw

Part #530016341

Replaced by #530015953

?
Manufacturer substitution
This part replaces 530016341. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Line Trimmer Engine Piston Pin 530015162
#17

Cylinder/flywheel/crankshaft diagram

Line trimmer engine piston pin

Part #530015162

This item is not returnable
$5.54
In Stock
Lawn & Garden Equipment Screw 530015886
#15

Housing/crankcase/fuel tank diagram

Lawn & garden equipment screw

Part #530015886

This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Lawn & Garden Equipment Screw 530016357
#13

Cylinder/flywheel/crankshaft diagram

Lawn & garden equipment screw

Part #530016357

This item is not returnable
$5.54
In Stock
