Porter Cable
Reciprocating Saw

Model # 7600 Official Porter Cable shear

Here are the diagrams and repair parts for Official Porter Cable 7600 shear, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Reliever 810882
#100

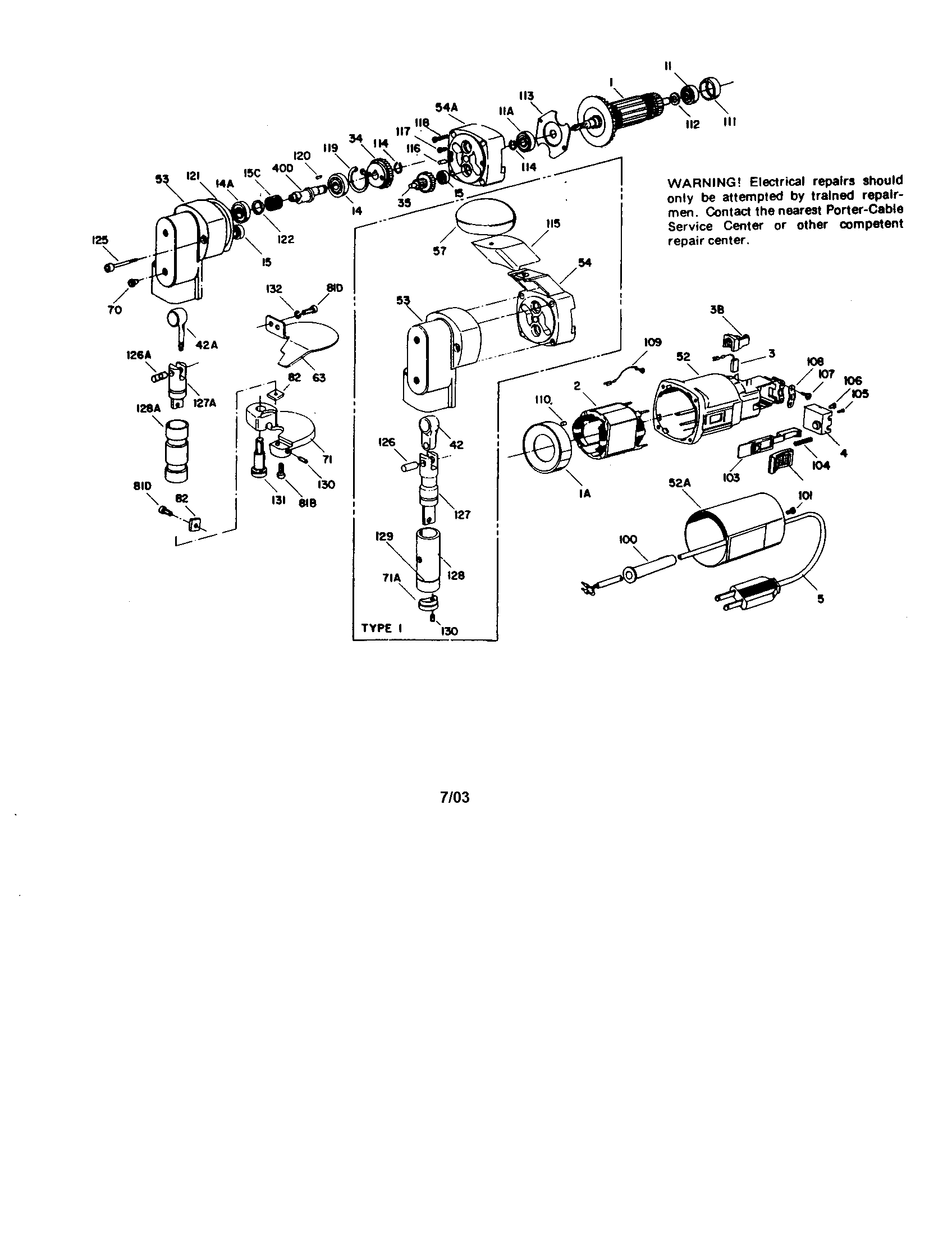

Shear diagram

Reliever

Part #810882

The manufacturer no longer makes this part, and there's no substitute part

Switch Activator 1257036
#103

Shear diagram

Switch activator

Part #1257036

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 1257022
#52

Shear diagram

Motor housing

Part #1257022

The manufacturer no longer makes this part, and there's no substitute part

Spring 1257037
#104

Shear diagram

Spring

Part #1257037

The manufacturer no longer makes this part, and there's no substitute part

Key 1257053
#120

Shear diagram

Key

Part #1257053

The manufacturer no longer makes this part, and there's no substitute part

Armature, Incl. 114, 11a, 113, 112, 11, 111 1257000
#1

Shear diagram

Armature, incl. 114, 11a, 113, 112, 11, 111

Part #1257000

The manufacturer no longer makes this part, and there's no substitute part

Connector Pin, T2 1257080
#126A

Shear diagram

Connector pin, t2

Part #1257080

The manufacturer no longer makes this part, and there's no substitute part

Pressure Plug 1257042
#110

Shear diagram

Pressure plug

Part #1257042

The manufacturer no longer makes this part, and there's no substitute part

Endshield 1257023
#52A

Shear diagram

Endshield

Part #1257023

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 1257035
#102

Shear diagram

Switch button

Part #1257035

The manufacturer no longer makes this part, and there's no substitute part
