Magic Chef
Electric Cooktop

Model # 8610PT Official Magic Chef electric counter unit cooktop

Here are the diagrams and repair parts for Official Magic Chef 8610PT electric counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

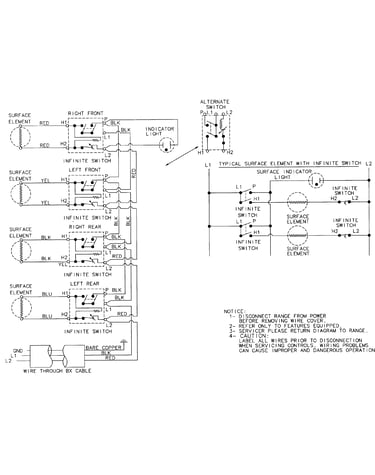

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Drip Bowl 74001213
#3

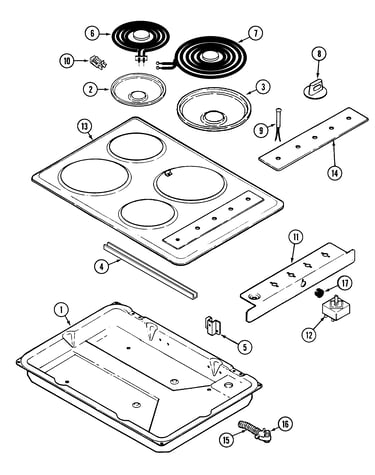

Top assembly (8610pt) diagram

Drip bowl

Part #74001213

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 74001213. Substitute parts can look different from the original.
BEST SELLER
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Surface Element 74007161
#6A

Top assembly (8610pt) diagram

Surface element

Part #74007161

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 74007161. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Drip Bowl 74001212
#2

Top assembly (8610pt) diagram

Drip bowl

Part #74001212

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 74001212. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Infinite Knob 74002067
#8

Top assembly (8610pt) diagram

Infinite knob

Part #74002067

Replaced by #WP7737P026-60

?
Manufacturer substitution
This part replaces 74002067. Substitute parts can look different from the original.
This item is not returnable
$22.65 |
21% OFF Phone Price : $28.65
In Stock
Surface Element 74007160
#7A

Top assembly (8610pt) diagram

Surface element

Part #74007160

Replaced by #WP3191454

?
Manufacturer substitution
This part replaces 74007160. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
Infinite Switch 7403P027-60
#12

Top assembly (8610pt) diagram

Infinite switch

Part #7403P027-60

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 7403P027-60. Substitute parts can look different from the original.
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Receptacle 1430306K
#10

Top assembly (8610pt) diagram

Receptacle

Part #1430306K

Replaced by #12001676

?
Manufacturer substitution
This part replaces 1430306K. Substitute parts can look different from the original.
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Control Bracket 3801F072-45
#15A

Top assembly (8610pt) diagram

Control bracket

Part #3801F072-45

The manufacturer no longer makes this part, and there's no substitute part

Main Top 74005102
#13

Top assembly (8610pt) diagram

Main top

Part #74005102

The manufacturer no longer makes this part, and there's no substitute part

Connector, T 74003912
#16

Top assembly (8610pt) diagram

Connector, t

Part #74003912

The manufacturer no longer makes this part, and there's no substitute part
