Gas Line Trimmer

Model # 517798580 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 517798580 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Rope 97899-02
#9

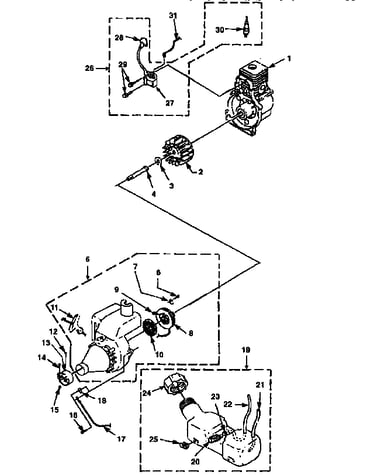

Starter assembly diagram

Rope

Part #97899-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 88060
#10

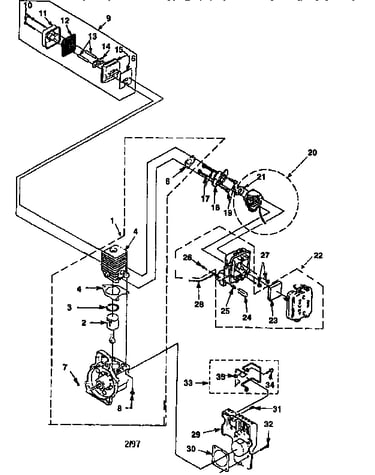

Cylinder assembly diagram

Screw

Part #88060

The manufacturer no longer makes this part, and there's no substitute part

Tubing 94772-32
#22

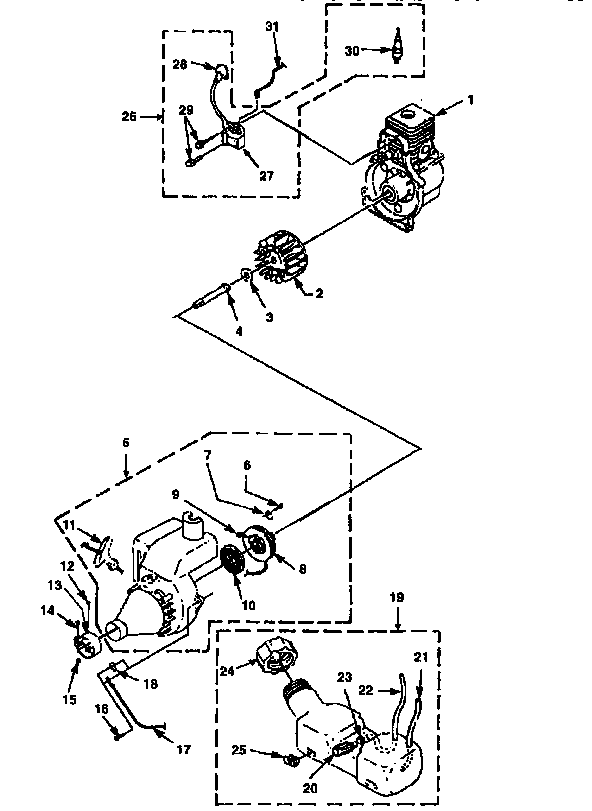

Starter assembly diagram

Tubing

Part #94772-32

The manufacturer no longer makes this part, and there's no substitute part

Thread Form Screw 82549-1
#19

Cylinder assembly diagram

Thread form screw

Part #82549-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 04474
#17

Cylinder assembly diagram

Screw

Part #04474

The manufacturer no longer makes this part, and there's no substitute part

Gasket 98767
#18

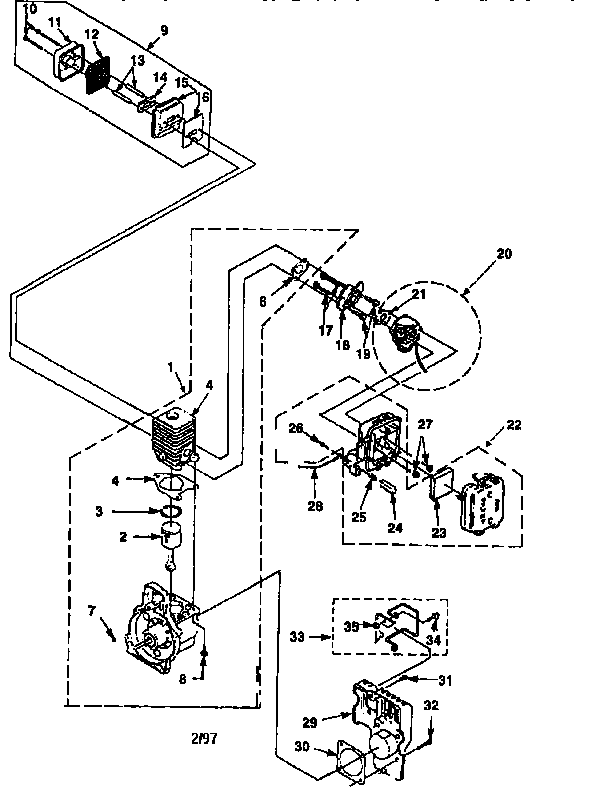

Cylinder assembly diagram

Gasket

Part #98767

The manufacturer no longer makes this part, and there's no substitute part

Head String DA-03001-A
#22

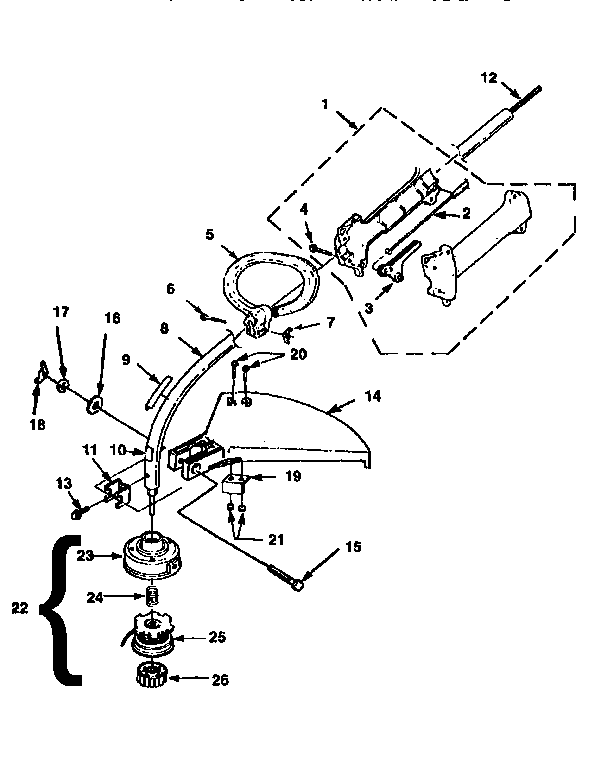

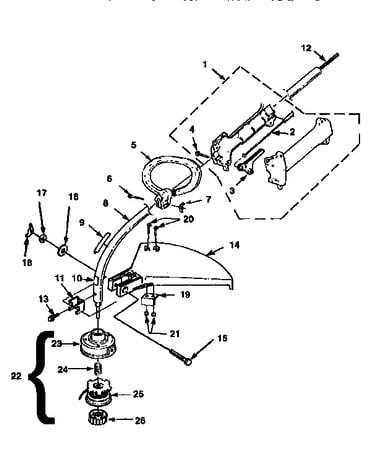

Handle and stringhead assembly diagram

Head string

Part #DA-03001-A

The manufacturer no longer makes this part, and there's no substitute part

Nut 97574
#15

Starter assembly diagram

Nut

Part #97574

The manufacturer no longer makes this part, and there's no substitute part

Muffler A-04837
#9

Cylinder assembly diagram

Muffler

Part #A-04837

The manufacturer no longer makes this part, and there's no substitute part

A/f & Switch A-04707
#22

Cylinder assembly diagram

A/f & switch

Part #A-04707

The manufacturer no longer makes this part, and there's no substitute part
