Amana
Top-Mount Refrigerator

Model # TC18GG-P75535-11W Official Amana top-mount refrigerator

Here are the diagrams and repair parts for Official Amana TC18GG-P75535-11W top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

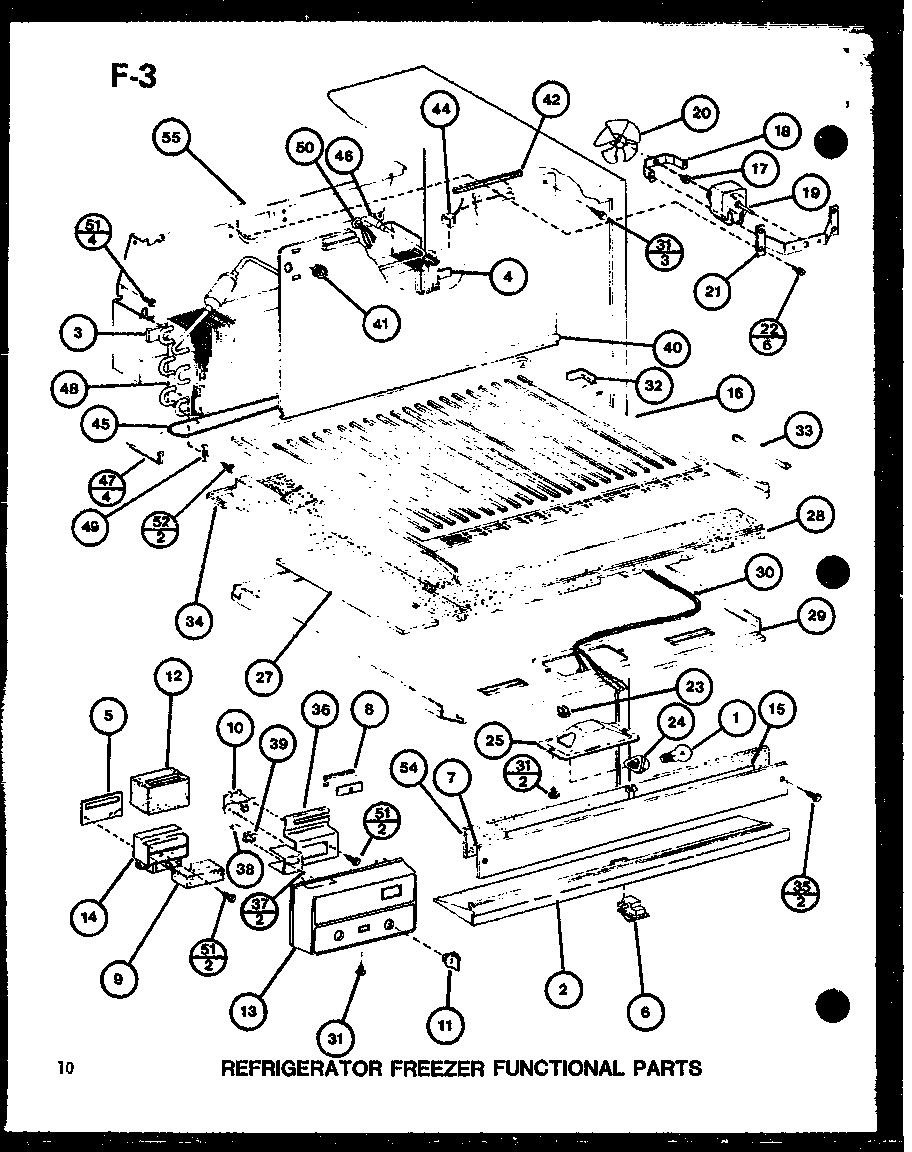

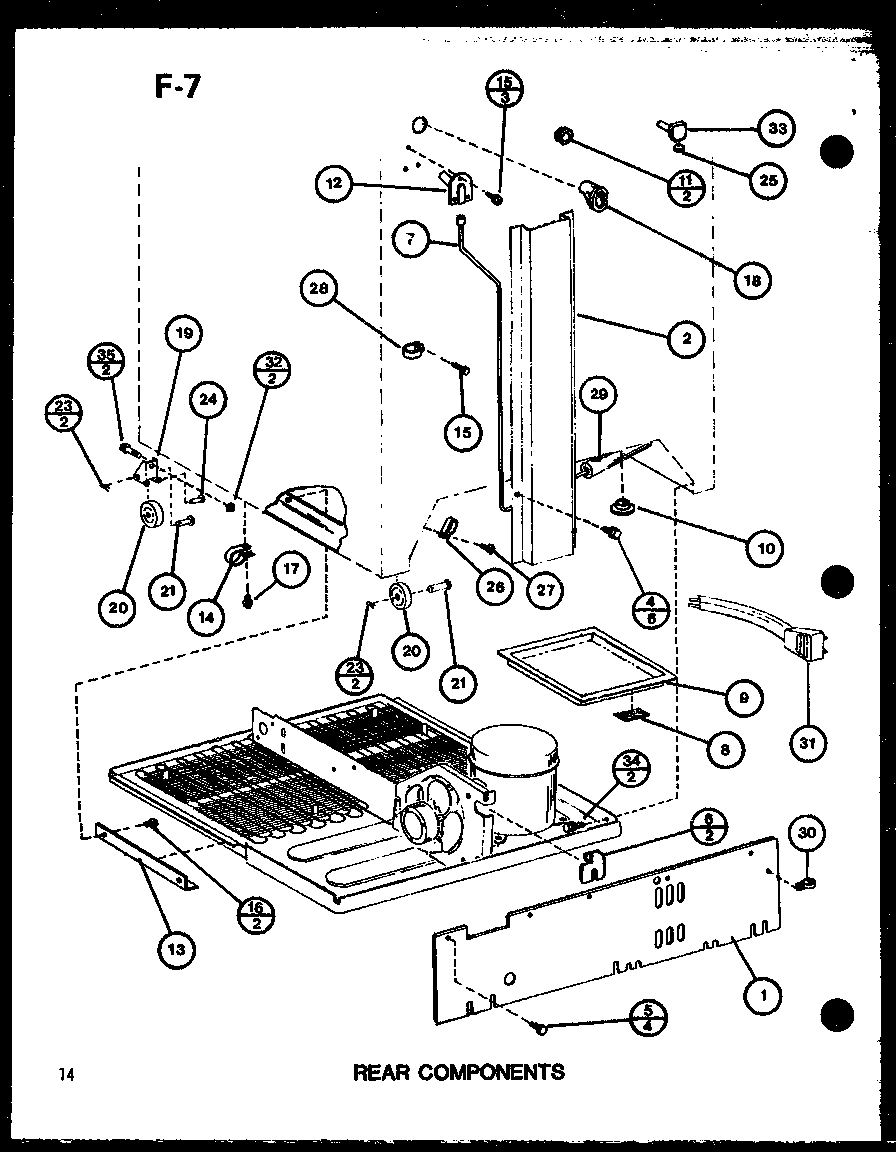

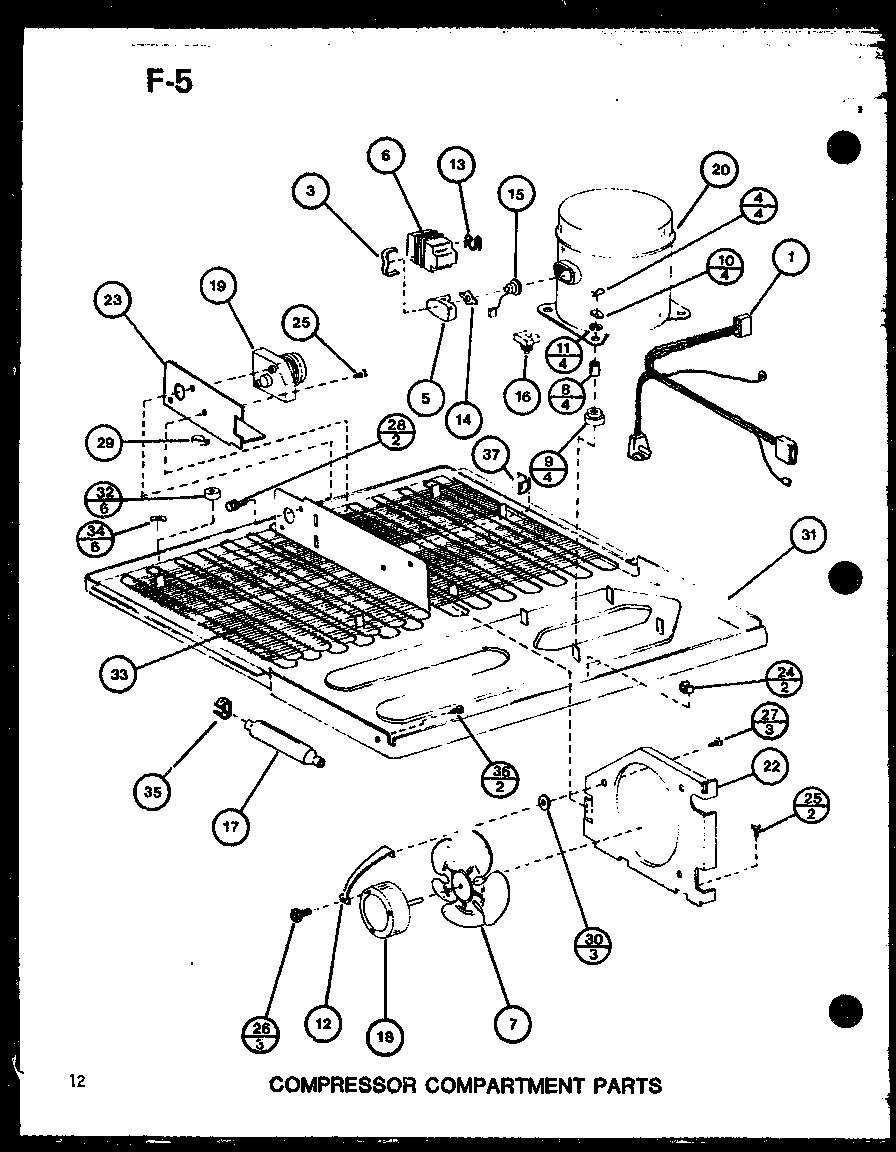

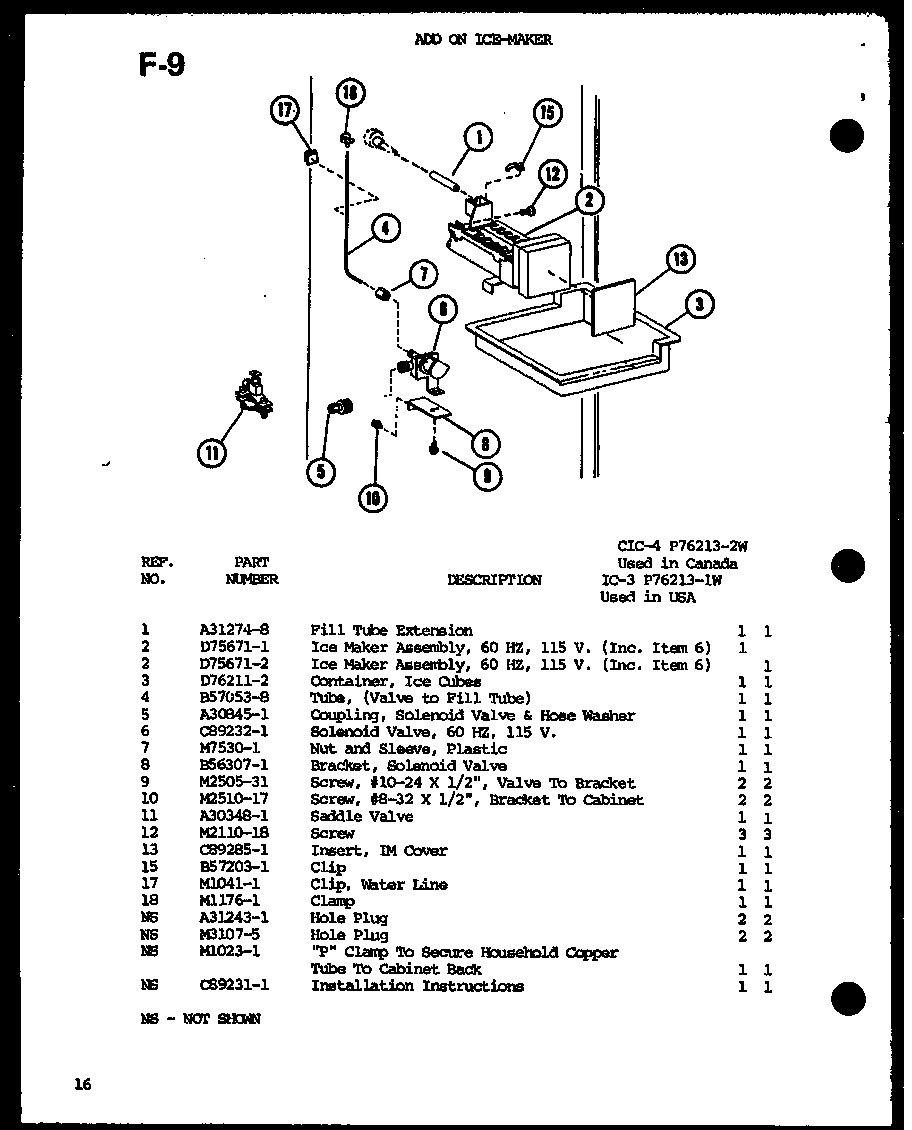

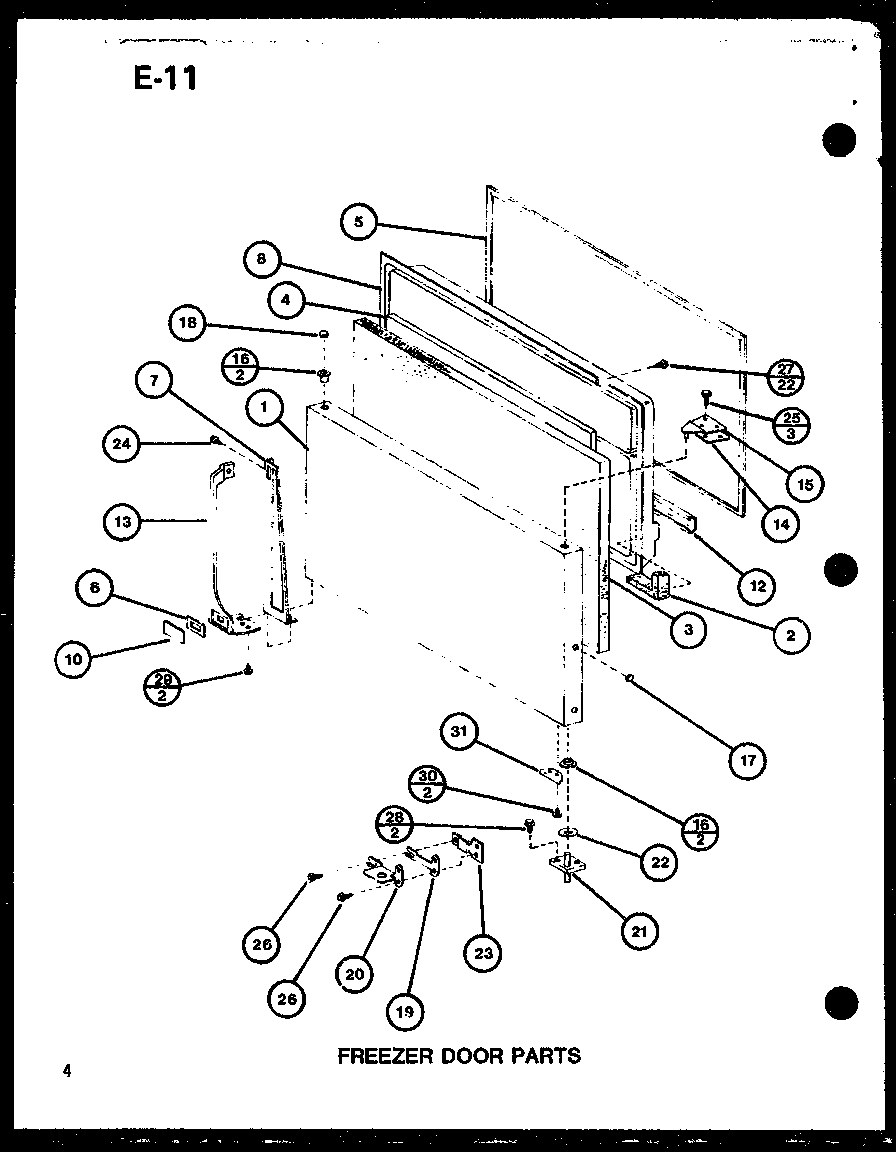

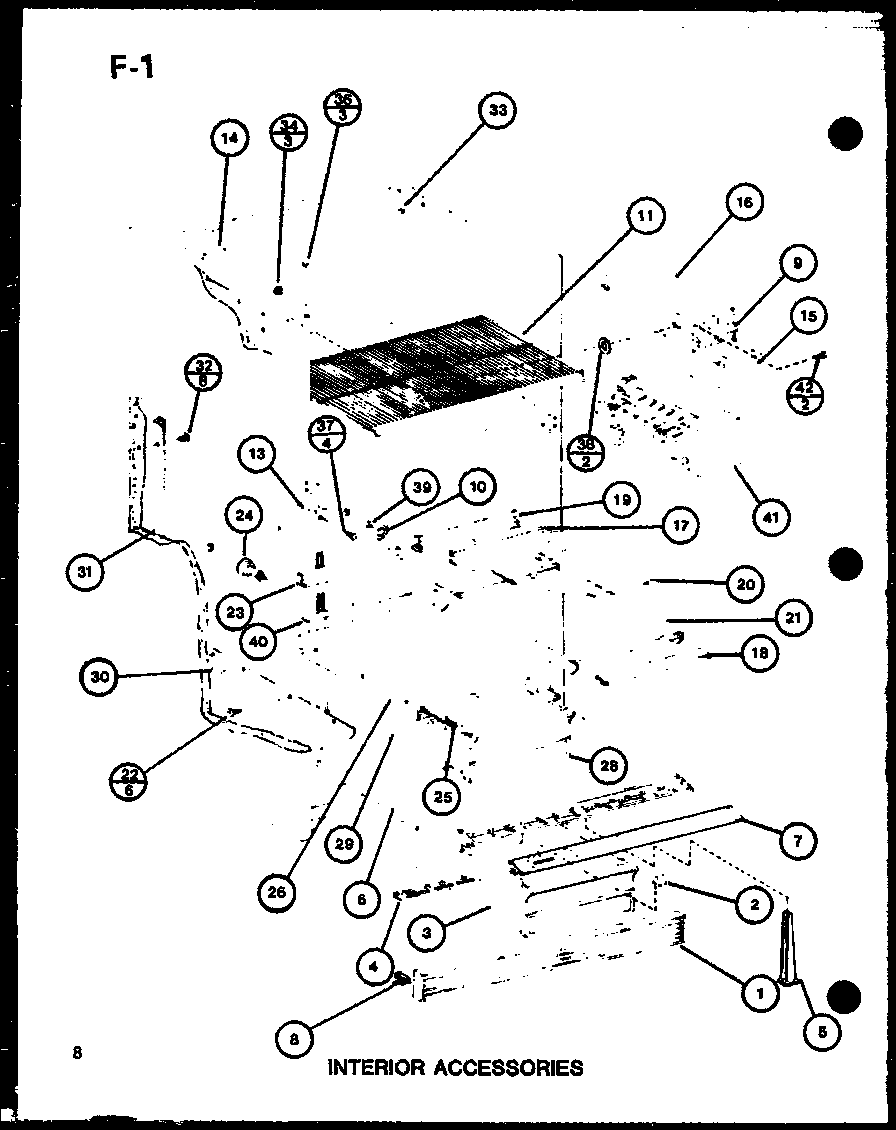

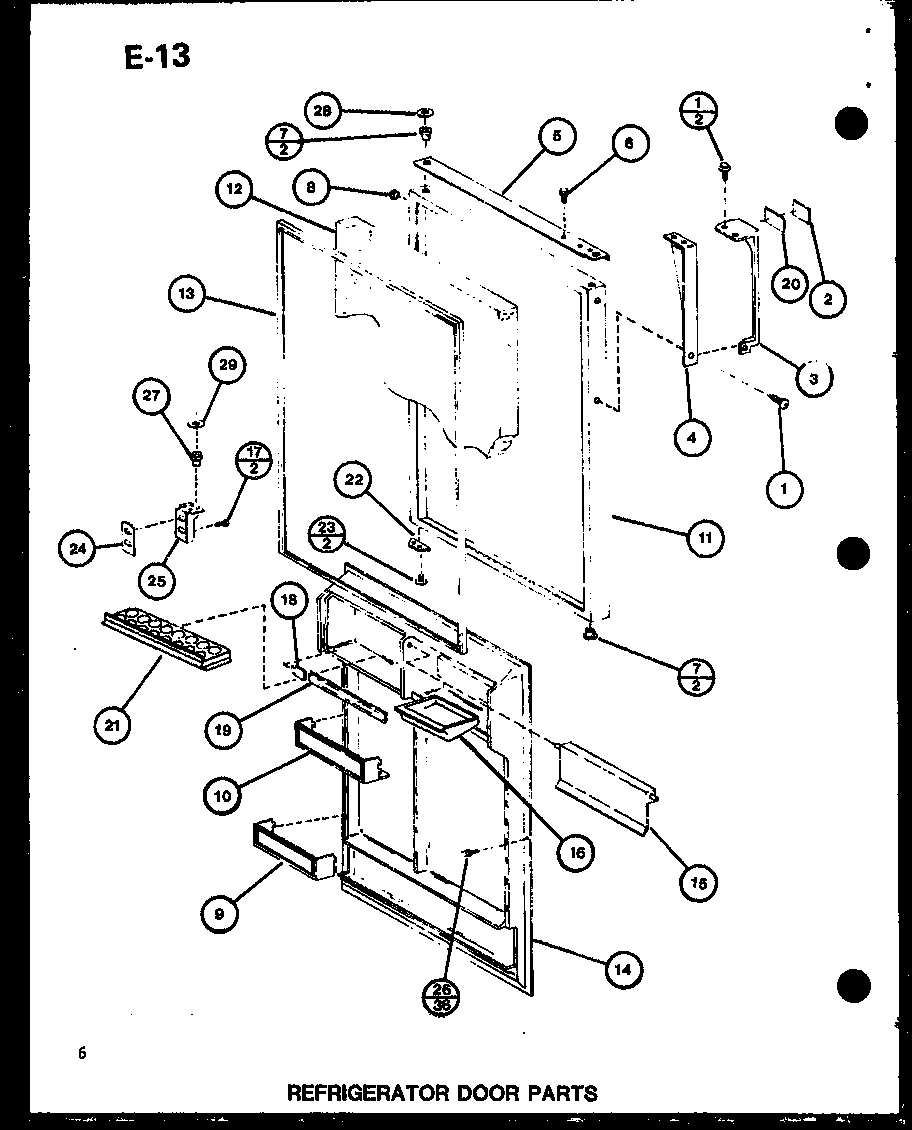

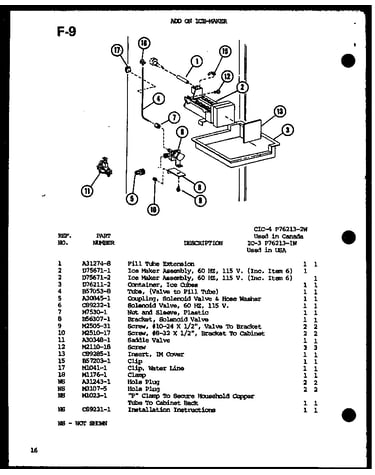

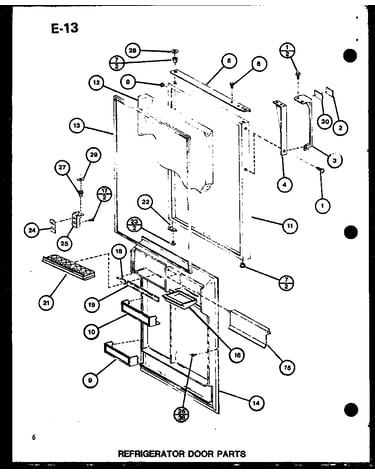

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Refrigerator Water Valve C8923201
#53

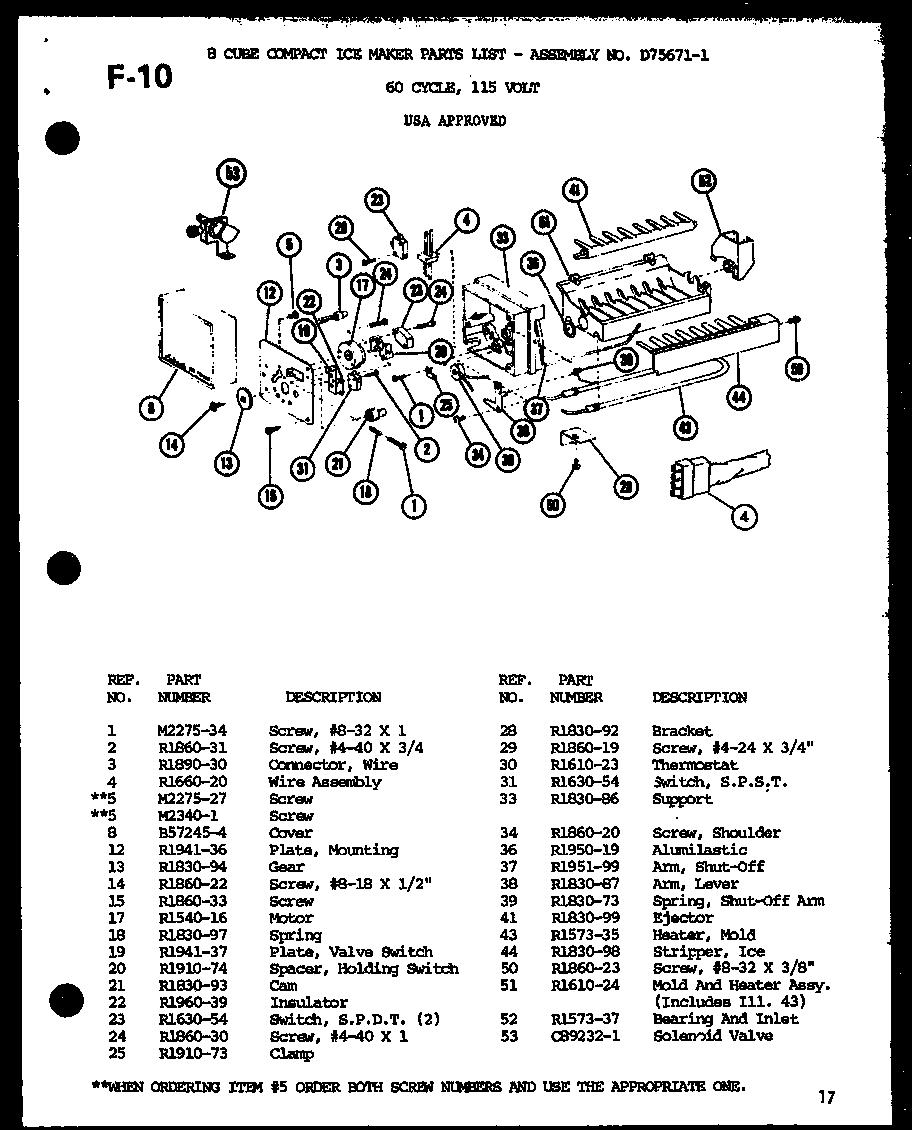

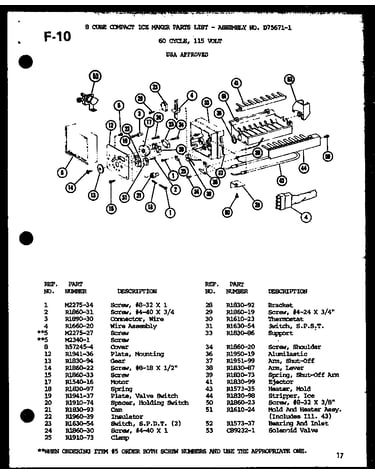

8 cube compact ice maker diagram

Refrigerator water valve

Part #C8923201

Replaced by #4318047

?
Manufacturer substitution
This part replaces C8923201. Substitute parts can look different from the original.
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Screw M0234001
#5B

8 cube compact ice maker diagram

Screw

Part #M0234001

Replaced by #W11084238

?
Manufacturer substitution
This part replaces M0234001. Substitute parts can look different from the original.
This item is not returnable
$3.79
In Stock
Gear R0183094
#13

8 cube compact ice maker diagram

Gear

Part #R0183094

The manufacturer no longer makes this part, and there's no substitute part

Stripper R0183098
#44

8 cube compact ice maker diagram

Stripper

Part #R0183098

The manufacturer no longer makes this part, and there's no substitute part

Harnes Wire R0166020
#4

8 cube compact ice maker diagram

Harnes wire

Part #R0166020

The manufacturer no longer makes this part, and there's no substitute part

Thermostat R0161023
#30

8 cube compact ice maker diagram

Thermostat

Part #R0161023

The manufacturer no longer makes this part, and there's no substitute part

Inlet Kit R0157337
#52

8 cube compact ice maker diagram

Inlet kit

Part #R0157337

The manufacturer no longer makes this part, and there's no substitute part

Mold/heat As R0161024
#51

8 cube compact ice maker diagram

Mold/heat as

Part #R0161024

The manufacturer no longer makes this part, and there's no substitute part

Clamp R0191073
#25

8 cube compact ice maker diagram

Clamp

Part #R0191073

The manufacturer no longer makes this part, and there's no substitute part

Spring R0183097
#18

8 cube compact ice maker diagram

Spring

Part #R0183097

The manufacturer no longer makes this part, and there's no substitute part
