Frigidaire
Top-Mount Refrigerator

Model # FPD18TLFL0 Official Frigidaire top-mount refrigerator - lf30588150

Here are the diagrams and repair parts for Official Frigidaire FPD18TLFL0 top-mount refrigerator - lf30588150, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Refrigerator Timer 8006992
#14

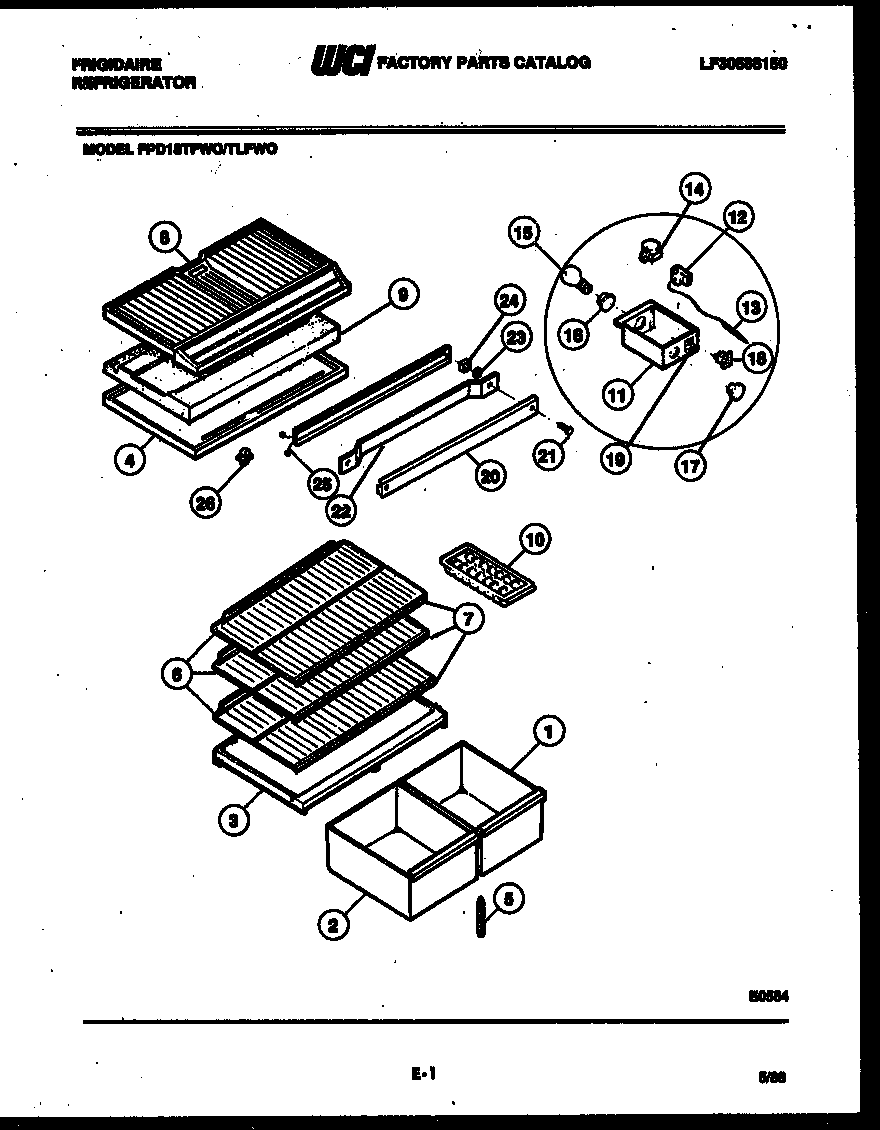

Shelves and supports diagram

Refrigerator timer

Part #8006992

Replaced by #215846602

?
Manufacturer substitution
This part replaces 8006992. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Motor 8004176
#2

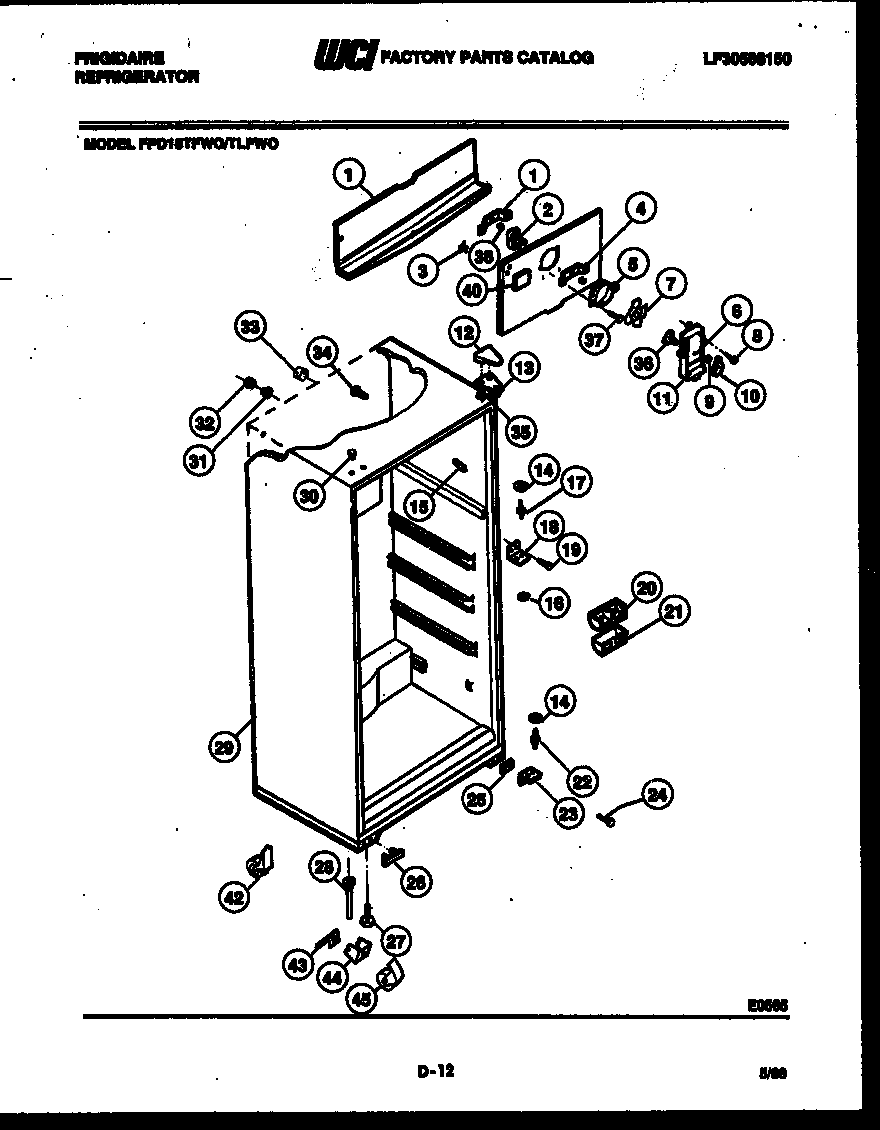

Cabinet parts diagram

Refrigerator motor

Part #8004176

Replaced by #5300158289

?
Manufacturer substitution
This part replaces 8004176. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Hinge Screw 8000123
#13A

Cabinet parts diagram

Refrigerator hinge screw

Part #8000123

Replaced by #241710601

?
Manufacturer substitution
This part replaces 8000123. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Grommet 8008778
#11

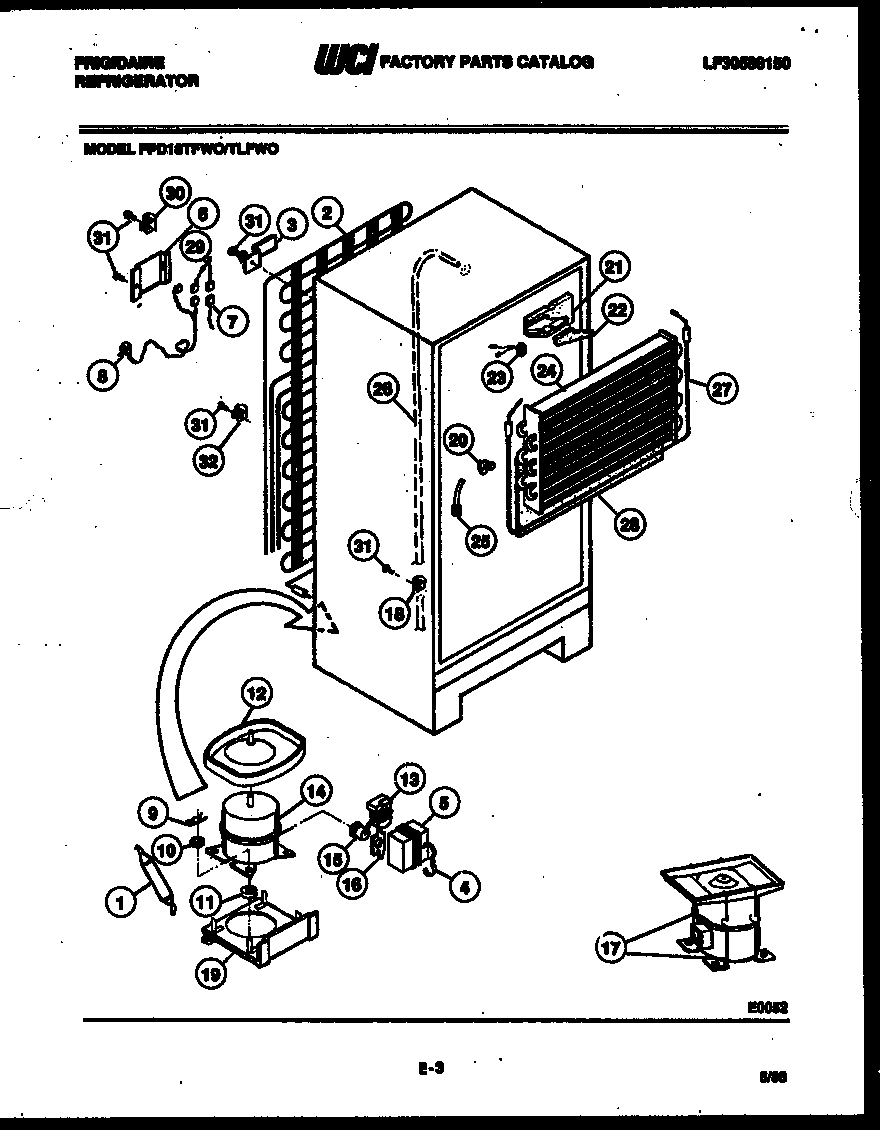

System and automatic defrost parts diagram

Grommet

Part #8008778

Replaced by #218513300

?
Manufacturer substitution
This part replaces 8008778. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Refrigerator Condenser Bracket 8003600
#3

System and automatic defrost parts diagram

Refrigerator condenser bracket

Part #8003600

Replaced by #5308000296

?
Manufacturer substitution
This part replaces 8003600. Substitute parts can look different from the original.
$23.96 |
20% OFF Phone Price : $29.96
In Stock
Refrigerator Timer Screw 8000008
#14A

Shelves and supports diagram

Refrigerator timer screw

Part #8000008

Replaced by #5304455649

?
Manufacturer substitution
This part replaces 8000008. Substitute parts can look different from the original.
$16.77
In Stock
Refrigerator Support 3017376
Refrigerator support

Part #3017376

Replaced by #5303323480

?
Manufacturer substitution
This part replaces 3017376. Substitute parts can look different from the original.
This item is not returnable
$13.97
In Stock
Refrigerator Support 3017379
Refrigerator support

Part #3017379

Replaced by #5303323481

?
Manufacturer substitution
This part replaces 3017379. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Refrigerator Support 8009804
#21A

Door parts diagram

Refrigerator support

Part #8009804

Replaced by #5303325991

?
Manufacturer substitution
This part replaces 8009804. Substitute parts can look different from the original.
This item is not returnable
$16.80
In Stock
Refrigerator Tubing 3001669
#13

Shelves and supports diagram

Refrigerator tubing

Part #3001669

Replaced by #5303916855

?
Manufacturer substitution
This part replaces 3001669. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
