Model # 155856754 Official Kenmore counterflow gas heater

Here are the diagrams and repair parts for Official Kenmore 155856754 counterflow gas heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

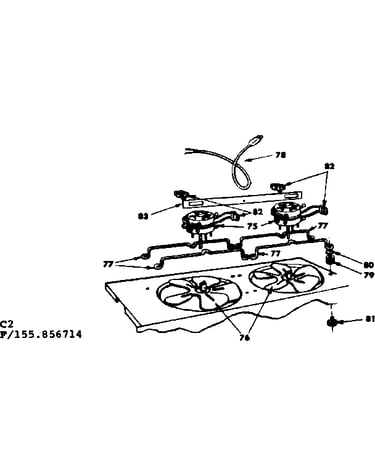

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Thermocouple K13724R
#36

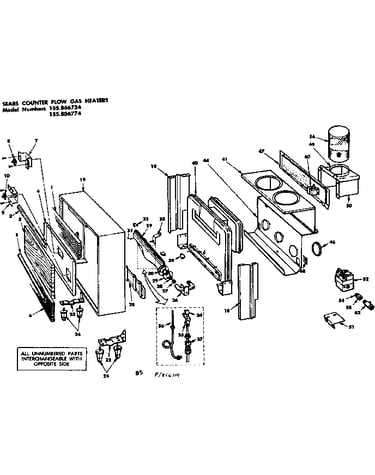

Replacement parts/856734-856774 diagram

Thermocouple

Part #K13724R

The manufacturer no longer makes this part, and there's no substitute part

Orifice K17335R
#27

Replacement parts/856734-856774 diagram

Orifice

Part #K17335R

The manufacturer no longer makes this part, and there's no substitute part

Natural Valve K17348R
Natural valve

Part #K17348R

The manufacturer no longer makes this part, and there's no substitute part

Wall Thermostat 429299

#NI

All parts diagram

Wall thermostat

Part #429299

The manufacturer no longer makes this part, and there's no substitute part

Pilot Burner K13725R
Pilot burner

Part #K13725R

The manufacturer no longer makes this part, and there's no substitute part

Fan Shield T19737R
#46

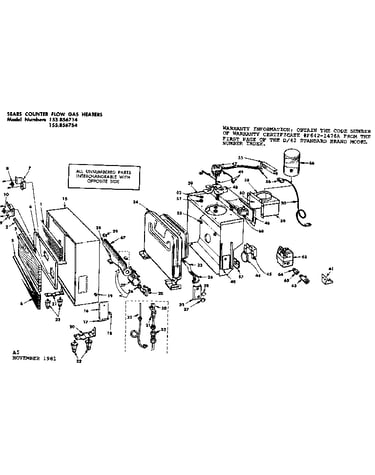

Replacement parts/856714-856754 diagram

Fan shield

Part #T19737R

The manufacturer no longer makes this part, and there's no substitute part

Panel K17216R
#3

Replacement parts/856714-856754 diagram

Panel

Part #K17216R

The manufacturer no longer makes this part, and there's no substitute part

Panel Z3334R

#NI

All parts diagram

Panel

Part #Z3334R

The manufacturer no longer makes this part, and there's no substitute part

Ribbon Assy Y11708R
#59

Replacement parts/856734-856774 diagram

Ribbon assy

Part #Y11708R

The manufacturer no longer makes this part, and there's no substitute part

Ribbon Assy Y12922R
#67

Replacement parts/856714-856754 diagram

Ribbon assy

Part #Y12922R

The manufacturer no longer makes this part, and there's no substitute part
