Samsung
Digital Camcorder

Model # SC-D455 Official Samsung digital camcorder

Here are the diagrams and repair parts for Official Samsung SC-D455 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

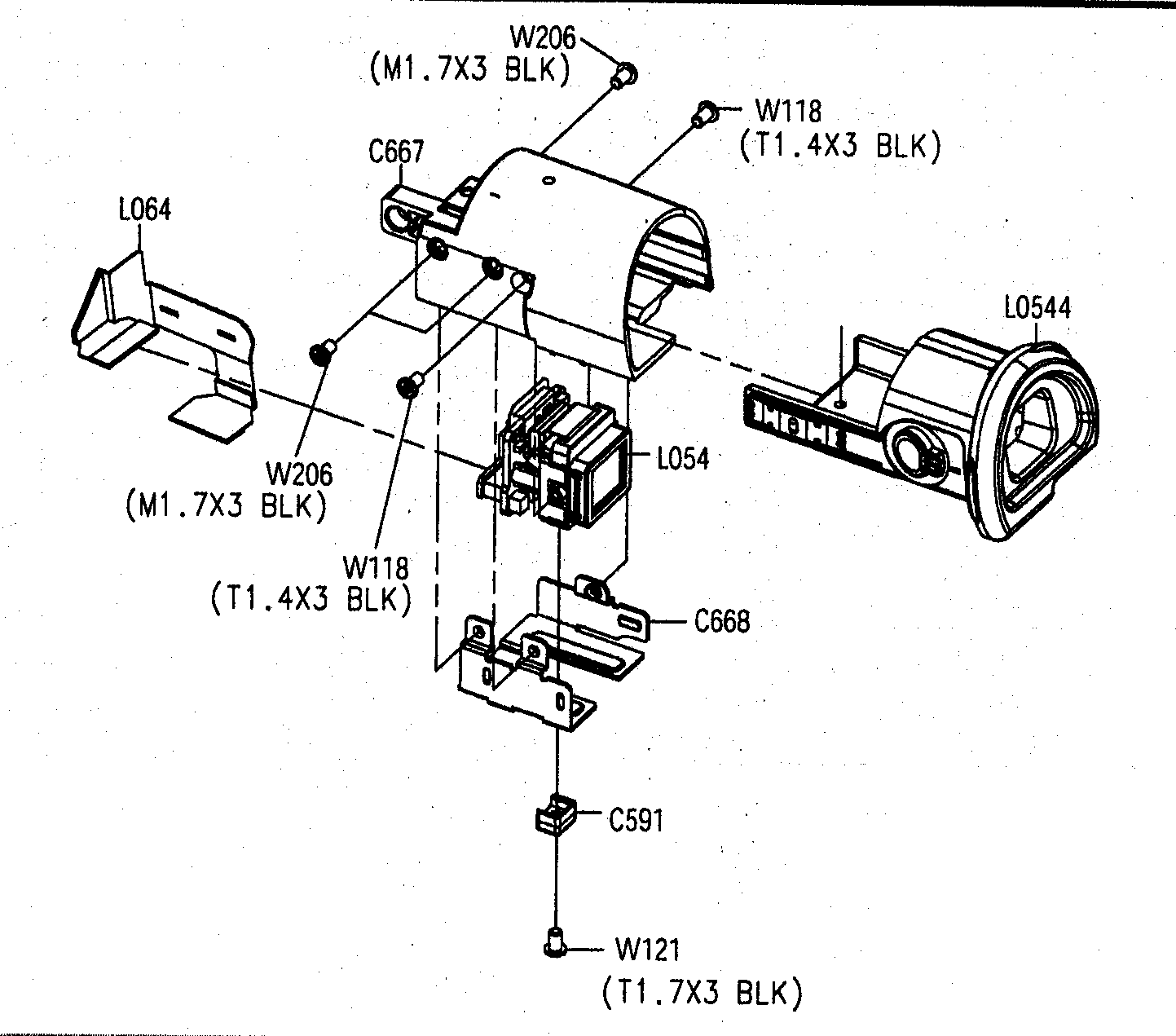

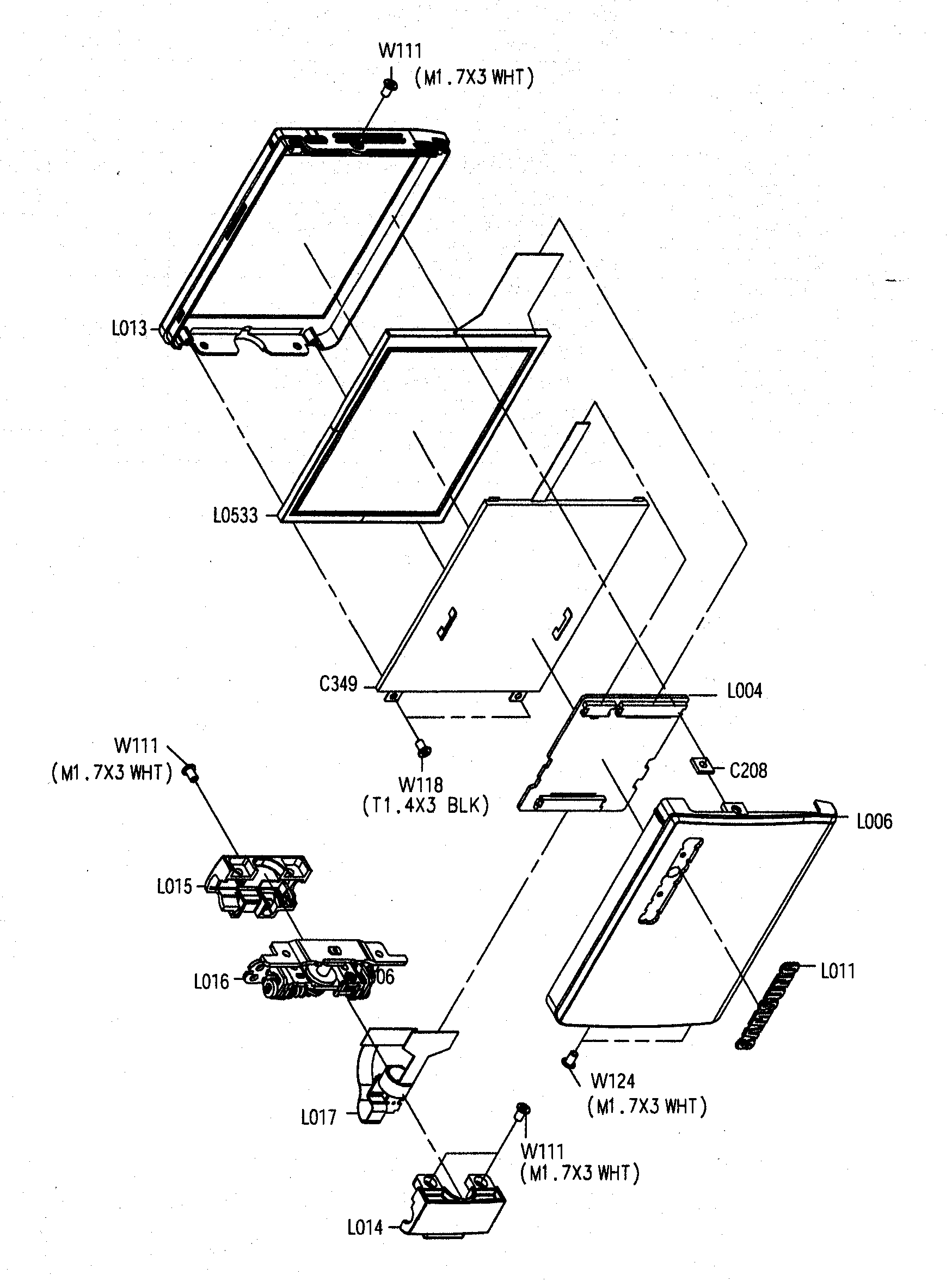

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Assembly Camcorder AD97-09648A
#C314

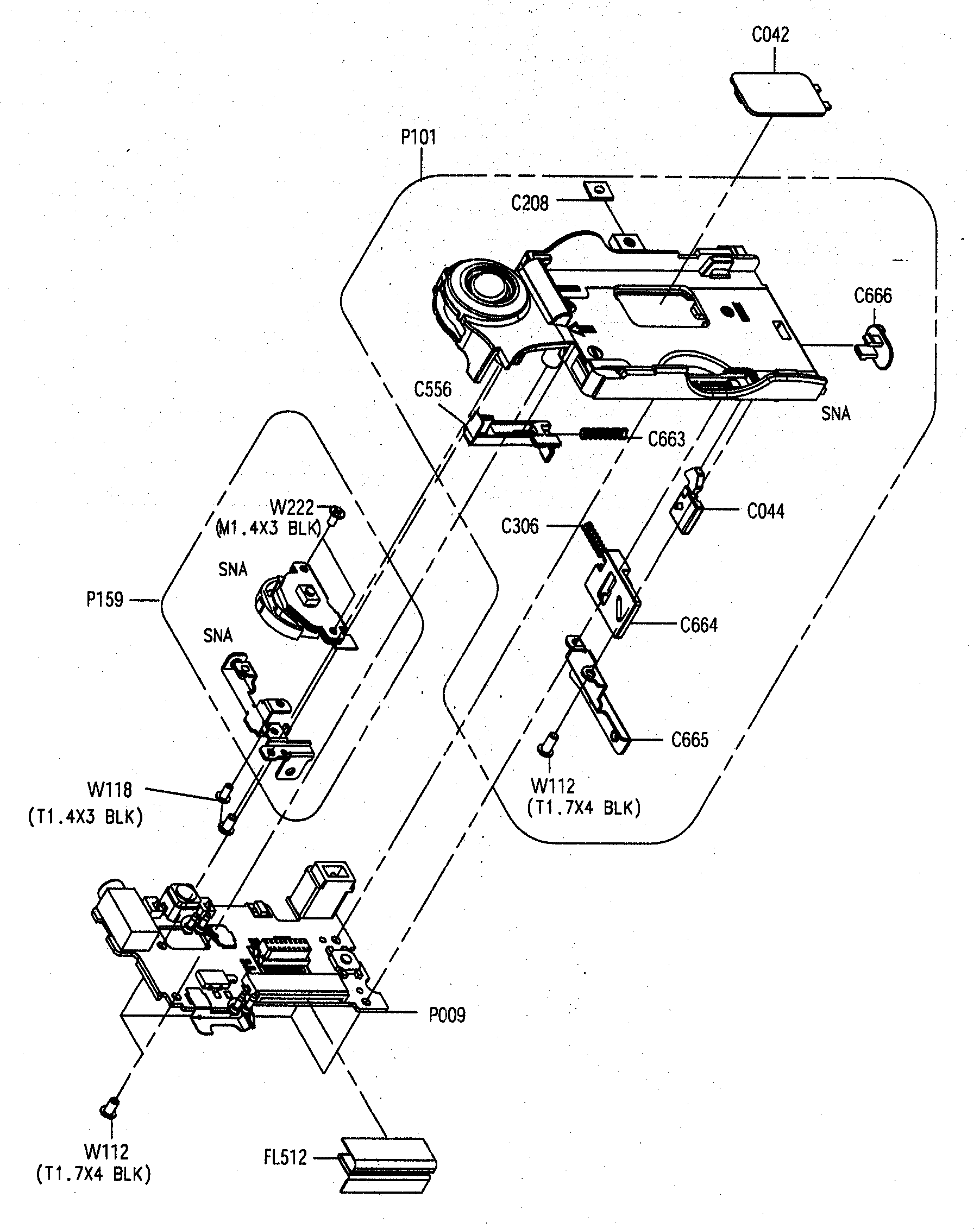

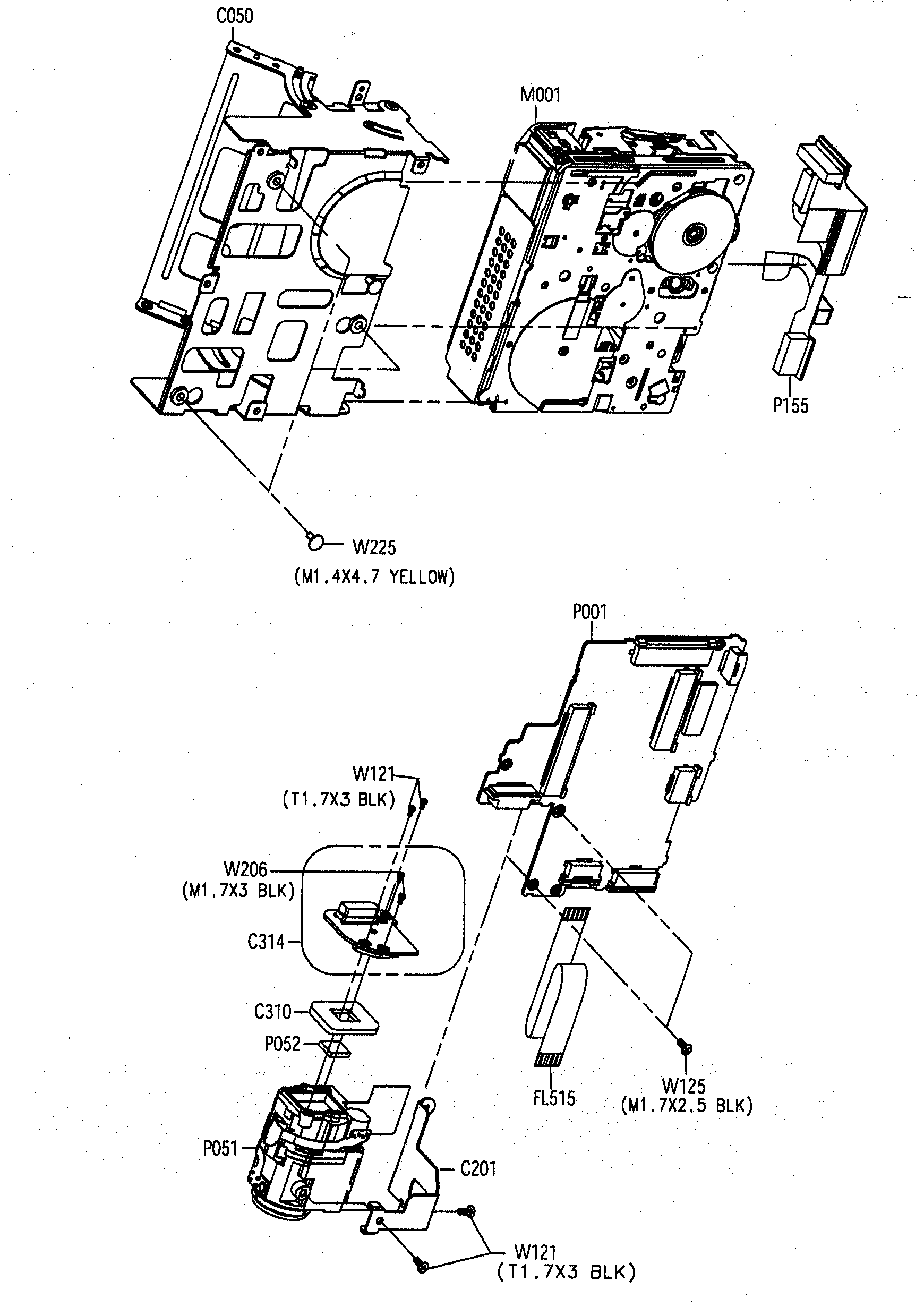

Chassis assy diagram

Assembly camcorder

Part #AD97-09648A

The manufacturer no longer makes this part, and there's no substitute part

Dummy Left AD97-09696A
#P157

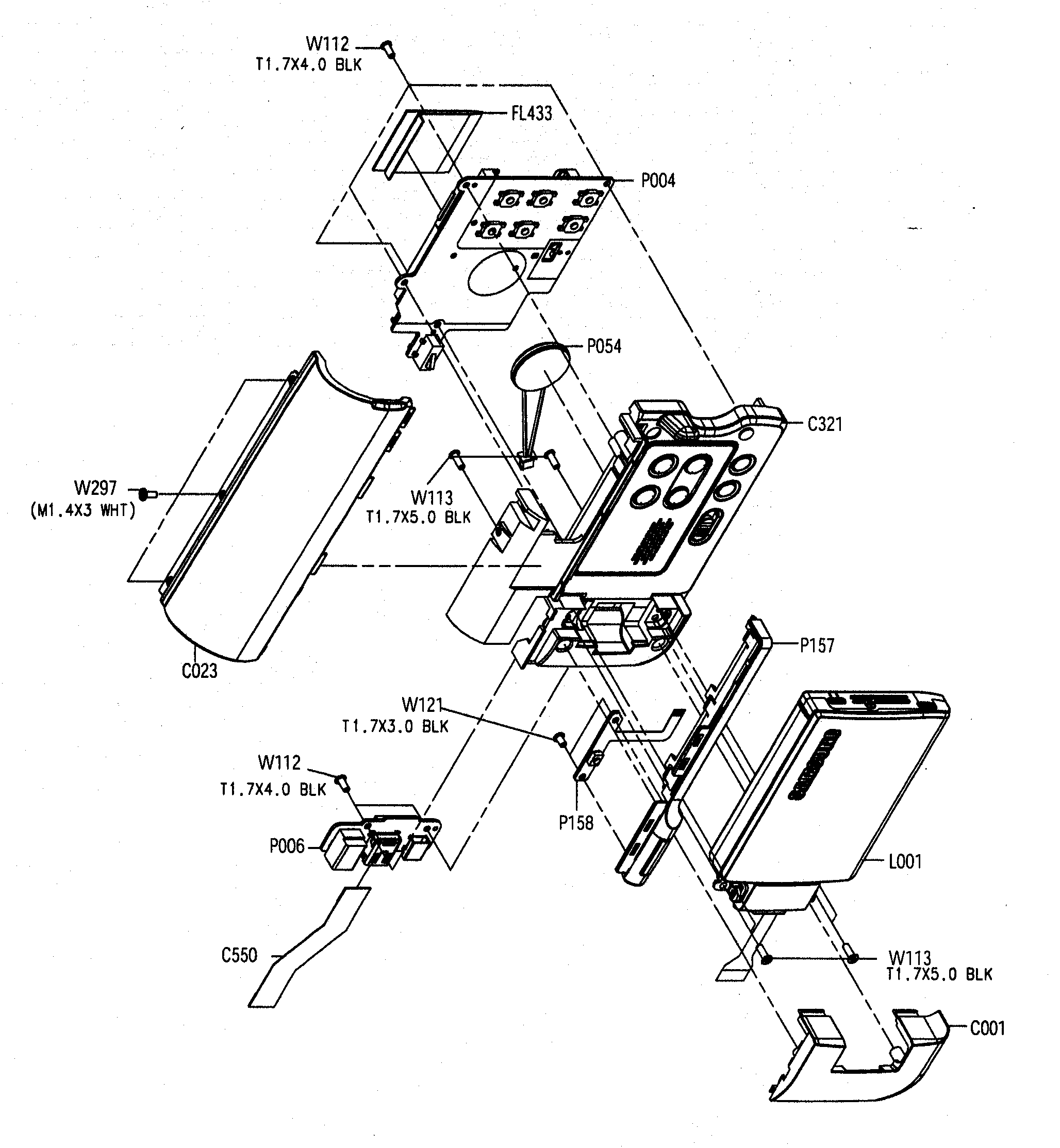

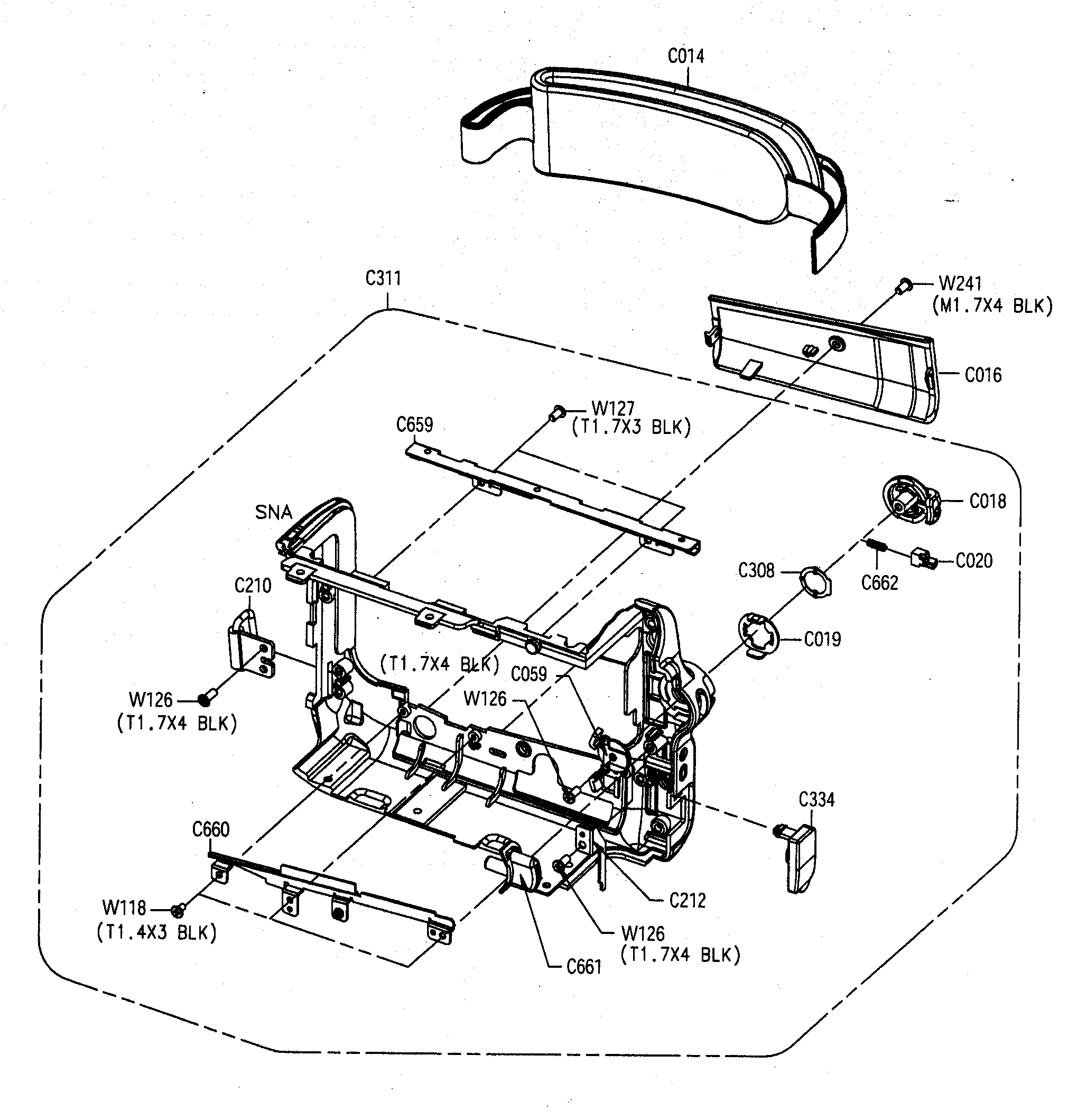

Left cabinet assy diagram

Dummy left

Part #AD97-09696A

The manufacturer no longer makes this part, and there's no substitute part

Case L AD97-09715A
#P091

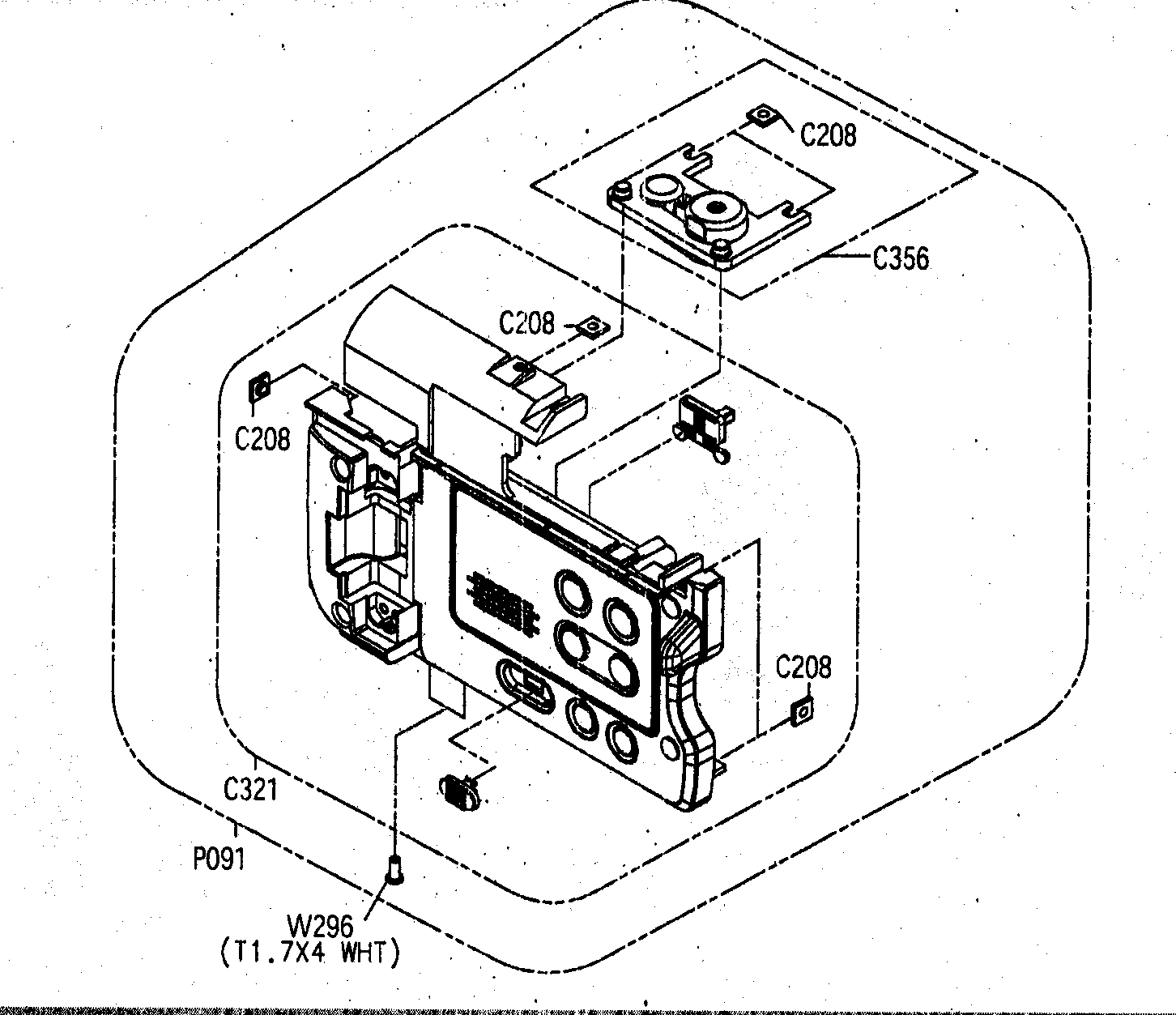

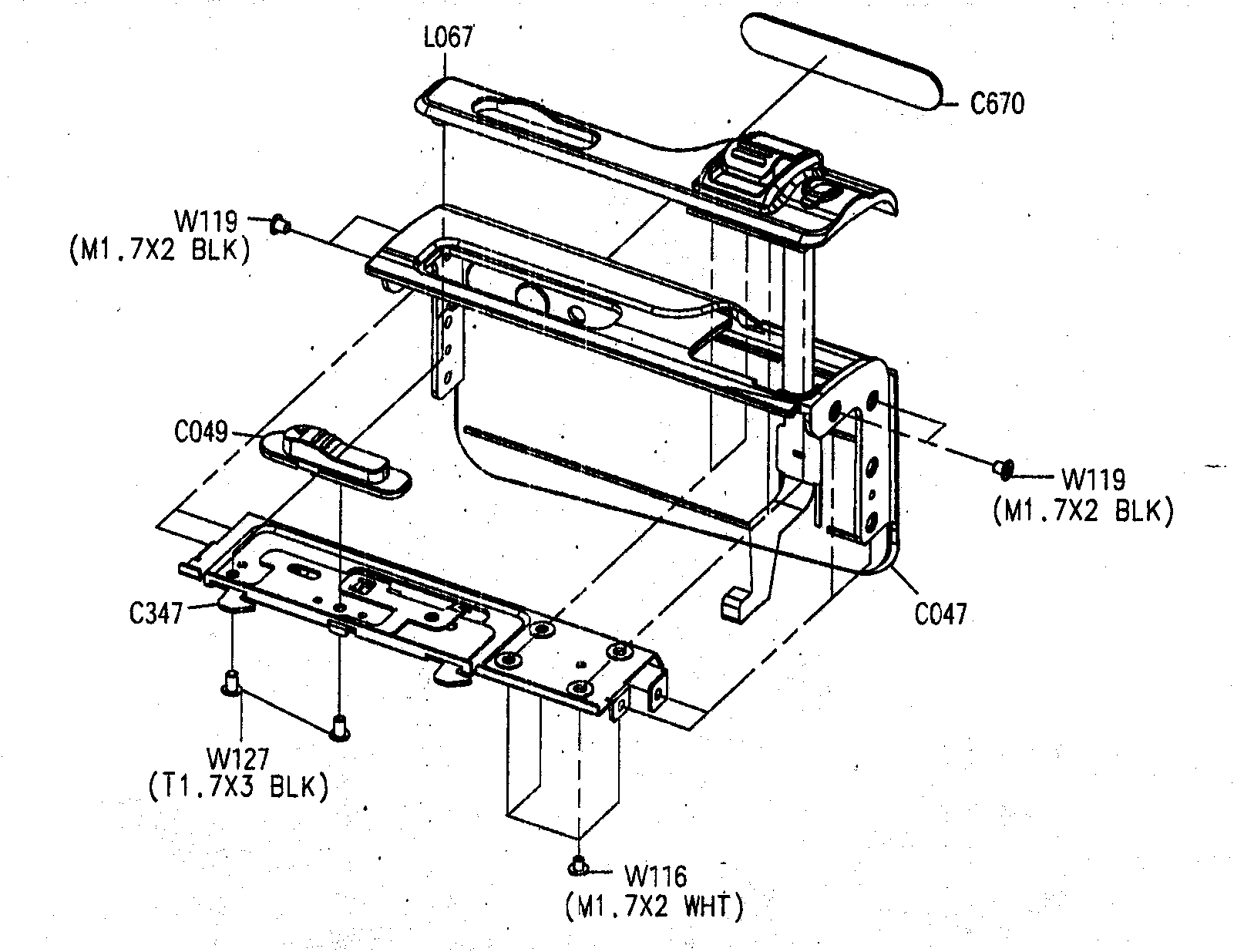

Left case assy diagram

Case l

Part #AD97-09715A

The manufacturer no longer makes this part, and there's no substitute part

Usb Cable AD39-00073A
#NI

Chassis assy diagram

Usb cable

Part #AD39-00073A

The manufacturer no longer makes this part, and there's no substitute part

Housing AD97-06394A
#NI

Chassis assy diagram

Housing

Part #AD97-06394A

The manufacturer no longer makes this part, and there's no substitute part

Tripod Assembly AD97-09695A
#C356

Left case assy diagram

Tripod assembly

Part #AD97-09695A

The manufacturer no longer makes this part, and there's no substitute part

Assembly Zoom AD97-09643A
#NI

Chassis assy diagram

Assembly zoom

Part #AD97-09643A

The manufacturer no longer makes this part, and there's no substitute part

Cover, L AD63-00738A
#C001

Left cabinet assy diagram

Cover, l

Part #AD63-00738A

The manufacturer no longer makes this part, and there's no substitute part

Frnt Board AD97-09595A
#P061

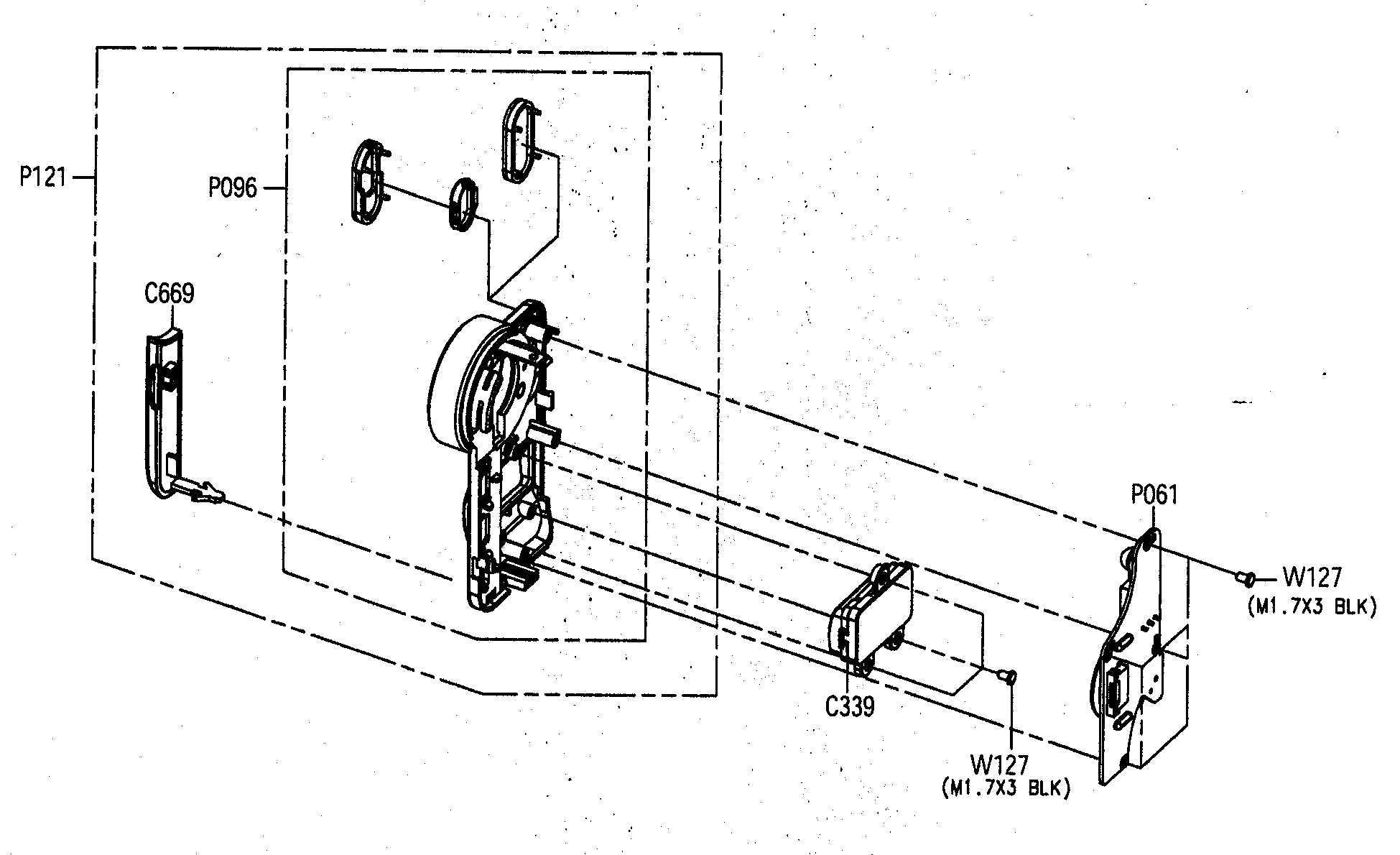

Front assy diagram

Frnt board

Part #AD97-09595A

The manufacturer no longer makes this part, and there's no substitute part

Jack Cover AD63-00741A
#C669

Front assy diagram

Jack cover

Part #AD63-00741A

The manufacturer no longer makes this part, and there's no substitute part
