Model # HAC060GKA4 Official ICP condensing unit
Here are the diagrams and repair parts for Official ICP HAC060GKA4 condensing unit, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
SELECT DIAGRAM
Browse Parts for
HAC060GKA4 Condensing Unit
#2

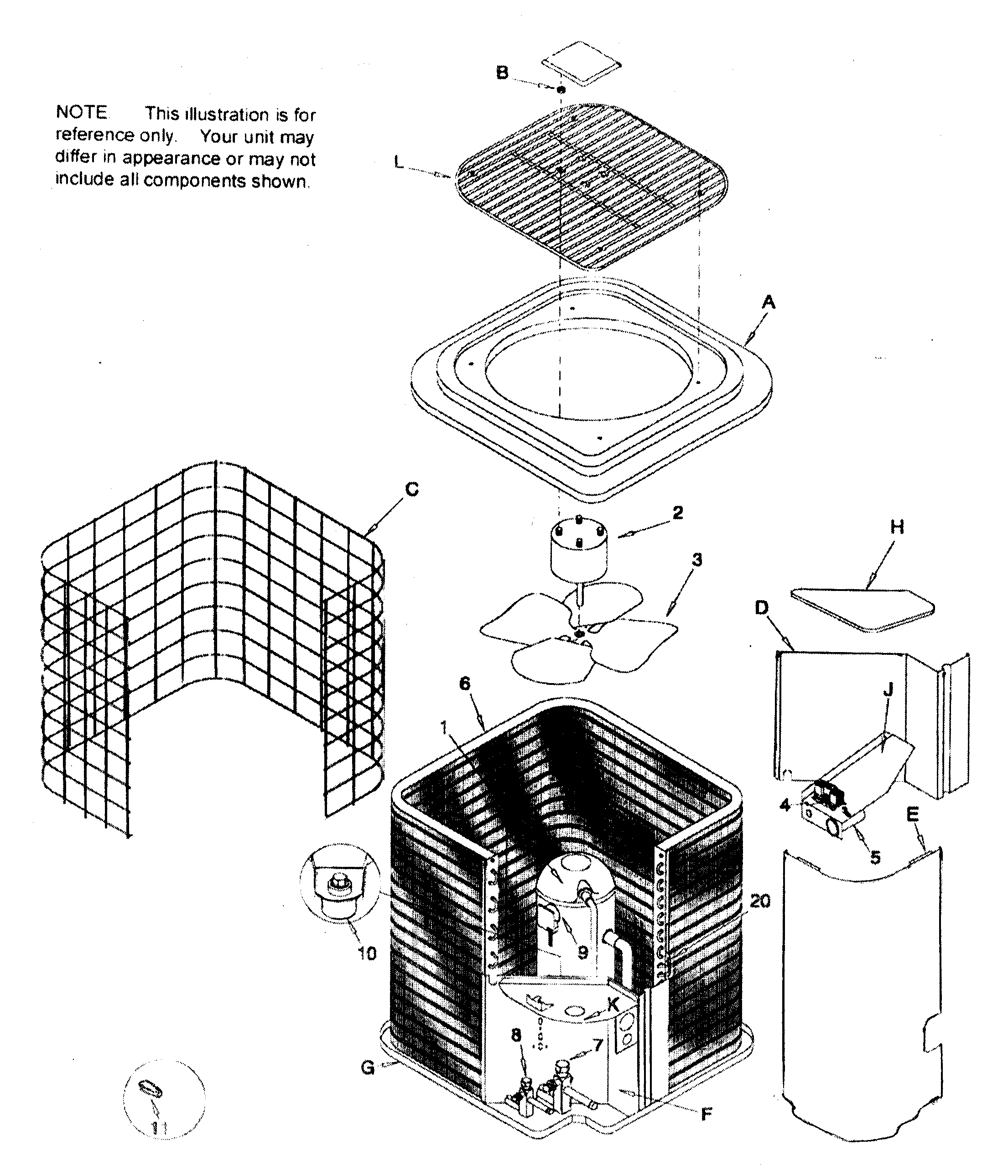

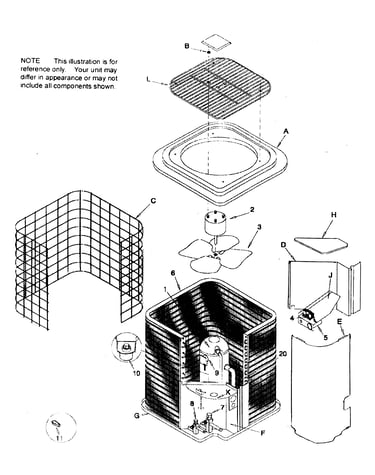

Condensing unit diagram
Central air conditioner condenser fan motor, 1/3-hp
Part #1085926
$299.36 |
$12.00 OFF Phone Price : $311.36
In Stock
#7
Condensing unit diagram
Valve
Part #1085988
$127.22
In Stock
#8
Condensing unit diagram
Valve
Part #1085989
$72.44
In Stock
#6
Condensing unit diagram
Cond.coil
Part #1087354
$2249.75
In Stock
#9
Condensing unit diagram
Plug wire
Part #1081940
Replaced by #1083654
?
Manufacturer substitution
This part replaces 1081940. Substitute parts can look different from the original.
$54.17 |
10% OFF Phone Price : $60.17
In Stock
#4
Condensing unit diagram
Contactor p
Part #1059574
Replaced by #90-247
?
Manufacturer substitution
This part replaces 1059574. Substitute parts can look different from the original.
$42.10 |
12% OFF Phone Price : $48.10
In Stock
#F
Condensing unit diagram
Panel
Part #1086346
The manufacturer no longer makes this part, and there's no substitute part
#C
Condensing unit diagram
Grille
Part #1086219
The manufacturer no longer makes this part, and there's no substitute part
#L
Condensing unit diagram
Central air conditioner condenser fan grille
Part #1086050
The manufacturer no longer makes this part, and there's no substitute part
#A
Condensing unit diagram
Panel top2
Part #1085997
The manufacturer no longer makes this part, and there's no substitute part
