Model # 48GP036060300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48GP036060300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

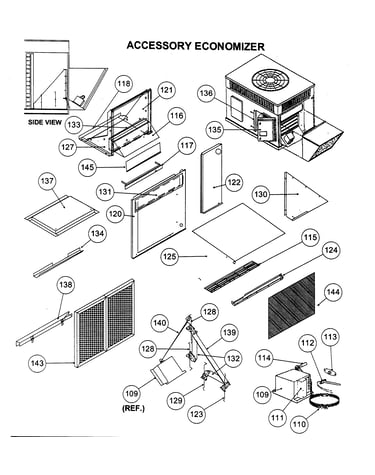

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Contactor HN51JD024
#52

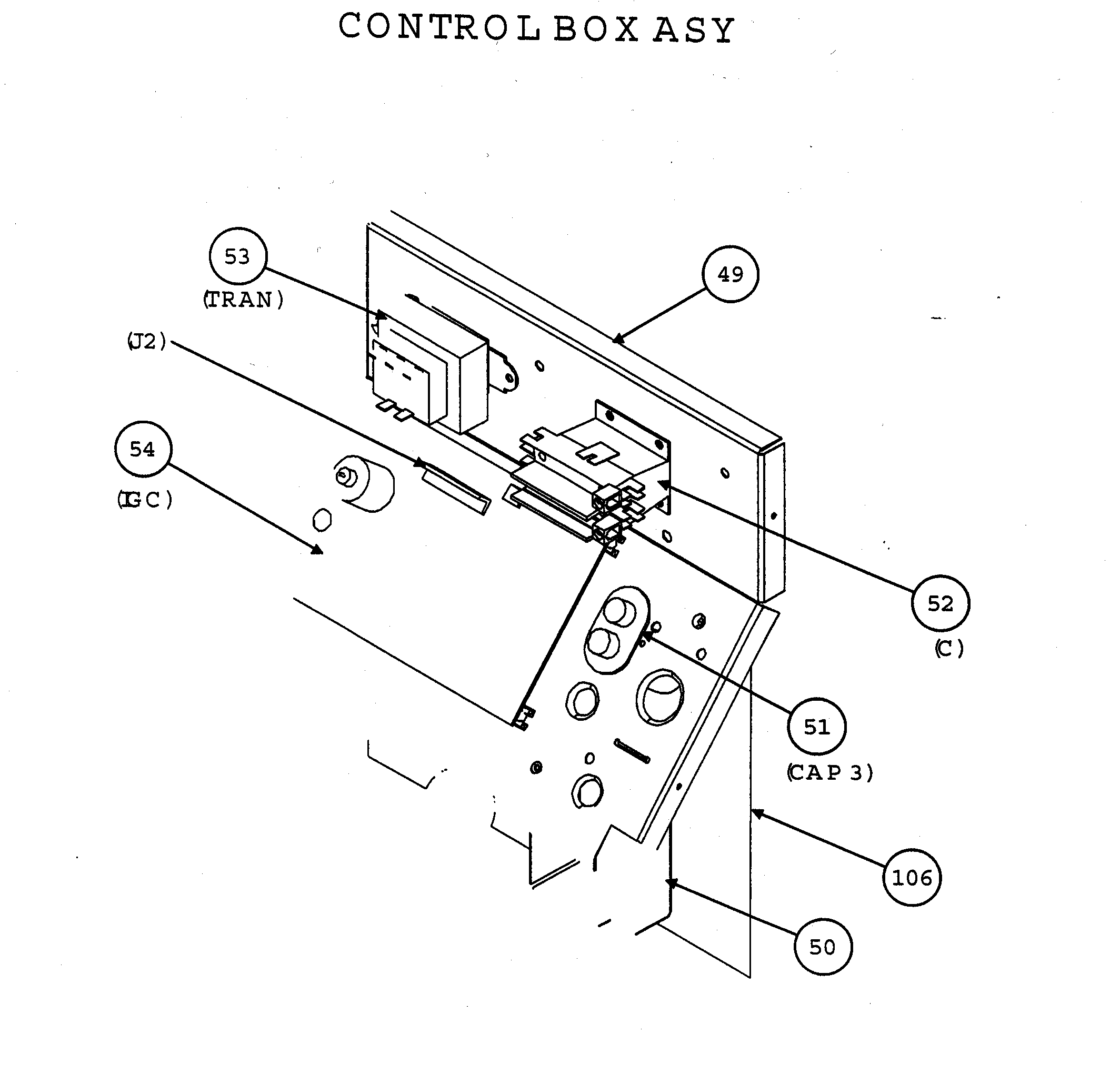

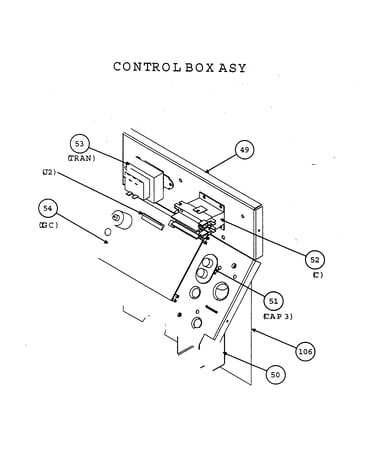

Control box assy diagram

Contactor

Part #HN51JD024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51JD024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Circ Board LH33WP003
#54

Control box assy diagram

Circ board

Part #LH33WP003

$495.60 |
$12.00 OFF Phone Price : $507.60
In Stock
Furnace Heat Exchanger Cover 48GS400108
#97

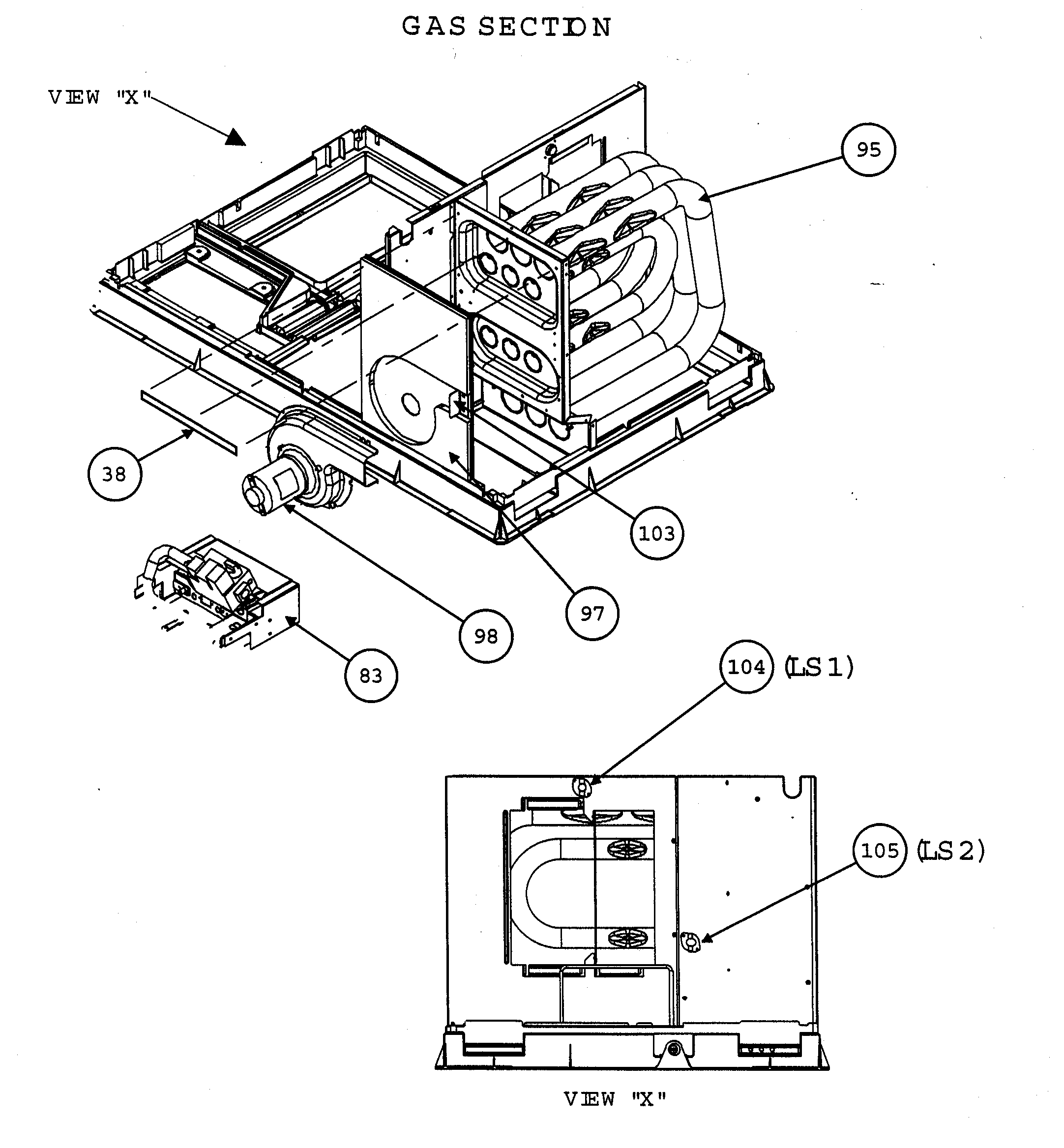

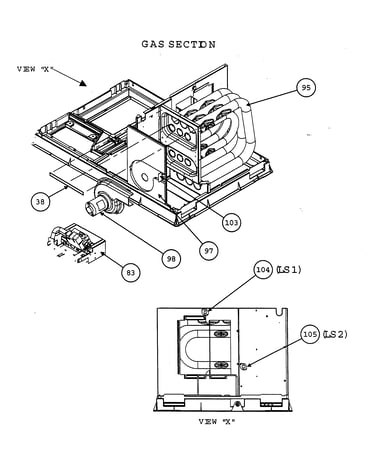

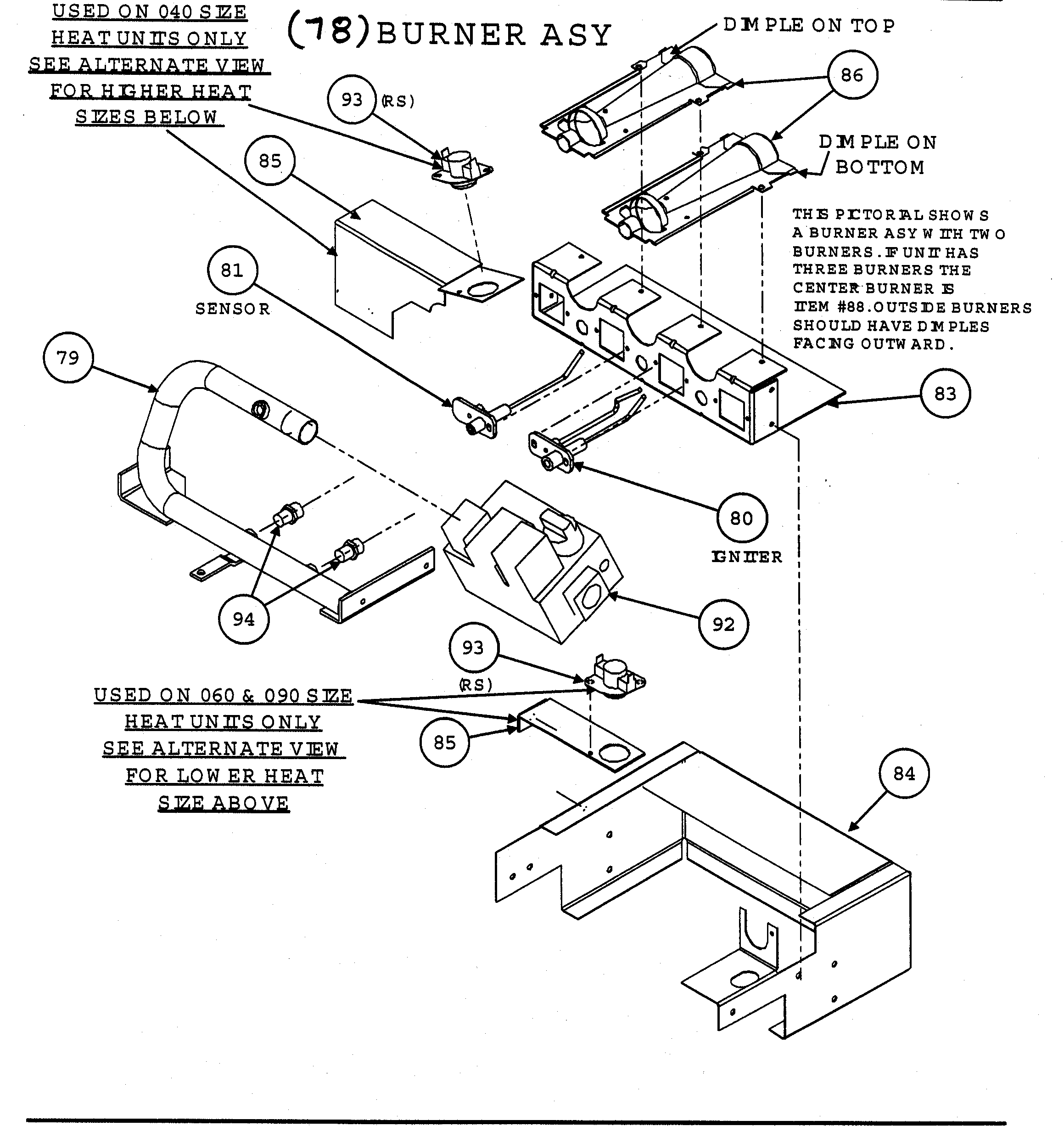

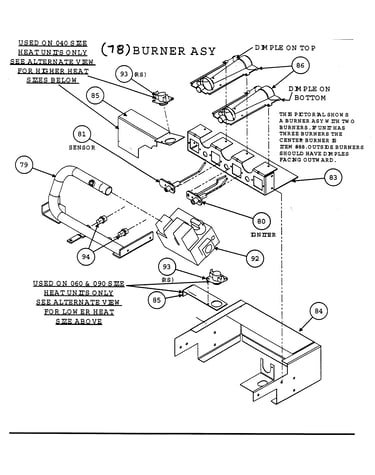

Gas section diagram

Furnace heat exchanger cover

Part #48GS400108

$325.53 |
$12.00 OFF Phone Price : $337.53
In Stock

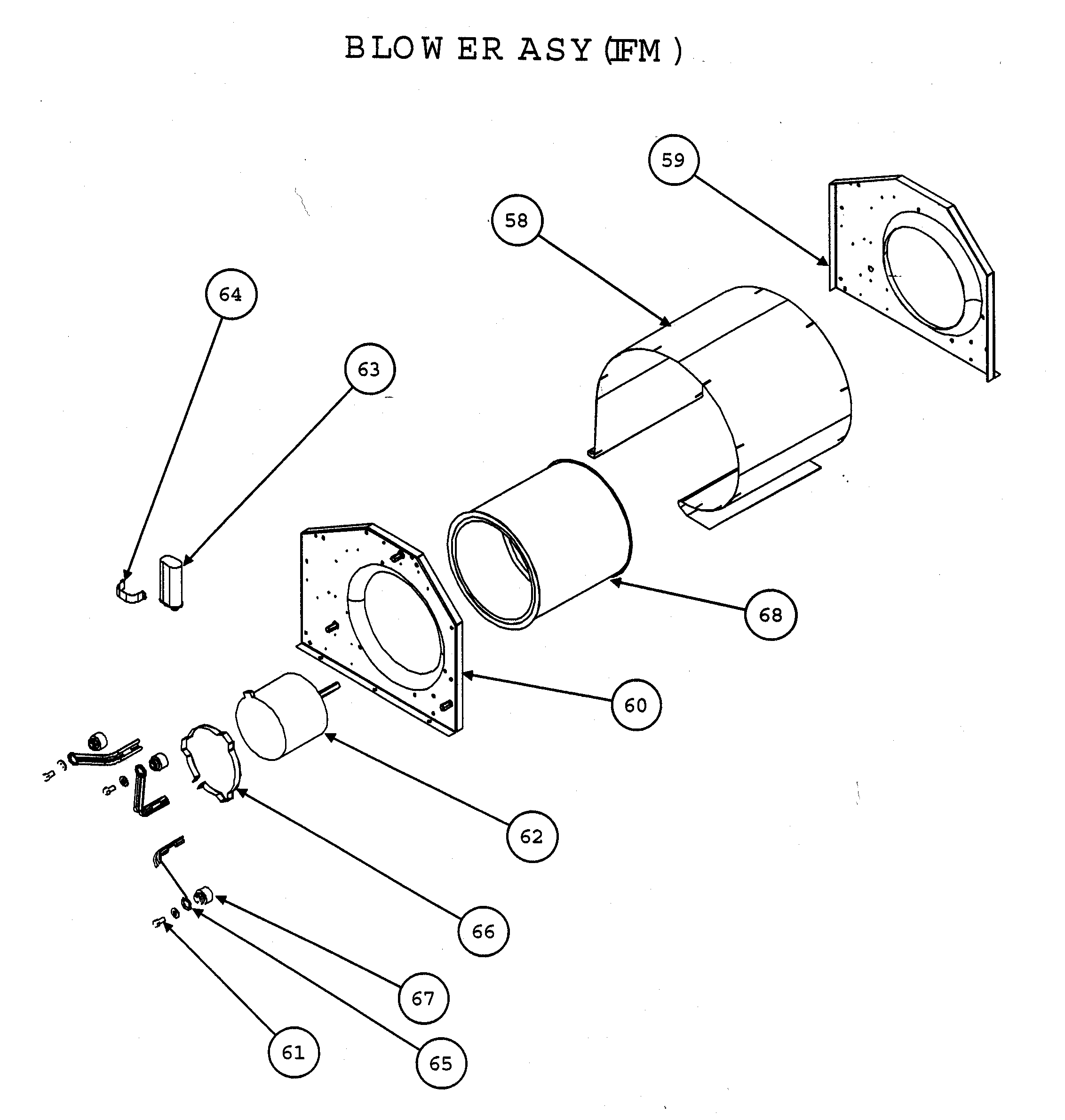

Blower Assembly 48GS400106
#98

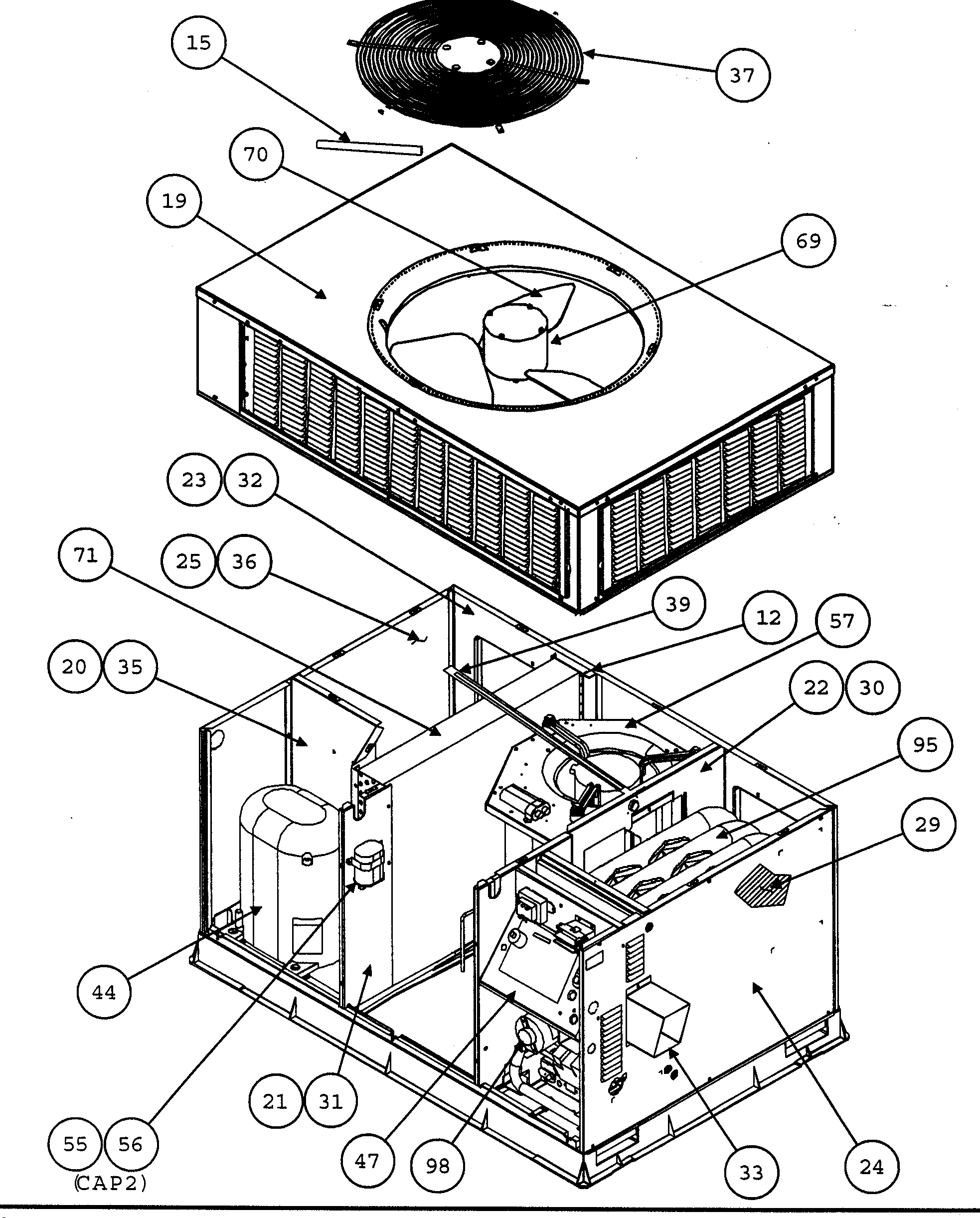

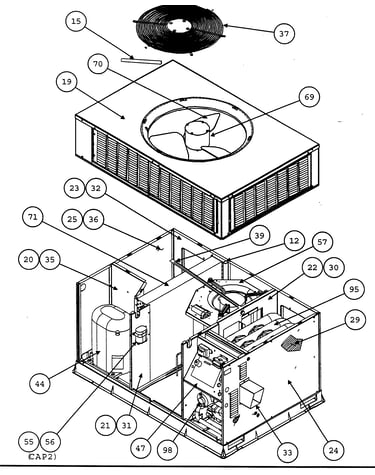

Inside view diagram

Blower assembly

Part #48GS400106

Replaced by #48GS400649

?
Manufacturer substitution
This part replaces 48GS400106. Substitute parts can look different from the original.
$708.46 |
$12.00 OFF Phone Price : $720.46
In Stock
Temp Swtch HH18HA211
Temp swtch

Part #HH18HA211

$25.71
In Stock
Payne Panel 48GS400484
#10

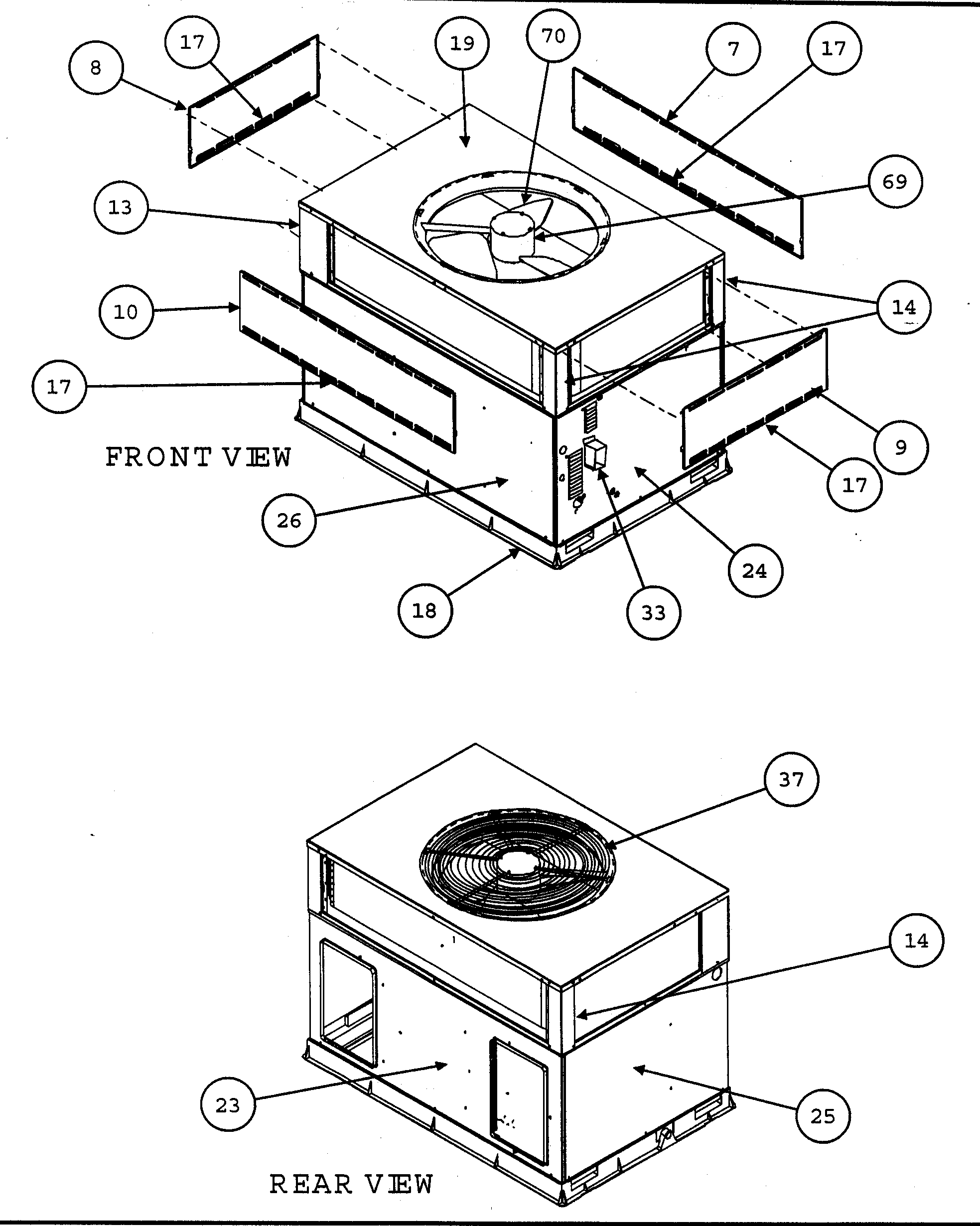

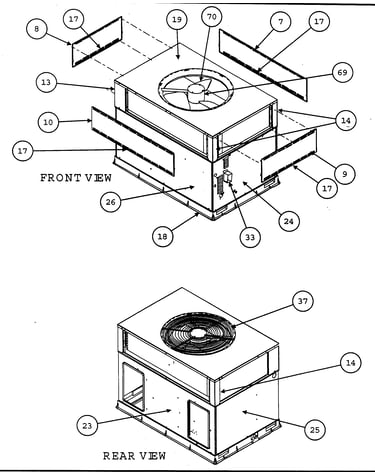

Front view/rear view diagram

Payne panel

Part #48GS400484

$201.20
In Stock
Switch HH18HA460
#105

Gas section diagram

Switch

Part #HH18HA460

$77.49
In Stock
Rack 0900003A
#157

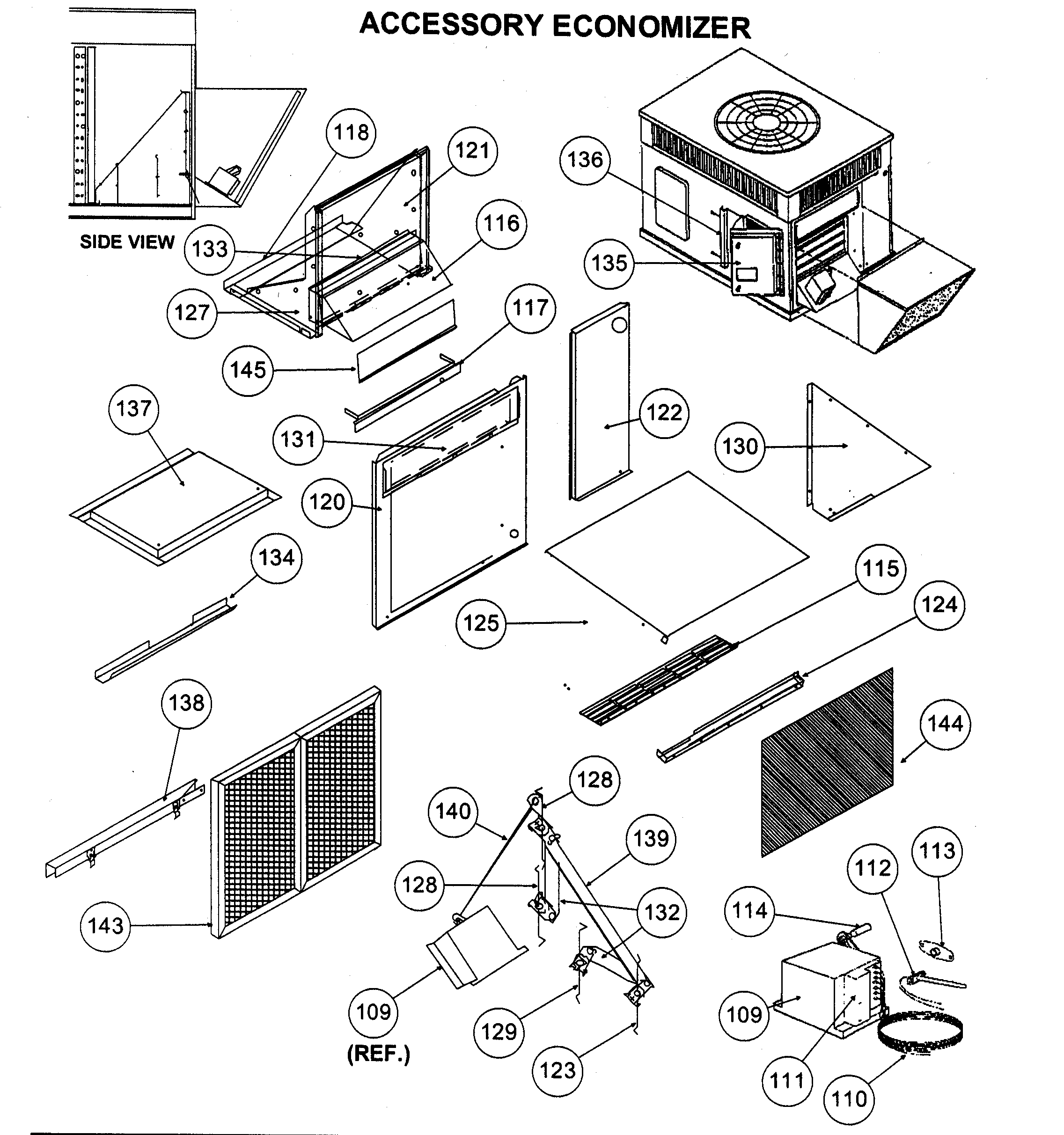

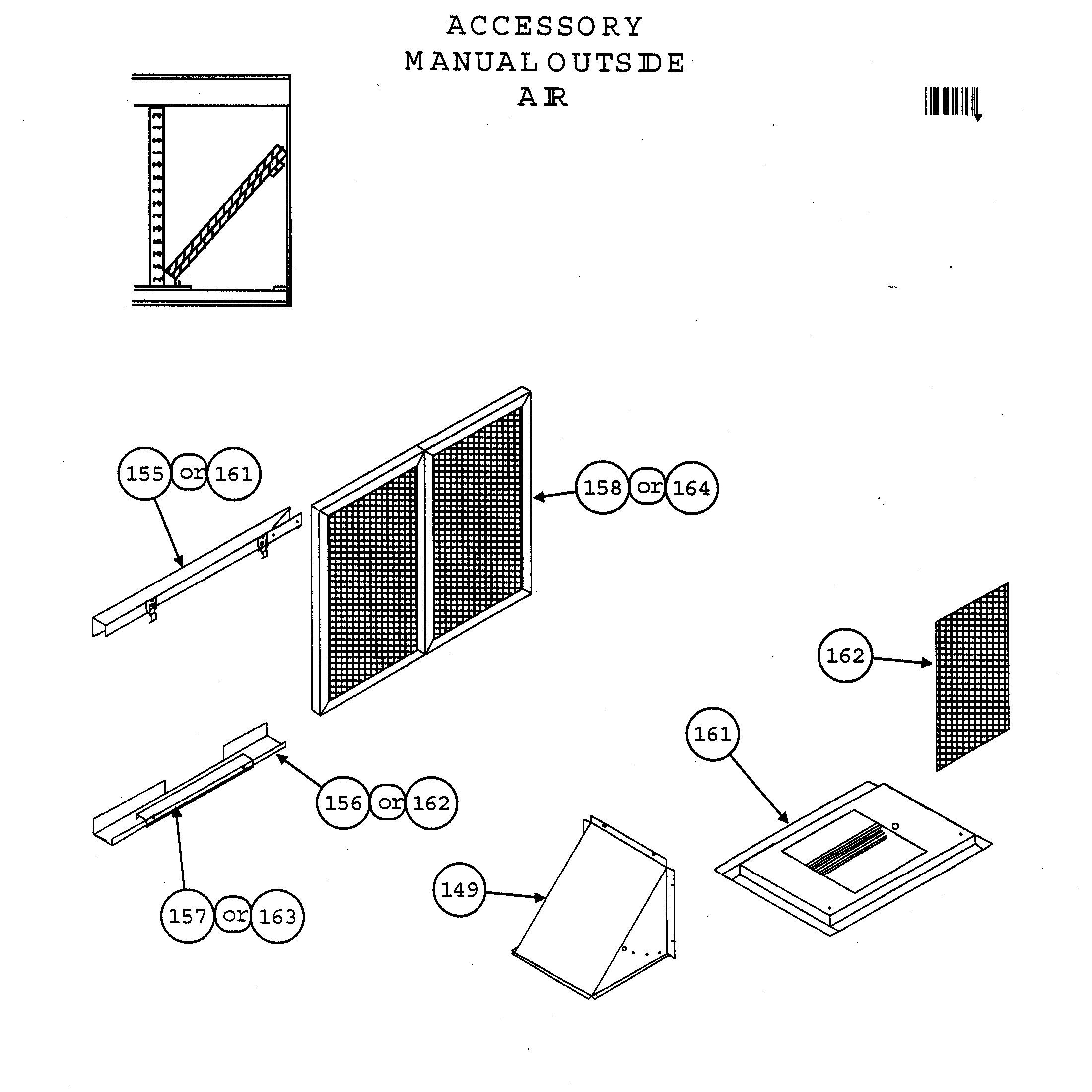

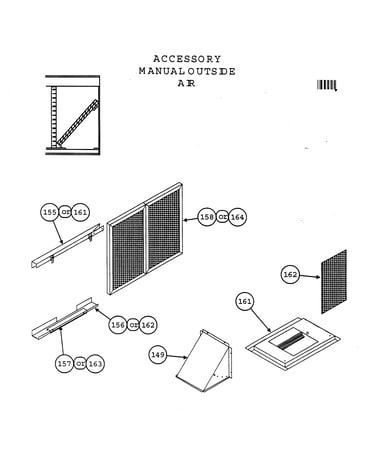

Accessory outside diagram

Rack

Part #0900003A

$176.16
In Stock
Top Assembly 48GS400058
#16

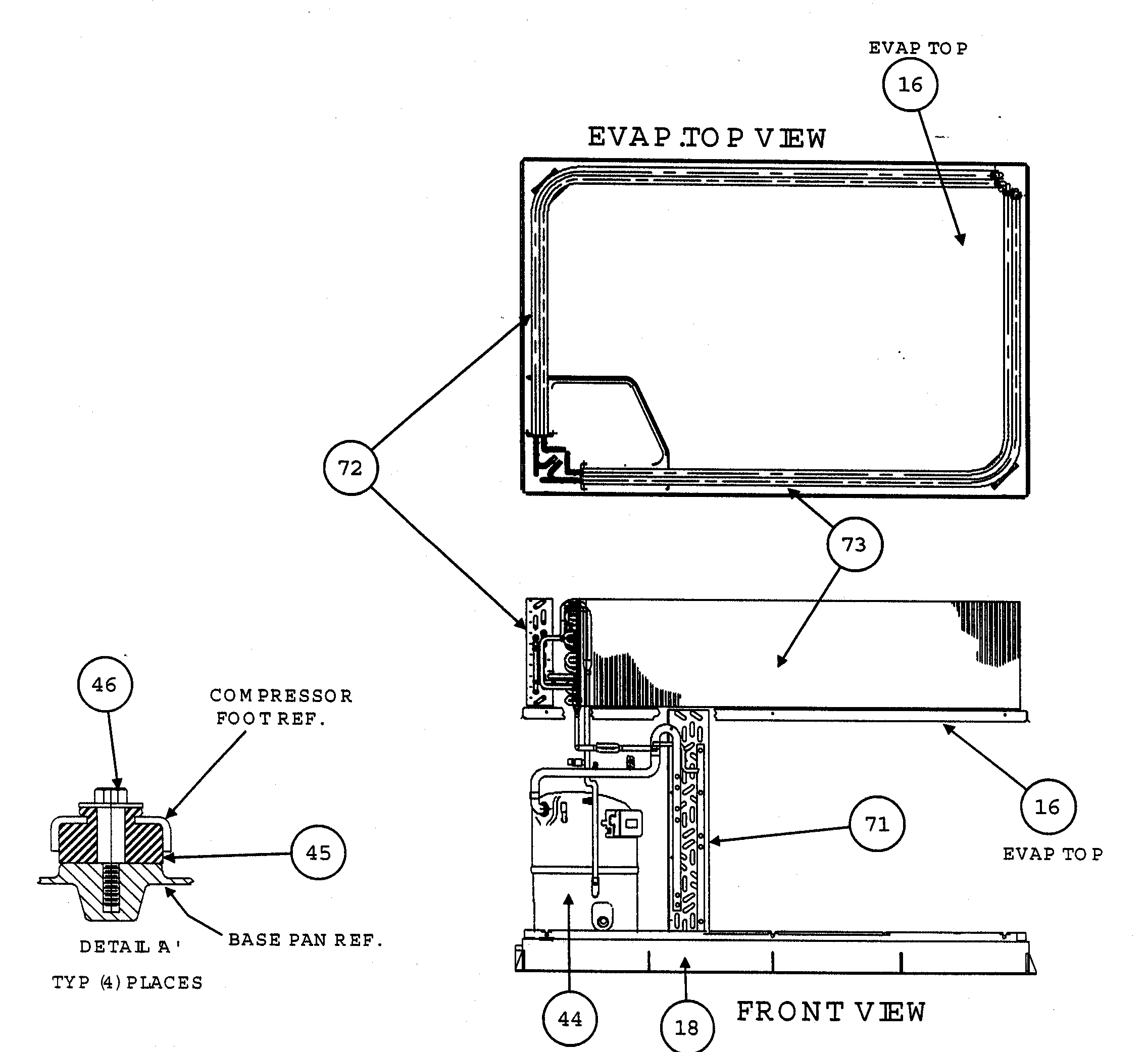

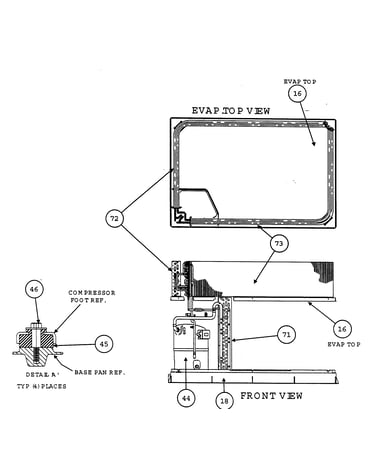

Evap top view diagram

Top assembly

Part #48GS400058

$327.00
In Stock
Scroll 48GS500109
#58

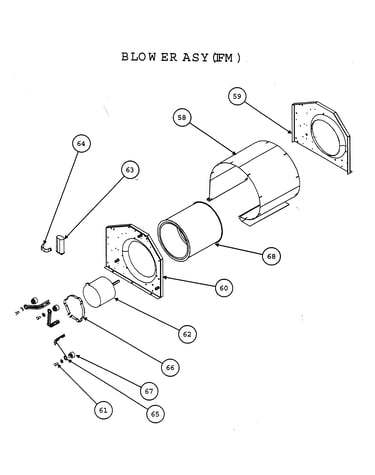

Blower assy diagram

Scroll

Part #48GS500109

$206.45
In Stock
