Model # 2270B Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 2270B upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Eureka Vacuum Bag, Type J, 3-pack 61515
#3

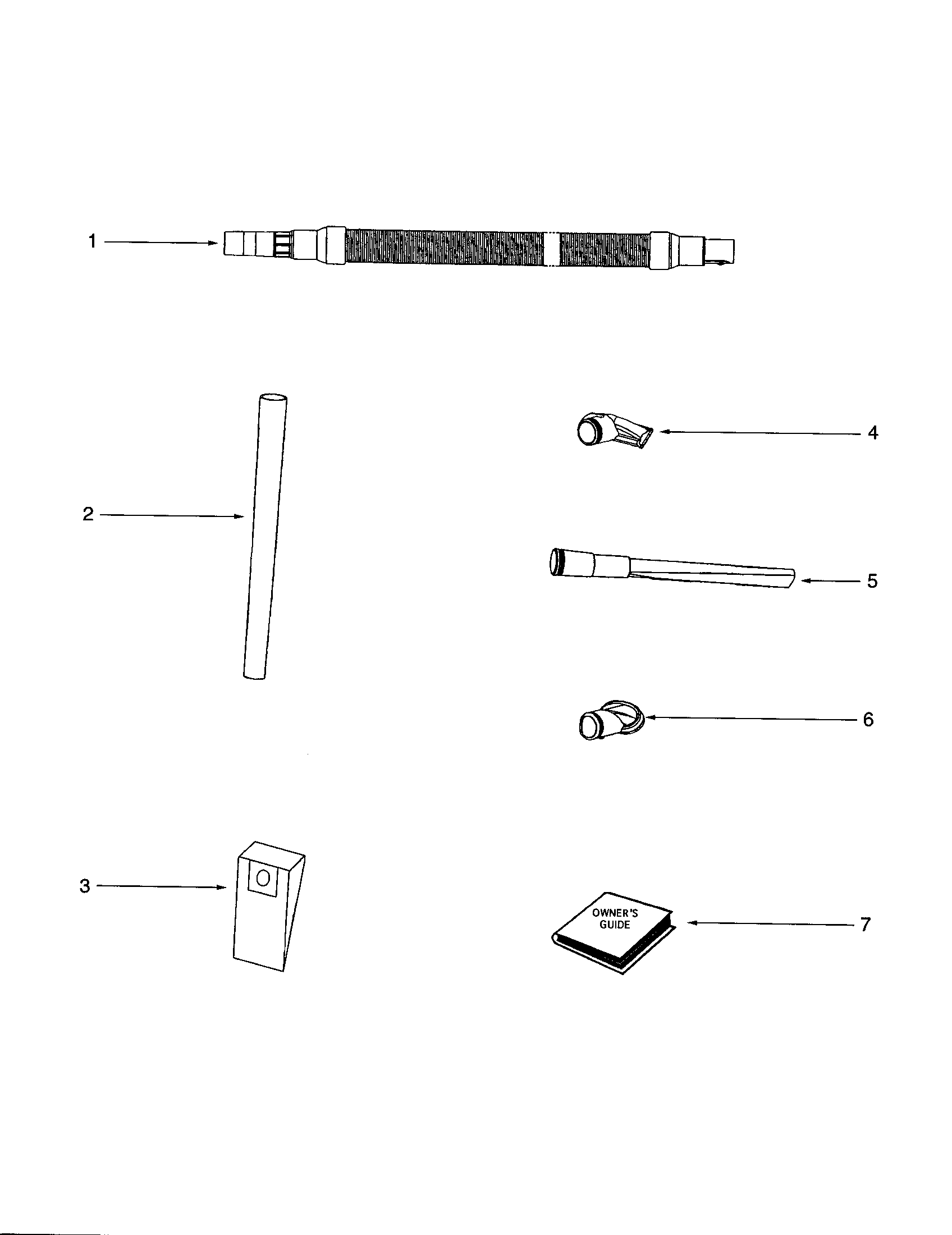

Hose diagram

Eureka vacuum bag, type j, 3-pack

Part #61515

The manufacturer no longer makes this part, and there's no substitute part

Shaft 61624
#10

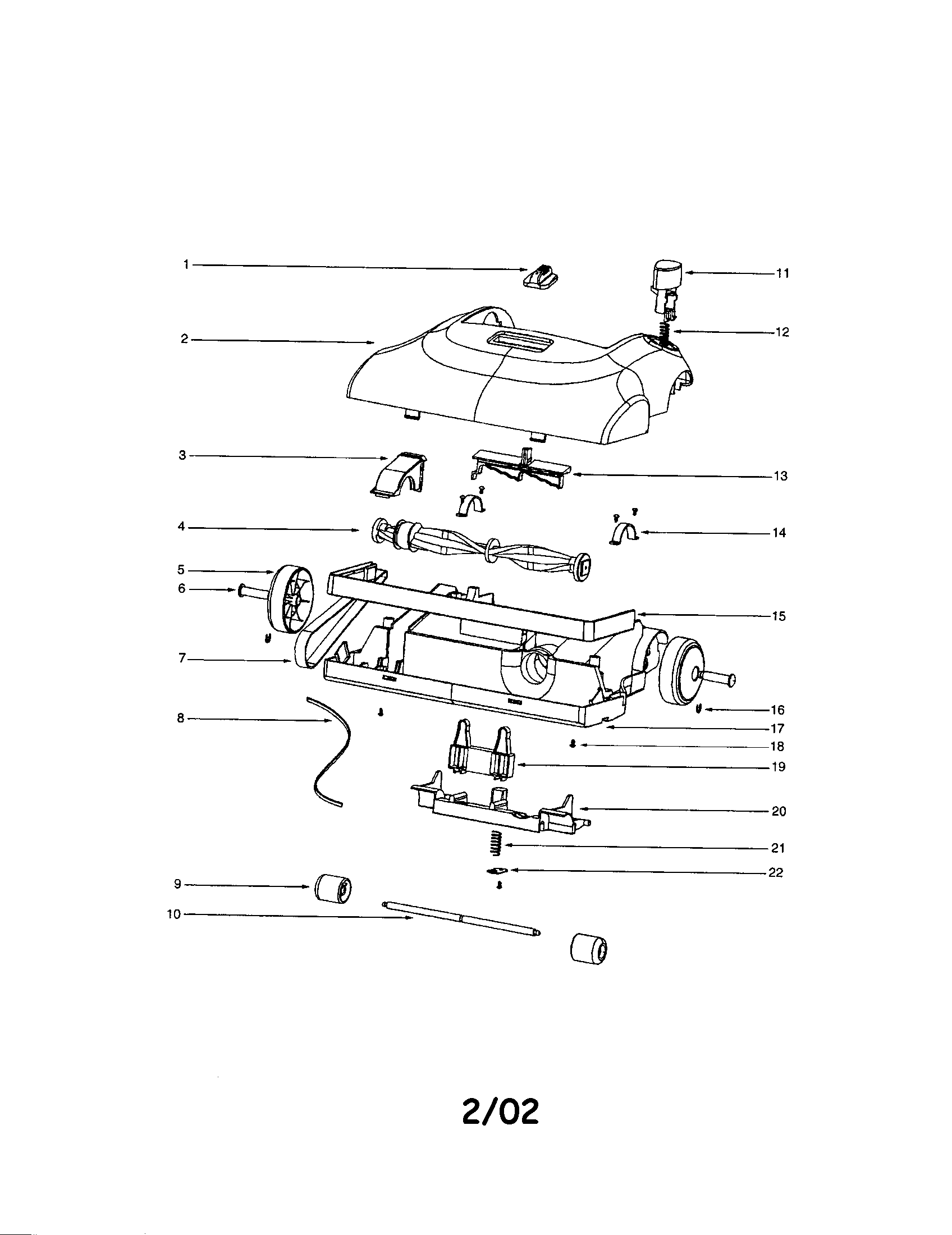

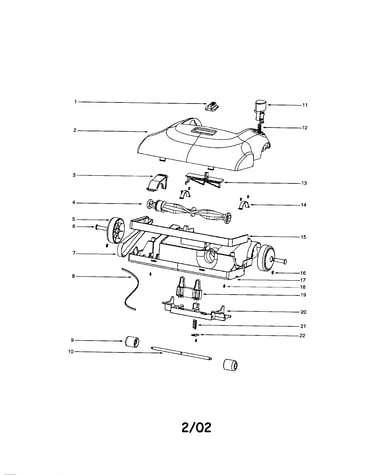

Hood/base diagram

Shaft

Part #61624

The manufacturer no longer makes this part, and there's no substitute part

Jacket 61664
#3

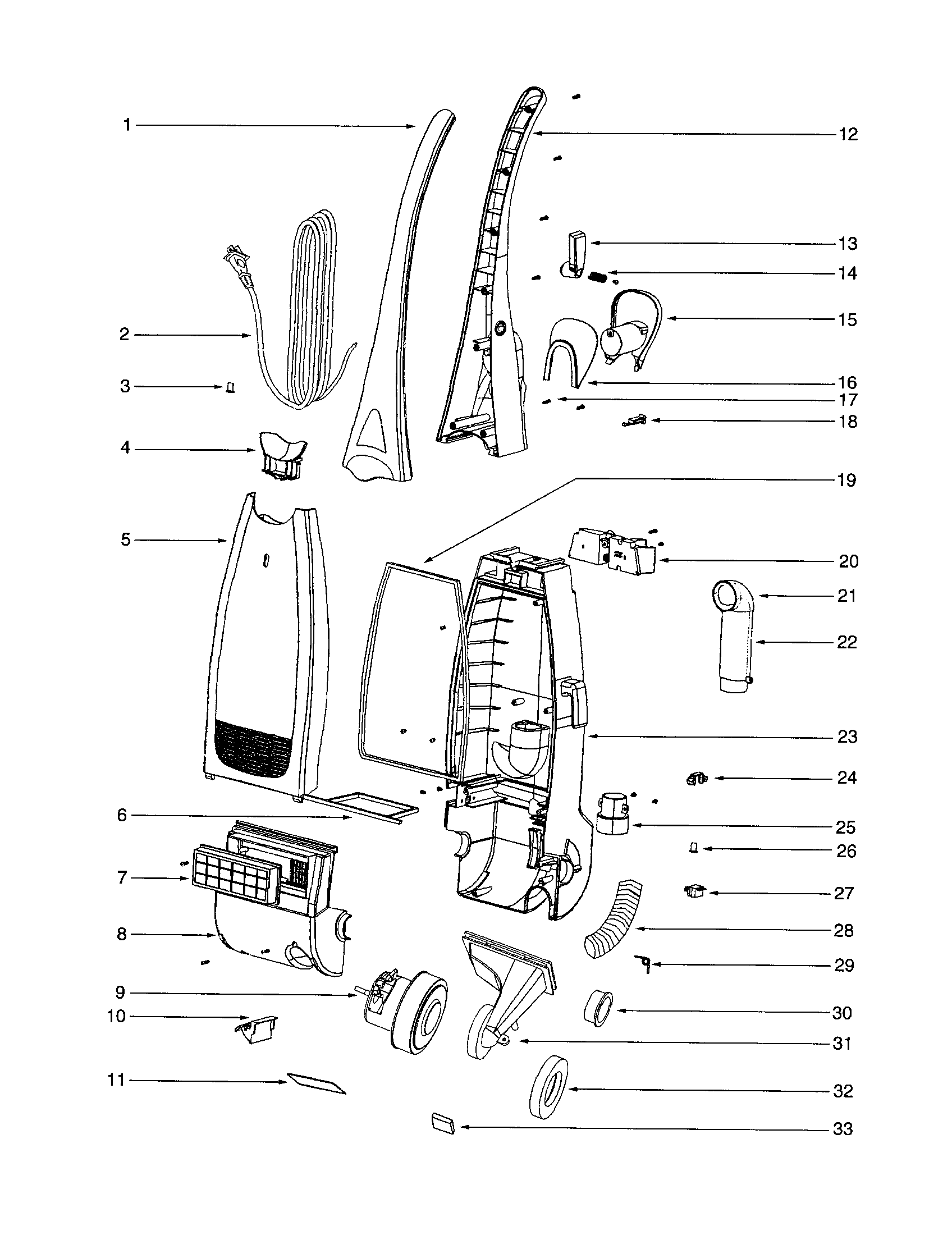

Handle/housing diagram

Jacket

Part #61664

The manufacturer no longer makes this part, and there's no substitute part

Spring 61626
#21

Hood/base diagram

Spring

Part #61626

The manufacturer no longer makes this part, and there's no substitute part

Hose 61649
#28

Handle/housing diagram

Hose

Part #61649

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 61617
#15

Hood/base diagram

Vacuum furniture guard

Part #61617

The manufacturer no longer makes this part, and there's no substitute part

Support 61628
#13

Hood/base diagram

Support

Part #61628

The manufacturer no longer makes this part, and there's no substitute part

Screw-5-pk 61799
#17

Handle/housing diagram

Screw-5-pk

Part #61799

The manufacturer no longer makes this part, and there's no substitute part

Caddy Tool 61652
#20

Handle/housing diagram

Caddy tool

Part #61652

The manufacturer no longer makes this part, and there's no substitute part

Wheel 61623
#9

Hood/base diagram

Wheel

Part #61623

The manufacturer no longer makes this part, and there's no substitute part
