Model # 9CA2781XSN2 Official Whirlpool commercial washer

Here are the diagrams and repair parts for Official Whirlpool 9CA2781XSN2 commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

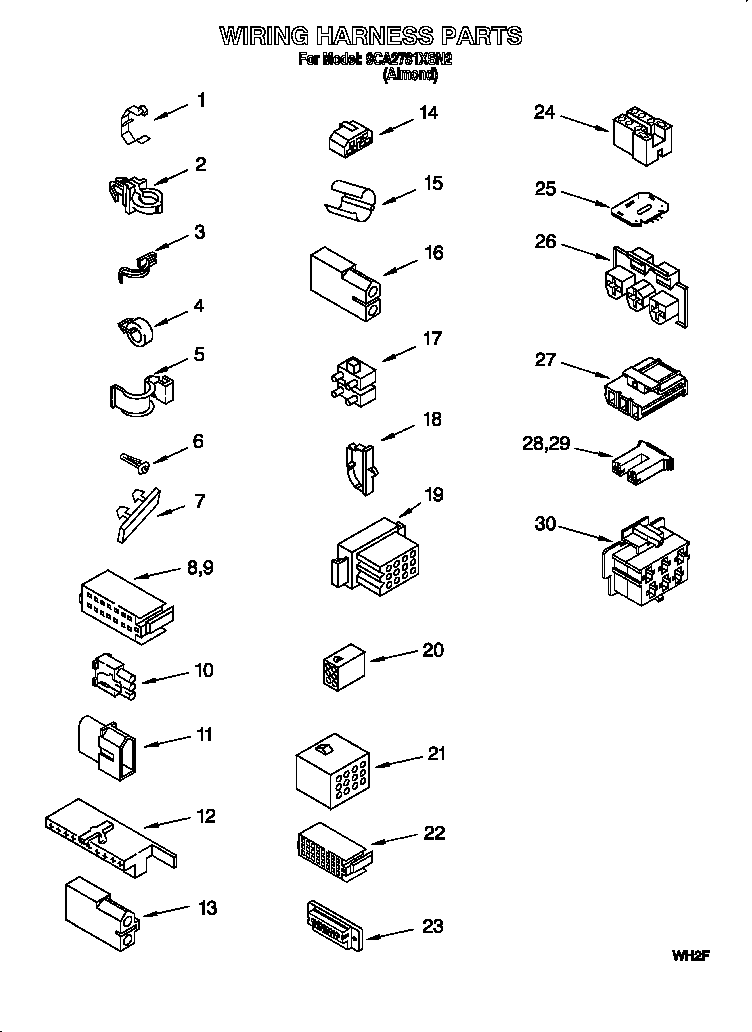

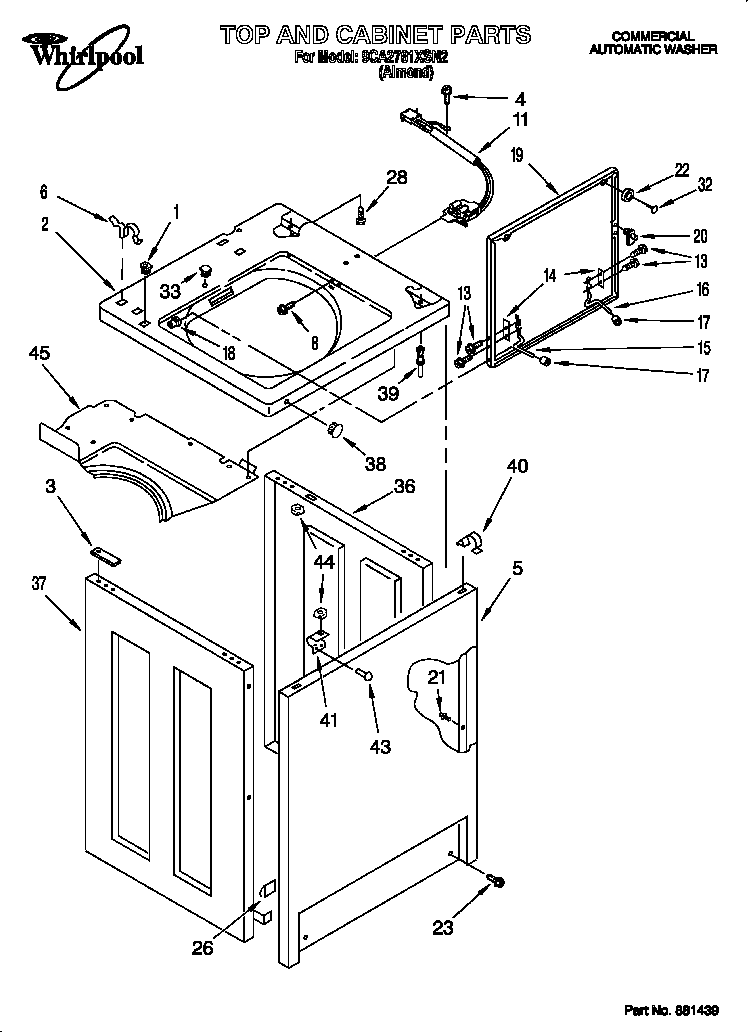

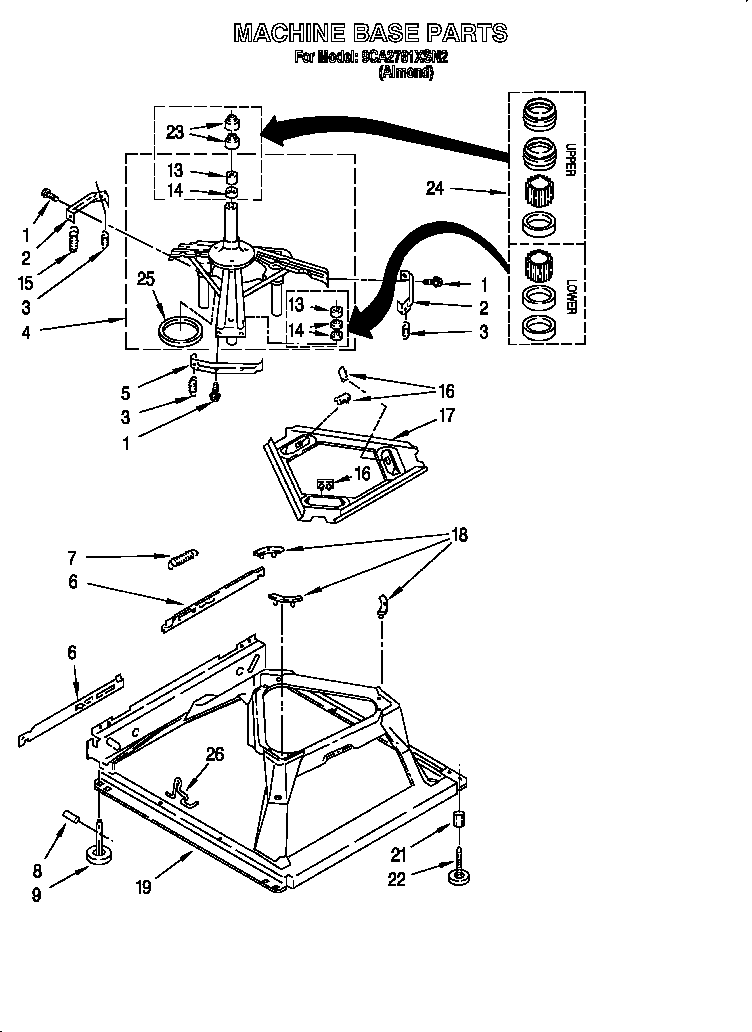

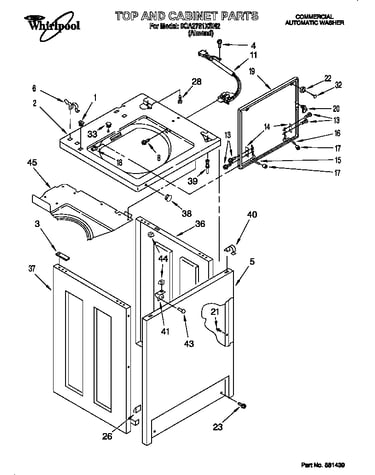

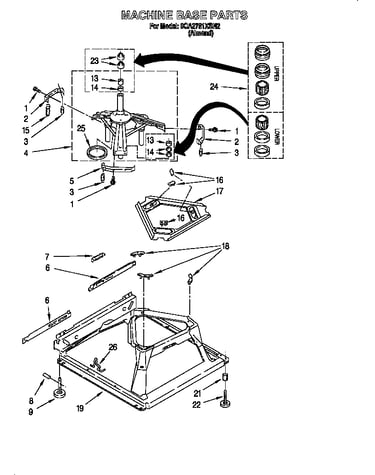

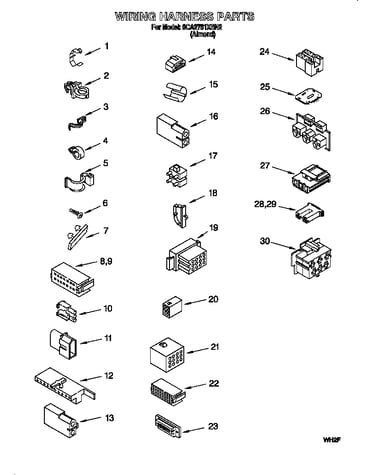

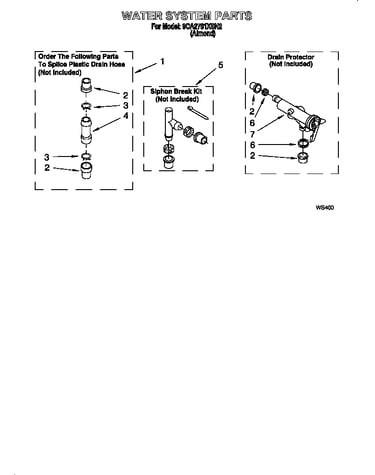

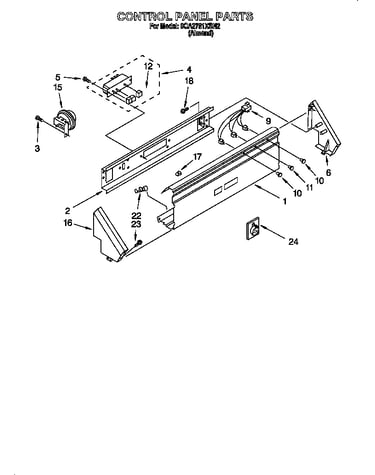

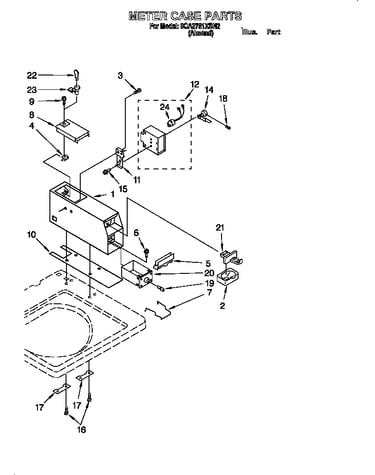

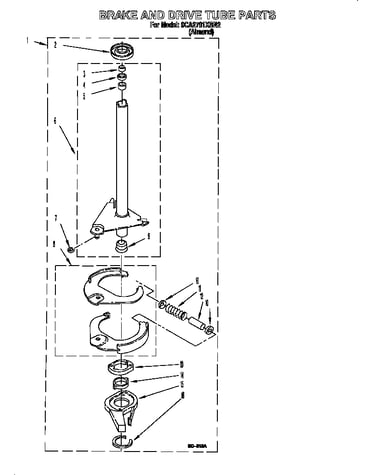

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 252 parts  |
Coupling 3364003
#13

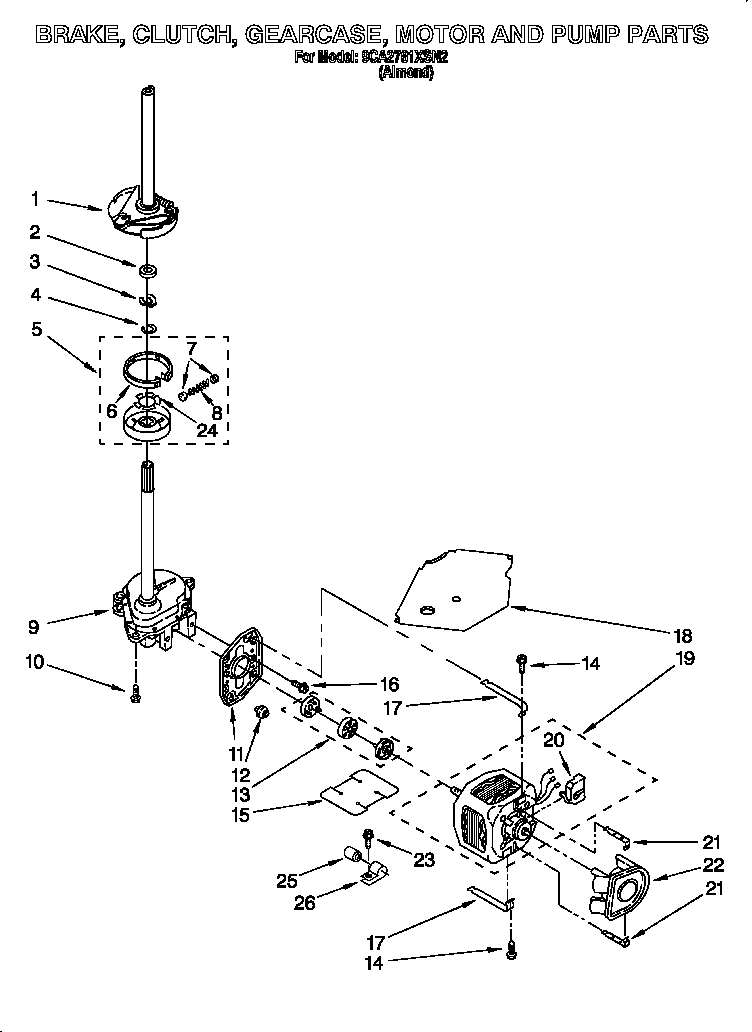

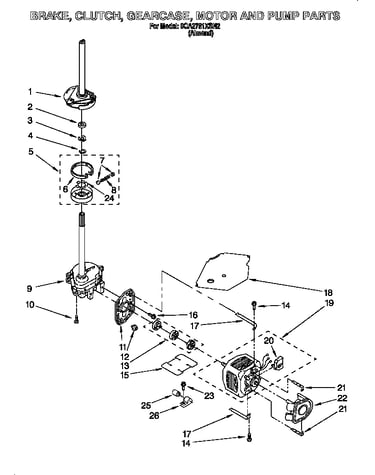

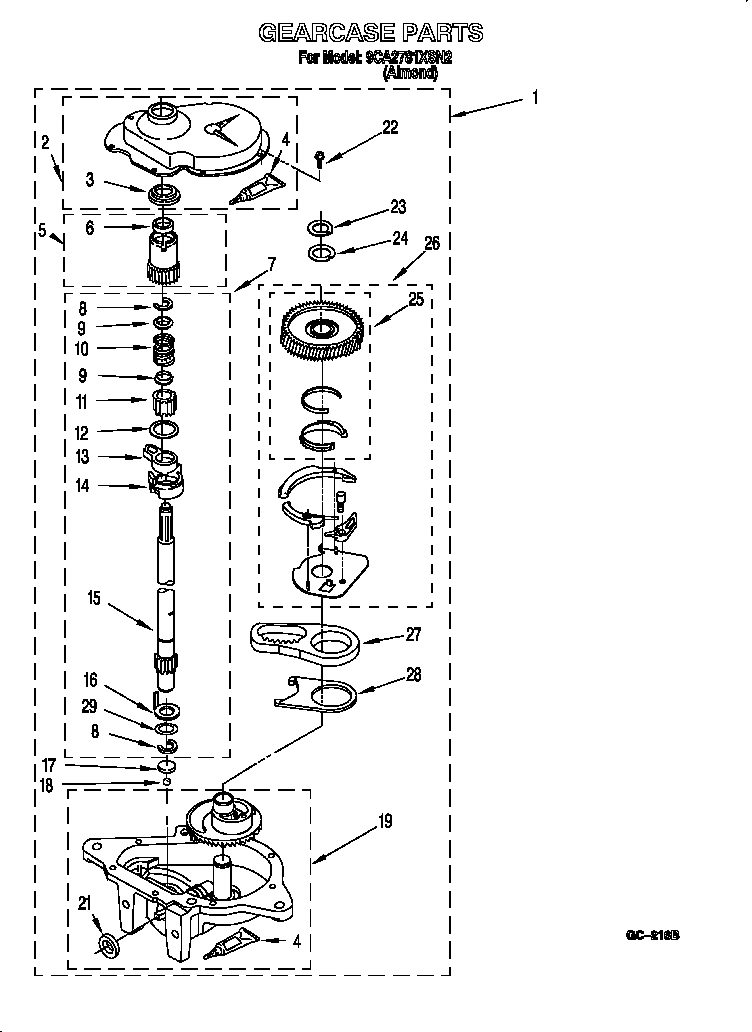

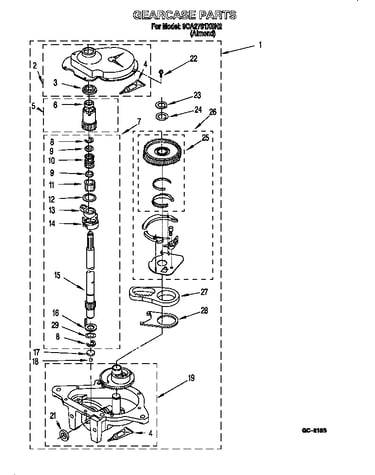

Brake, clutch, gearcase, motor and pump diagram

Coupling

Part #3364003

Replaced by #285753A

?
Manufacturer substitution
This part replaces 3364003. Substitute parts can look different from the original.
BEST SELLER
$23.24 |
21% OFF Phone Price : $29.24
In Stock
Clutch 3946794
#5

Brake, clutch, gearcase, motor and pump diagram

Clutch

Part #3946794

Replaced by #285785

?
Manufacturer substitution
This part replaces 3946794. Substitute parts can look different from the original.
BEST SELLER
$29.44 |
17% OFF Phone Price : $35.44
In Stock
Drive Basket 388952
Drive basket

Part #388952

Replaced by #W10820043

?
Manufacturer substitution
This part replaces 388952. Substitute parts can look different from the original.
BEST SELLER
$118.18 |
9% OFF Phone Price : $130.18
In Stock
Washer Drain Pump 3363394
#22

Brake, clutch, gearcase, motor and pump diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$33.87 |
15% OFF Phone Price : $39.87
In Stock
Washer Drive Block 389140
#13

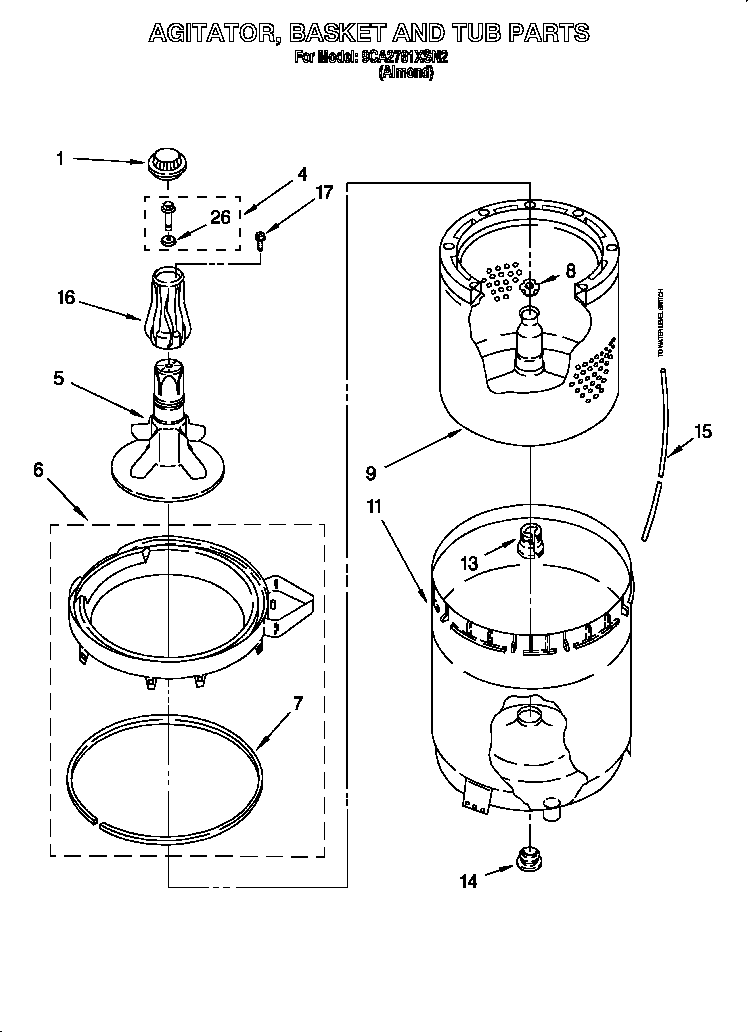

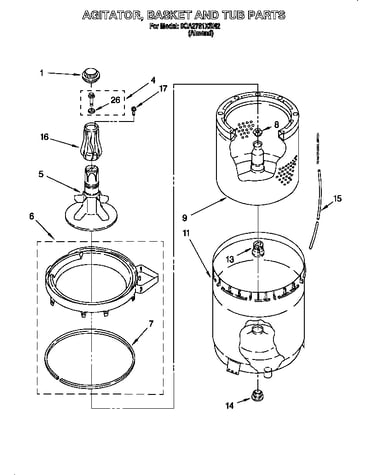

Agitator, basket and tub diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$23.94 |
20% OFF Phone Price : $29.94
In Stock
Washer Spanner Nut 21366
#8

Agitator, basket and tub diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Agitator Bolt 358237
#4

Agitator, basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.75 |
15% OFF Phone Price : $6.75
In Stock
Washer Tub Gasket 383727
#14

Agitator, basket and tub diagram

Washer tub gasket

Part #383727

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 383727. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Mixing Valve 3360392
#18

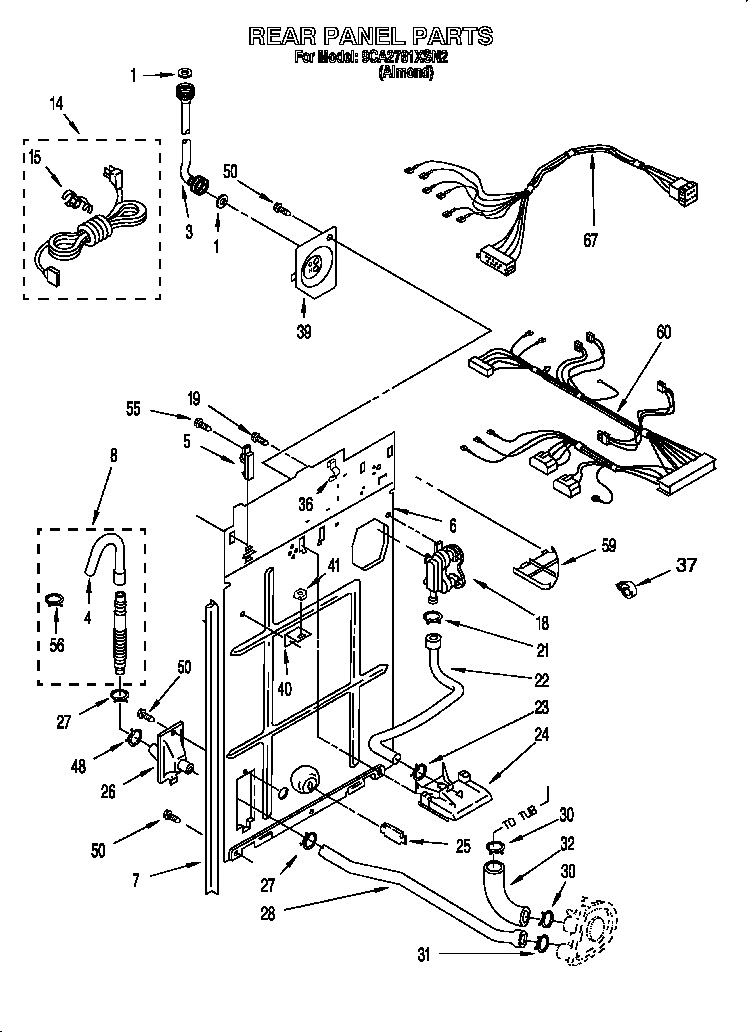

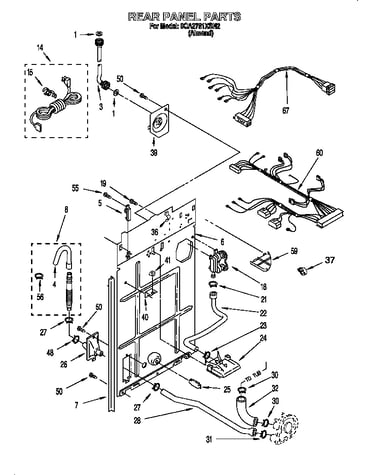

Rear panel diagram

Mixing valve

Part #3360392

Replaced by #285805

?
Manufacturer substitution
This part replaces 3360392. Substitute parts can look different from the original.
BEST SELLER
$26.34 |
19% OFF Phone Price : $32.34
In Stock
Basket 64217
#9

Agitator, basket and tub diagram

Basket

Part #64217

Replaced by #W10389328

?
Manufacturer substitution
This part replaces 64217. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$299.46 |
$12.00 OFF Phone Price : $311.46
In Stock
