Model # SP45BK Official JVC audio speaker

Here are the diagrams and repair parts for Official JVC SP45BK audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Grille Assembly 13-170S
#6

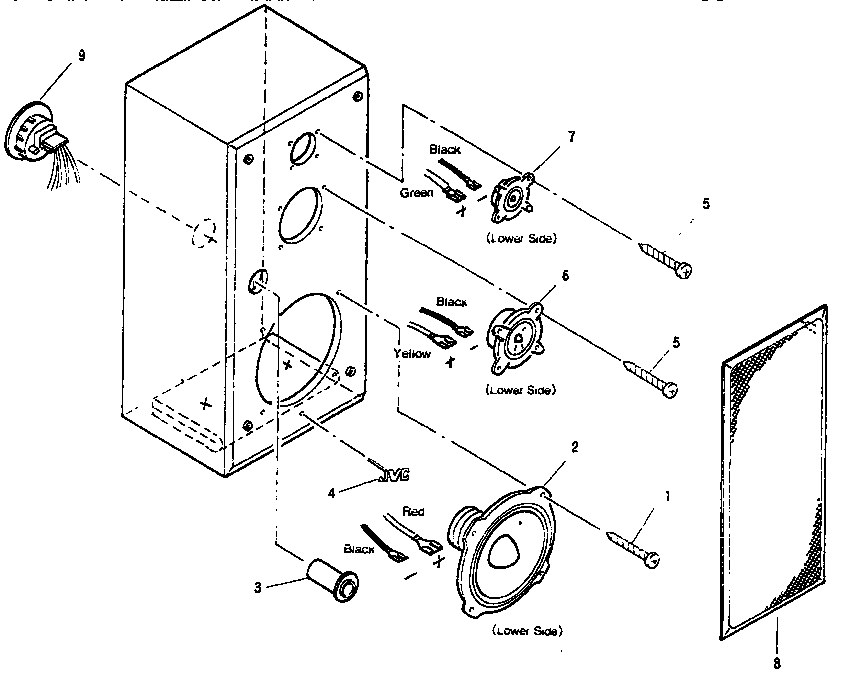

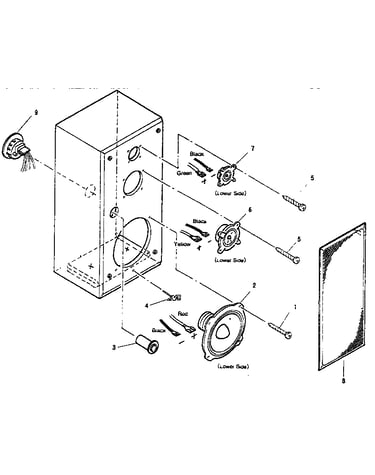

General view diagram

Grille assembly

Part #13-170S

The manufacturer no longer makes this part, and there's no substitute part

Jvc Owner's Manual 19-731

#NI

All parts diagram

Jvc owner's manual

Part #19-731

The manufacturer no longer makes this part, and there's no substitute part

Tweeter 46-332100-3
#5

General view diagram

Tweeter

Part #46-332100-3

The manufacturer no longer makes this part, and there's no substitute part

Tube Port 11-105S
#2

General view diagram

Tube port

Part #11-105S

The manufacturer no longer makes this part, and there's no substitute part

Service Manual SM-SP45BK

#NI

All parts diagram

Service manual

Part #SM-SP45BK

The manufacturer no longer makes this part, and there's no substitute part

Cone Speak 46-1510057-3
#4

General view diagram

Cone speak

Part #46-1510057-3

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker Cord 12-251S

#NI

All parts diagram

Audio speaker cord

Part #12-251S

The manufacturer no longer makes this part, and there's no substitute part

Cone Speak 46-1510105-3
#1

General view diagram

Cone speak

Part #46-1510105-3

The manufacturer no longer makes this part, and there's no substitute part

Jvc Mark P5829-002
#3

General view diagram

Jvc mark

Part #P5829-002

The manufacturer no longer makes this part, and there's no substitute part

Pcb Cross E03823-079
#7

General view diagram

Pcb cross

Part #E03823-079

The manufacturer no longer makes this part, and there's no substitute part
