Kenmore
Gas Range

Model # 119720630 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 119720630 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Light Bulb 2911
#19

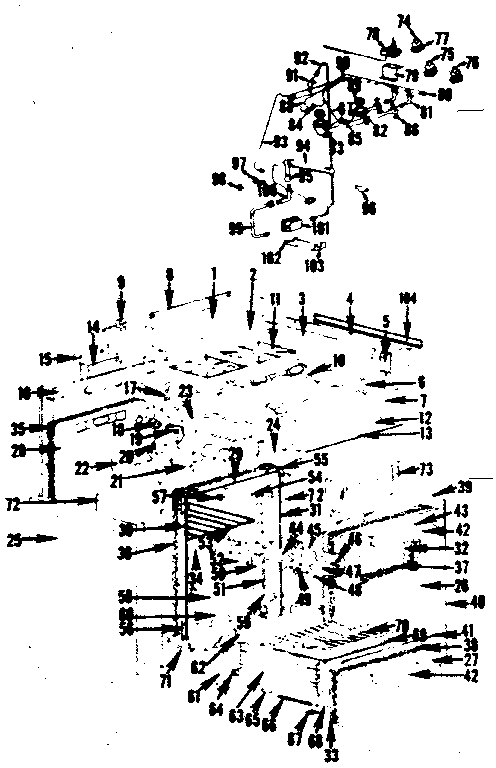

Body section diagram

Light bulb

Part #2911

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2911. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Owner's Manual 3988

#NI

All parts diagram

Owner's manual

Part #3988

The manufacturer no longer makes this part, and there's no substitute part

Wiring 3978

#NI

All parts diagram

Wiring

Part #3978

The manufacturer no longer makes this part, and there's no substitute part

Burner 3958
Burner

Part #3958

The manufacturer no longer makes this part, and there's no substitute part

Flame Switch 3971
#97

Body section diagram

Flame switch

Part #3971

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 3629
#32

Body section diagram

Door lining

Part #3629

The manufacturer no longer makes this part, and there's no substitute part

Bracket Valve 3969
#102

Body section diagram

Bracket valve

Part #3969

The manufacturer no longer makes this part, and there's no substitute part

Manif Pipe 3965
#80

Body section diagram

Manif pipe

Part #3965

The manufacturer no longer makes this part, and there's no substitute part

Oven Burner 3620
#94

Body section diagram

Oven burner

Part #3620

The manufacturer no longer makes this part, and there's no substitute part

Panel 4099
#24B

Body section diagram

Panel

Part #4099

The manufacturer no longer makes this part, and there's no substitute part
