Model # 1753420281 Official Kenmore upright vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 1753420281 upright vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
1753420281 Vacuum Cleaners
#14

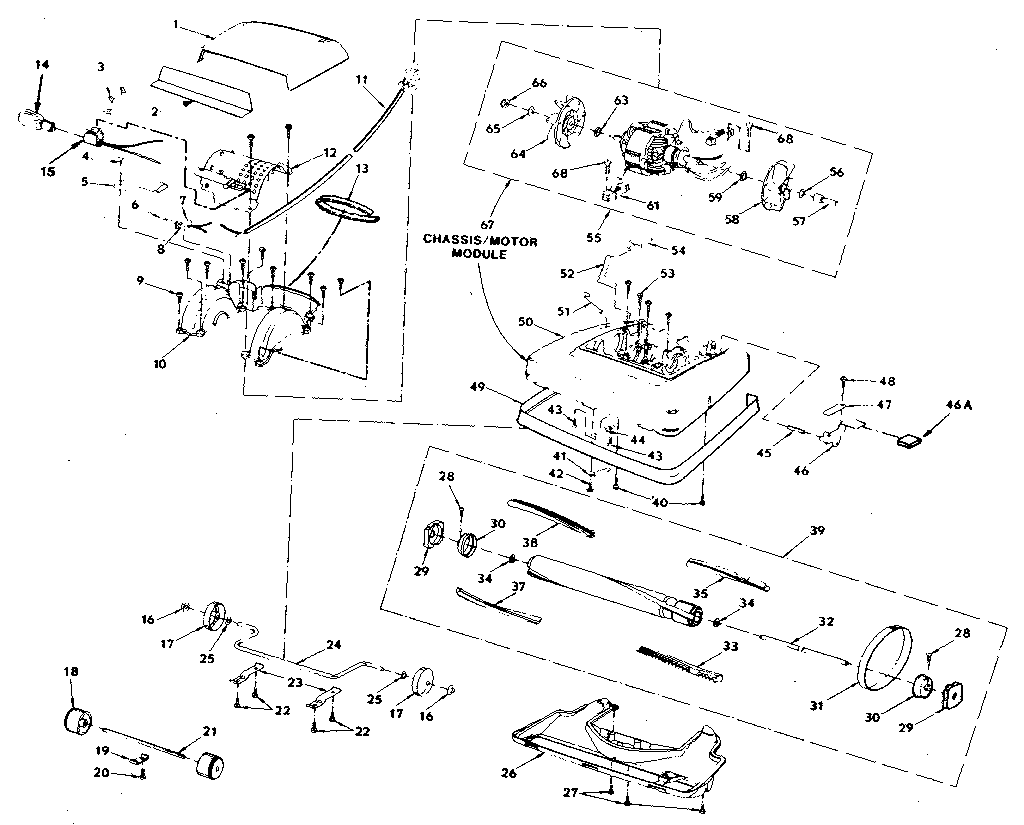

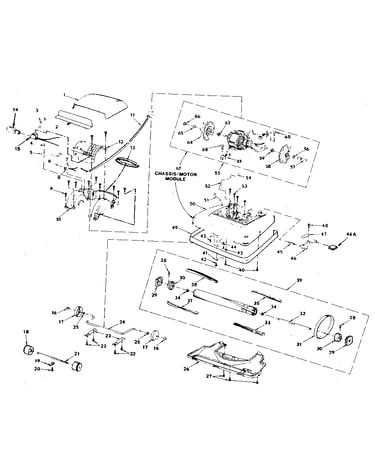

Figure "b" diagram
Light bulb
Part #966790-001
The manufacturer no longer makes this part, and there's no substitute part
#5
Figure "b" diagram
Wiring cover
Part #643040-000
The manufacturer no longer makes this part, and there's no substitute part
#51
Figure "b" diagram
Indicator spring
Part #642383-331
The manufacturer no longer makes this part, and there's no substitute part
#19
Figure "b" diagram
Retainer plate
Part #643015-000
The manufacturer no longer makes this part, and there's no substitute part
#31
Figure "b" diagram
Belt
Part #20-5270
The manufacturer no longer makes this part, and there's no substitute part
#49
Figure "b" diagram
Guard
Part #644022-013
The manufacturer no longer makes this part, and there's no substitute part
#58
Figure "b" diagram
Fan kit
Part #643204-000
The manufacturer no longer makes this part, and there's no substitute part
#21
Figure "b" diagram
Shaft frt wh
Part #643882-006
The manufacturer no longer makes this part, and there's no substitute part
#11

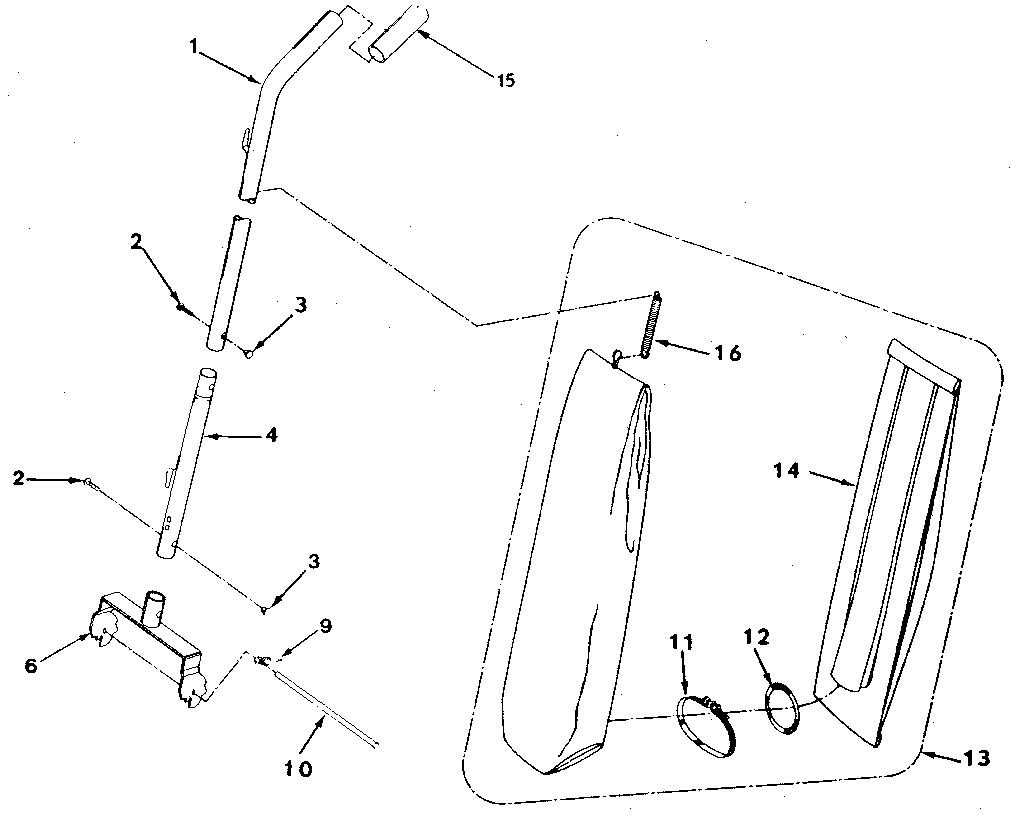

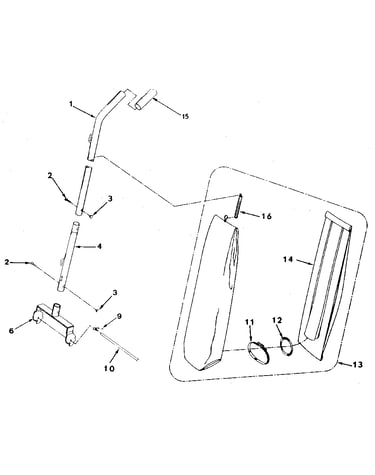

Figure "a" diagram
Bag strap
Part #641895-001
The manufacturer no longer makes this part, and there's no substitute part
#10
Figure "b" diagram
Vacuum blower cover
Part #640441-011
The manufacturer no longer makes this part, and there's no substitute part
