Model # 32017562 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 32017562 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Craftsman Spindle 3551502000
#16

Drill diagram

Craftsman spindle

Part #3551502000

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Battery Pack Receptacle 3402298000
#8

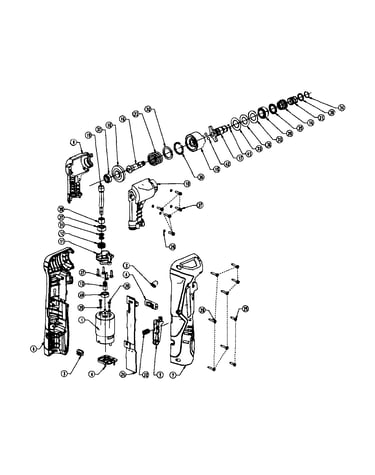

Drill diagram

Power tool battery pack receptacle

Part #3402298000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman F/r Button 3125334000
#4

Drill diagram

Craftsman f/r button

Part #3125334000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Drill/driver Switch Trigger 3125534000
#5

Drill diagram

Craftsman drill/driver switch trigger

Part #3125534000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Light Guid 3123120000
#3

Drill diagram

Craftsman light guid

Part #3123120000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Impact Blo 3551501000
#15

Drill diagram

Craftsman impact blo

Part #3551501000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Drill/driver Motor 2730137000
#1

Drill diagram

Craftsman drill/driver motor

Part #2730137000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Ball 5700226000
#42

Drill diagram

Craftsman ball

Part #5700226000

The manufacturer no longer makes this part, and there's no substitute part

Spring 3660177000
#21

Drill diagram

Spring

Part #3660177000

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw 5610013000
#26

Drill diagram

Power tool screw

Part #5610013000

The manufacturer no longer makes this part, and there's no substitute part
