GE
Electric Wall Oven

Model # JT915SK5SS Official GE wall oven

Here are the diagrams and repair parts for Official GE JT915SK5SS wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Wall Oven Temperature Sensor WB23T10015
#253

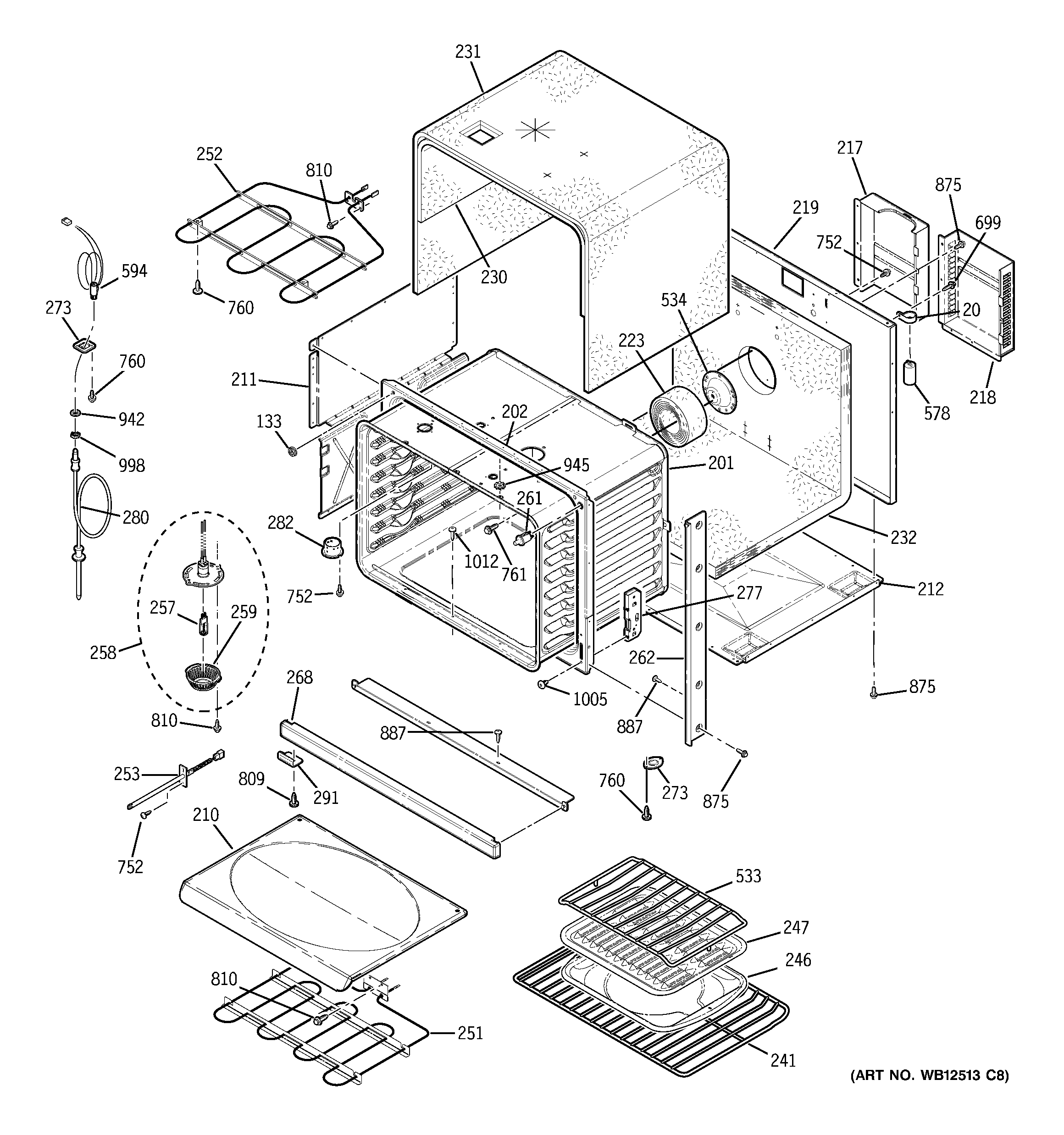

Body parts diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

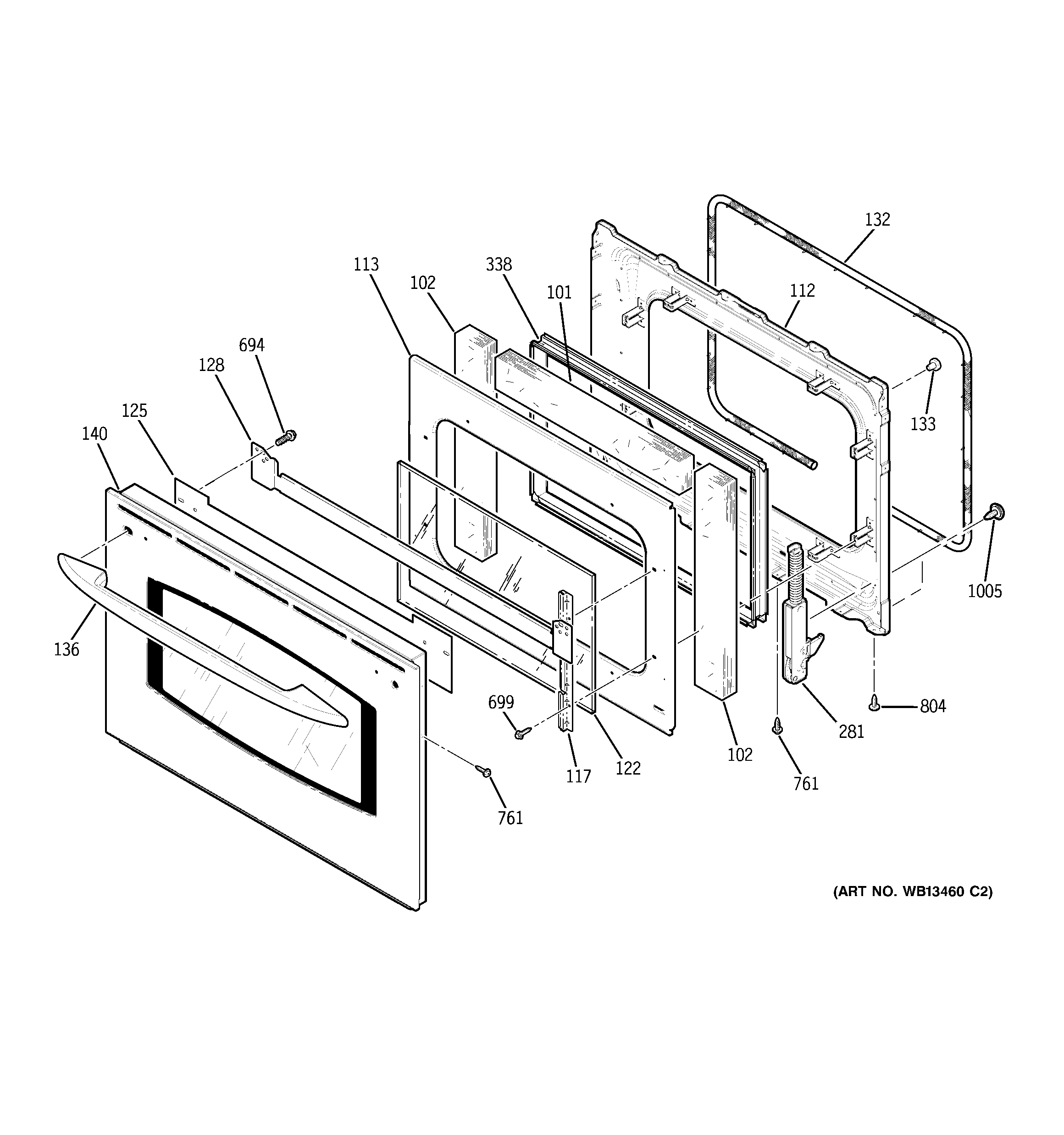

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Range Bake Element WB44T10055
#251

Body parts diagram

Range bake element

Part #WB44T10055

Replaced by #WB44T10021

?
Manufacturer substitution
This part replaces WB44T10055. Substitute parts can look different from the original.
BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

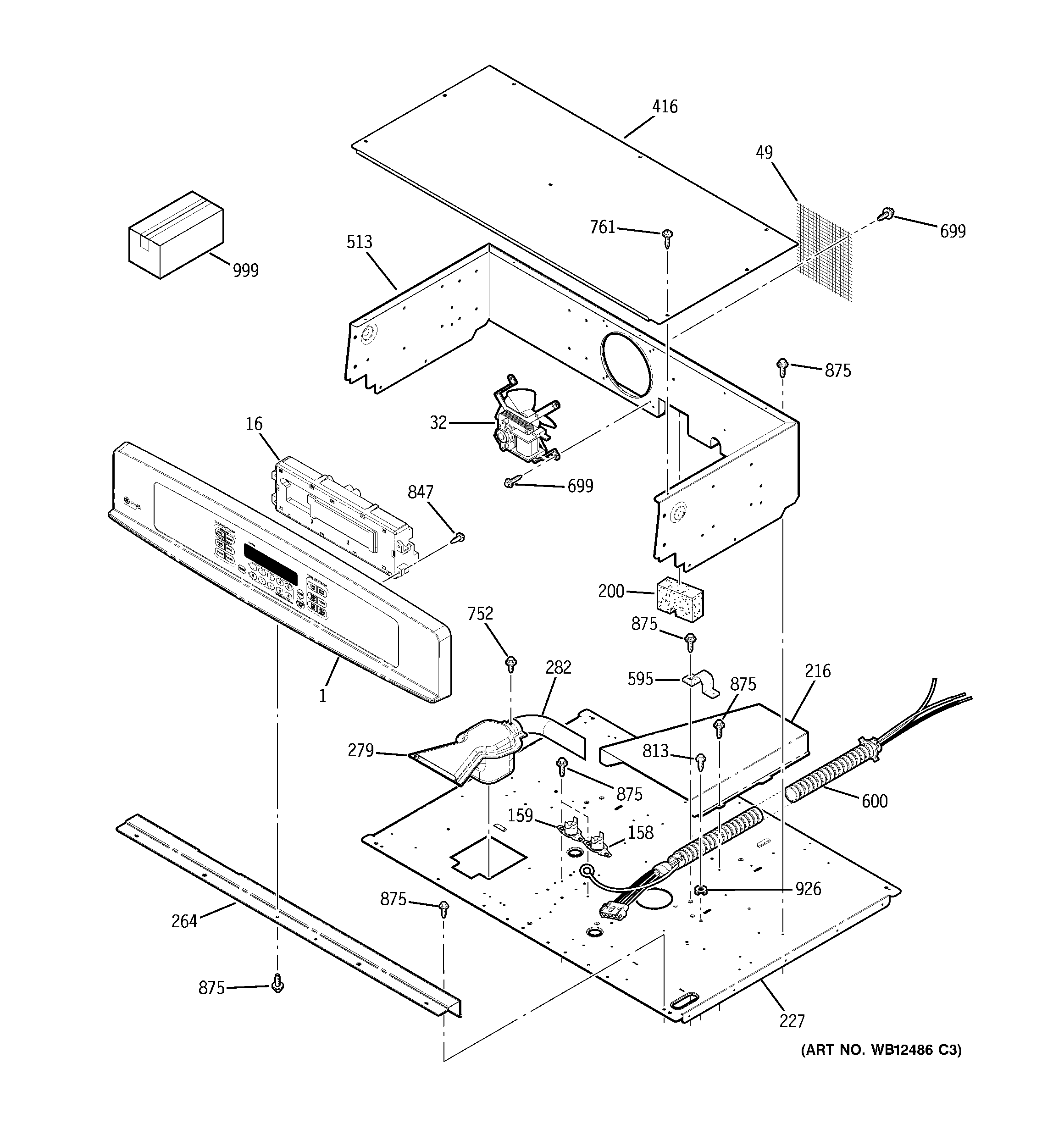

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Convection Element (replaces Wb44t10020) WB44T10053
#298

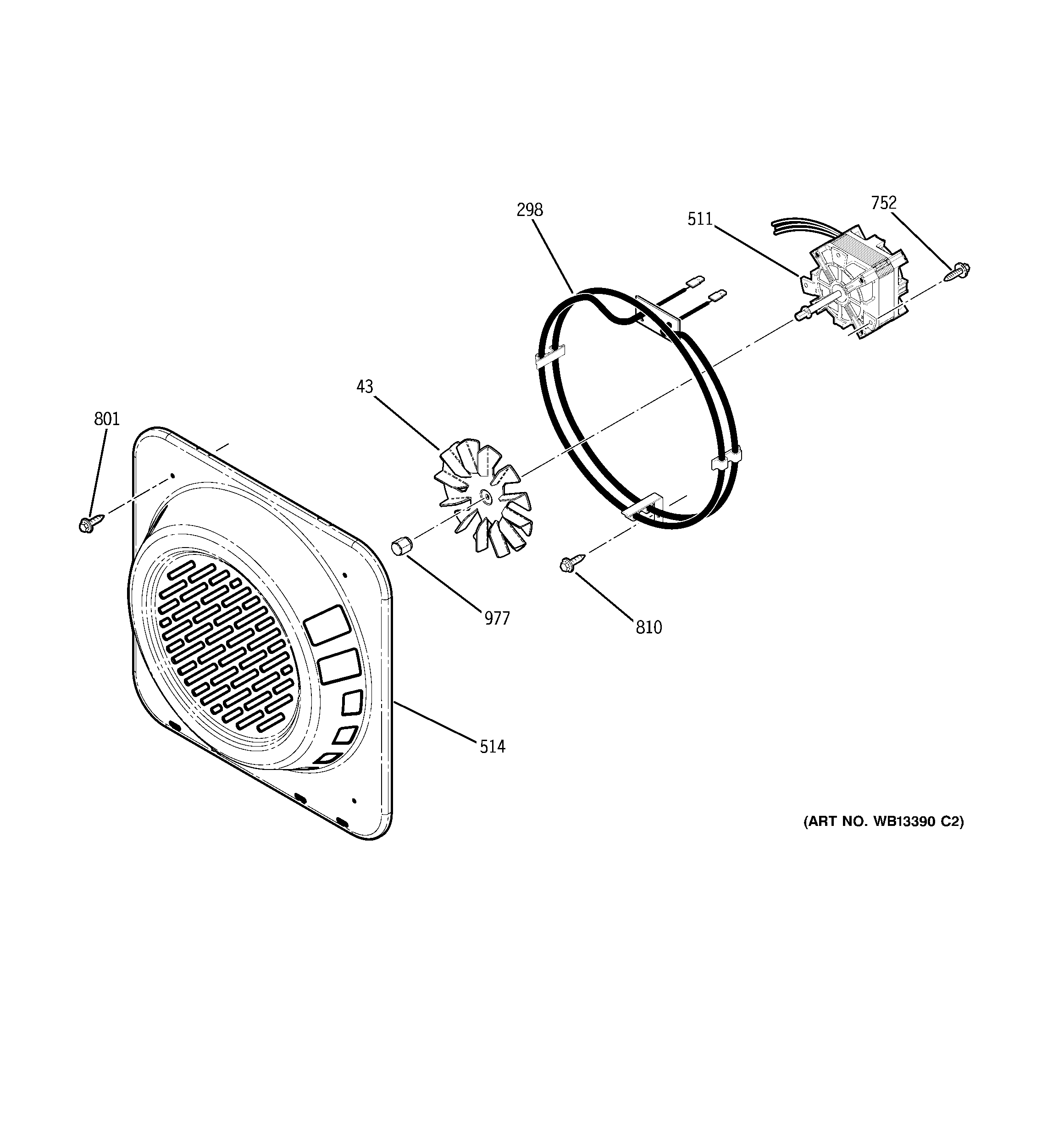

Convection fan diagram

Range convection element (replaces wb44t10020)

Part #WB44T10053

$57.06 |
10% OFF Phone Price : $63.06
In Stock
Nut WB02T10017
#977

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Convection Fan Blade WB02T10289
#43

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Range Halogen Light Bulb WB08T10021
#257

Body parts diagram

Range halogen light bulb

Part #WB08T10021

Replaced by #WB49X29679

?
Manufacturer substitution
This part replaces WB08T10021. Substitute parts can look different from the original.
This item is not returnable
$47.12 |
11% OFF Phone Price : $53.12
In Stock
Range Oven Door Outer Panel Pad WB01T10026
Range oven door outer panel pad

Part #WB01T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Wire Harness WB18T10386
#999

Control panel diagram

Range wire harness

Part #WB18T10386

$27.56 |
18% OFF Phone Price : $33.56
Back Order
