Model # ZGU364LRP4SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU364LRP4SS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

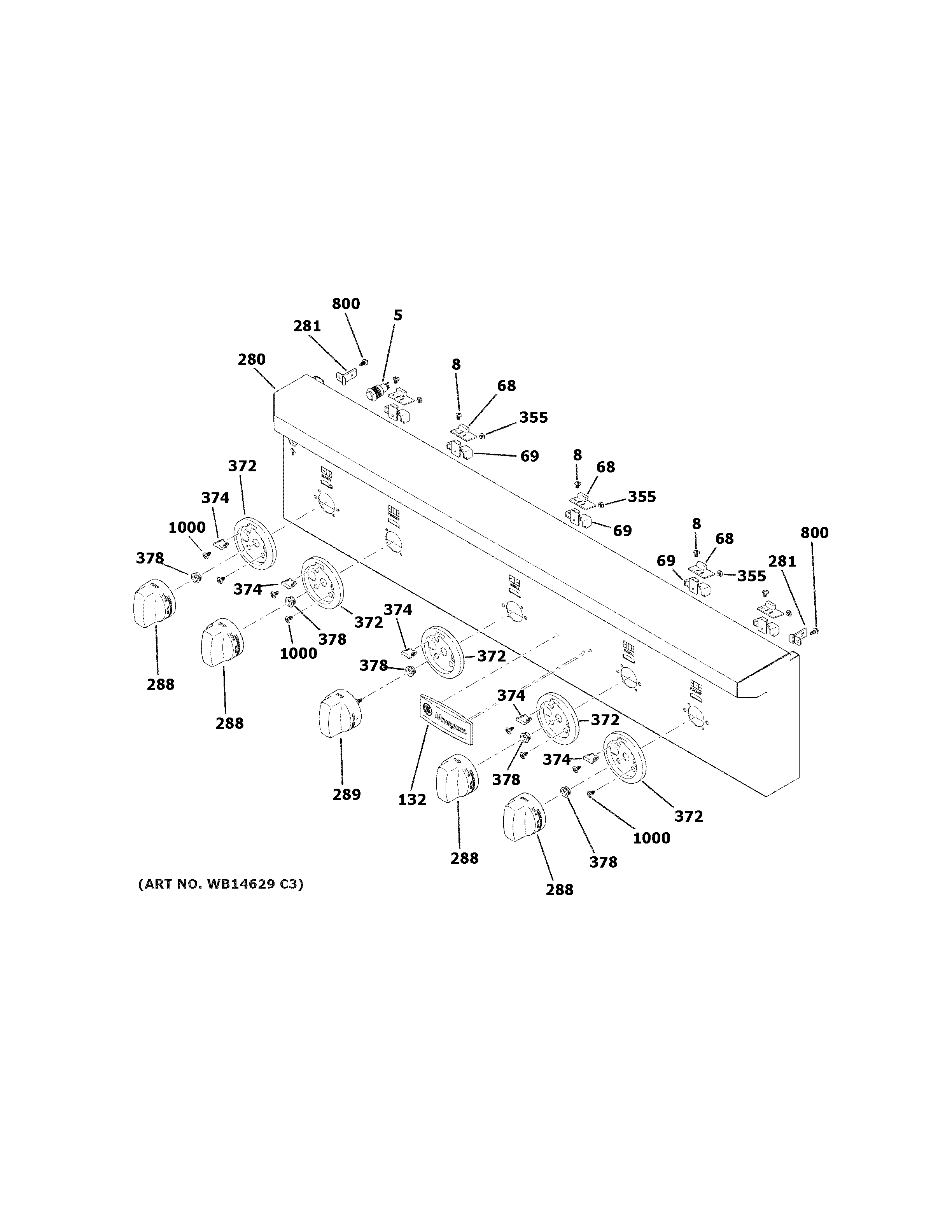

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Grate WB31K10224
#251

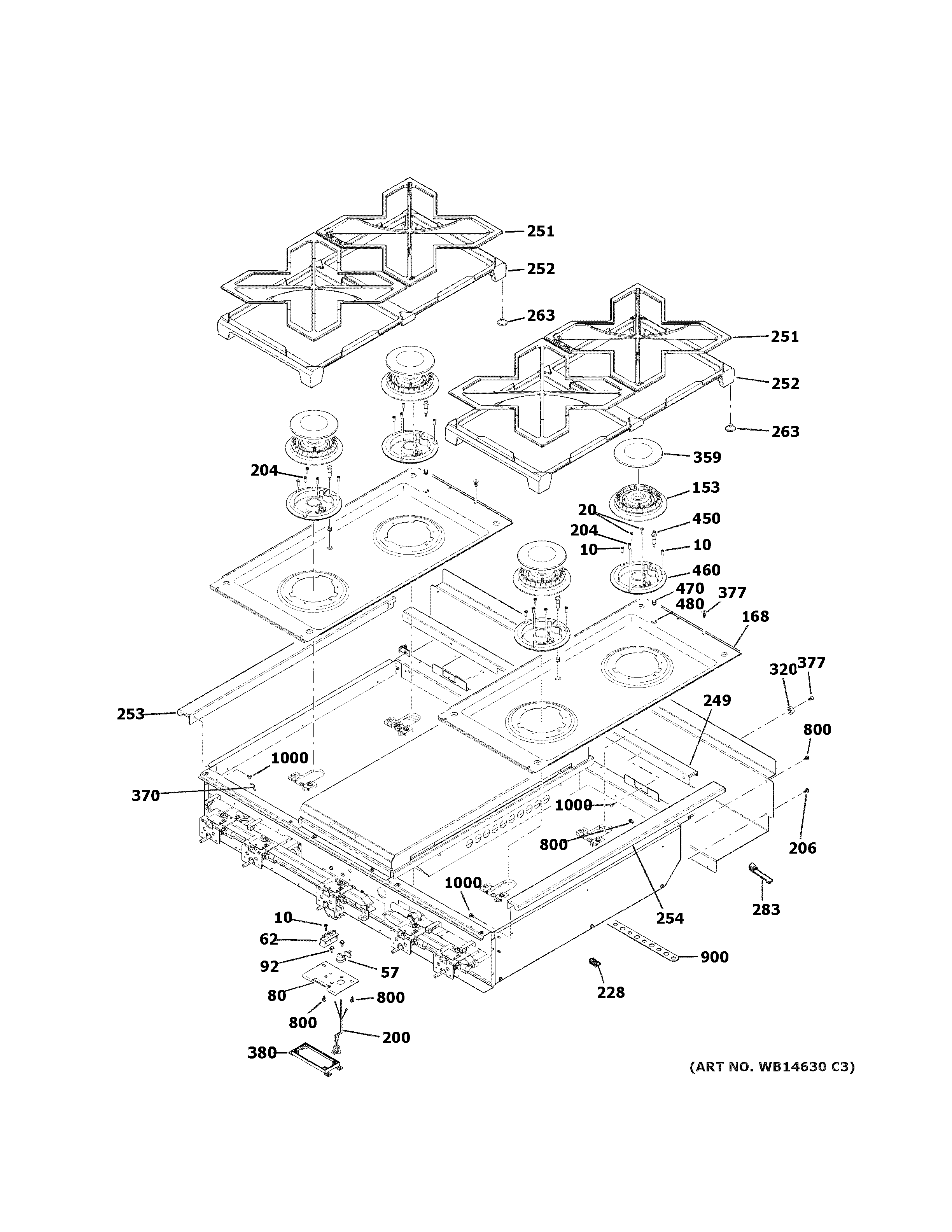

Cooktop diagram

Grate

Part #WB31K10224

Replaced by #WB31K10252

?
Manufacturer substitution
This part replaces WB31K10224. Substitute parts can look different from the original.
BEST SELLER
$125.86 |
9% OFF Phone Price : $137.86
In Stock
Range Surface Burner Igniter WB13T10065
#450

Cooktop diagram

Range surface burner igniter

Part #WB13T10065

This item is not returnable
$26.21 |
19% OFF Phone Price : $32.21
In Stock
Hex Washer Head Screw WB01K0050
#28

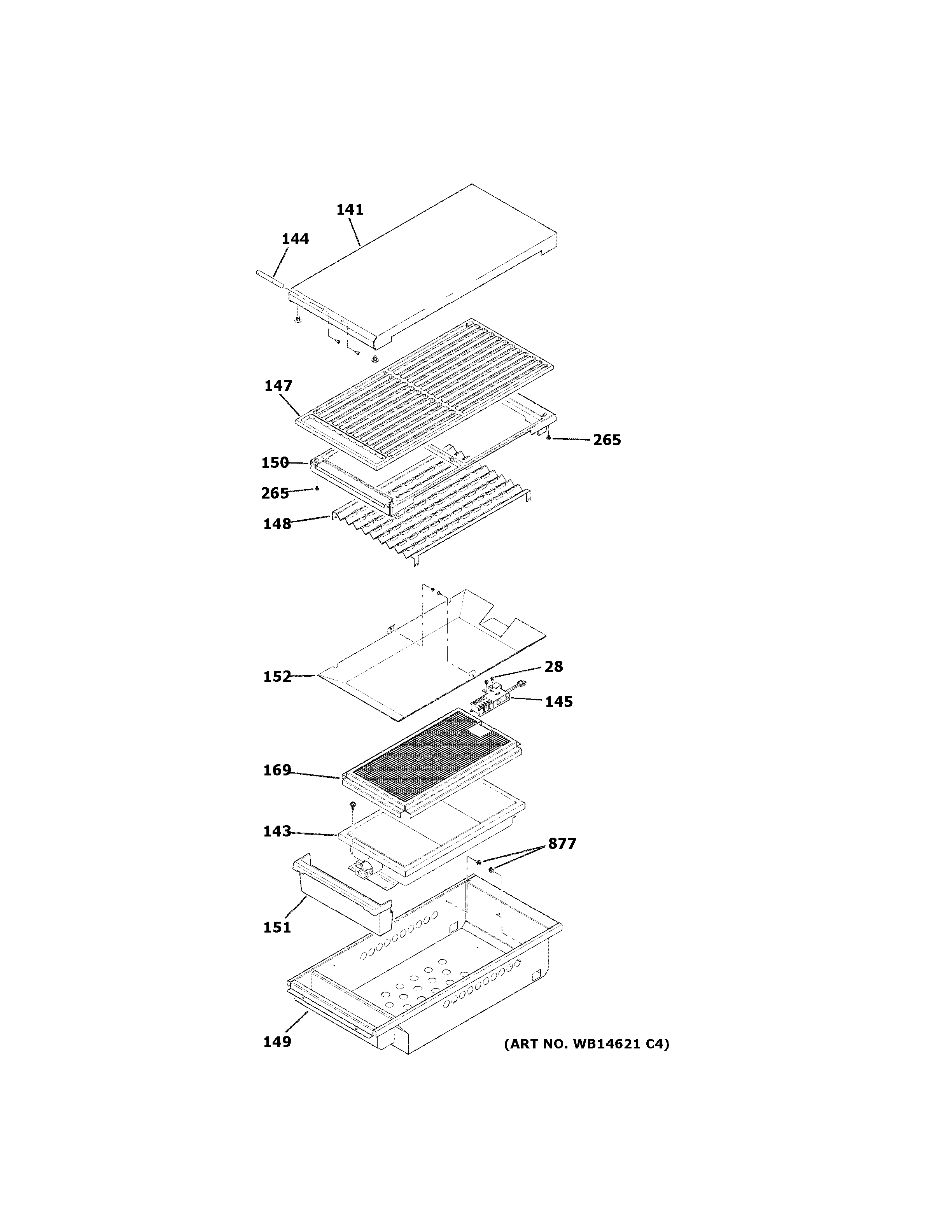

Grill assembly diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Base WB28T10114
#60

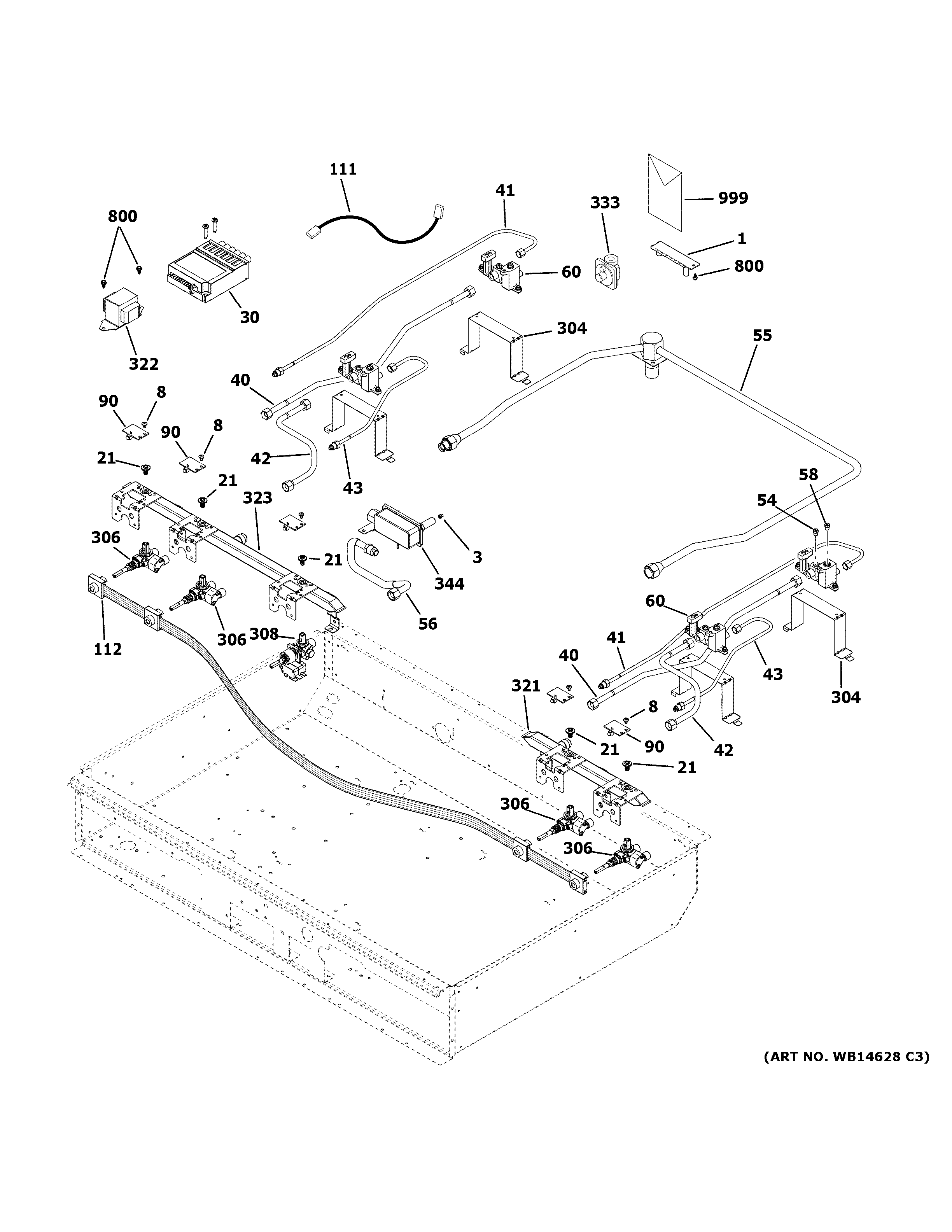

Gas & burner parts diagram

Range surface burner base

Part #WB28T10114

$69.69 |
8% OFF Phone Price : $75.69
In Stock
Grate Frame WB31K10225
#252

Cooktop diagram

Grate frame

Part #WB31K10225

Replaced by #WB31K10253

?
Manufacturer substitution
This part replaces WB31K10225. Substitute parts can look different from the original.
$188.19 |
6% OFF Phone Price : $200.19
In Stock
Range Surface Burner Igniter Clip WB02T10323
#480

Cooktop diagram

Range surface burner igniter clip

Part #WB02T10323

$8.11
In Stock
Range Screw WB01T10104
#10

Cooktop diagram

Range screw

Part #WB01T10104

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Surface Burner Orifice WB28T10117
#54

Gas & burner parts diagram

Range surface burner orifice

Part #WB28T10117

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw WB01K10091
#206

Cooktop diagram

Range screw

Part #WB01K10091

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Surface Burner Orifice WB28T10118
#58

Gas & burner parts diagram

Range surface burner orifice

Part #WB28T10118

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
