Frigidaire
Top-Mount Refrigerator

Model # FPHT2097VF3 Official Frigidaire top-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire FPHT2097VF3 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

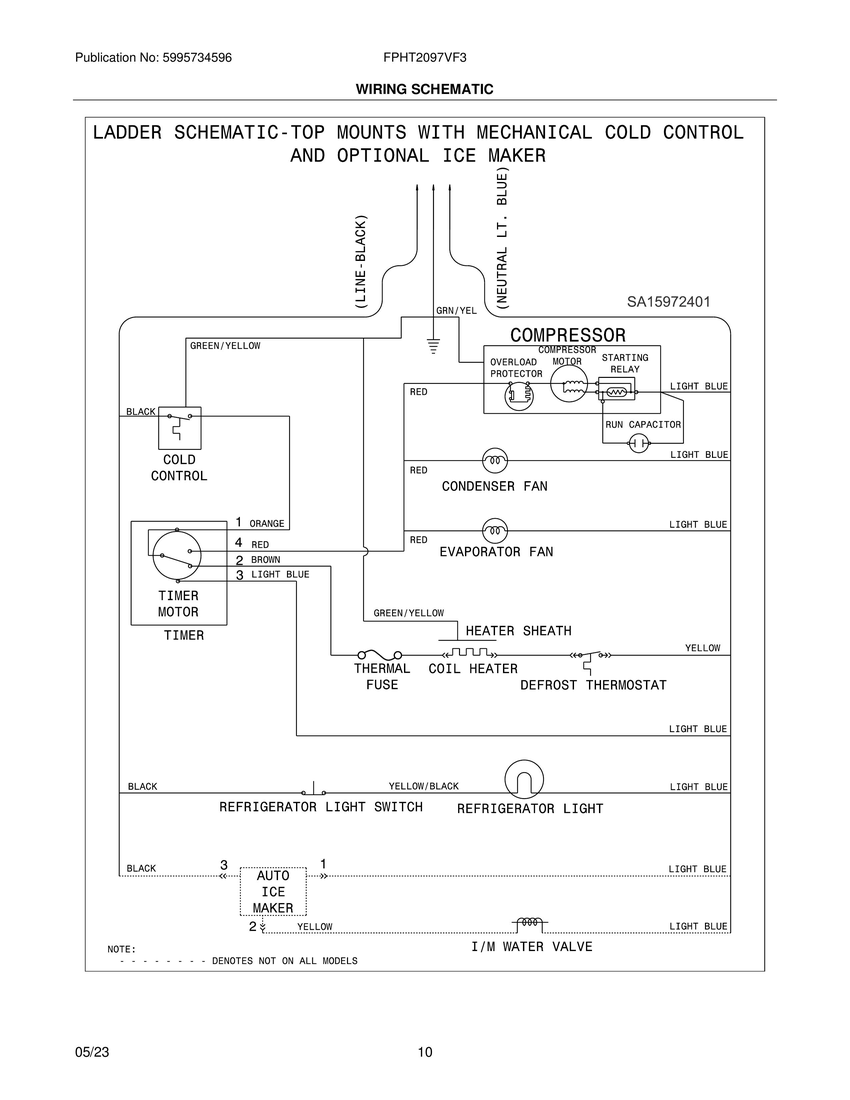

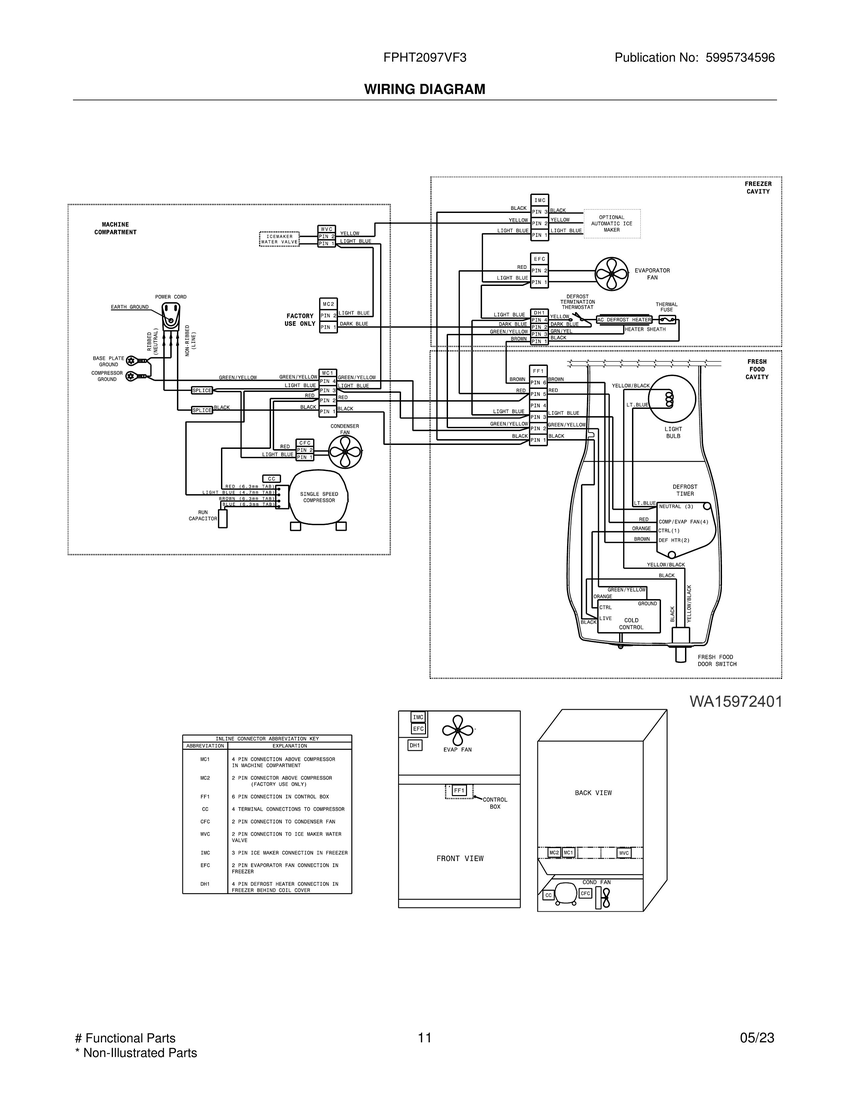

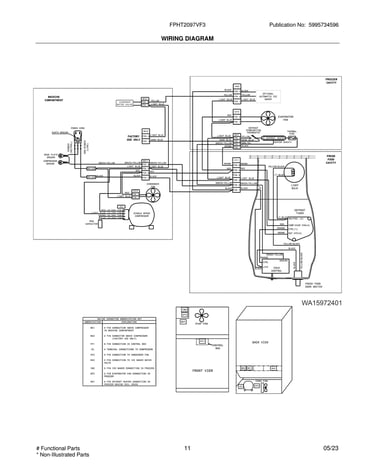

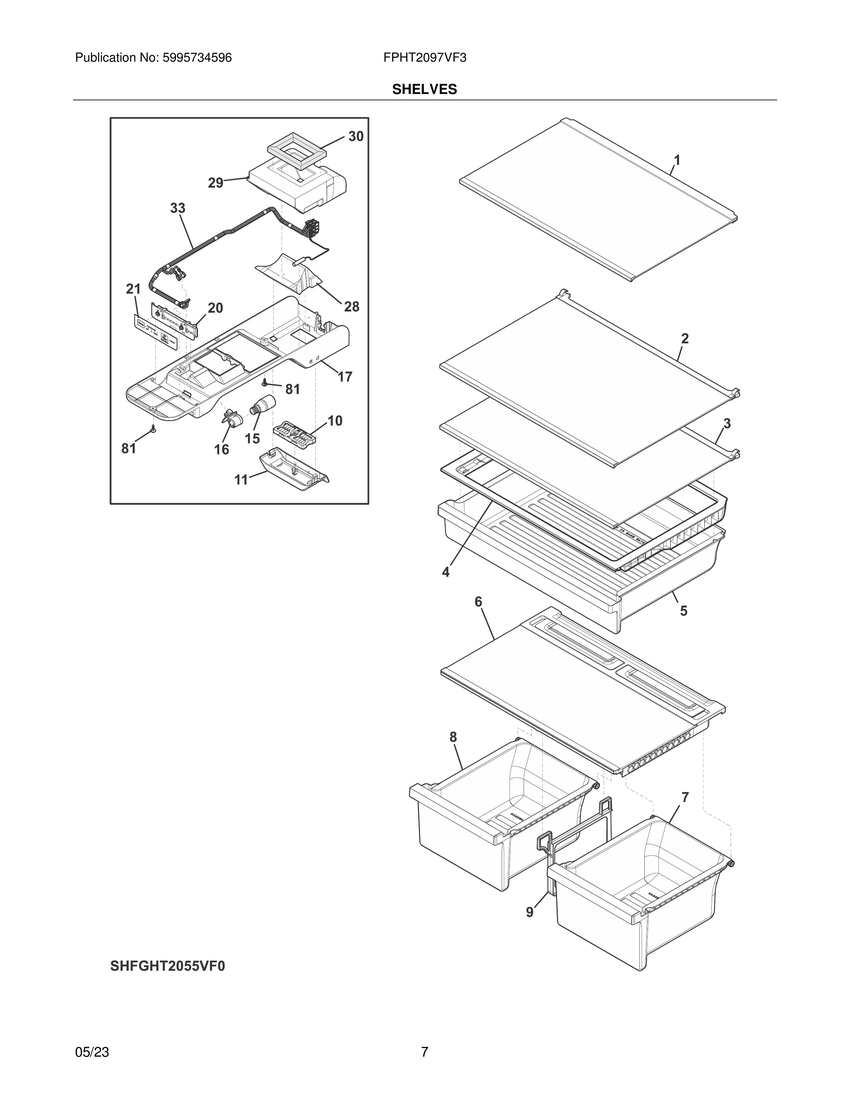

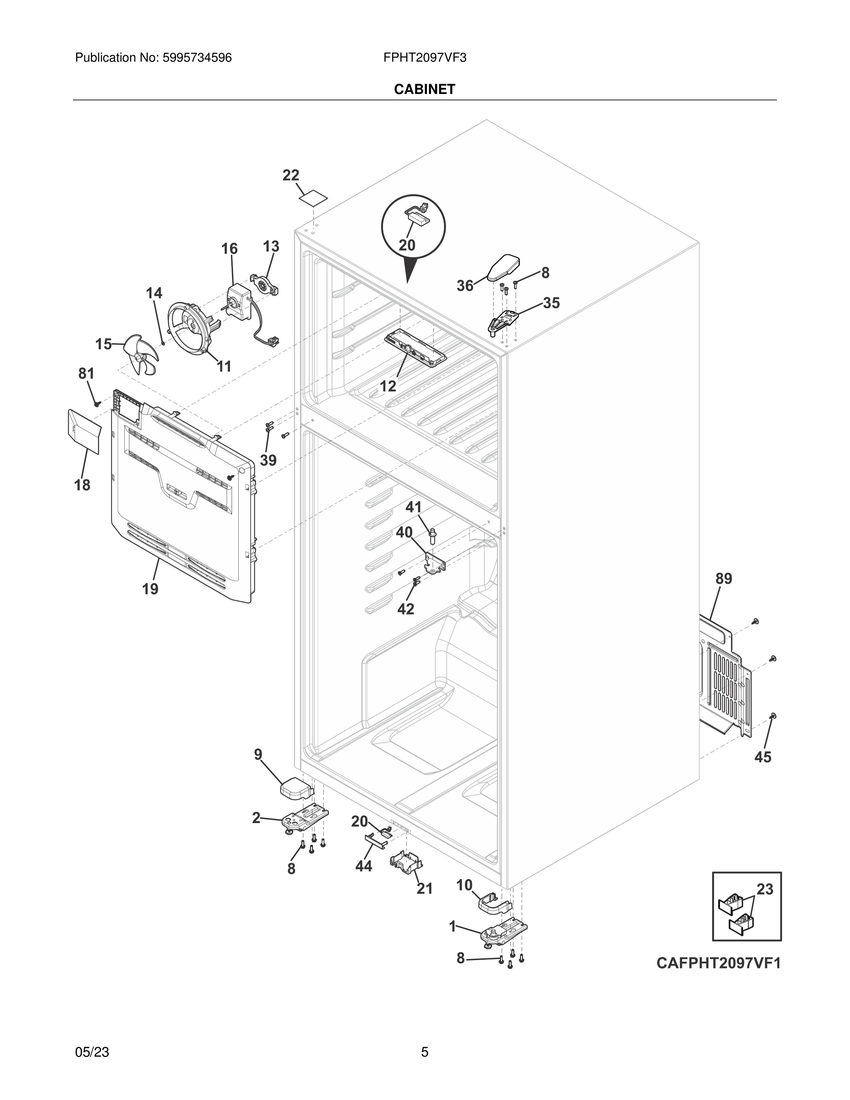

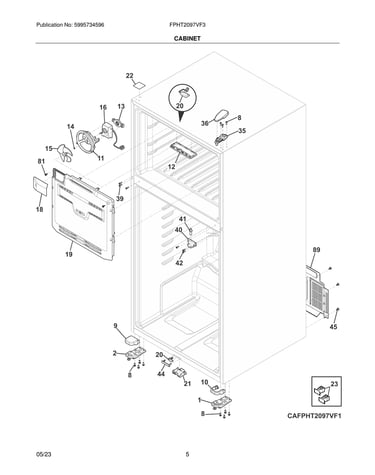

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Refrigerator Filter Dryer 5304522277
#4

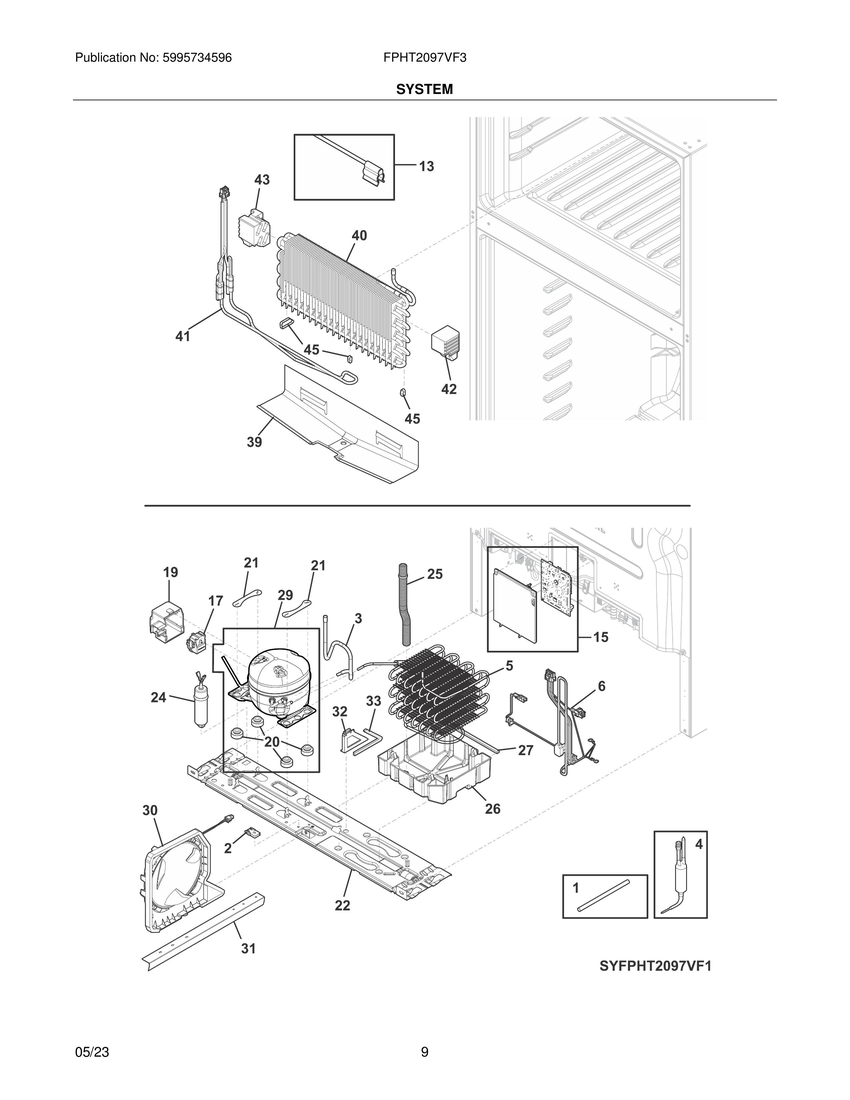

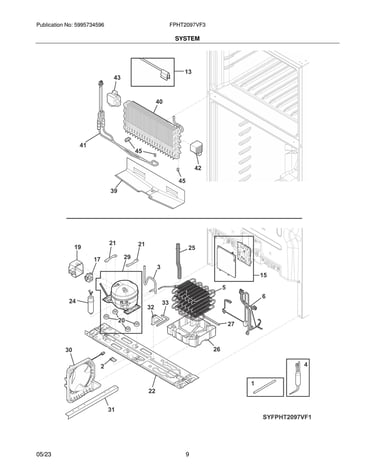

System diagram

Refrigerator filter dryer

Part #5304522277

BEST SELLER
$18.89 |
10% OFF Phone Price : $20.89
In Stock
Electrolux Refrigerator Temperature Sensor (replaces 242290506) 5303918645
#13

System diagram

Electrolux refrigerator temperature sensor (replaces 242290506)

Part #5303918645

BEST SELLER
$62.89 |
9% OFF Phone Price : $68.89
Back Order
Universal/multiflex (frigidaire) Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#80

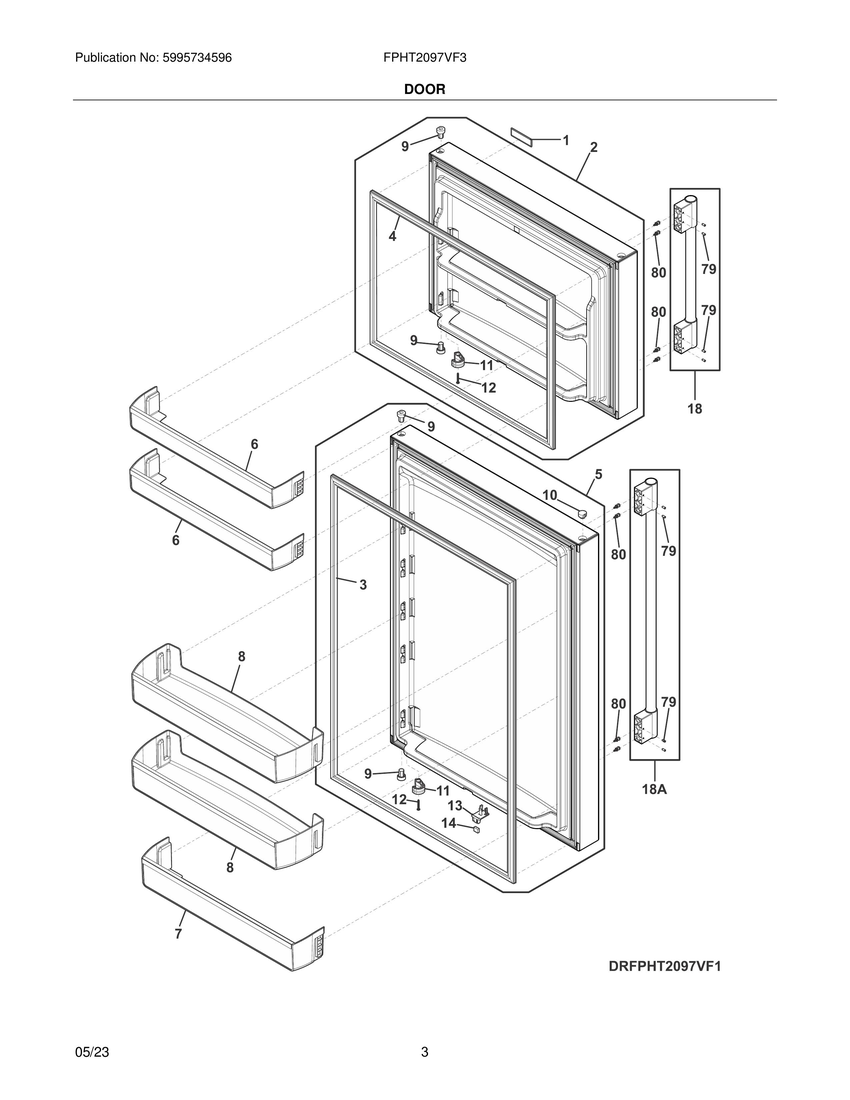

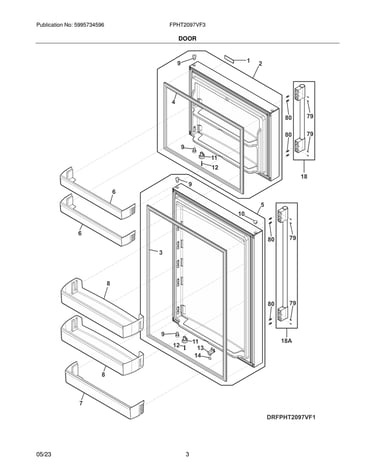

Door diagram

Universal/multiflex (frigidaire) refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$15.46 |
11% OFF Phone Price : $17.46
In Stock
Screw 218755407
#79

Door diagram

Screw

Part #218755407

Replaced by #218755402

?
Manufacturer substitution
This part replaces 218755407. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Refrigerator Strap 5308000110
#45

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Condenser 5304530007
#5

System diagram

Condenser

Part #5304530007

BEST SELLER
$75.87
In Stock
Refrigerator Door Gasket 5304528903
#3

Door diagram

Refrigerator door gasket

Part #5304528903

BEST SELLER
$173.74
In Stock
Refrigerator Machine Compartment Wire Harness 5304519649
#6

System diagram

Refrigerator machine compartment wire harness

Part #5304519649

BEST SELLER
$64.42 |
9% OFF Phone Price : $70.42
In Stock
Refrigerator Door Hinge Bearing (gray) 5304522194
#9

Door diagram

Refrigerator door hinge bearing (gray)

Part #5304522194

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fan Assembly,condenser ,w/shroud-foam 5304522173
#30

System diagram

Fan assembly,condenser ,w/shroud-foam

Part #5304522173

$94.18
In Stock
