Jenn-Air
Microwave/Hood Combo

Model # JMV8208AAW Official Jenn-Air microwave

Here are the diagrams and repair parts for Official Jenn-Air JMV8208AAW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

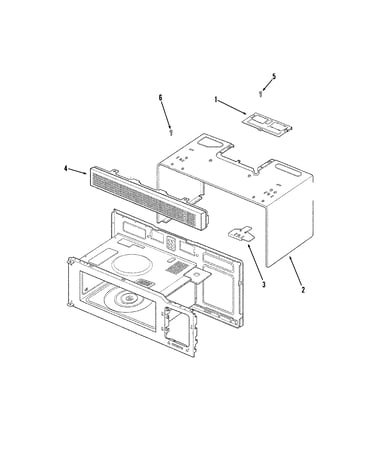

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Magnetron 53001581
#6

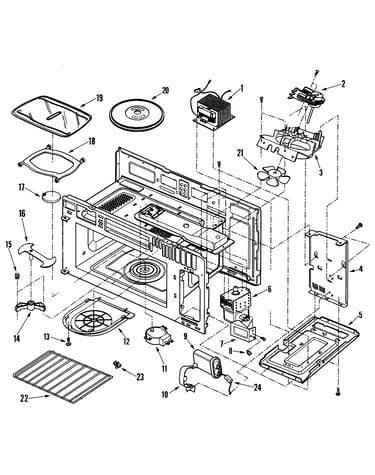

Cavity diagram

Magnetron

Part #53001581

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 53001539
#9

Cavity diagram

Capacitor

Part #53001539

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 53001539. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Screw Cord R9800501
#1A

Installation diagram

Screw cord

Part #R9800501

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces R9800501. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Microwave Charcoal Filter 53001442
#2

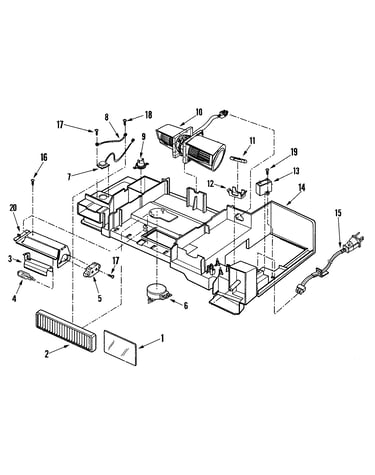

Blower motor diagram

Microwave charcoal filter

Part #53001442

Replaced by #WP53001442

?
Manufacturer substitution
This part replaces 53001442. Substitute parts can look different from the original.
This item is not returnable
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Self Screw 53001754
#19

Blower motor diagram

Self screw

Part #53001754

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 53001754. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Microwave Thermostat 53001561
#9

Blower motor diagram

Microwave thermostat

Part #53001561

Replaced by #W10864742

?
Manufacturer substitution
This part replaces 53001561. Substitute parts can look different from the original.
$37.68 |
14% OFF Phone Price : $43.68
In Stock
"lamp, Haloge" 53001420
"lamp, haloge"

Part #53001420

Replaced by #WP53001905

?
Manufacturer substitution
This part replaces 53001420. Substitute parts can look different from the original.
$32.44 |
16% OFF Phone Price : $38.44
In Stock
Fuse R0131110
#11A

Blower motor diagram

Fuse

Part #R0131110

Replaced by #WP8183507

?
Manufacturer substitution
This part replaces R0131110. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Micro-switch 53001018
#14

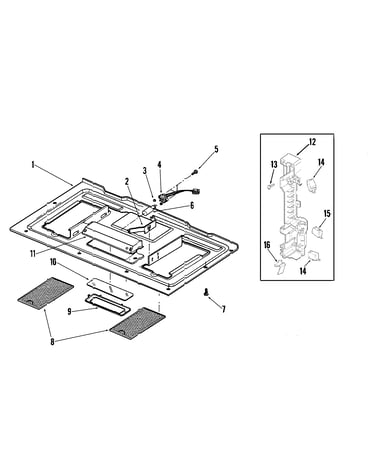

Base/latch board assembly diagram

Micro-switch

Part #53001018

Replaced by #4392027

?
Manufacturer substitution
This part replaces 53001018. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Fuse Holder R0131021
#12A

Blower motor diagram

Fuse holder

Part #R0131021

Replaced by #W10206728

?
Manufacturer substitution
This part replaces R0131021. Substitute parts can look different from the original.
This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
