Model # 11629123 Official Kenmore powermate parts

Here are the diagrams and repair parts for Official Kenmore 11629123 powermate parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Hose 2405
#80

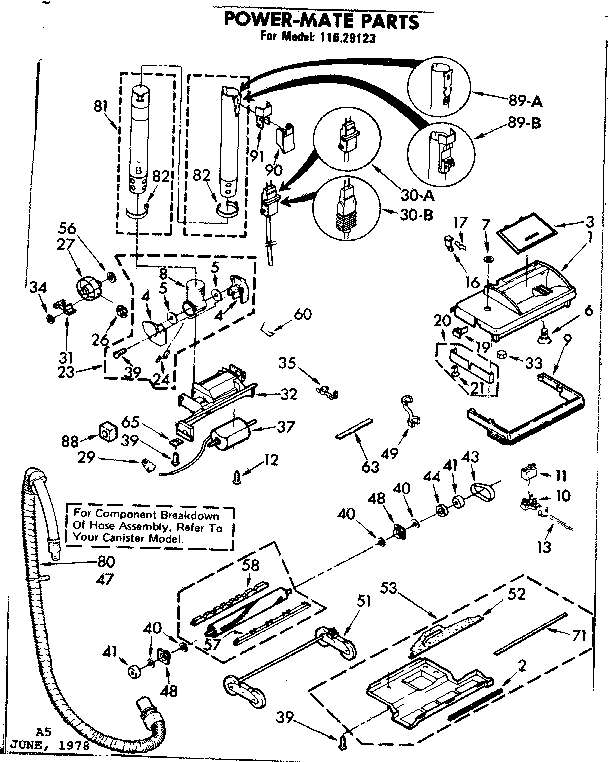

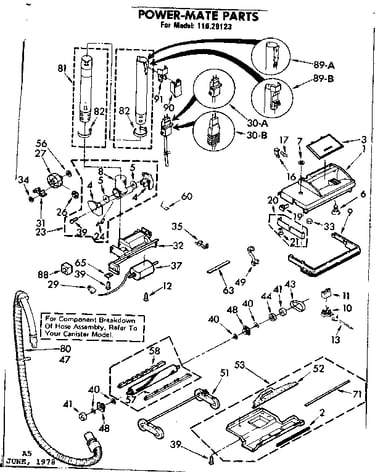

Power mate diagram

Hose

Part #2405

$79.99
In Stock
Bearing 741358
#5

Power mate diagram

Bearing

Part #741358

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Latch 722924
#21

Power mate diagram

Latch

Part #722924

The manufacturer no longer makes this part, and there's no substitute part

Coverplate 676092
#2

Power mate diagram

Coverplate

Part #676092

The manufacturer no longer makes this part, and there's no substitute part

Bearing 725853
#4B

Power mate diagram

Bearing

Part #725853

The manufacturer no longer makes this part, and there's no substitute part

Pulley 741409
#44

Power mate diagram

Pulley

Part #741409

The manufacturer no longer makes this part, and there's no substitute part

Yoke Assembly 725859
#23

Power mate diagram

Yoke assembly

Part #725859

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wand Lock Spring Set, 2-pack 569318
#82

Power mate diagram

Vacuum wand lock spring set, 2-pack

Part #569318

The manufacturer no longer makes this part, and there's no substitute part

Bezel 741261
#7

Power mate diagram

Bezel

Part #741261

The manufacturer no longer makes this part, and there's no substitute part
