LG
Top-Mount Refrigerator

Model # LTNC11131V/00 Official LG top-mount refrigerator

Here are the diagrams and repair parts for Official LG LTNC11131V-00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

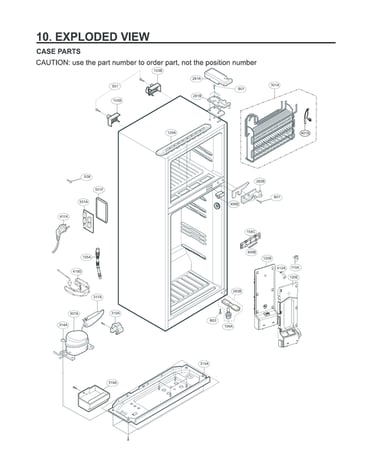

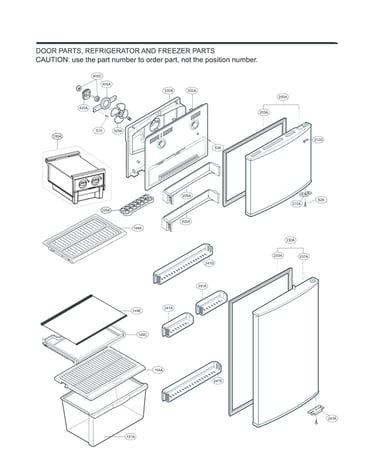

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Refrigerator Filter Dryer ADH73590310

#317A

All parts diagram

Refrigerator filter dryer

Part #ADH73590310

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A

#314A

All parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Nameplate (replaces 3846jd1007f, Mft62346508, Mft62366501) MFT62346511

#212G

All parts diagram

Refrigerator nameplate (replaces 3846jd1007f, mft62346508, mft62366501)

Part #MFT62346511

$32.09 |
16% OFF Phone Price : $38.09
In Stock
Lg Refrigerator Crisper Drawer Cover Assembly ACQ86486001

#154A

All parts diagram

Lg refrigerator crisper drawer cover assembly

Part #ACQ86486001

$204.08 |
6% OFF Phone Price : $216.08
In Stock
Refrigerator Door Reed Switch Magnet EBF62234504

#406B

All parts diagram

Refrigerator door reed switch magnet

Part #EBF62234504

This item is not returnable
$26.20
In Stock
Refrigerator Door Bin, Lower MAN62871401

#241E

All parts diagram

Refrigerator door bin, lower

Part #MAN62871401

$64.44
Back Order
Refrigerator Condenser Motor Damper Grommet J756-00008B

#405C

All parts diagram

Refrigerator condenser motor damper grommet

Part #J756-00008B

$8.97
In Stock
Refrigerator Door Bin MAN62871101

#241A

All parts diagram

Refrigerator door bin

Part #MAN62871101

$41.36
In Stock
Refrigerator Power Cord EAD61445253

#411A

All parts diagram

Refrigerator power cord

Part #EAD61445253

$87.46 |
6% OFF Phone Price : $93.46
In Stock
Tray,drip MJS62894203

#319A

All parts diagram

Tray,drip

Part #MJS62894203

$32.09 |
16% OFF Phone Price : $38.09
In Stock
