Model # GR-DVM80U Official JVC digital video camera

Here are the diagrams and repair parts for Official JVC GR-DVM80U digital video camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 235 parts  |
Jvc Integrated Circuit M32310D5WG
#NI

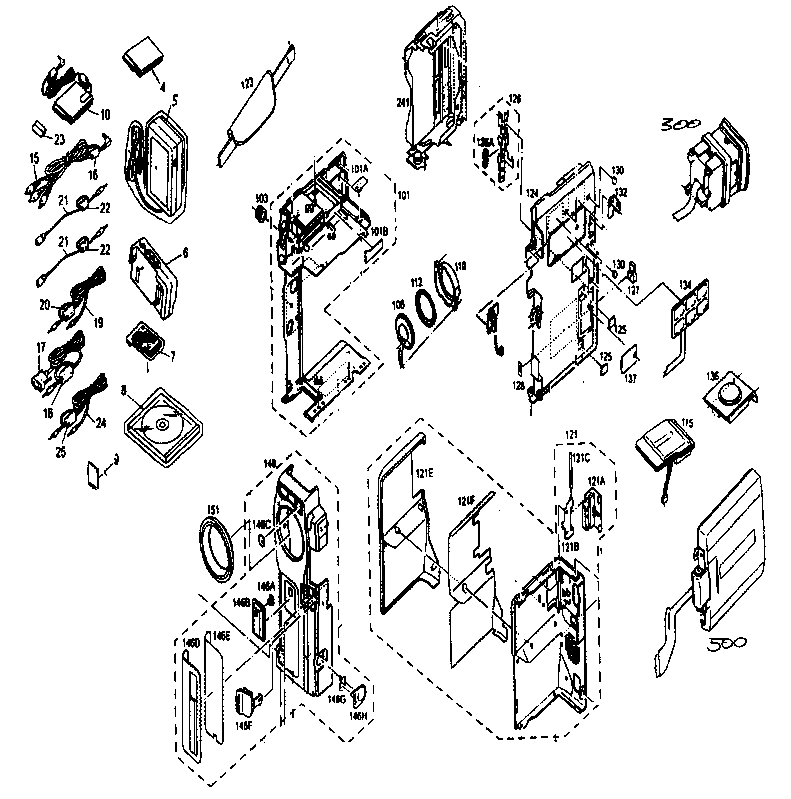

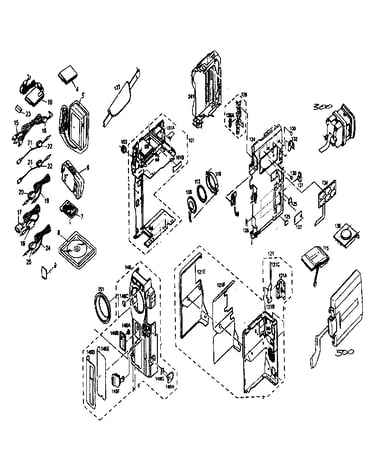

Cabinet parts diagram

Jvc integrated circuit

Part #M32310D5WG

The manufacturer no longer makes this part, and there's no substitute part

Jvc Guide LY30462-001B
#NI

Cabinet parts diagram

Jvc guide

Part #LY30462-001B

The manufacturer no longer makes this part, and there's no substitute part

Jvc Cover LY20581-003D
#146

Cabinet parts diagram

Jvc cover

Part #LY20581-003D

The manufacturer no longer makes this part, and there's no substitute part

Jvc Plate LY30477-001F
#NI

Cabinet parts diagram

Jvc plate

Part #LY30477-001F

The manufacturer no longer makes this part, and there's no substitute part

Jvc Screw QYSPSPT1720R
#NI

Cabinet parts diagram

Jvc screw

Part #QYSPSPT1720R

The manufacturer no longer makes this part, and there's no substitute part

Diode RB706D-40-X
#NI

Cabinet parts diagram

Diode

Part #RB706D-40-X

The manufacturer no longer makes this part, and there's no substitute part

Jvc S.g.plate LY30618-001C
#NI

Cabinet parts diagram

Jvc s.g.plate

Part #LY30618-001C

The manufacturer no longer makes this part, and there's no substitute part

Zoom LY31680-001A
#NI

Cabinet parts diagram

Zoom

Part #LY31680-001A

The manufacturer no longer makes this part, and there's no substitute part

Plate LY31675-001A
#121A

Cabinet parts diagram

Plate

Part #LY31675-001A

The manufacturer no longer makes this part, and there's no substitute part

Jvc Transistor 2SK1830
#NI

Cabinet parts diagram

Jvc transistor

Part #2SK1830

The manufacturer no longer makes this part, and there's no substitute part
