GE
Chest Freezer

Model # FCM15DPGWH Official GE freezer - d series

Here are the diagrams and repair parts for Official GE FCM15DPGWH freezer - d series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Clip Control WR02X12032
#117

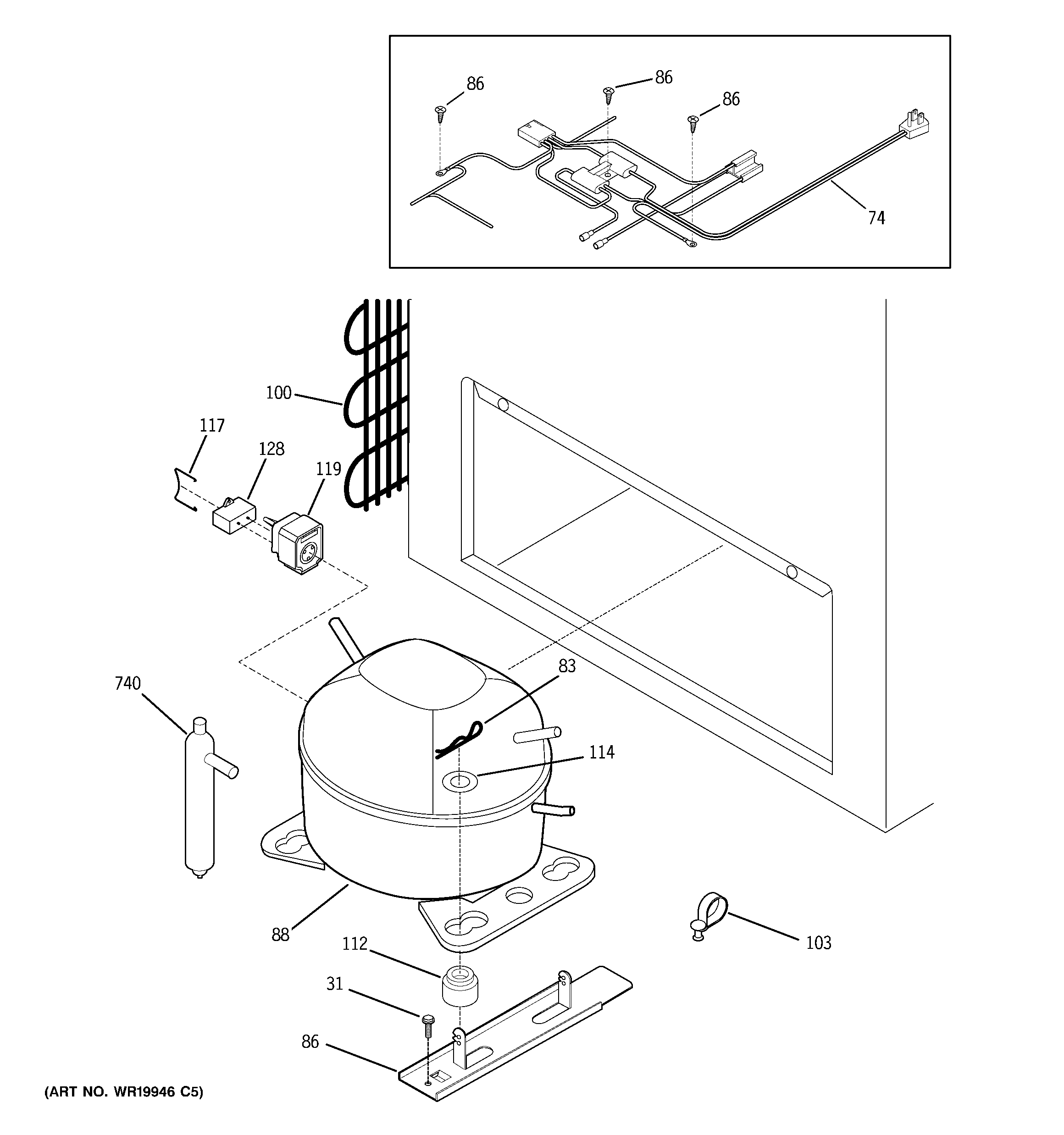

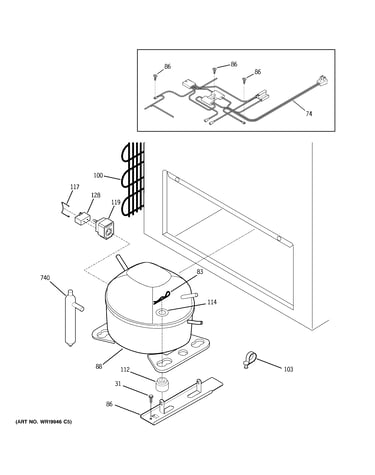

Unit parts diagram

Clip control

Part #WR02X12032

$15.33
In Stock
Catch-lock W WR02X12337
#40

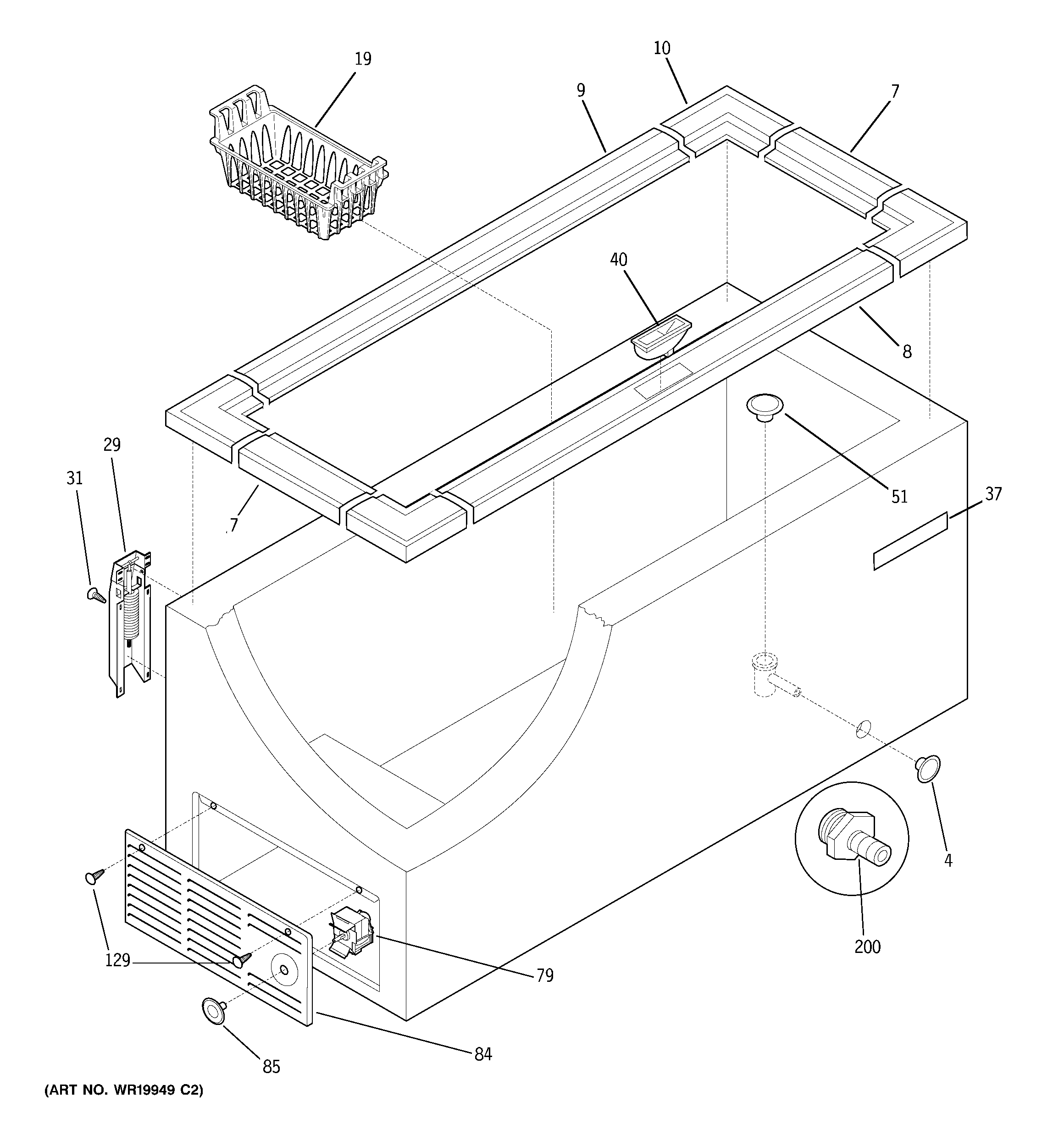

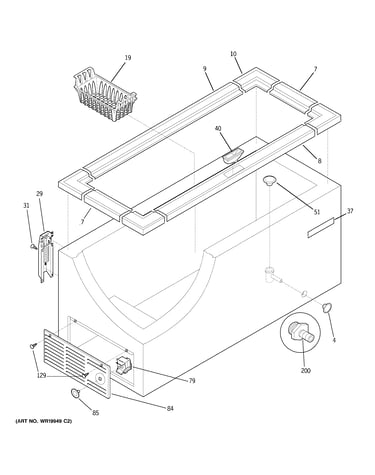

Cabinet diagram

Catch-lock w

Part #WR02X12337

$8.33
In Stock
Plugbutton1/ WR02X11935
#49

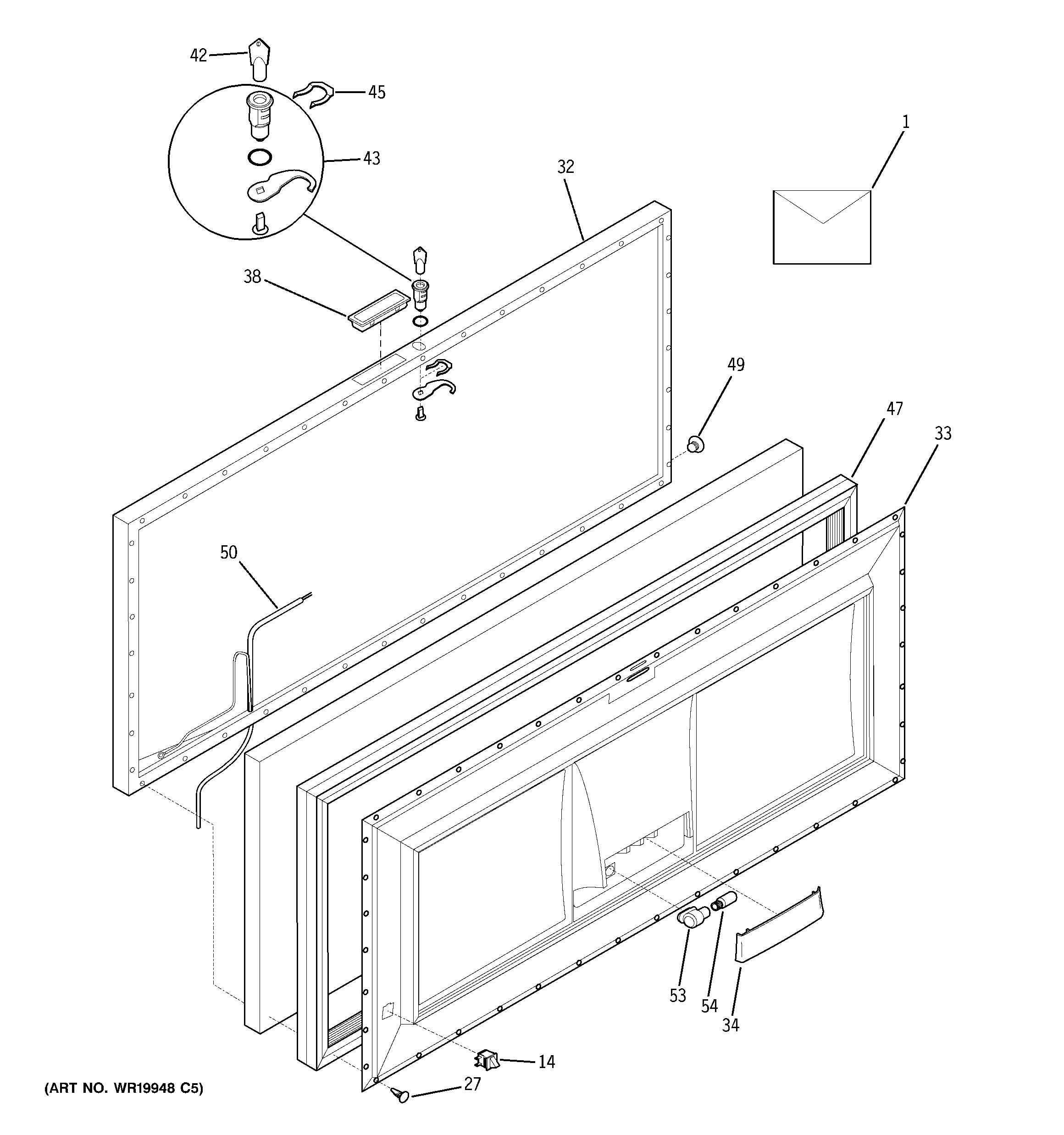

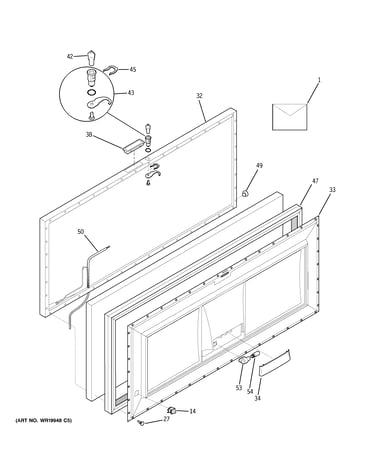

Freezer door diagram

Plugbutton1/

Part #WR02X11935

$9.31
In Stock
Freezer Door Switch WR23X10303
#14

Freezer door diagram

Freezer door switch

Part #WR23X10303

$64.46 |
9% OFF Phone Price : $70.46
In Stock
Access Panel WR17X3069
#84

Cabinet diagram

Access panel

Part #WR17X3069

$88.70
In Stock
Temperature Complete Knob WR02X10860
#85

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Lock Assembly WR05X10028
#43

Freezer door diagram

Lock assembly

Part #WR05X10028

$34.07
In Stock
Freezer Cabinet Hole Plug WR02X12063
#4

Cabinet diagram

Freezer cabinet hole plug

Part #WR02X12063

$41.53
In Stock
Screw Toe Gr WR01X2209
#129

Cabinet diagram

Screw toe gr

Part #WR01X2209

Replaced by #WR1X2209

?
Manufacturer substitution
This part replaces WR01X2209. Substitute parts can look different from the original.
$7.51
In Stock
Hinge Screw WR01X10148
Hinge screw

Part #WR01X10148

Replaced by #WR01X10823

?
Manufacturer substitution
This part replaces WR01X10148. Substitute parts can look different from the original.
$32.07
In Stock
