Model # 2115PTIMAX Official Ingersoll Rand impact wrench

Here are the diagrams and repair parts for Official Ingersoll Rand 2115PTIMAX impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 41 parts |

#1A

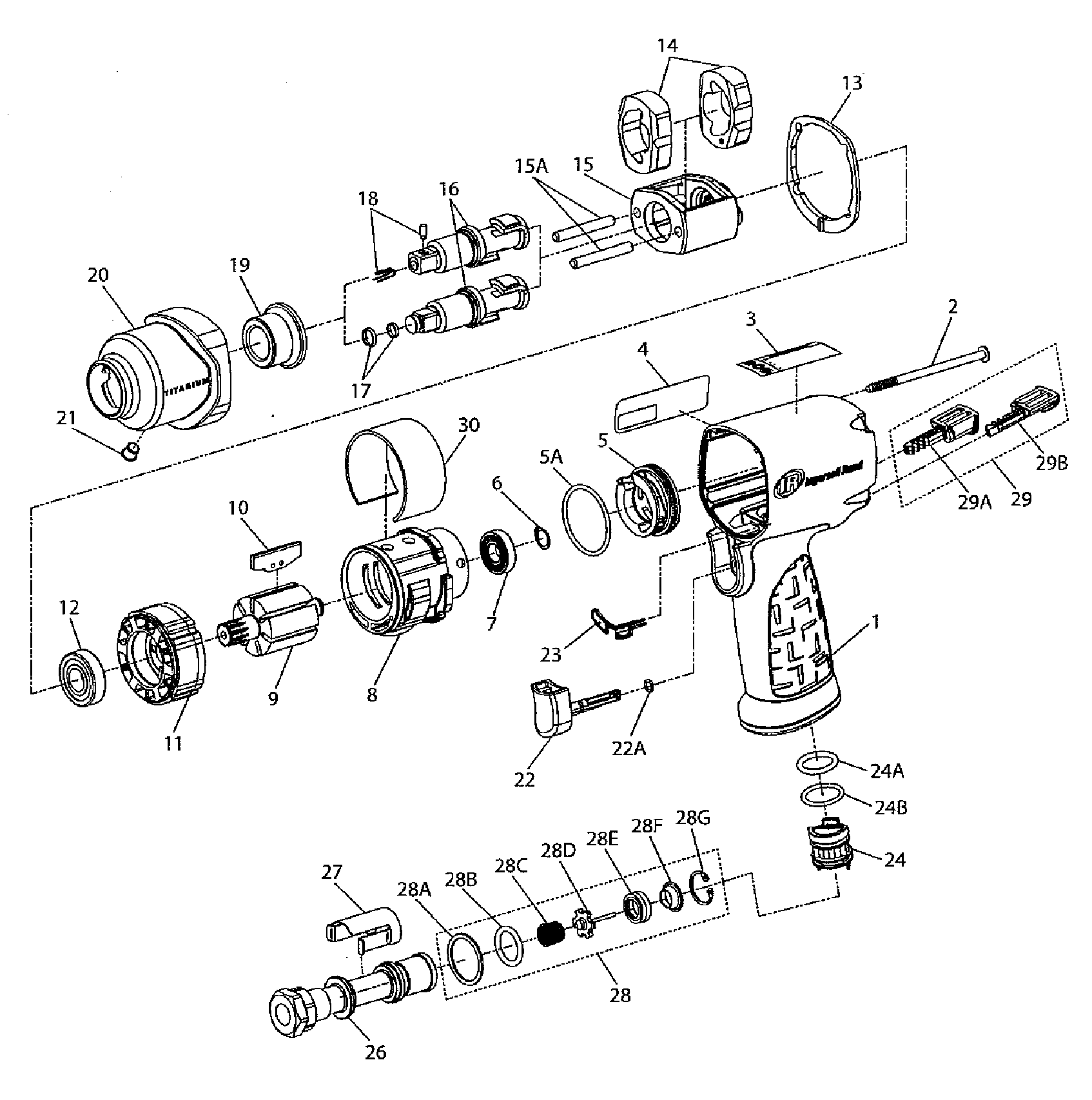

Wrench asy diagram

Housing

Part #2115PTIMAX-A40

The manufacturer no longer makes this part, and there's no substitute part

#NI

Wrench asy diagram

Tune-up ki

Part #2115-TK2

The manufacturer no longer makes this part, and there's no substitute part

Pneumatic Wrench Variable Throttle Valve 2131-A329

#24

Wrench asy diagram

Pneumatic wrench variable throttle valve

Part #2131-A329

The manufacturer no longer makes this part, and there's no substitute part

#4B

Wrench asy diagram

Label info

Part #2115QTIMAX-300

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Impact Wrench Anvil Assembly 2112-A626

#16

Wrench asy diagram

Craftsman impact wrench anvil assembly

Part #2112-A626

The manufacturer no longer makes this part, and there's no substitute part

#20

Wrench asy diagram

Hammer case(incl 19,21)

Part #2115TIMAX-D727

The manufacturer no longer makes this part, and there's no substitute part

#4A

Wrench asy diagram

Label info

Part #2115PTIMAX-300

The manufacturer no longer makes this part, and there's no substitute part

#30

Wrench asy diagram

Silencer

Part #2115Q-311

The manufacturer no longer makes this part, and there's no substitute part

#26

Wrench asy diagram

Bush assembly

Part #2135-D565A

The manufacturer no longer makes this part, and there's no substitute part

#19

Wrench asy diagram

Craftsman bushing

Part #2112-641

The manufacturer no longer makes this part, and there's no substitute part
