Model # 39297950050 Official LXI turntable

Here are the diagrams and repair parts for Official LXI 39297950050 turntable, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

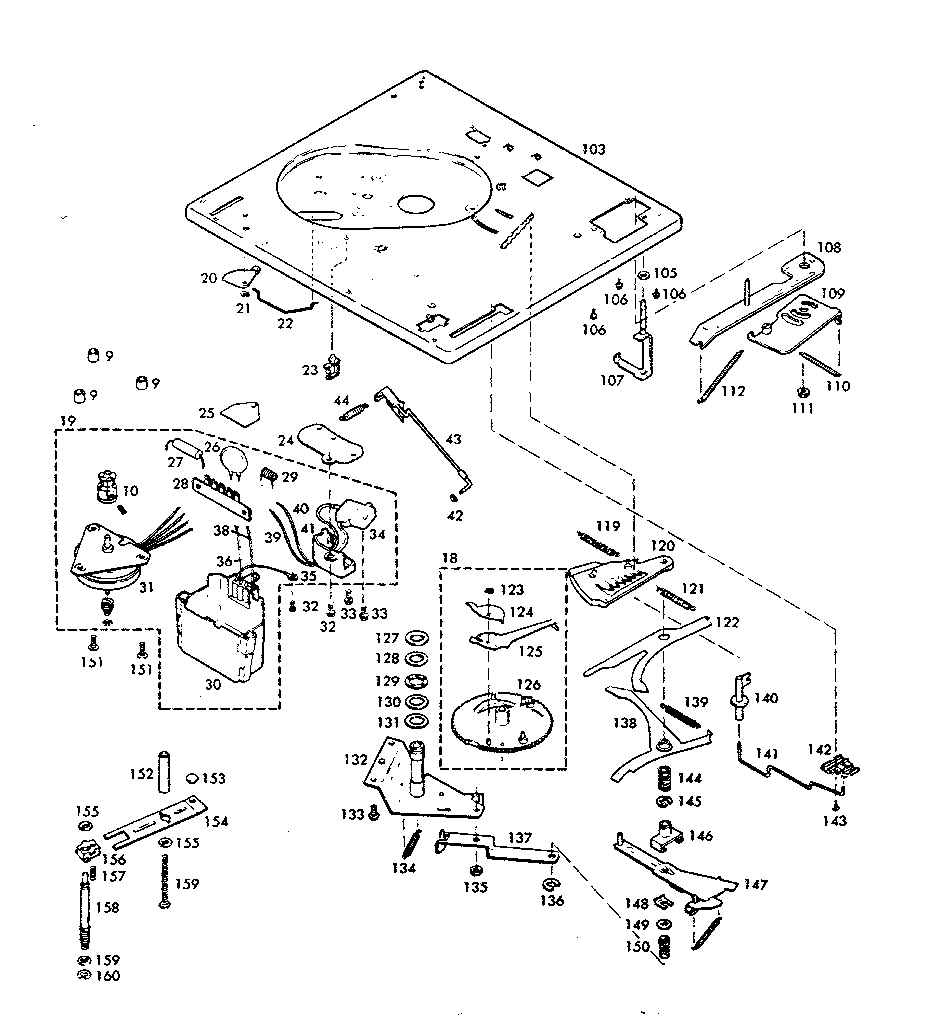

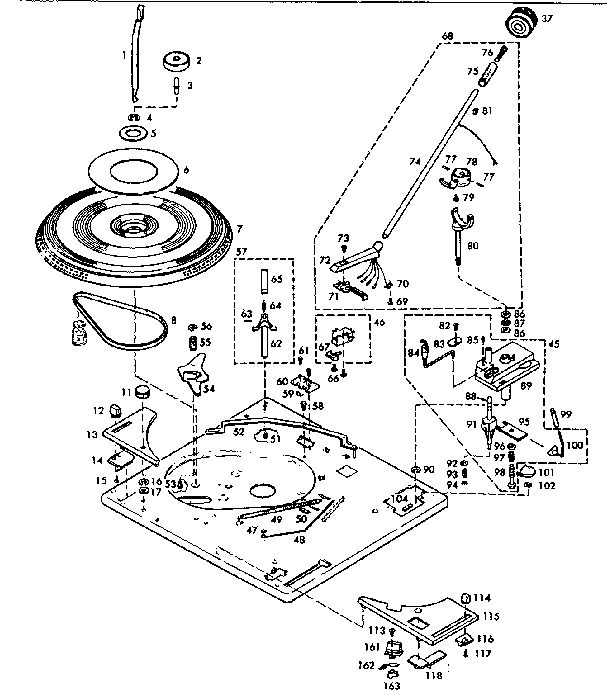

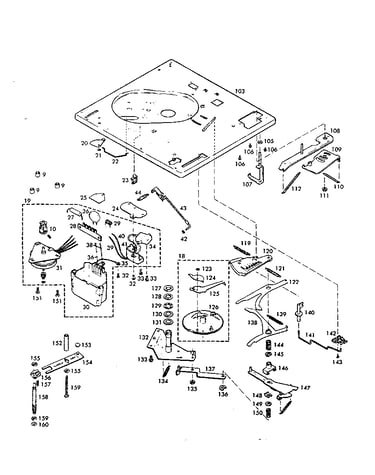

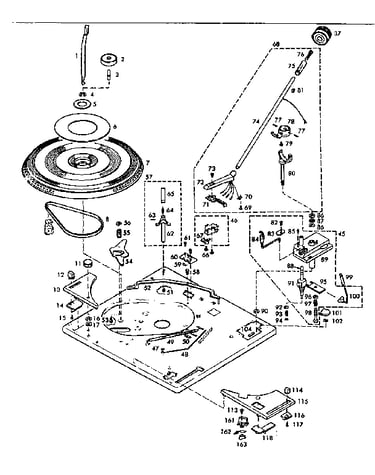

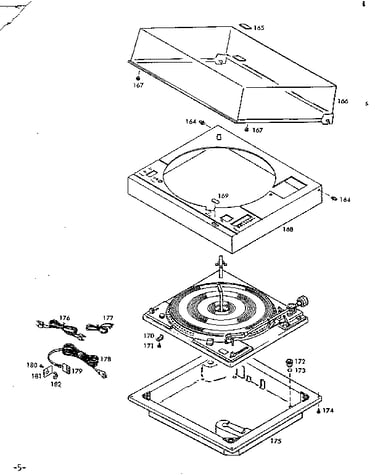

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Nut W/washer 21-426-01

#111

All parts diagram

Nut w/washer

Part #21-426-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 22-003-01

#96

All parts diagram

Washer

Part #22-003-01

The manufacturer no longer makes this part, and there's no substitute part

Ground Wire & Contact Assy. 10-401-01

#35

All parts diagram

Ground wire & contact assy.

Part #10-401-01

The manufacturer no longer makes this part, and there's no substitute part

Phono Cable Assy. 10-213-03

#70

All parts diagram

Phono cable assy.

Part #10-213-03

The manufacturer no longer makes this part, and there's no substitute part

Spindle Manual 37-105-01

#3

All parts diagram

Spindle manual

Part #37-105-01

The manufacturer no longer makes this part, and there's no substitute part

Tone Arm Base & Bearing Assy. 10-346-03

#89

All parts diagram

Tone arm base & bearing assy.

Part #10-346-03

The manufacturer no longer makes this part, and there's no substitute part

Logo 38-153-03

#169

All parts diagram

Logo

Part #38-153-03

The manufacturer no longer makes this part, and there's no substitute part

Bearing 27-176-01

#129

All parts diagram

Bearing

Part #27-176-01

The manufacturer no longer makes this part, and there's no substitute part

E-ring 23-180-01
E-ring

Part #23-180-01

The manufacturer no longer makes this part, and there's no substitute part

Base Bracket Assembly 10-174-03

#132

All parts diagram

Base bracket assembly

Part #10-174-03

The manufacturer no longer makes this part, and there's no substitute part
