Caloric
Top-Mount Refrigerator

Model # GFS187/MN02 Official Caloric refrigerator

Here are the diagrams and repair parts for Official Caloric GFS187-MN02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

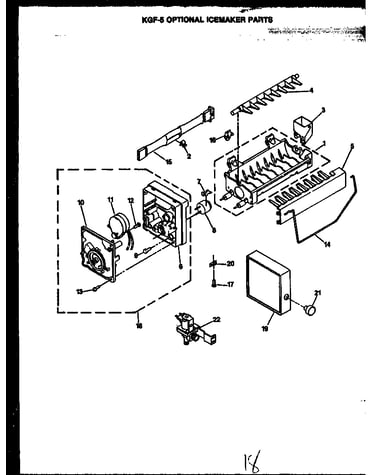

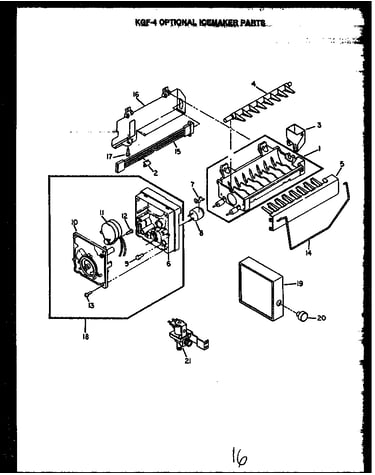

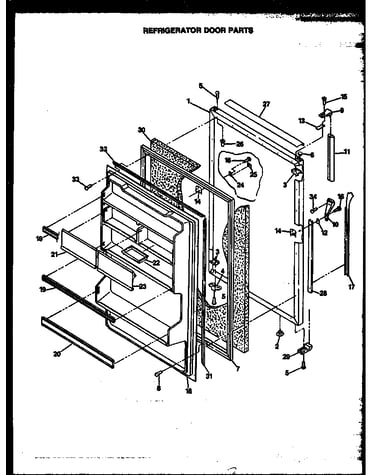

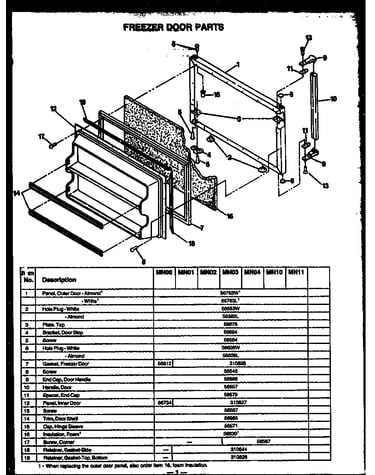

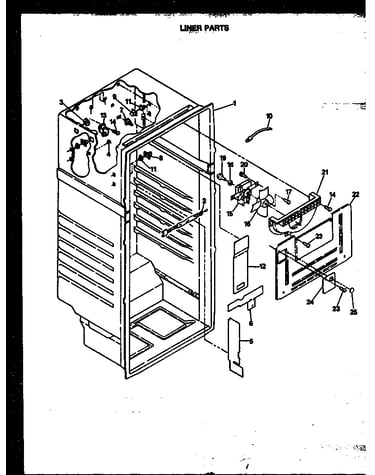

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 323 parts  |
Refrigerator Shelf Frame 56899
#7

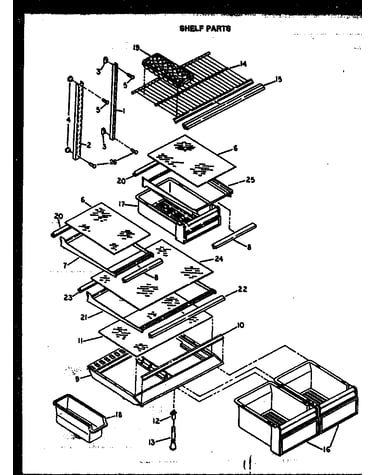

Shelf parts (gfs187/mn00) (gfs187/mn01) (gfs187/mn02) (gfs187/mn03) (gfs187/mn04) (gfs187/mn10) (gfs187/mn11) diagram

Refrigerator shelf frame

Part #56899

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Tray 56677
#25A

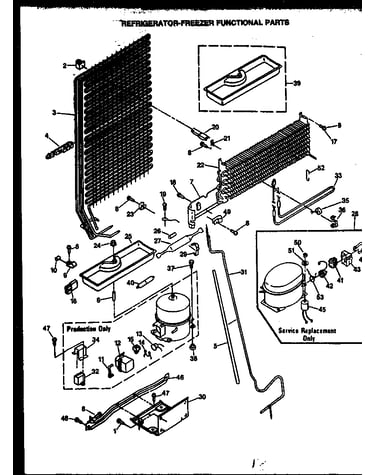

Refrigerator-freezer functional parts (gfs187/mn00) (gfs187/mn01) (gfs187/mn02) (gfs187/mn03) (gfs187/mn04) (gfs187/mn10) (gfs187/mn11) diagram

Refrigerator evaporator tray

Part #56677

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Wiring Assembly 311643
#22B

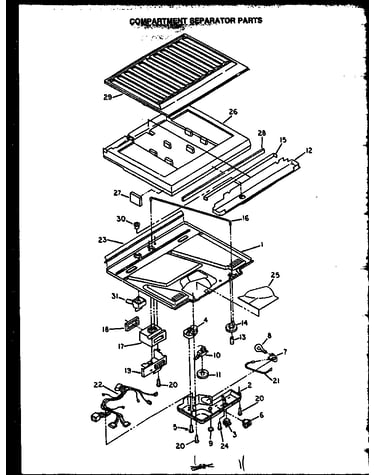

Compartment separator parts (gfs187/mn00) (gfs187/mn01) (gfs187/mn02) (gfs187/mn03) (gfs187/mn04) (gfs187/mn10) (gfs187/mn11) diagram

Refrigerator wiring assembly

Part #311643

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Separator 56685
#23A

Compartment separator parts (gfs187/mn00) (gfs187/mn01) (gfs187/mn02) (gfs187/mn03) (gfs187/mn04) (gfs187/mn10) (gfs187/mn11) diagram

Gasket, separator

Part #56685

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf Trim 56976
#8

Shelf parts (gfs187/mn00) (gfs187/mn01) (gfs187/mn02) (gfs187/mn03) (gfs187/mn04) (gfs187/mn10) (gfs187/mn11) diagram

Refrigerator shelf trim

Part #56976

The manufacturer no longer makes this part, and there's no substitute part

Clamp, Plastic Water Tube Mounting 56518

#NI

All parts diagram

Clamp, plastic water tube mounting

Part #56518

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Hole Plug 56653
#9

Compartment separator parts (gfs187/mn00) (gfs187/mn01) (gfs187/mn02) (gfs187/mn03) (gfs187/mn04) (gfs187/mn10) (gfs187/mn11) diagram

Refrigerator hole plug

Part #56653

The manufacturer no longer makes this part, and there's no substitute part

Cover, Glider Rail - White 56663W
#31A

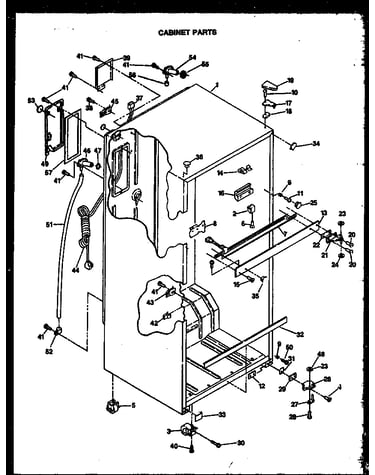

Cabinet parts (gfs187/mn00) (gfs187/mn01) (gfs187/mn02) (gfs187/mn03) (gfs187/mn04) (gfs187/mn10) (gfs187/mn11) diagram

Cover, glider rail - white

Part #56663W

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 56558
Refrigerator screw

Part #56558

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Drain Pan 56851
#12

Compartment separator parts (gfs187/mn00) (gfs187/mn01) (gfs187/mn02) (gfs187/mn03) (gfs187/mn04) (gfs187/mn10) (gfs187/mn11) diagram

Refrigerator drain pan

Part #56851

The manufacturer no longer makes this part, and there's no substitute part
