Electrolux
Gas Range

Model # EW30GS6CGS7 Official Electrolux gas range

Here are the diagrams and repair parts for Official Electrolux EW30GS6CGS7 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

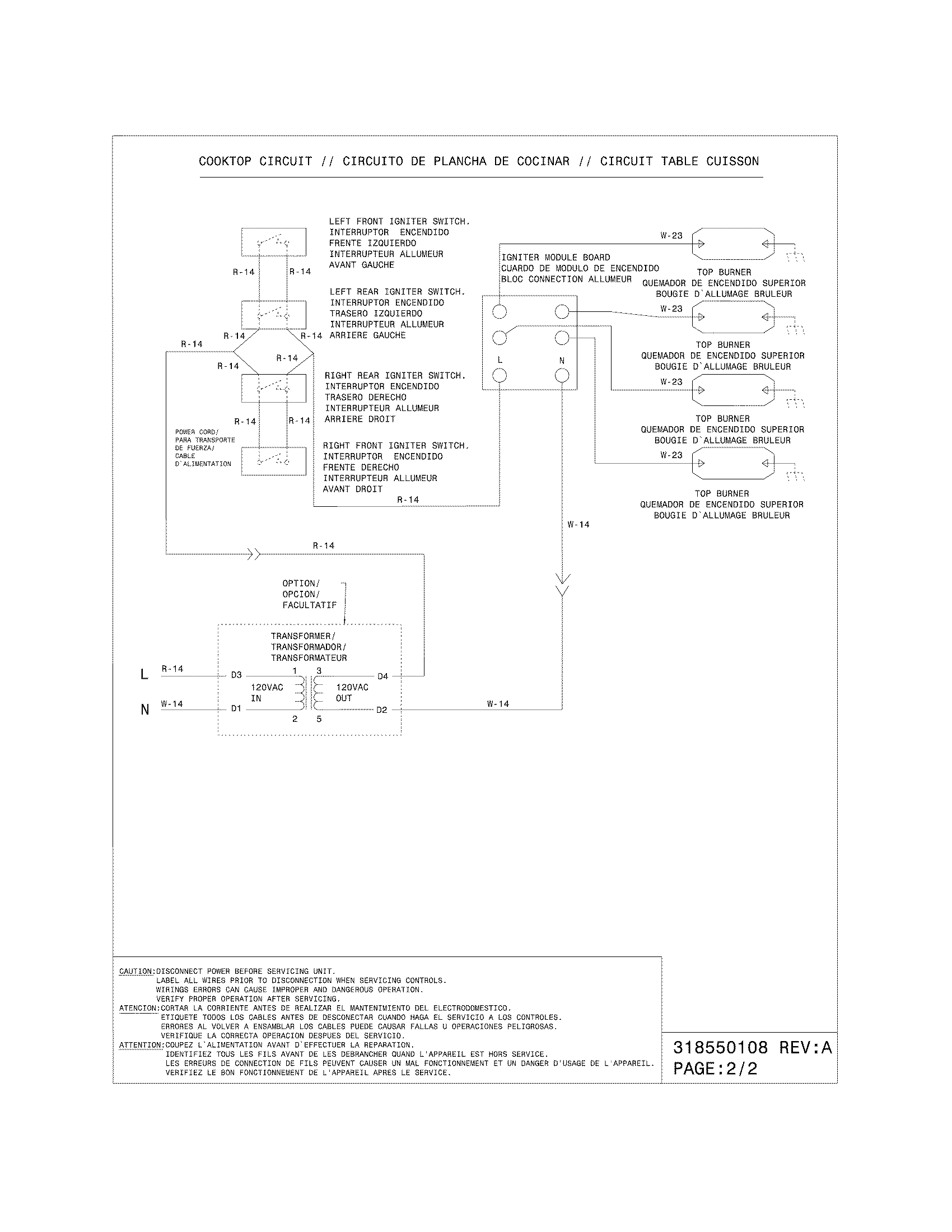

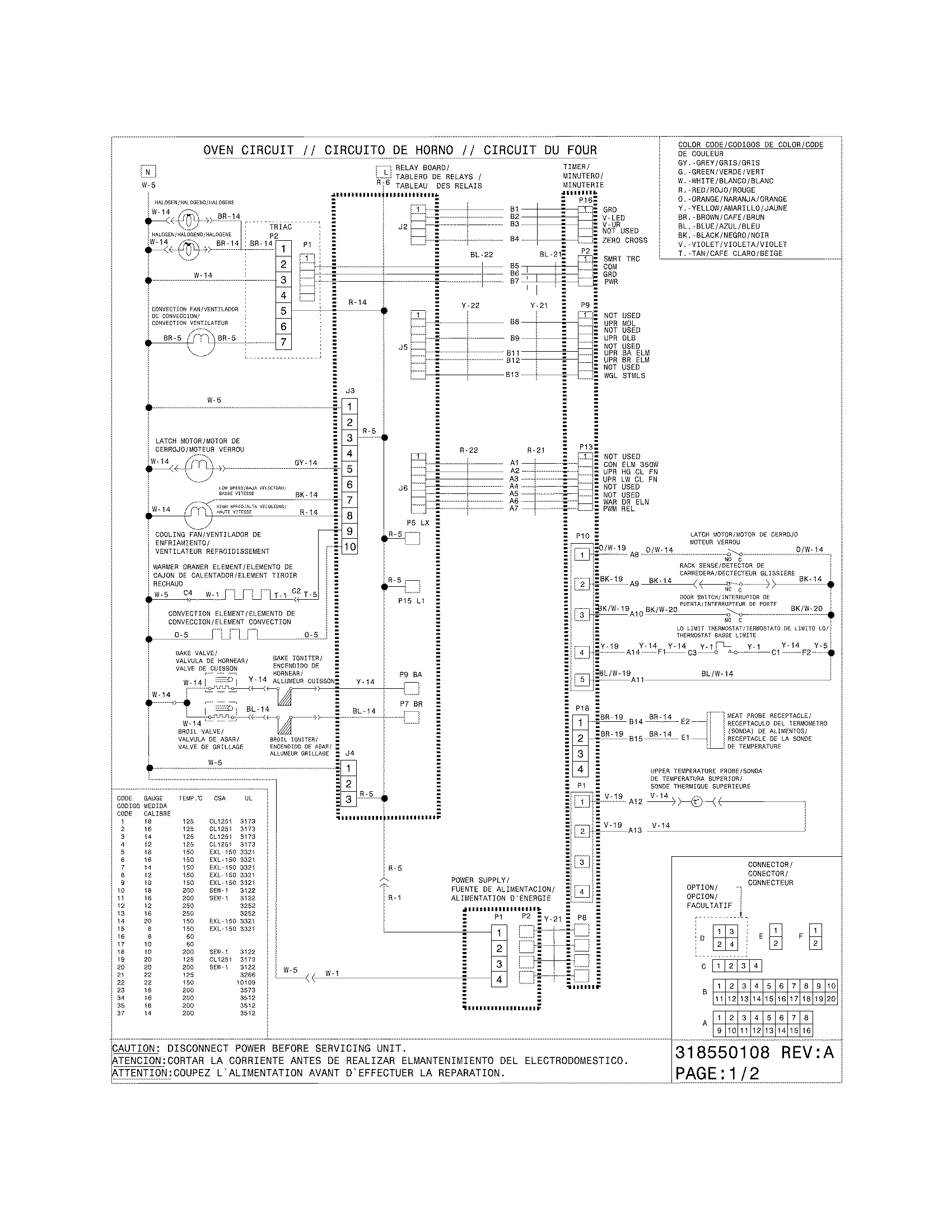

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Oven Igniter 7318177710
#26

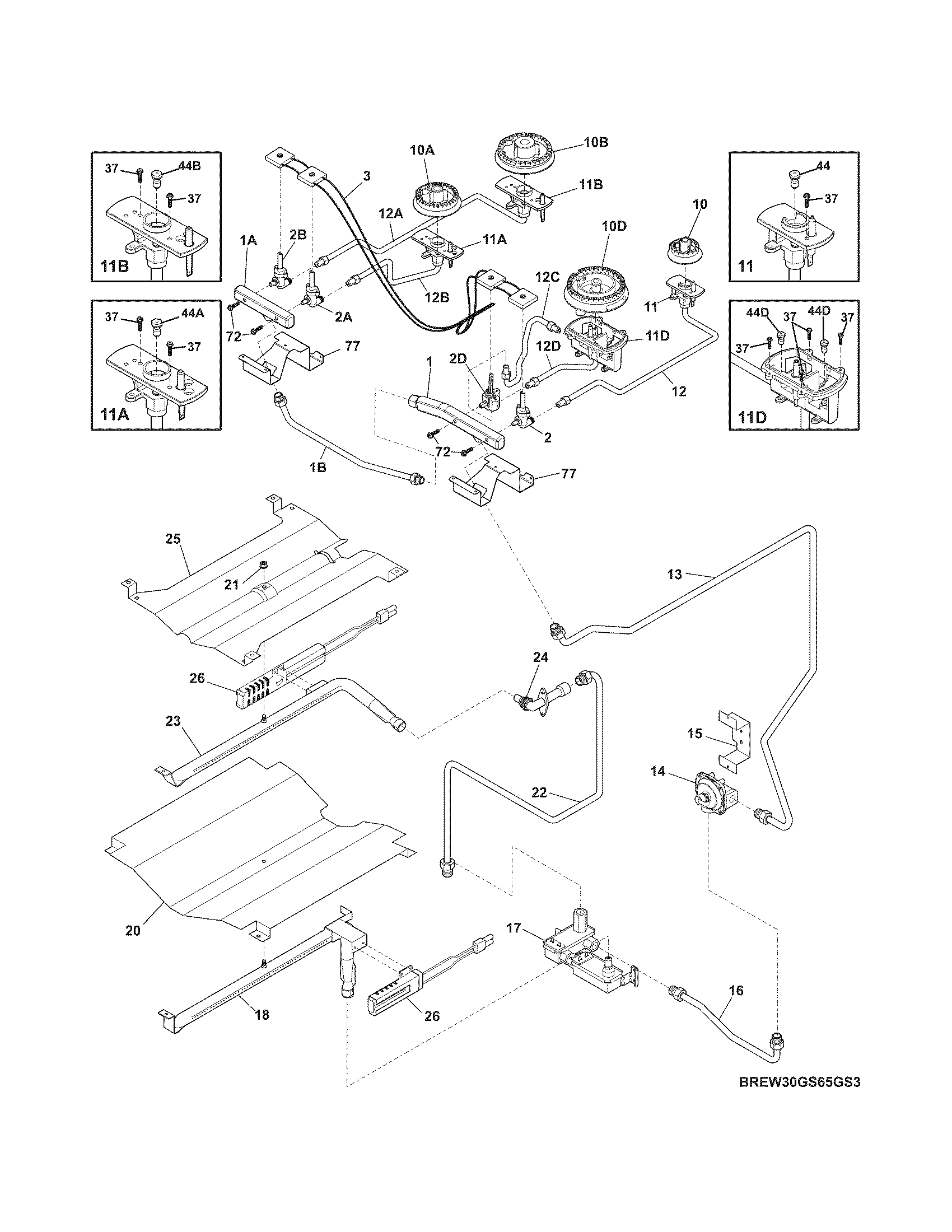

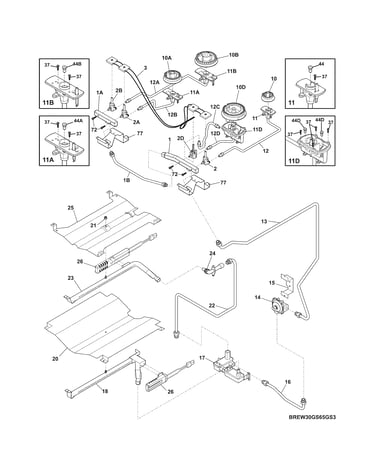

Burner diagram

Oven igniter

Part #7318177710

Replaced by #318177710

?
Manufacturer substitution
This part replaces 7318177710. Substitute parts can look different from the original.
BEST SELLER
$152.42 |
7% OFF Phone Price : $164.42
In Stock
Probe 7316217002
#37

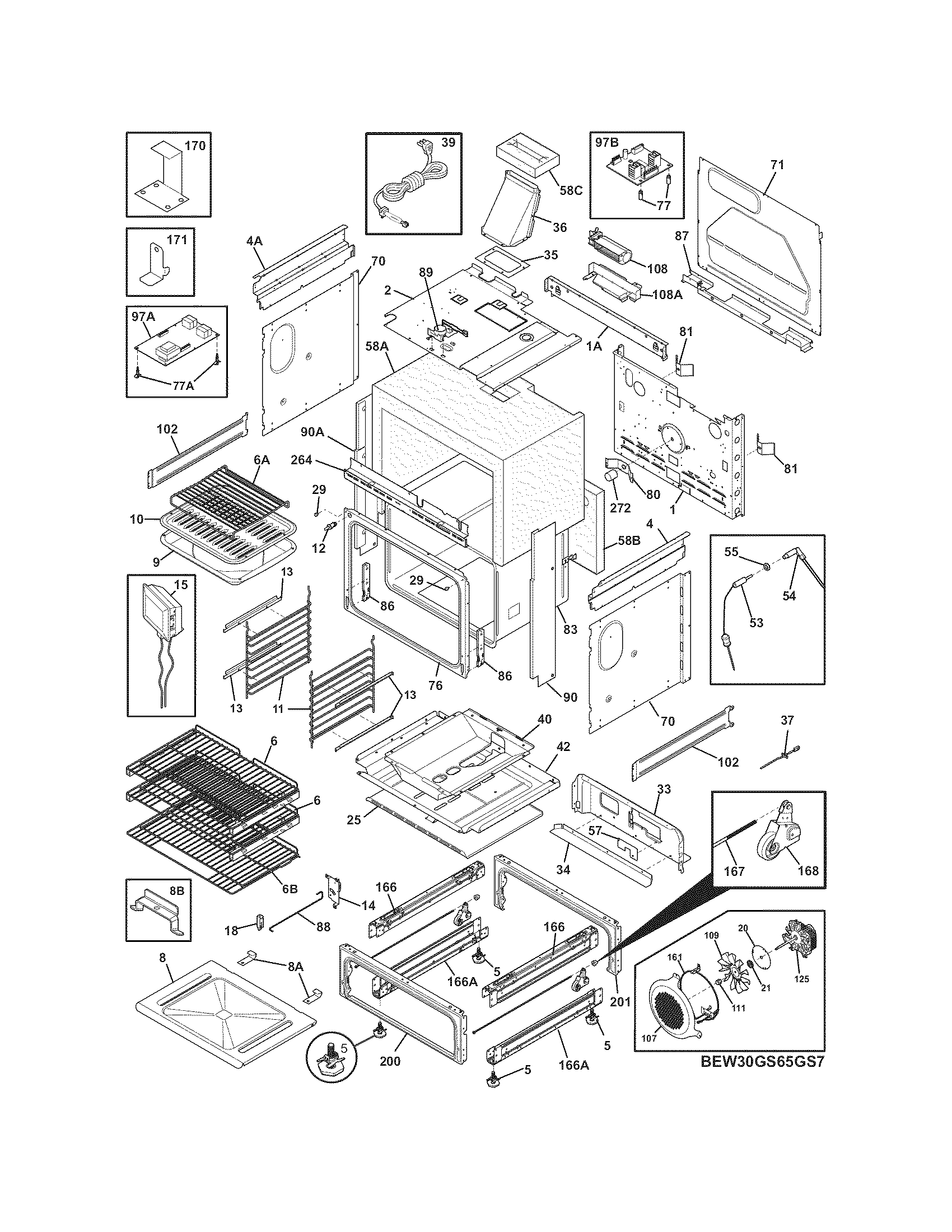

Body diagram

Probe

Part #7316217002

Replaced by #316217002

?
Manufacturer substitution
This part replaces 7316217002. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Hex Washer Head Screw 75304472956
Hex washer head screw

Part #75304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 75304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Glass 7316117500
#8

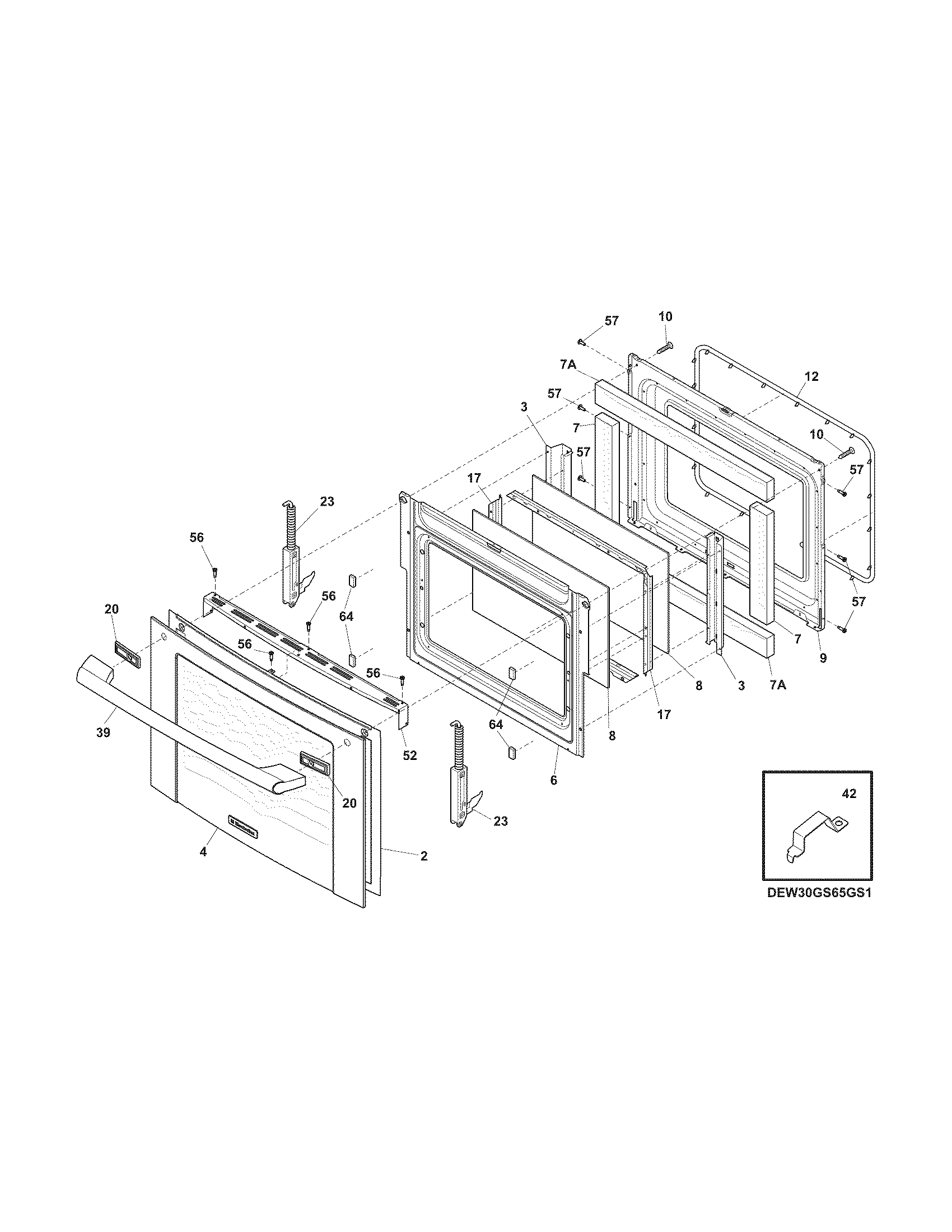

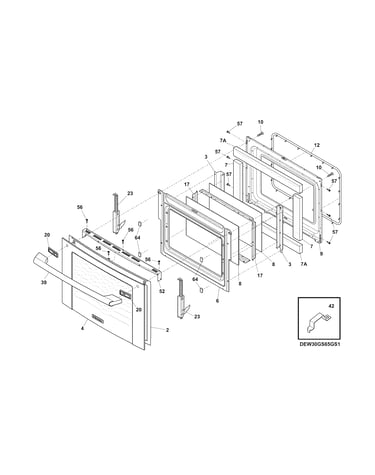

Door diagram

Glass

Part #7316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 7316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Regulator,pr 7316416705
#14

Burner diagram

Regulator,pr

Part #7316416705

Replaced by #316091711

?
Manufacturer substitution
This part replaces 7316416705. Substitute parts can look different from the original.
BEST SELLER
$79.36 |
7% OFF Phone Price : $85.36
In Stock
Valve 7316404901
#17

Burner diagram

Valve

Part #7316404901

Replaced by #316404901

?
Manufacturer substitution
This part replaces 7316404901. Substitute parts can look different from the original.
BEST SELLER
$221.36 |
5% OFF Phone Price : $233.36
In Stock
Light Switch 7316445501
#12

Body diagram

Light switch

Part #7316445501

Replaced by #316445501

?
Manufacturer substitution
This part replaces 7316445501. Substitute parts can look different from the original.
$63.47 |
9% OFF Phone Price : $69.47
In Stock
Probe 7318601302
#53

Body diagram

Probe

Part #7318601302

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 7318601302. Substitute parts can look different from the original.
$89.51 |
6% OFF Phone Price : $95.51
In Stock
Cord 7318144008
#39

Body diagram

Cord

Part #7318144008

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 7318144008. Substitute parts can look different from the original.
$29.60 |
17% OFF Phone Price : $35.60
In Stock
Screw 75303311333
#NI

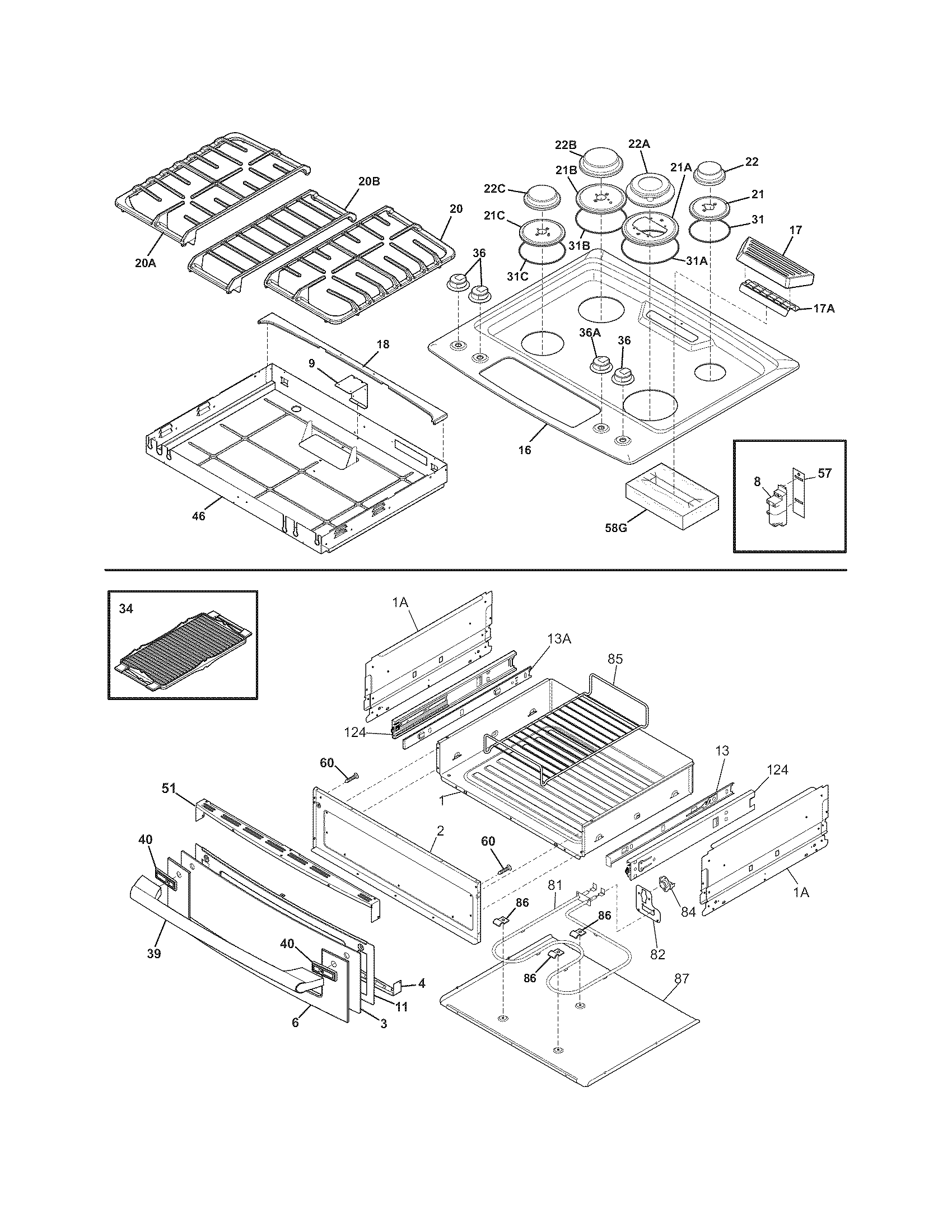

Top/drawer diagram

Screw

Part #75303311333

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 75303311333. Substitute parts can look different from the original.
$14.69
In Stock
