Dacor
Downdraft Ventilation System

Model # RVC36 Official Dacor vent system

Here are the diagrams and repair parts for Official Dacor RVC36 vent system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Nut 83009
#31

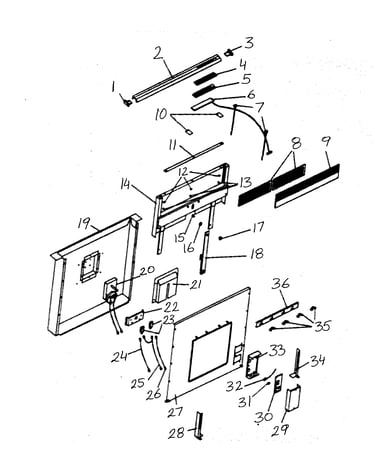

Vent system diagram

Nut

Part #83009

This item is not returnable
$2.16
In Stock
Dacor Plenum Cover 27382
#27

Vent system diagram

Dacor plenum cover

Part #27382

$60.99
In Stock
Support Rh 26521
#34

Vent system diagram

Support rh

Part #26521

$15.49
In Stock
Support Lh 26522
#28

Vent system diagram

Support lh

Part #26522

$9.99
In Stock
Cap 13228
#11

Vent system diagram

Cap

Part #13228

$24.99
In Stock
Drive Arm 86323
#18

Vent system diagram

Drive arm

Part #86323

$37.99
In Stock
Electronic Box 26501
#33

Vent system diagram

Electronic box

Part #26501

$21.49
In Stock
Wing Nut 83035
#35

Vent system diagram

Wing nut

Part #83035

This item is not returnable
$2.16
In Stock
Bushing 82723
#15

Vent system diagram

Bushing

Part #82723

This item is not returnable
$4.49
In Stock
Washer 83008
#12

Vent system diagram

Washer

Part #83008

This item is not returnable
$2.16
In Stock
