Model # W425QN20RA Official Weed Eater rotary lawn mower

Here are the diagrams and repair parts for Official Weed Eater W425QN20RA rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Lock Nut 83923
#38

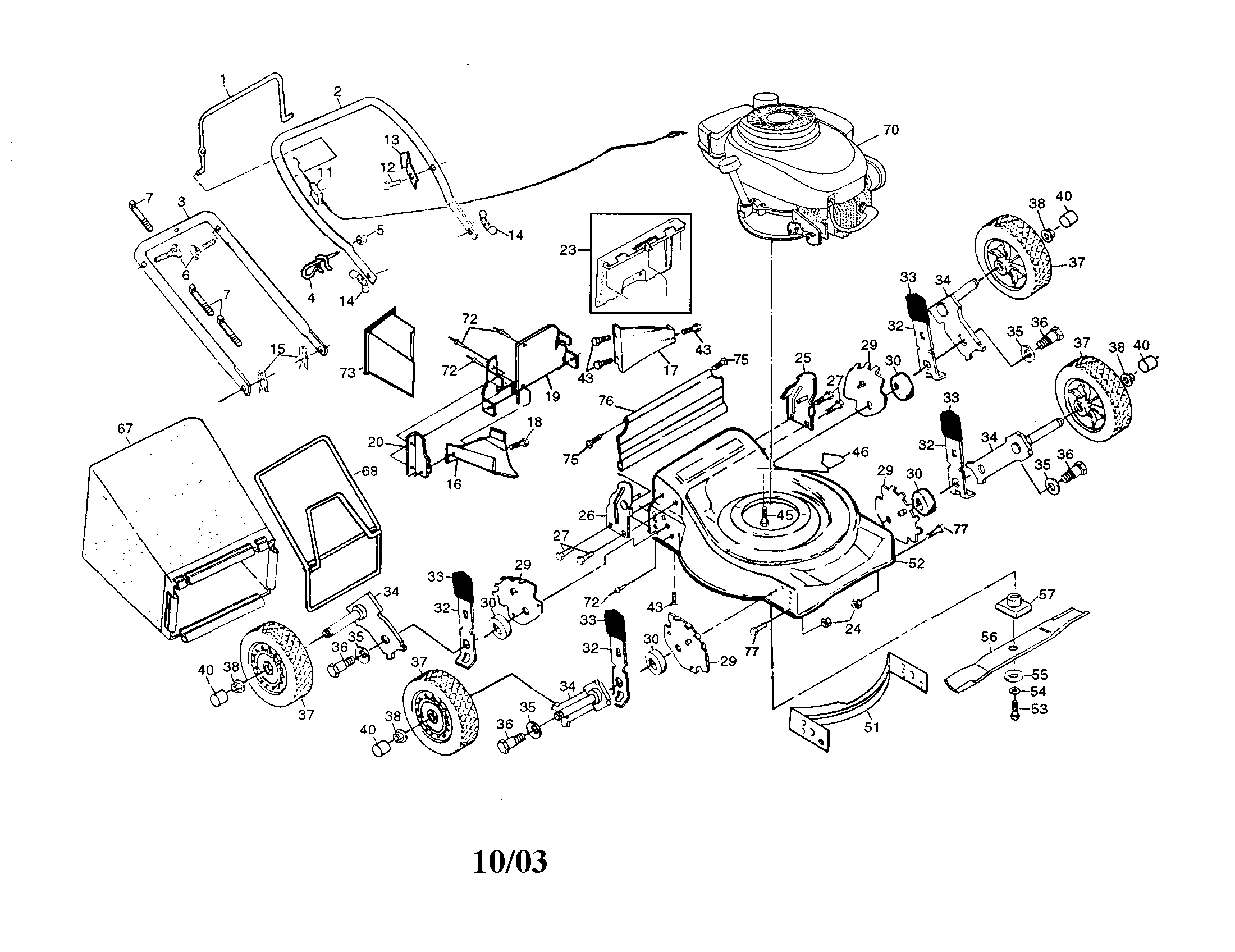

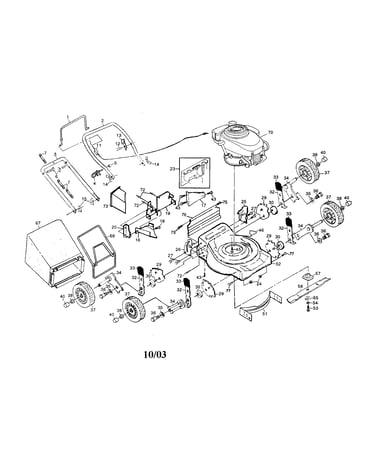

Engine/wheels/housing/handle/bag diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 751592
#24

Engine/wheels/housing/handle/bag diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Lawn Mower Blade Adapter 850977
#57

Engine/wheels/housing/handle/bag diagram

Lawn mower blade adapter

Part #850977

Replaced by #581547901

?
Manufacturer substitution
This part replaces 850977. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#75

Engine/wheels/housing/handle/bag diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Height Spacer 146630
#30

Engine/wheels/housing/handle/bag diagram

Height spacer

Part #146630

Replaced by #532401629

?
Manufacturer substitution
This part replaces 146630. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Upstop Bracket 850733X004
#13

Engine/wheels/housing/handle/bag diagram

Upstop bracket

Part #850733X004

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850733X004. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Western Auto Discharge Guard 133188X479
#16

Engine/wheels/housing/handle/bag diagram

Western auto discharge guard

Part #133188X479

This item is not returnable
$4.64
In Stock
Handle Bolt 131959
#6

Engine/wheels/housing/handle/bag diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Rope Guide 179585
#4

Engine/wheels/housing/handle/bag diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Wing Nut 128638
#14

Engine/wheels/housing/handle/bag diagram

Wing nut

Part #128638

Replaced by #532128638

?
Manufacturer substitution
This part replaces 128638. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
