Craftsman
Lawn Sweeper

Model # 426260932 Official Craftsman 30" lawn sweeper

Here are the diagrams and repair parts for Official Craftsman 426260932 30" lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Lock Nut STD541431

#14

All parts diagram

Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD522507
#2

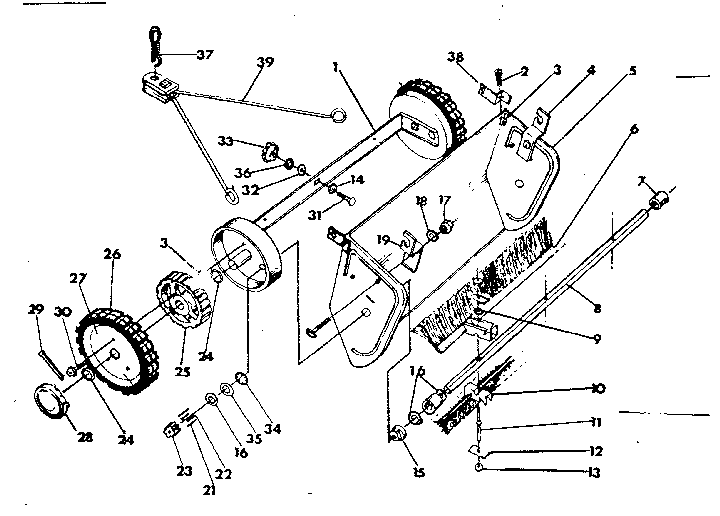

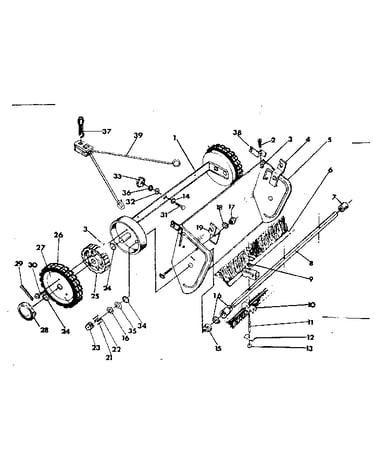

Sweeper head assembly diagram

Bolt

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Caster Fork 73-55-B

#22

All parts diagram

Caster fork

Part #73-55-B

The manufacturer no longer makes this part, and there's no substitute part

Bracket 62-99-RB
#4

Sweeper head assembly diagram

Bracket

Part #62-99-RB

The manufacturer no longer makes this part, and there's no substitute part

Dowel Pin 74-80-A
#21

Sweeper head assembly diagram

Dowel pin

Part #74-80-A

The manufacturer no longer makes this part, and there's no substitute part

Pinion 74-79-LB
#23A

Sweeper head assembly diagram

Pinion

Part #74-79-LB

The manufacturer no longer makes this part, and there's no substitute part

Support 77-10-A

#6

All parts diagram

Support

Part #77-10-A

The manufacturer no longer makes this part, and there's no substitute part

Bracket 74-13-C
#10

Sweeper head assembly diagram

Bracket

Part #74-13-C

The manufacturer no longer makes this part, and there's no substitute part

Pin STD560915
#29

Sweeper head assembly diagram

Pin

Part #STD560915

The manufacturer no longer makes this part, and there's no substitute part

Rod 78-37-A

#10

All parts diagram

Rod

Part #78-37-A

The manufacturer no longer makes this part, and there's no substitute part
