Model # AJCQ12ACFW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ12ACFW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

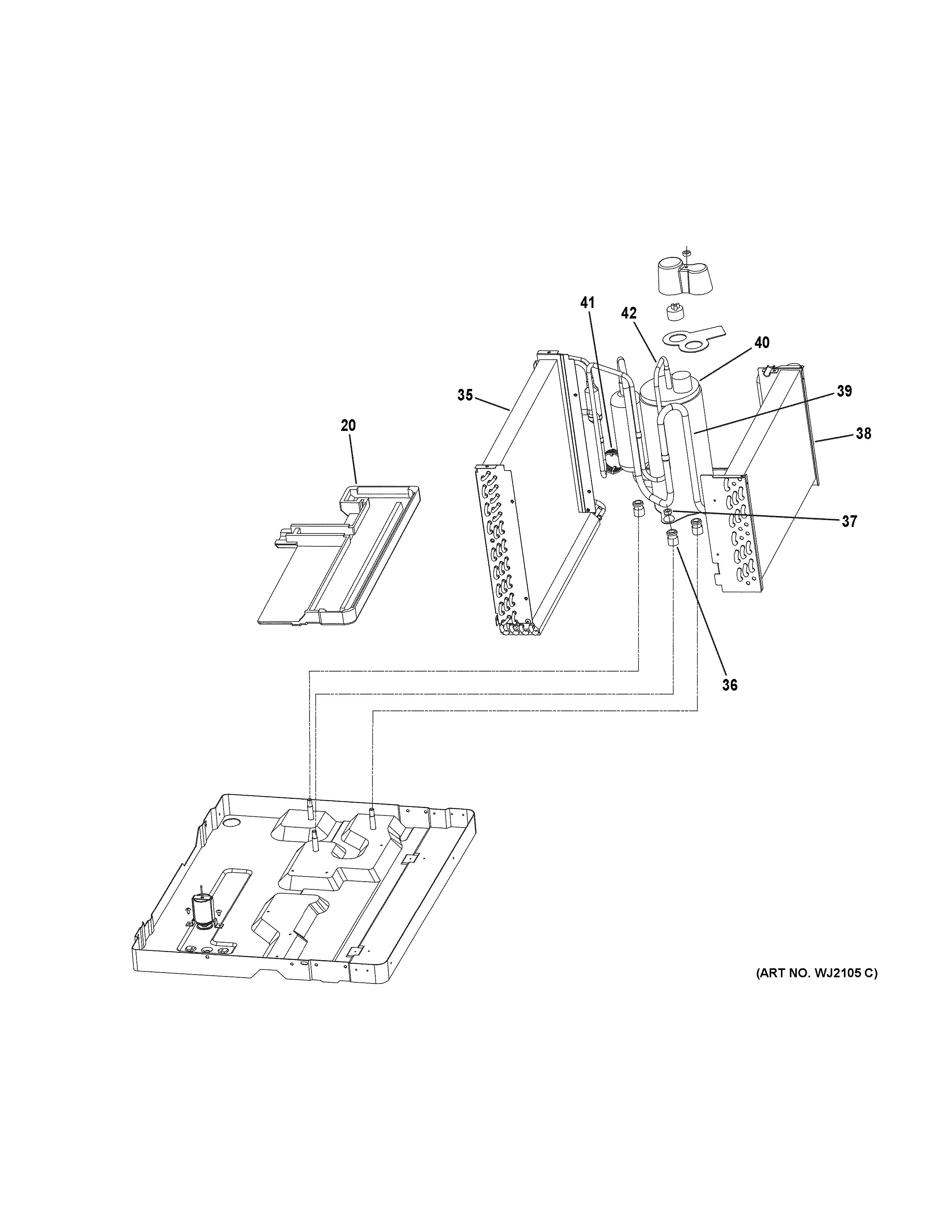

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Room Air Conditioner Ambient Thermistor WJ27X10139
#55

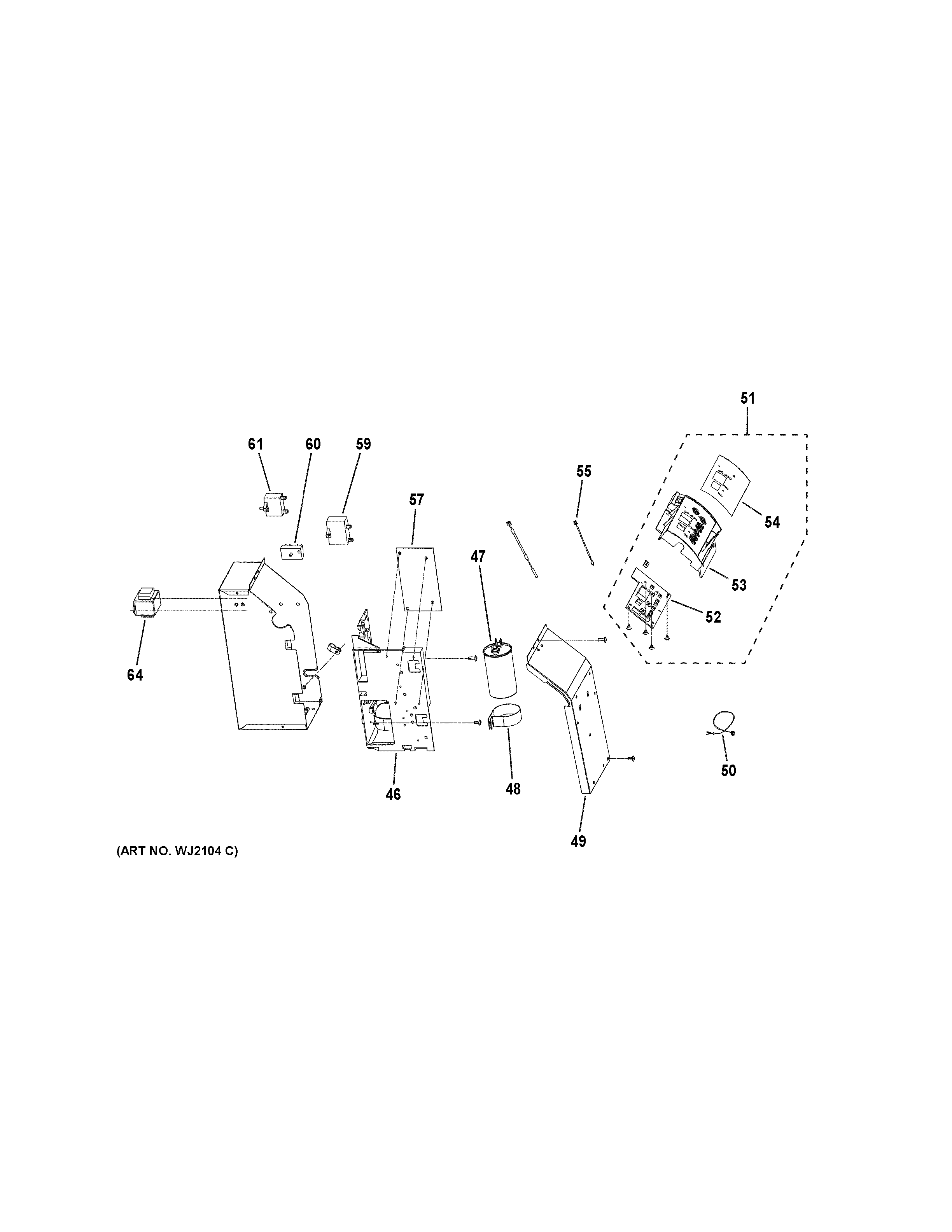

Control parts diagram

Room air conditioner ambient thermistor

Part #WJ27X10139

Replaced by #WJ26X25108

?
Manufacturer substitution
This part replaces WJ27X10139. Substitute parts can look different from the original.
This item is not returnable
$17.00 |
11% OFF Phone Price : $19.00
In Stock
Axial Flow Fan WJ73X10223
#16

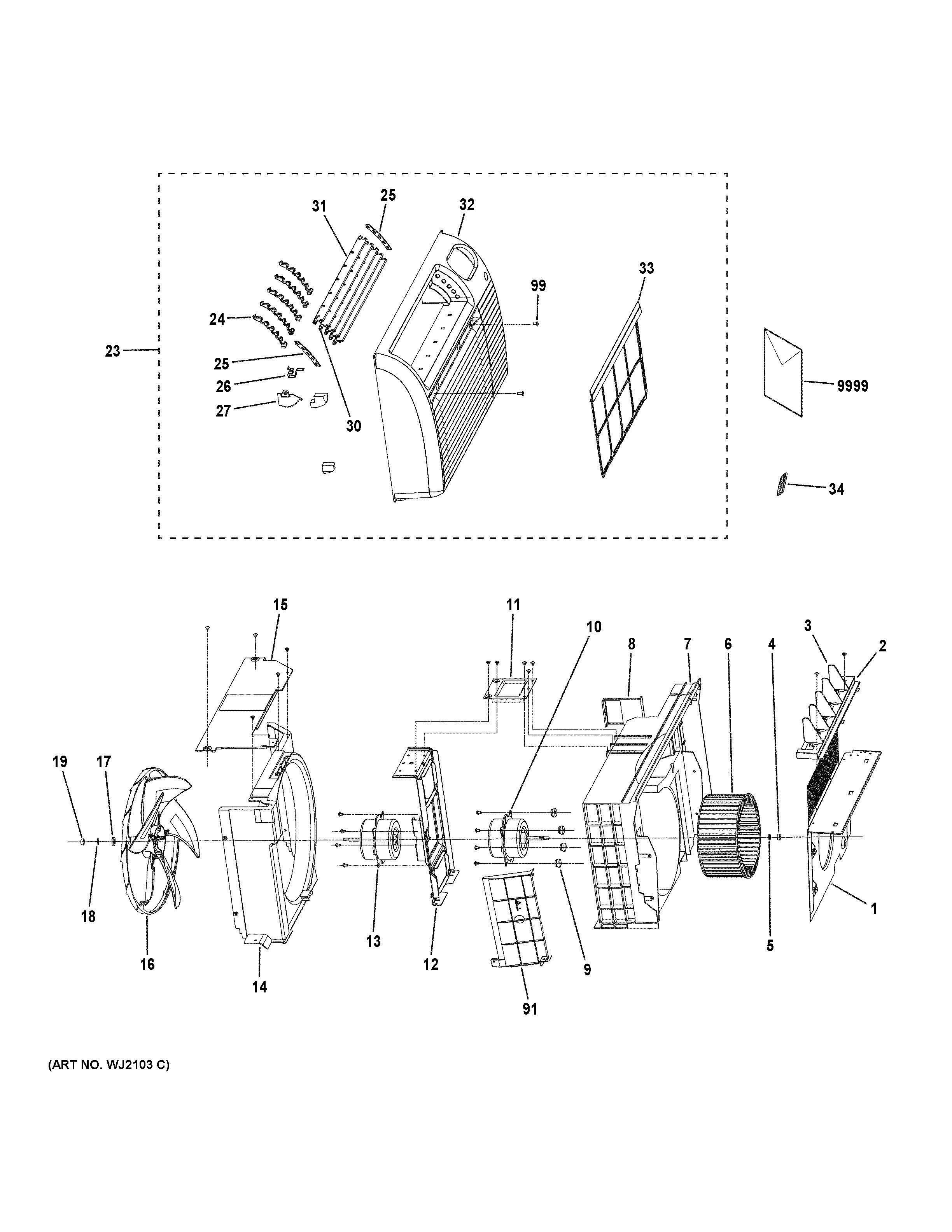

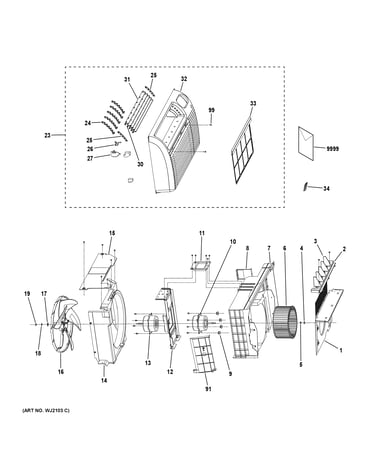

Grille & chassis parts diagram

Axial flow fan

Part #WJ73X10223

$54.01 |
10% OFF Phone Price : $60.01
In Stock
Motor Kit 115v WJ49X22065
#10

Grille & chassis parts diagram

Motor kit 115v

Part #WJ49X22065

$189.96
In Stock
Washer WJ01X10313
#5

Grille & chassis parts diagram

Washer

Part #WJ01X10313

$7.69 |
12% OFF Phone Price : $8.69
In Stock
Cover, Remot WJ79X10261
#53

Control parts diagram

Cover, remot

Part #WJ79X10261

$13.51
In Stock
Swing Clamp WJ01X10443
#2

Grille & chassis parts diagram

Swing clamp

Part #WJ01X10443

$16.20
In Stock
Power Cord WJ35X10179
#50

Control parts diagram

Power cord

Part #WJ35X10179

$149.10
In Stock
Notch Spring WJ02X10038
#26

Grille & chassis parts diagram

Notch spring

Part #WJ02X10038

$8.11
In Stock
Horizontal L WJ71X10762
#30

Grille & chassis parts diagram

Horizontal l

Part #WJ71X10762

$8.11
In Stock
Room Air Conditioner Air Filter WJ85X10185
#33

Grille & chassis parts diagram

Room air conditioner air filter

Part #WJ85X10185

$17.43 |
10% OFF Phone Price : $19.43
In Stock
