Model # FE4ANF002000 Official Carrier fan coil

Here are the diagrams and repair parts for Official Carrier FE4ANF002000 fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Board,ckt HK38EA002
#34

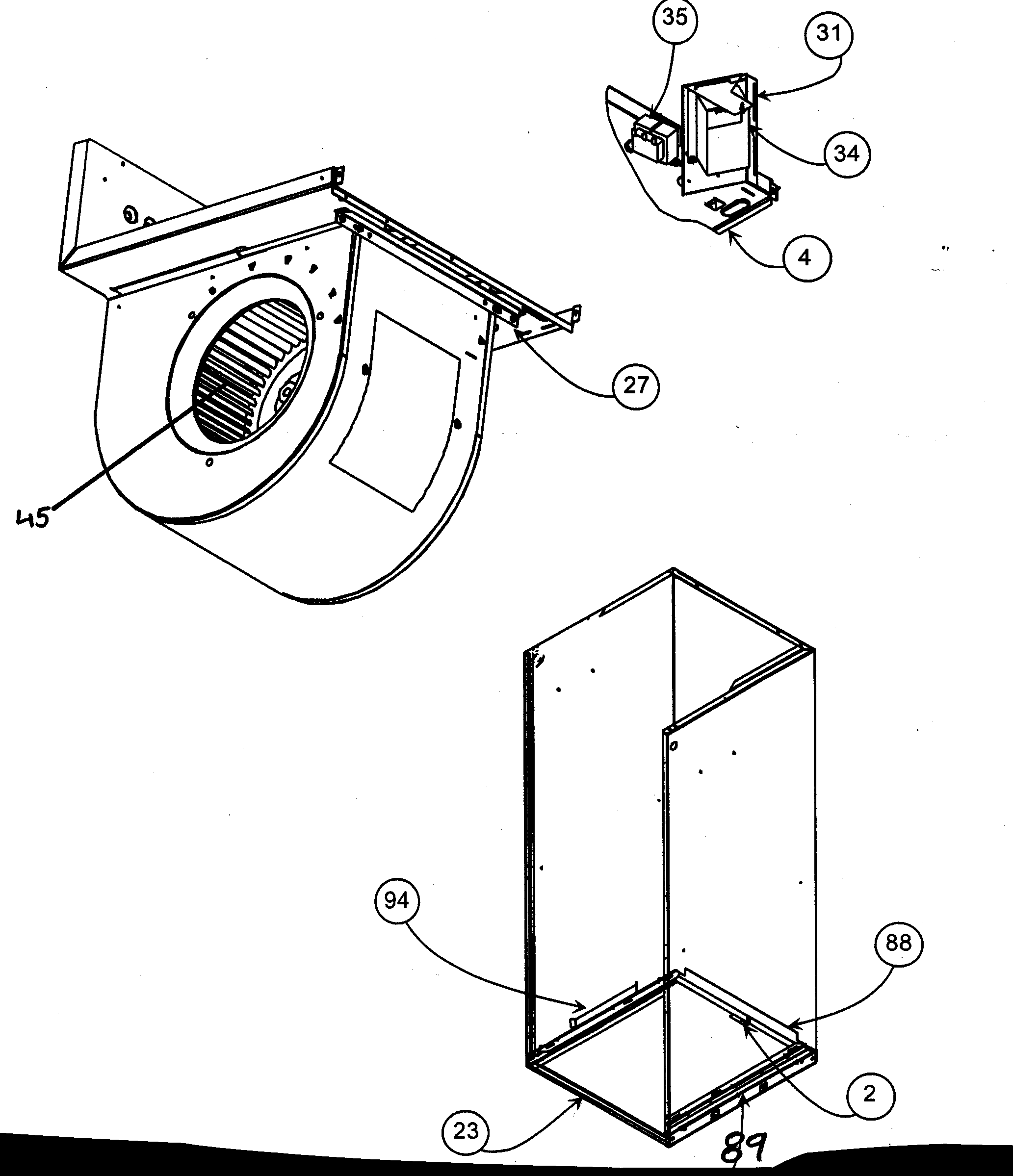

Blower assy diagram

Board,ckt

Part #HK38EA002

Replaced by #HK38EA012

?
Manufacturer substitution
This part replaces HK38EA002. Substitute parts can look different from the original.
$1166.10 |
$12.00 OFF Phone Price : $1178.10
In Stock
Sw Temp Act HH19ZA965
#NI

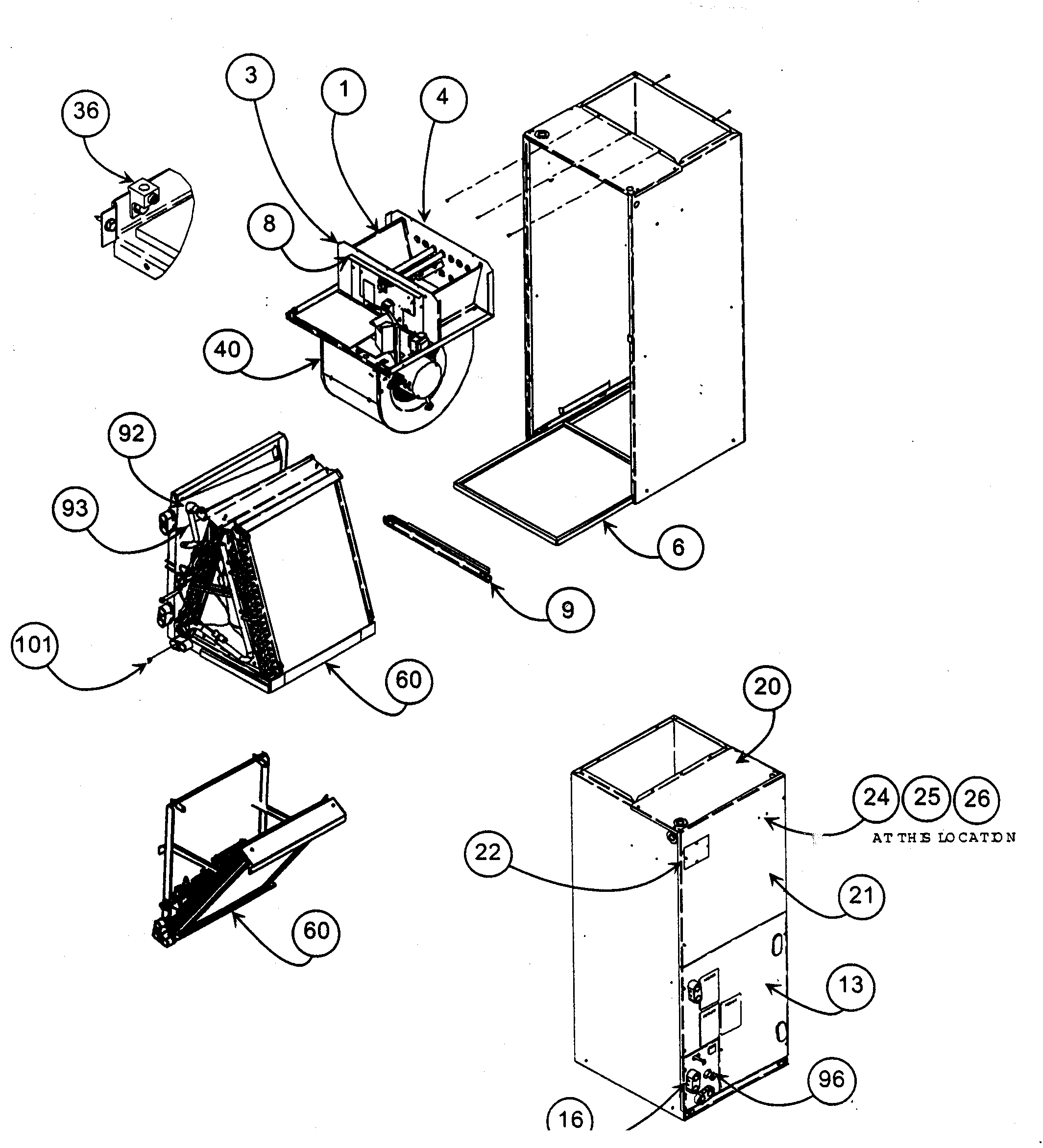

Casing assy diagram

Sw temp act

Part #HH19ZA965

$72.40
In Stock
Fan Wheel LA22LA095
#45

Blower assy diagram

Fan wheel

Part #LA22LA095

$205.40
In Stock
Bracket Housing 314900-202
#27

Blower assy diagram

Bracket housing

Part #314900-202

$7.57
In Stock
Fuse ATC5
#NI

Casing assy diagram

Fuse

Part #ATC5

The manufacturer no longer makes this part, and there's no substitute part

Ckt Brkr HH83XD261
#NI

Casing assy diagram

Ckt brkr

Part #HH83XD261

$186.67 |
6% OFF Phone Price : $198.67
In Stock
Carrier Drip Baffle 316834-202
#66

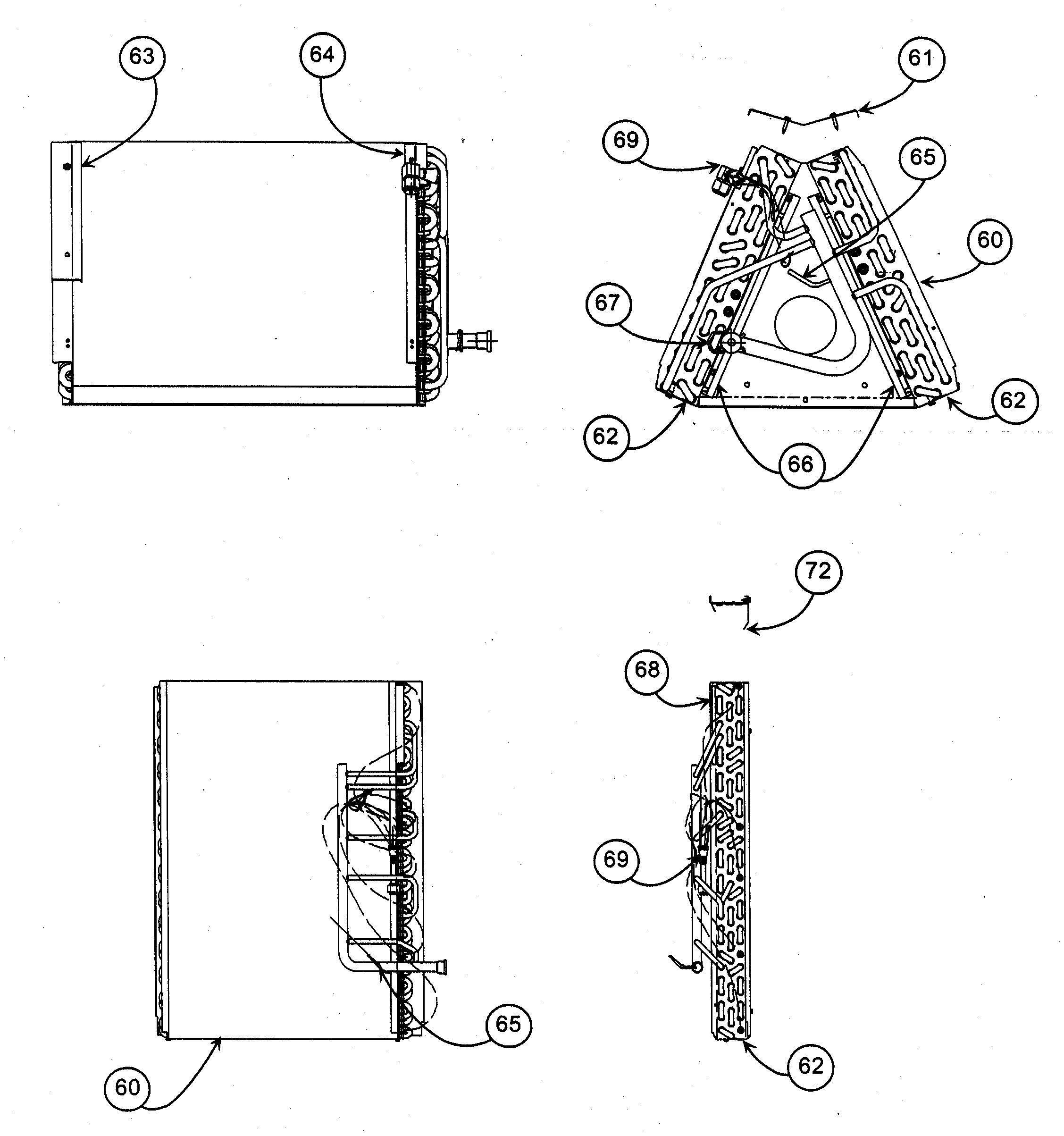

Coil assy diagram

Carrier drip baffle

Part #316834-202

$141.76
In Stock
Grommet 314987-201
#96

Casing assy diagram

Grommet

Part #314987-201

$10.91
In Stock
Diode Board HK61EA003
#NI

Casing assy diagram

Diode board

Part #HK61EA003

The manufacturer no longer makes this part, and there's no substitute part

Connector HY90AZ021
#36

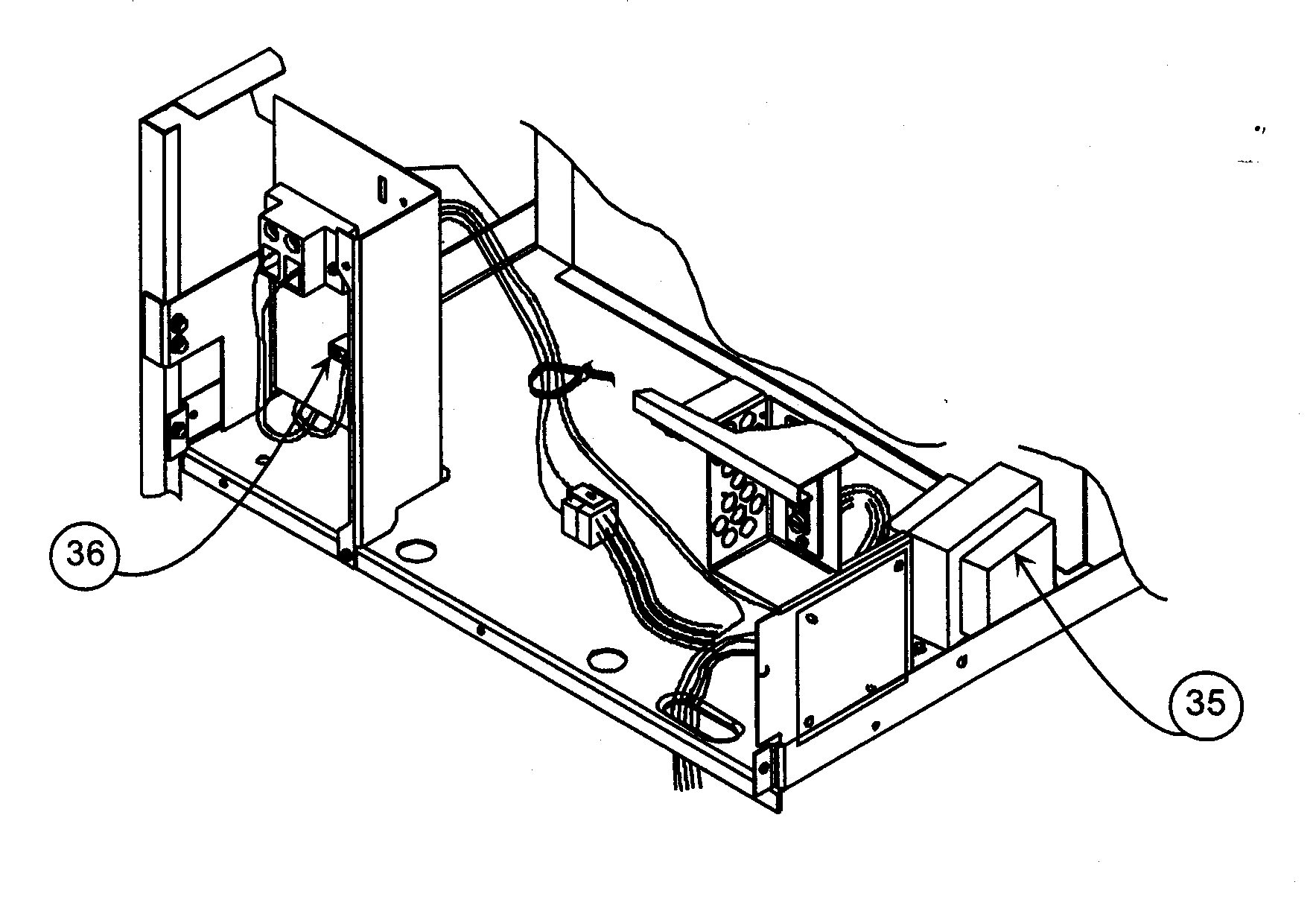

Control board diagram

Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
