Model # 486244073 Official Craftsman snow blade

Here are the diagrams and repair parts for Official Craftsman 486244073 snow blade, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Lawn Tractor Attachment Cotter Pin, 3/32-in 43055
#40

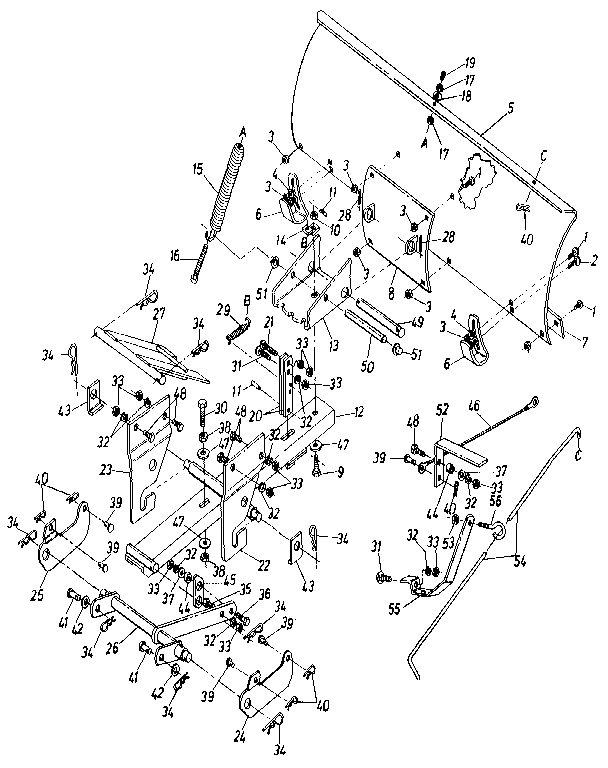

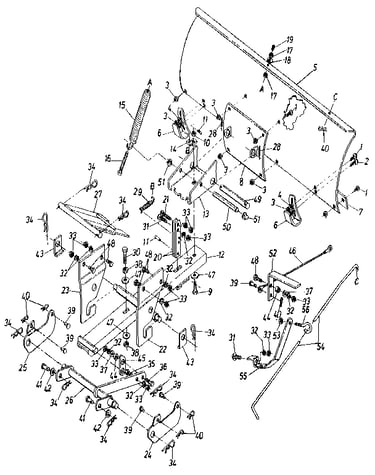

42" snow blade diagram

Lawn tractor attachment cotter pin, 3/32-in

Part #43055

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Skid Shoe 23070
#6

42" snow blade diagram

Skid shoe

Part #23070

Replaced by #24690BL1

?
Manufacturer substitution
This part replaces 23070. Substitute parts can look different from the original.
BEST SELLER
$9.46 |
10% OFF Phone Price : $10.46
In Stock
Lawn & Garden Equipment Push Cap Nut, 3/8-in 44917
#51

42" snow blade diagram

Lawn & garden equipment push cap nut, 3/8-in

Part #44917

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Snow Blade Attachment Wear Plate 23117
#7

42" snow blade diagram

Lawn tractor snow blade attachment wear plate

Part #23117

Replaced by #23117BL3

?
Manufacturer substitution
This part replaces 23117. Substitute parts can look different from the original.
BEST SELLER
$29.91 |
17% OFF Phone Price : $35.91
Back Order
Lawn Tractor Snow Blade Attachment Angle Lock Spring (replaces 732-0360, Af-43348) 43348
#29

42" snow blade diagram

Lawn tractor snow blade attachment angle lock spring (replaces 732-0360, af-43348)

Part #43348

$8.11 |
11% OFF Phone Price : $9.11
In Stock
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Carriage Bolt, 5/16-18 X 3/4-in 43080
#1

42" snow blade diagram

Lawn & garden equipment carriage bolt, 5/16-18 x 3/4-in

Part #43080

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
#37

42" snow blade diagram

Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Clevis Pin 44044
#39

42" snow blade diagram

Lawn tractor attachment clevis pin

Part #44044

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Cotter Pin, 1-in 43010
#28

42" snow blade diagram

Lawn & garden equipment cotter pin, 1-in

Part #43010

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
