Model # 4-2259 Official Hedstrom playground equipment

Here are the diagrams and repair parts for Official Hedstrom 4-2259 playground equipment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Barrel Nut, 1" 416-274C
Barrel nut, 1"

Part #416-274C

The manufacturer no longer makes this part, and there's no substitute part

Bearing Assemblies 417-257
#1011

Climber diagram

Bearing assemblies

Part #417-257

The manufacturer no longer makes this part, and there's no substitute part

Rd Hd Bolt 416-932C
Rd hd bolt

Part #416-932C

The manufacturer no longer makes this part, and there's no substitute part

Inside Tower Legs 54-9260P-754
#A-2

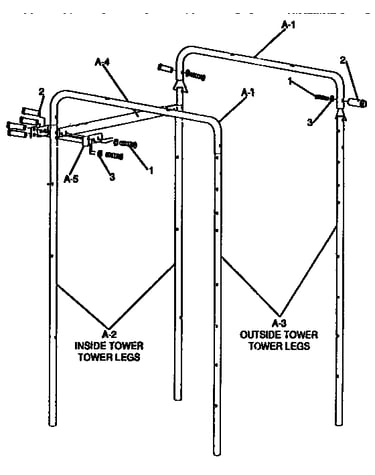

A-frame diagram

Inside tower legs

Part #54-9260P-754

The manufacturer no longer makes this part, and there's no substitute part

Climber Rungs, 21" X 7/8" X 20ga 54-8309P-754
#B-3

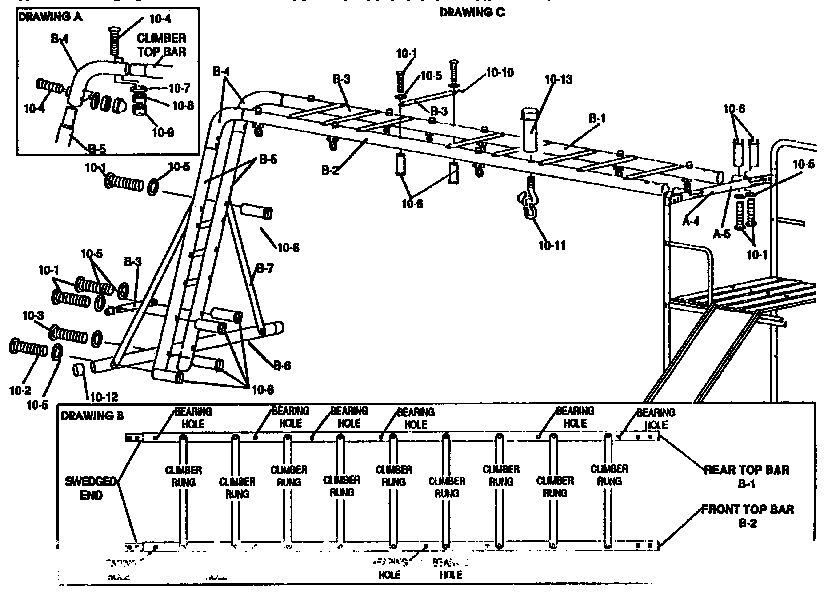

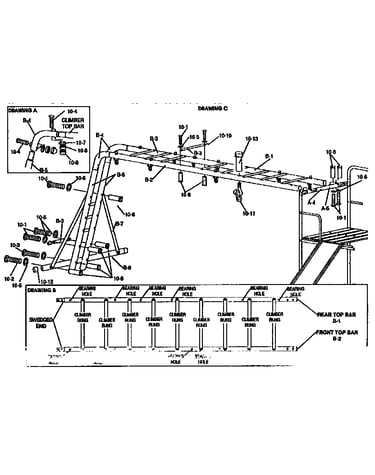

Climber diagram

Climber rungs, 21" x 7/8" x 20ga

Part #54-8309P-754

The manufacturer no longer makes this part, and there's no substitute part

Nylon Bearing, 1/4" 217-16
#14-8

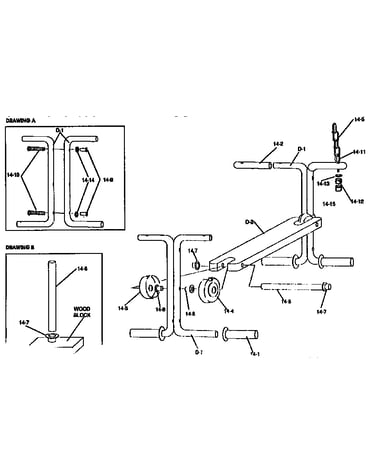

Glider diagram

Nylon bearing, 1/4"

Part #217-16

The manufacturer no longer makes this part, and there's no substitute part

Rd Hd Bolt, 3-1/8" X 1/4"-20 416-9509C
#4

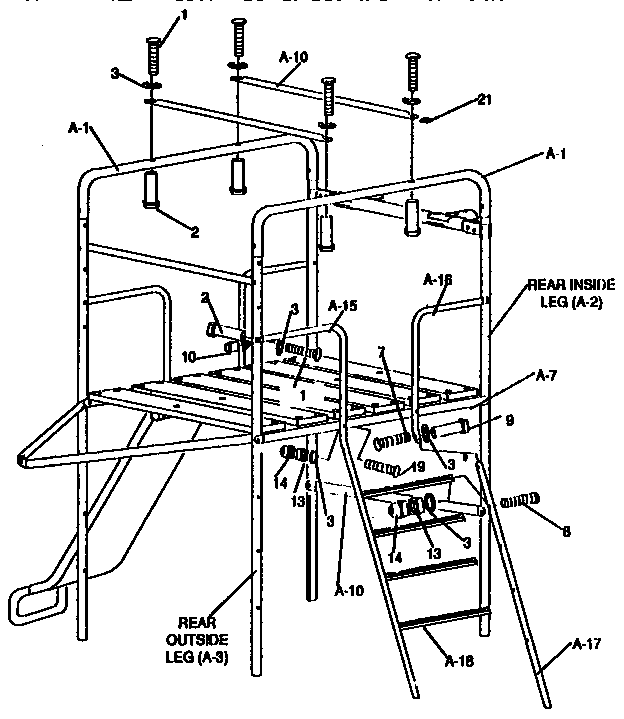

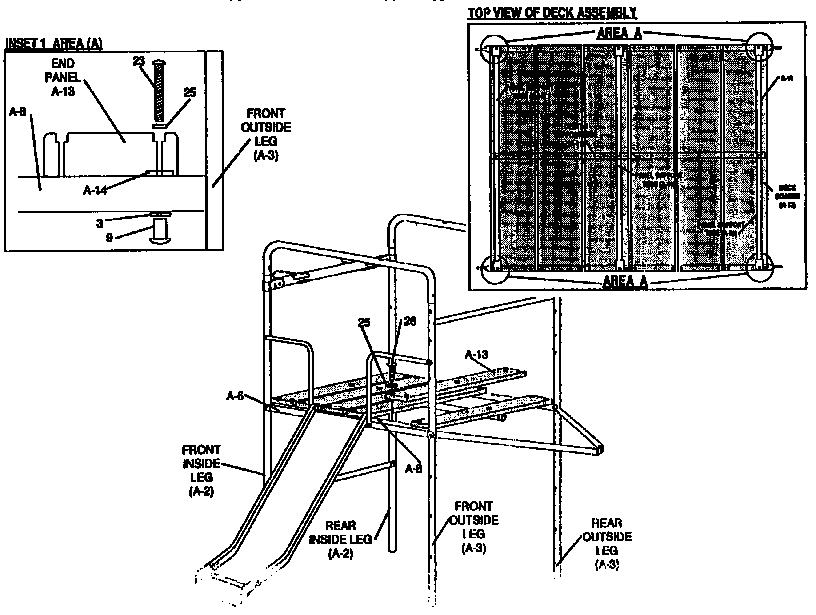

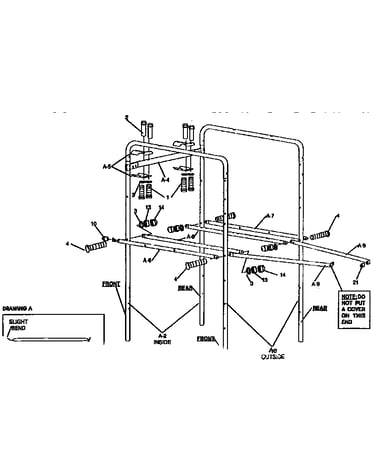

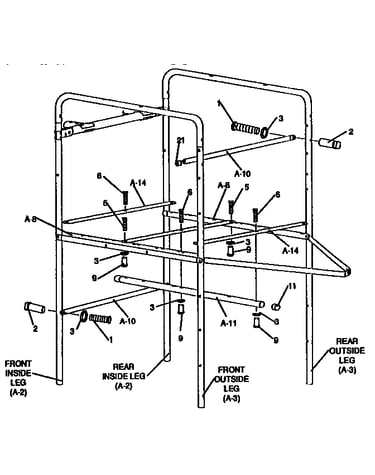

Tower diagram

Rd hd bolt, 3-1/8" x 1/4"-20

Part #416-9509C

The manufacturer no longer makes this part, and there's no substitute part

Triangle Climer Leg, 84-5/8" X 2-3/8" X 20 Ga 54-9262P-754
#A-19

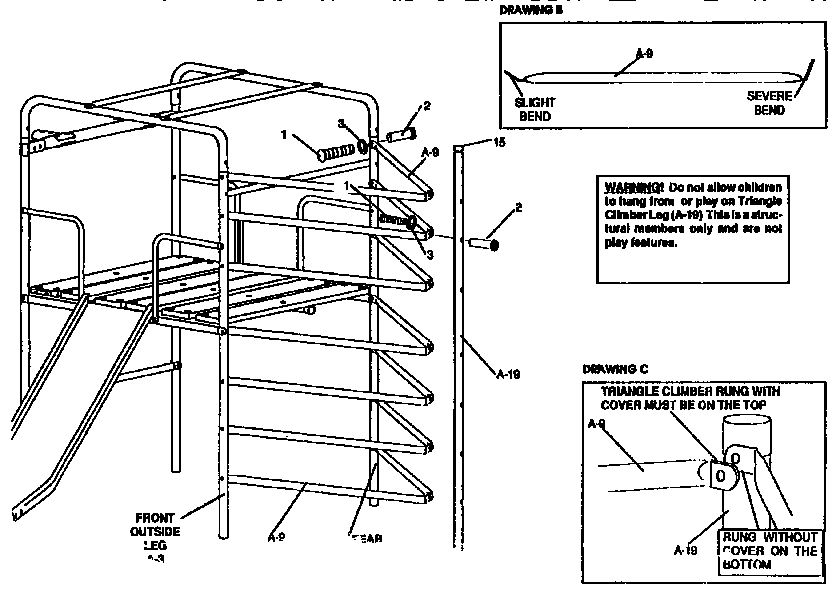

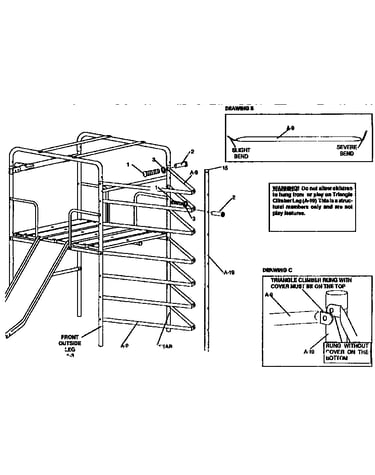

Tower diagram

Triangle climer leg, 84-5/8" x 2-3/8" x 20 ga

Part #54-9262P-754

The manufacturer no longer makes this part, and there's no substitute part

Ground Brace, 96-1/2" X 1-1/2" X 18ga 54-9332P-754
#B-6

Climber diagram

Ground brace, 96-1/2" x 1-1/2" x 18ga

Part #54-9332P-754

The manufacturer no longer makes this part, and there's no substitute part

End Stand 54-9851P-754
#C-1

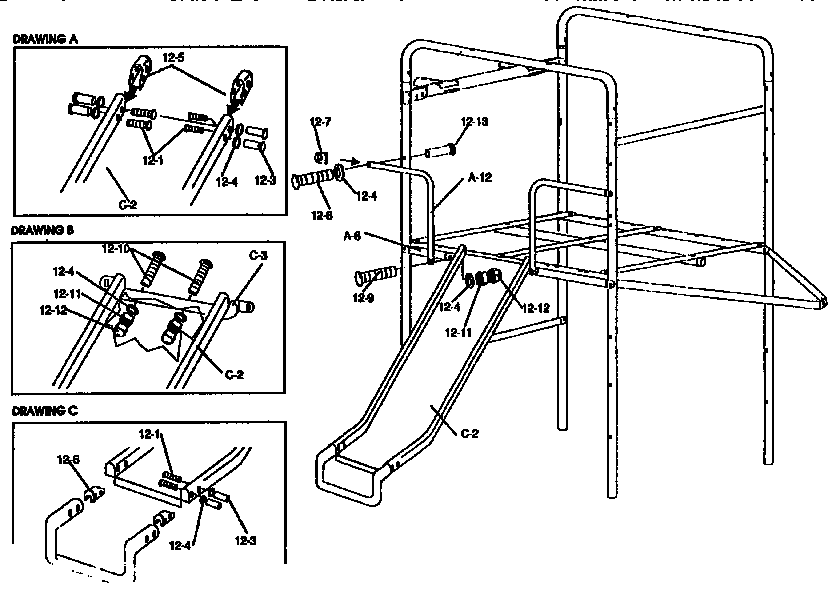

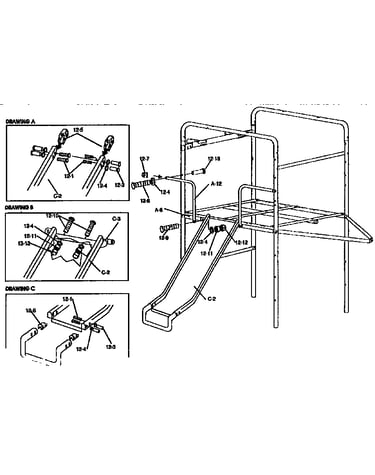

Slide diagram

End stand

Part #54-9851P-754

The manufacturer no longer makes this part, and there's no substitute part
