Model # 25VNA036A0030040 Official Carrier air conditioner

Here are the diagrams and repair parts for Official Carrier 25VNA036A0030040 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

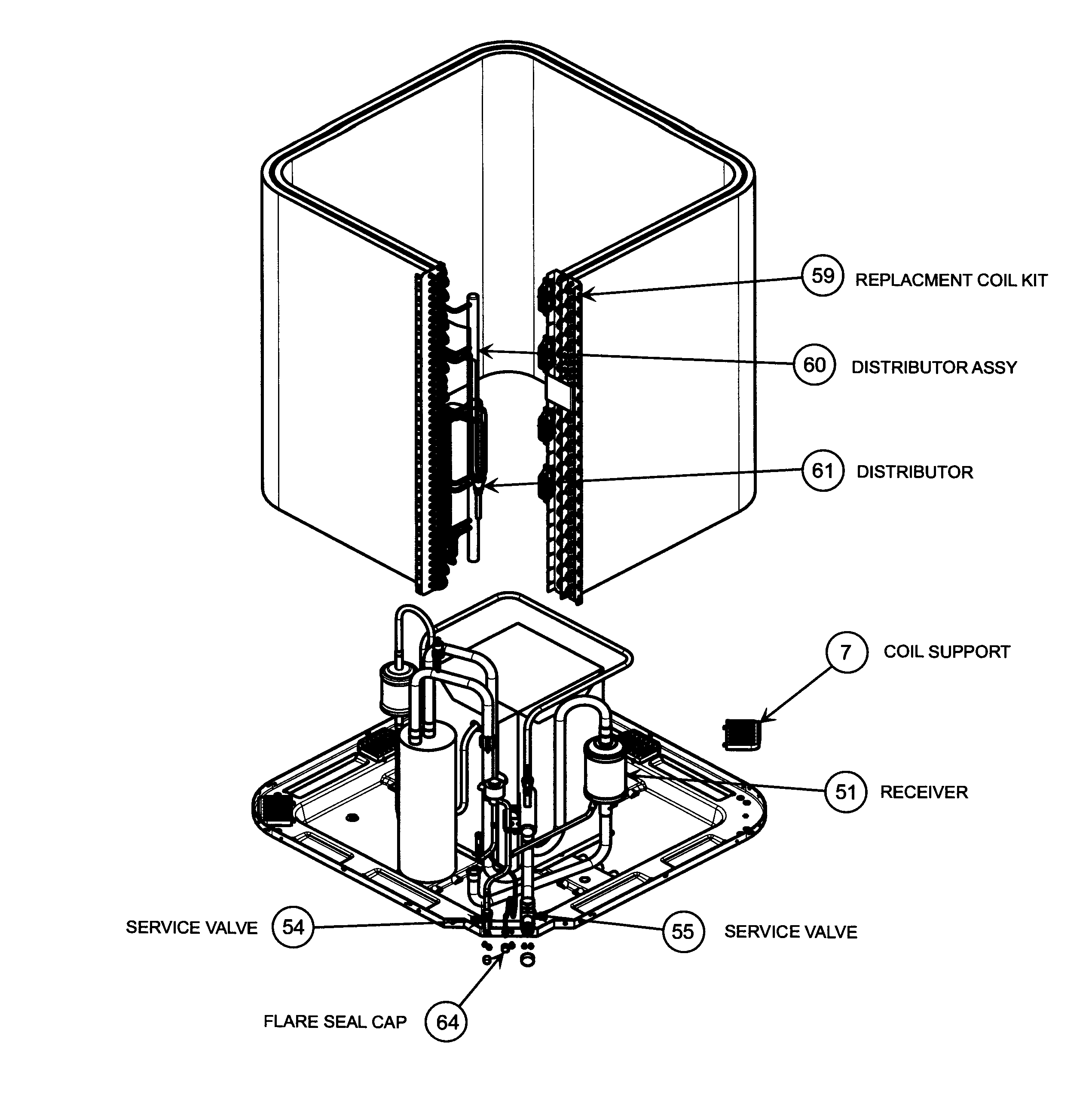

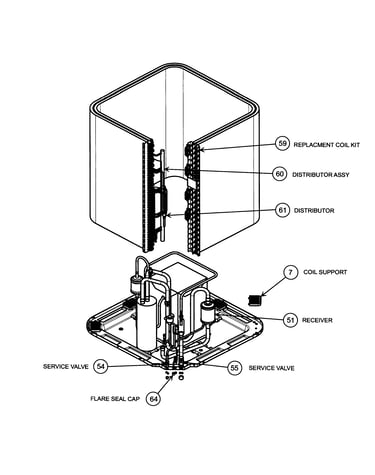

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 73 parts |

Central Air Conditioner Filter Dryer KH43LG072

#NI

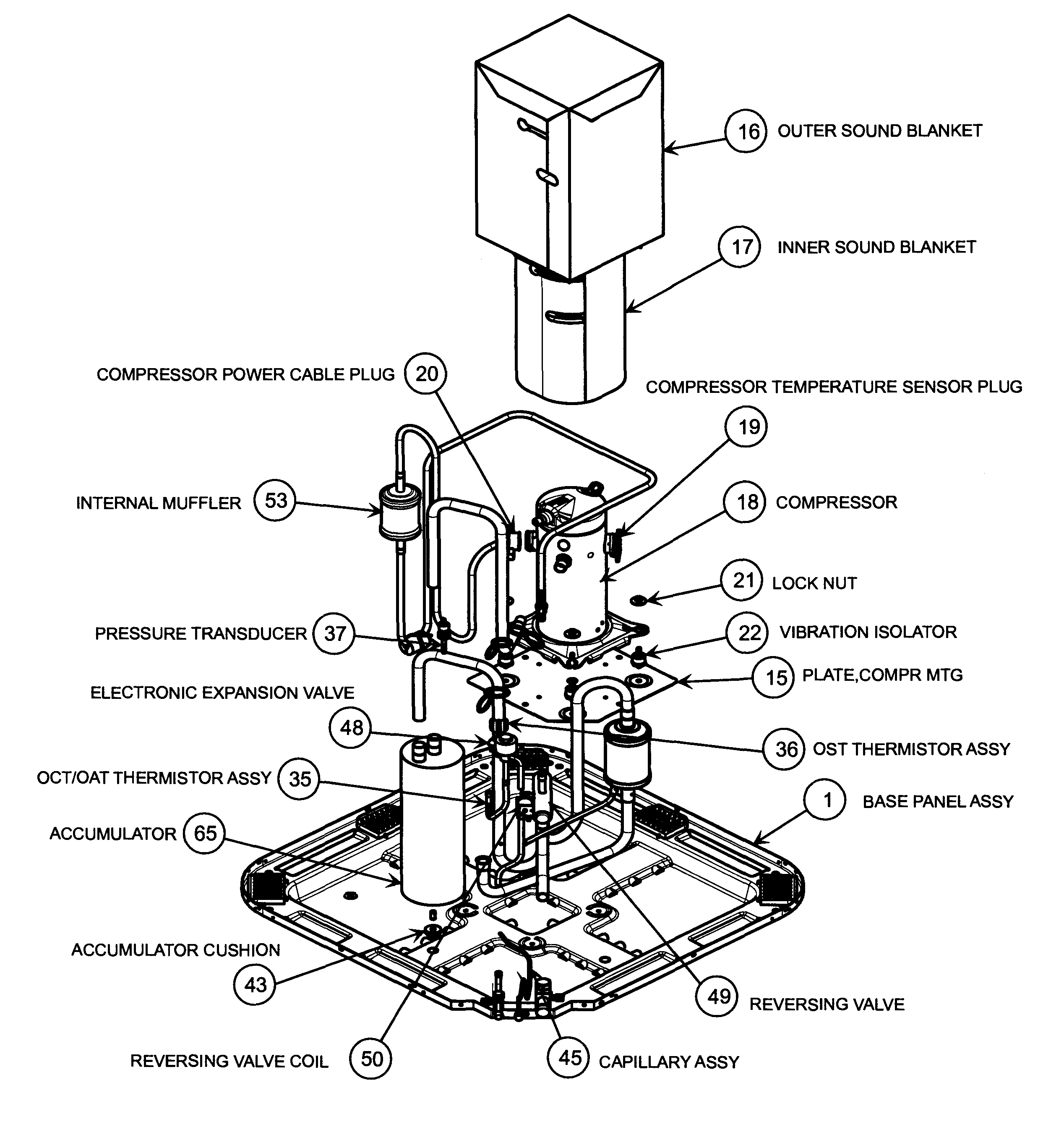

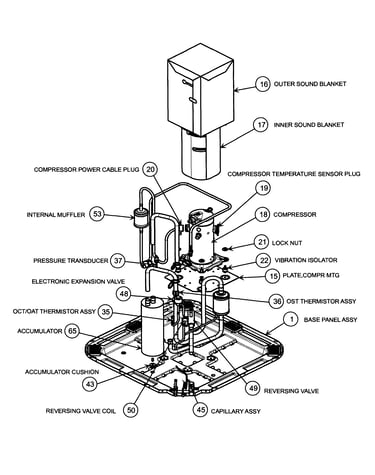

Compressor assy diagram

Central air conditioner filter dryer

Part #KH43LG072

$120.16 |

9% OFF Phone Price : $132.16

In Stock

Qty

#35

Compressor assy diagram

Thermistor

Part #HH79NZ086

$54.05 |

10% OFF Phone Price : $60.05

In Stock

Qty

#37

Compressor assy diagram

Transducer

Part #HK05SZ001

Replaced by #HK05SZ004

$198.27

In Stock

Qty

#NI

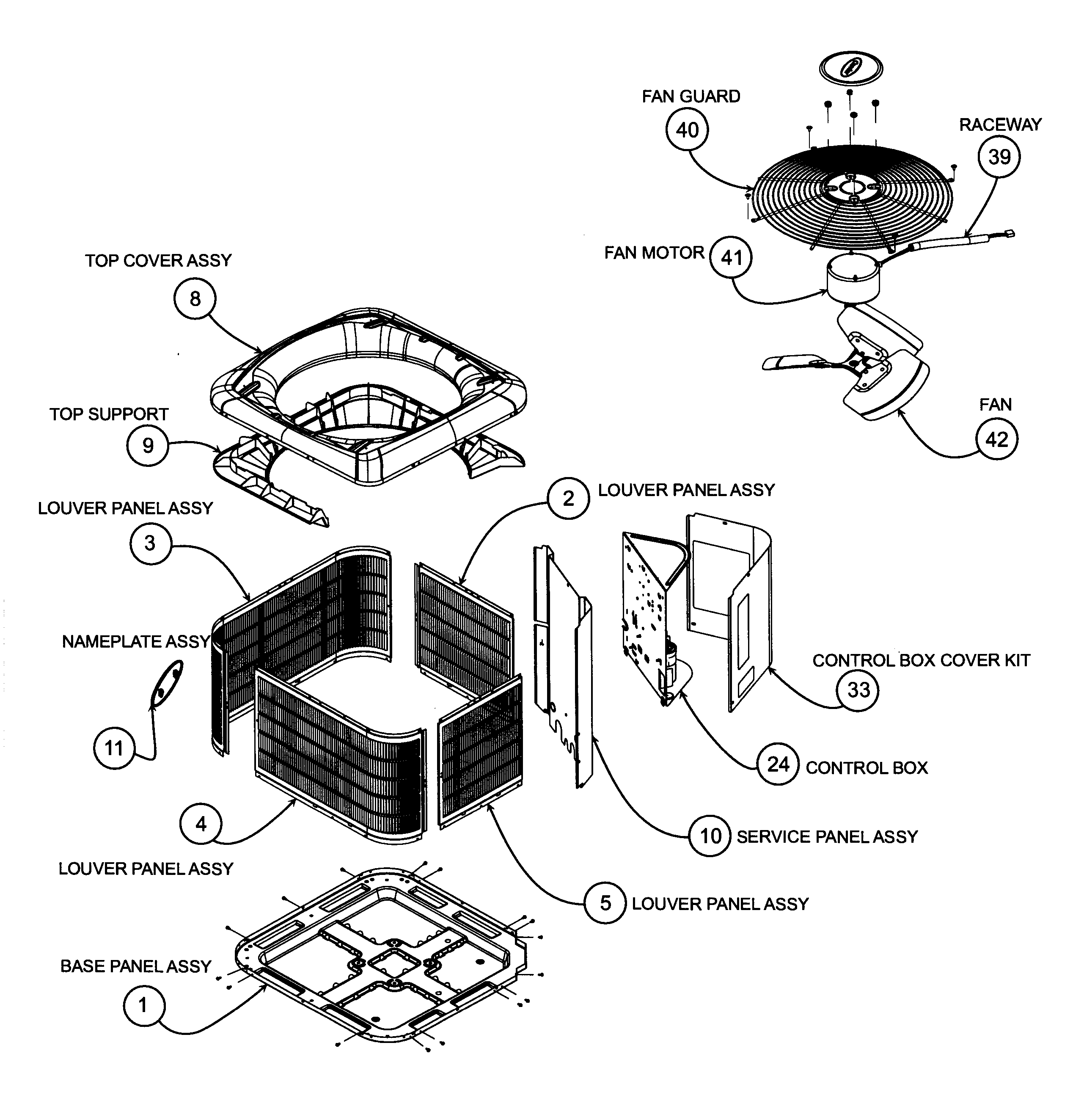

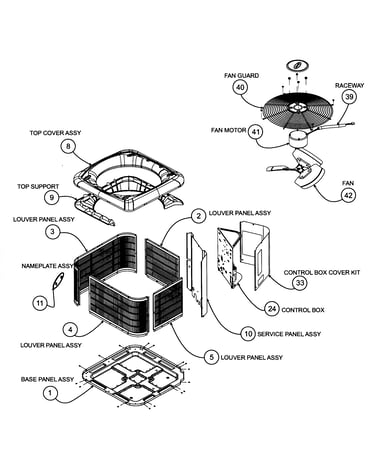

Cabinet assy diagram

Muffler

Part #LM10KK003

$207.64

In Stock

Qty

#45A

Compressor assy diagram

Check valve

Part #321097-201

$33.47

In Stock

Qty

Cabinet assy diagram

Support

Part #337076-401

$80.22

In Stock

Qty

#NI

Cabinet assy diagram

Kit, svce

Part #328963-753

$106.56

In Stock

Qty

#29

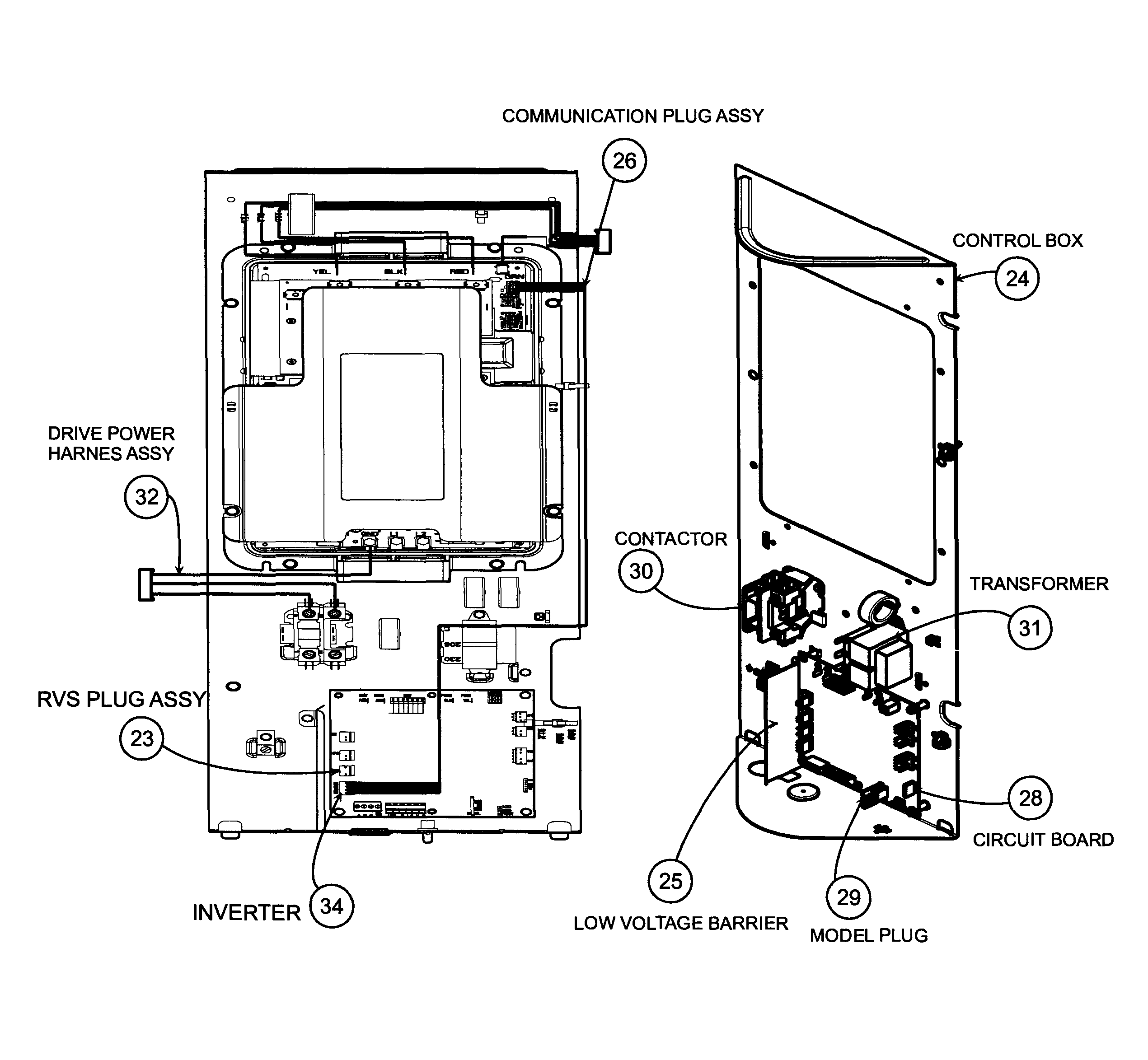

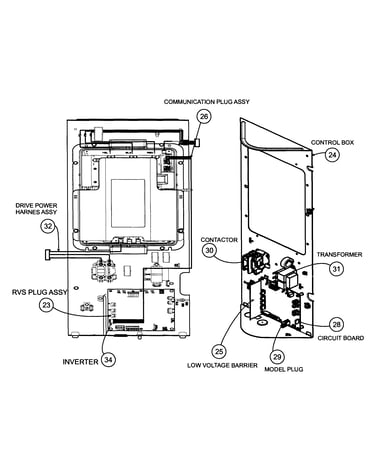

Pcb assy diagram

Plug-model

Part #HK70EZ002

$32.51

In Stock

Qty

Cabinet assy diagram

Louver pnl

Part #329665-706164

$249.42

In Stock

Qty

#10

Cabinet assy diagram

Serv panel

Part #337161-701164

$120.18

In Stock

Qty

Symptoms for gas cooktops

Why won't my cooktop's gas burners ignite or spark?

Main causes: burner igniter switch failure, bad spark module, dirty or damaged spark electrode, wiring failure, lack of …

Why isn't my cooktop's gas burner heating properly?

Main causes: gas supply problem, faulty pressure regulator, clogs in burner or orifice, burner valve failure…

Why do my cooktop's spark igniters keep clicking?

Main causes: stuck burner igniter switch, wet igniter switch contacts, faulty spark module…

How to replace a spark igniter switch on a gas cooktop

Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…

Repair difficulty

Time required

45 minutes or less

How to replace a spark module on a gas cooktop

No flame on your gas cooktop? Installing a new spark module could be the fix you need.…

Repair difficulty

Time required

30 minutes or less
