Kenmore
Electric Cooktop

Model # 79044229101 Official Kenmore cooktop

Here are the diagrams and repair parts for Official Kenmore 79044229101 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

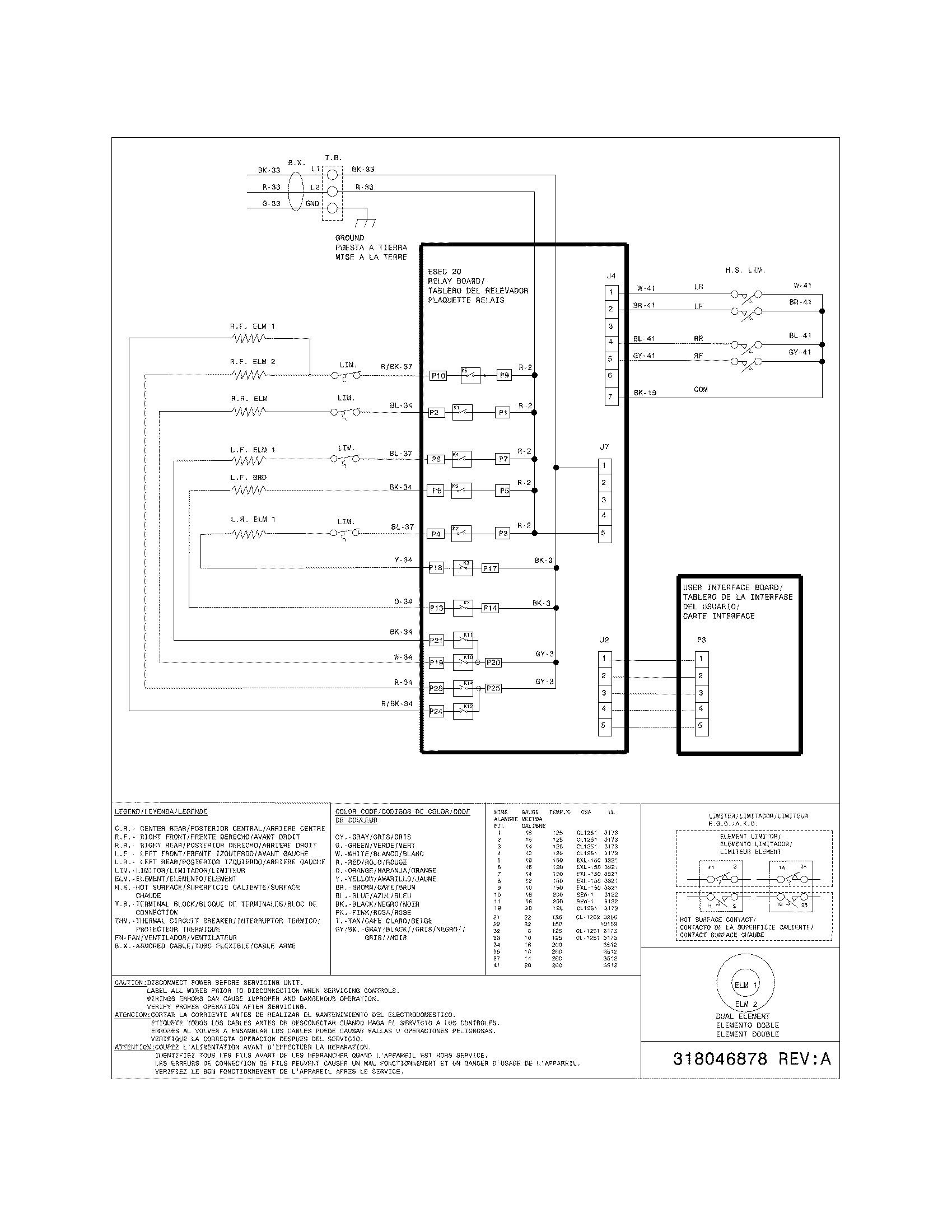

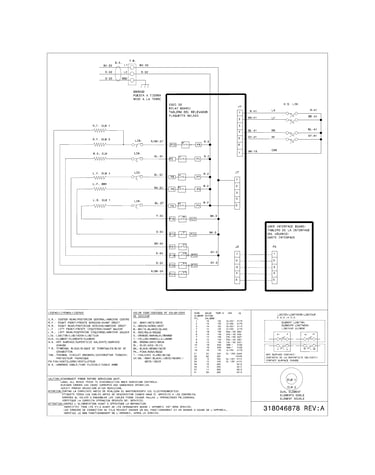

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Terminal Block 316056000
#62

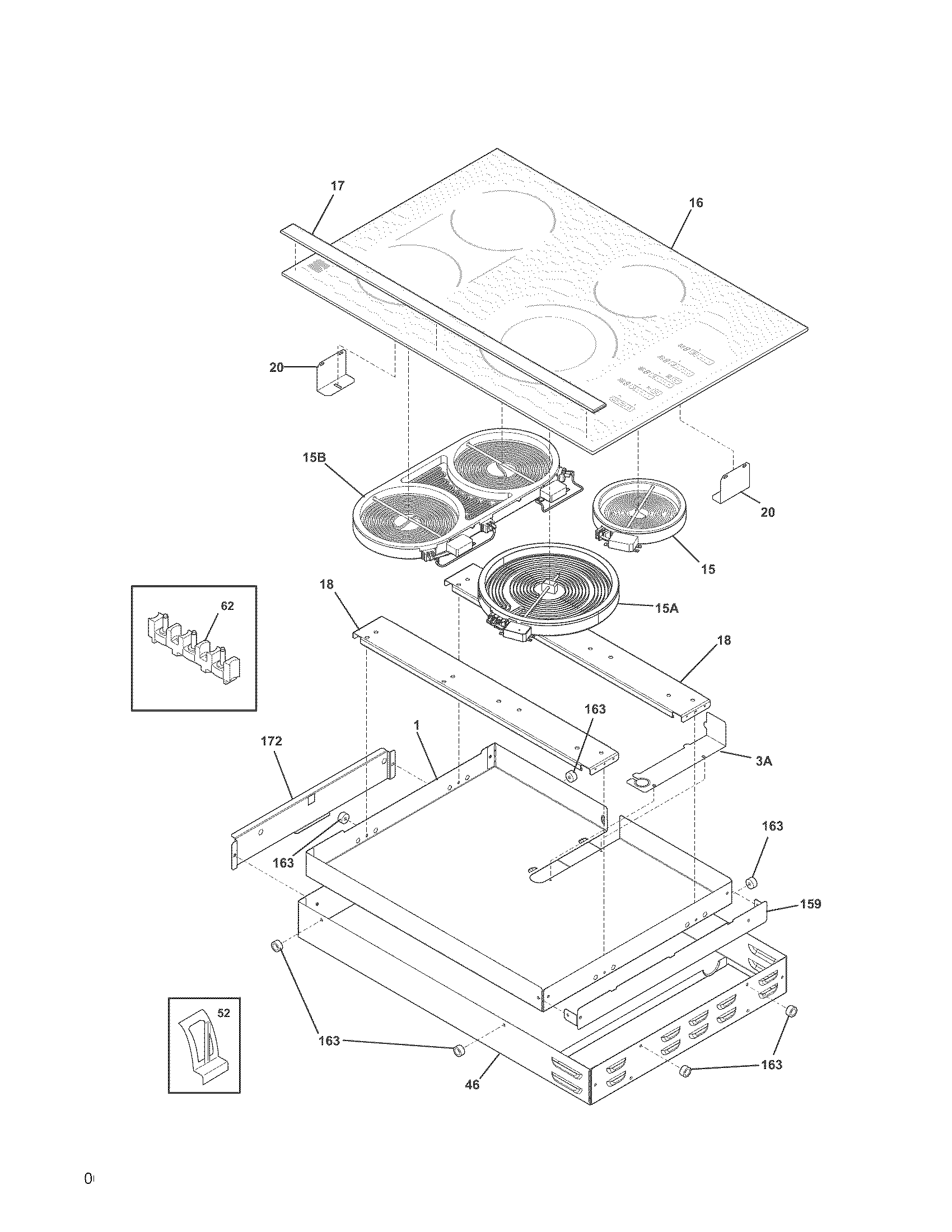

Maintop/surface units diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Radiant Bridge Surface Element (replaces 7318258203) 318258203
#15B

Maintop/surface units diagram

Range radiant bridge surface element (replaces 7318258203)

Part #318258203

$278.73 |
$12.00 OFF Phone Price : $290.73
In Stock
Range Screw 5303323140
Range screw

Part #5303323140

$11.17
In Stock
Range Screw 5303307980
Range screw

Part #5303307980

$21.34 |
22% OFF Phone Price : $27.34
In Stock
Range Power Control Board Support 316114100
#77A

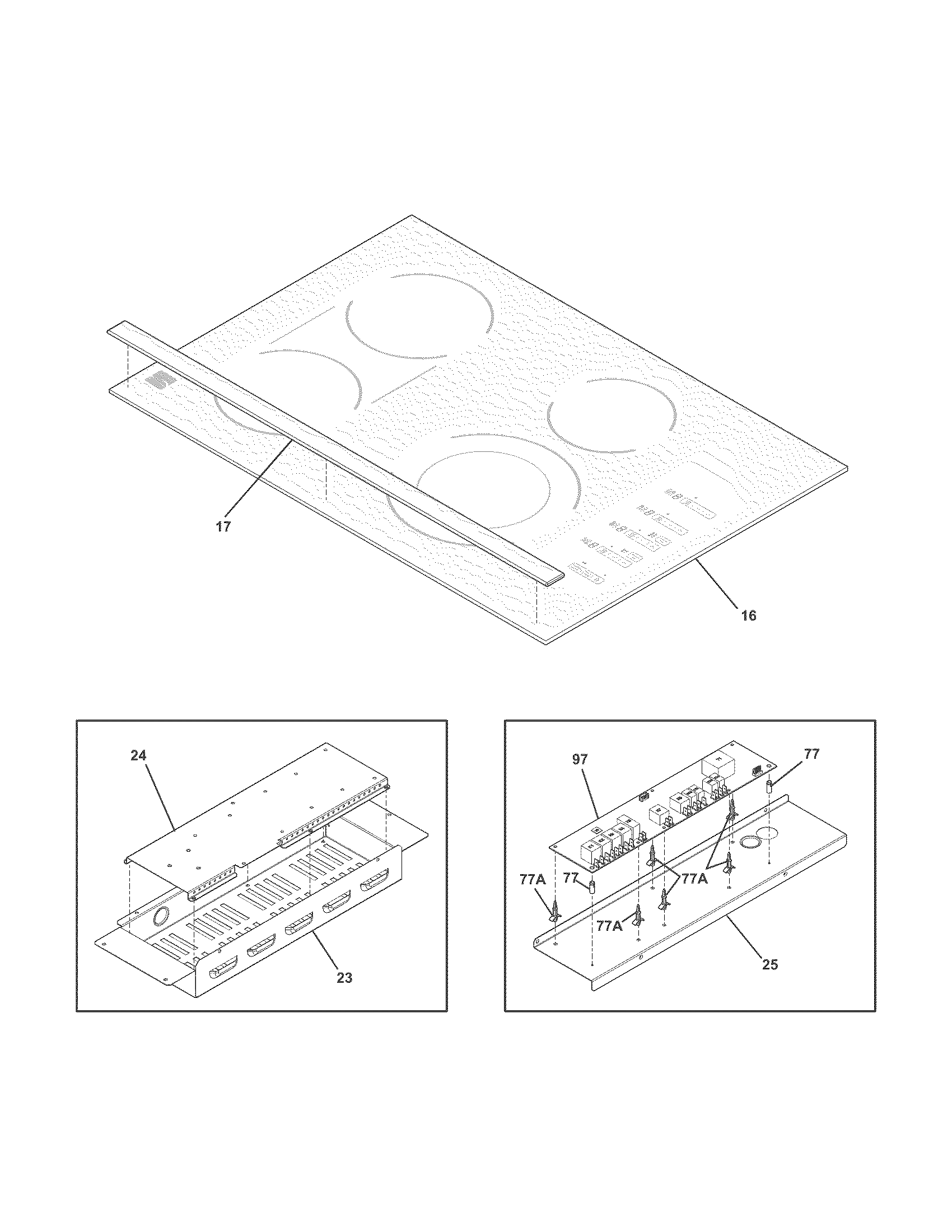

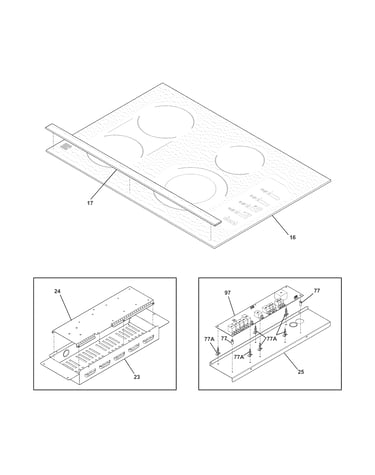

Control panel diagram

Range power control board support

Part #316114100

$52.42 |
10% OFF Phone Price : $58.42
In Stock
Cooking Appliance Screw, 6-18 X 1-in 5304401490
#NI

Control panel diagram

Cooking appliance screw, 6-18 x 1-in

Part #5304401490

$11.89
In Stock
Range Screw, 8 X 5/8-in 3131048
#163

Maintop/surface units diagram

Range screw, 8 x 5/8-in

Part #3131048

$21.71
In Stock
Range Surface Element Spring 5303317177
#52

Maintop/surface units diagram

Range surface element spring

Part #5303317177

$11.20
In Stock
Cooktop Installation Bracket 318121902
#20

Maintop/surface units diagram

Cooktop installation bracket

Part #318121902

$35.79 |
14% OFF Phone Price : $41.79
In Stock
Appliance Cleaning Pad 316459400
#NI

Maintop/surface units diagram

Appliance cleaning pad

Part #316459400

This item is not returnable
$2.16
In Stock
