Model # 867765370 Official Kenmore gas-fired sectional furnace

Here are the diagrams and repair parts for Official Kenmore 867765370 gas-fired sectional furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for867765370 Gas-Fired Sectional Furnace

  • Burner 89592
    #3

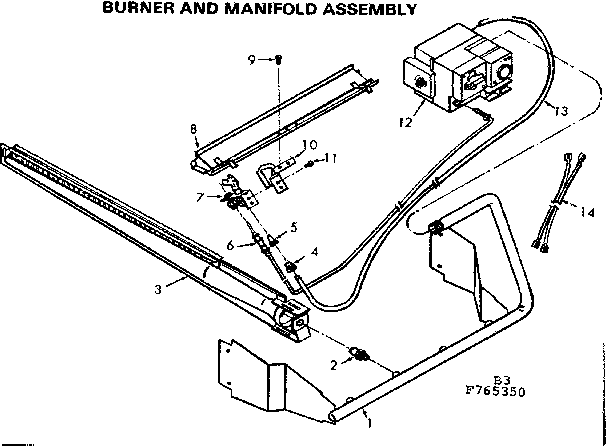

    Burner and manifold assembly diagram

    Burner

    Part #89592

    Replaced by #610232

    ?
    Manufacturer substitution
    This part replaces 89592. Substitute parts can look different from the original.
    In Stock
  • Furnace Blower Fan Wheel 601210
    #23

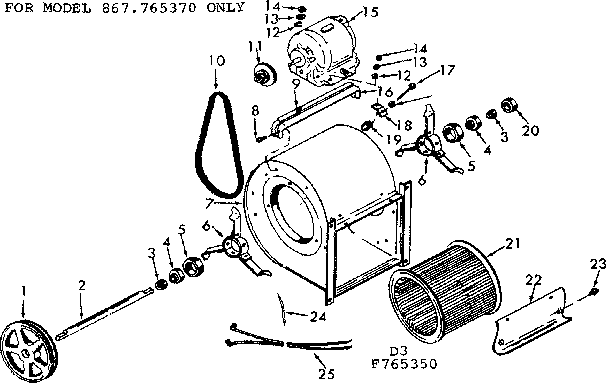

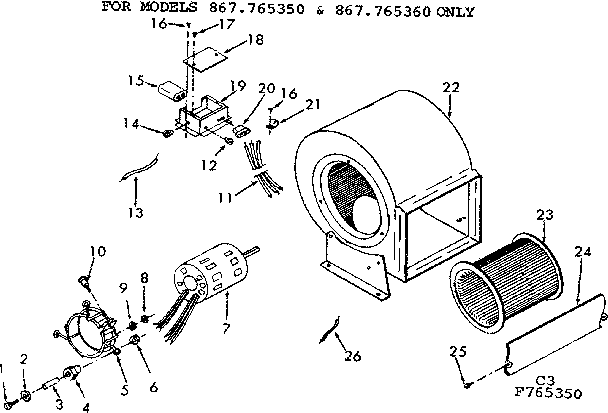

    Blower assembly diagram

    Furnace blower fan wheel

    Part #601210

    In Stock
  • Control 92890
    #24C

    Functional replacement parts diagram

    Control

    Part #92890

    The manufacturer no longer makes this part, and there's no substitute part

  • Contrl F/l 87055
    #24B

    Functional replacement parts diagram

    Contrl f/l

    Part #87055

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Filter 64758
    #39A

    Functional replacement parts diagram

    Air filter

    Part #64758

    The manufacturer no longer makes this part, and there's no substitute part

  • Gas Valve 95647
    #12A

    Burner and manifold assembly diagram

    Gas valve

    Part #95647

    Replaced by #TJ36C03-333

    ?
    Manufacturer substitution
    This part replaces 95647. Substitute parts can look different from the original.
    In Stock
  • Thermostat 42-9295

    #NI

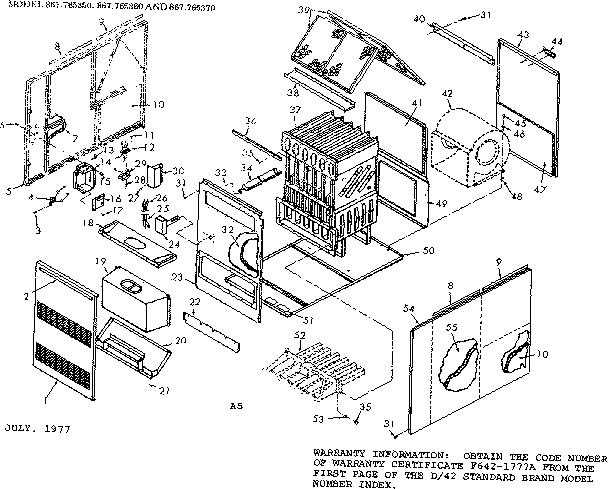

    All parts diagram

    Thermostat

    Part #42-9295

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor 77353
    #15

    Blower assembly diagram

    Capacitor

    Part #77353

    Replaced by #TRCF5

    ?
    Manufacturer substitution
    This part replaces 77353. Substitute parts can look different from the original.
    In Stock
  • Pilot Burner 503209
    #7

    Burner and manifold assembly diagram

    Pilot burner

    Part #503209

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor 604007
    #7

    Blower assembly diagram

    Motor

    Part #604007

    Replaced by #45460

    ?
    Manufacturer substitution
    This part replaces 604007. Substitute parts can look different from the original.
    In Stock
