Model # S3413025 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3413025 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

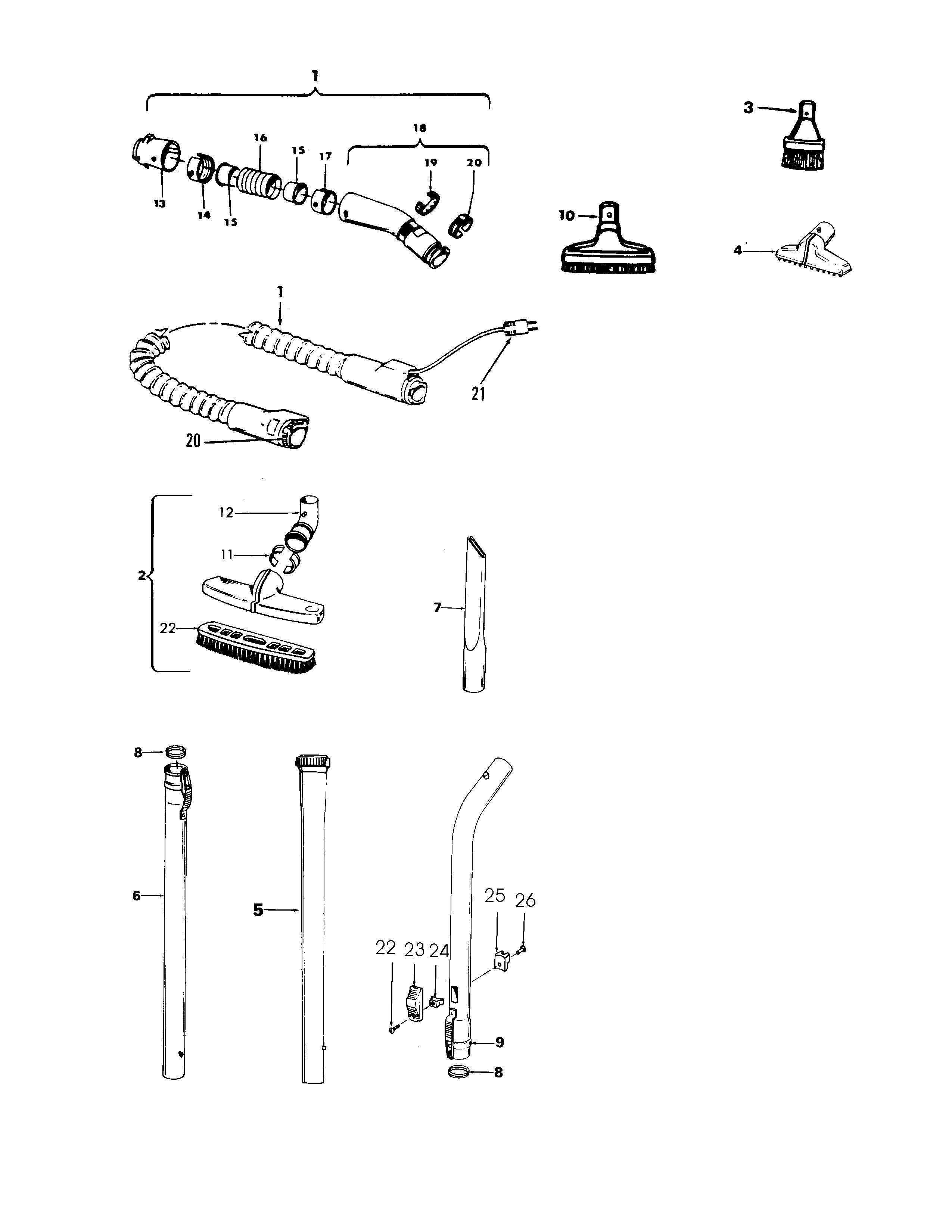

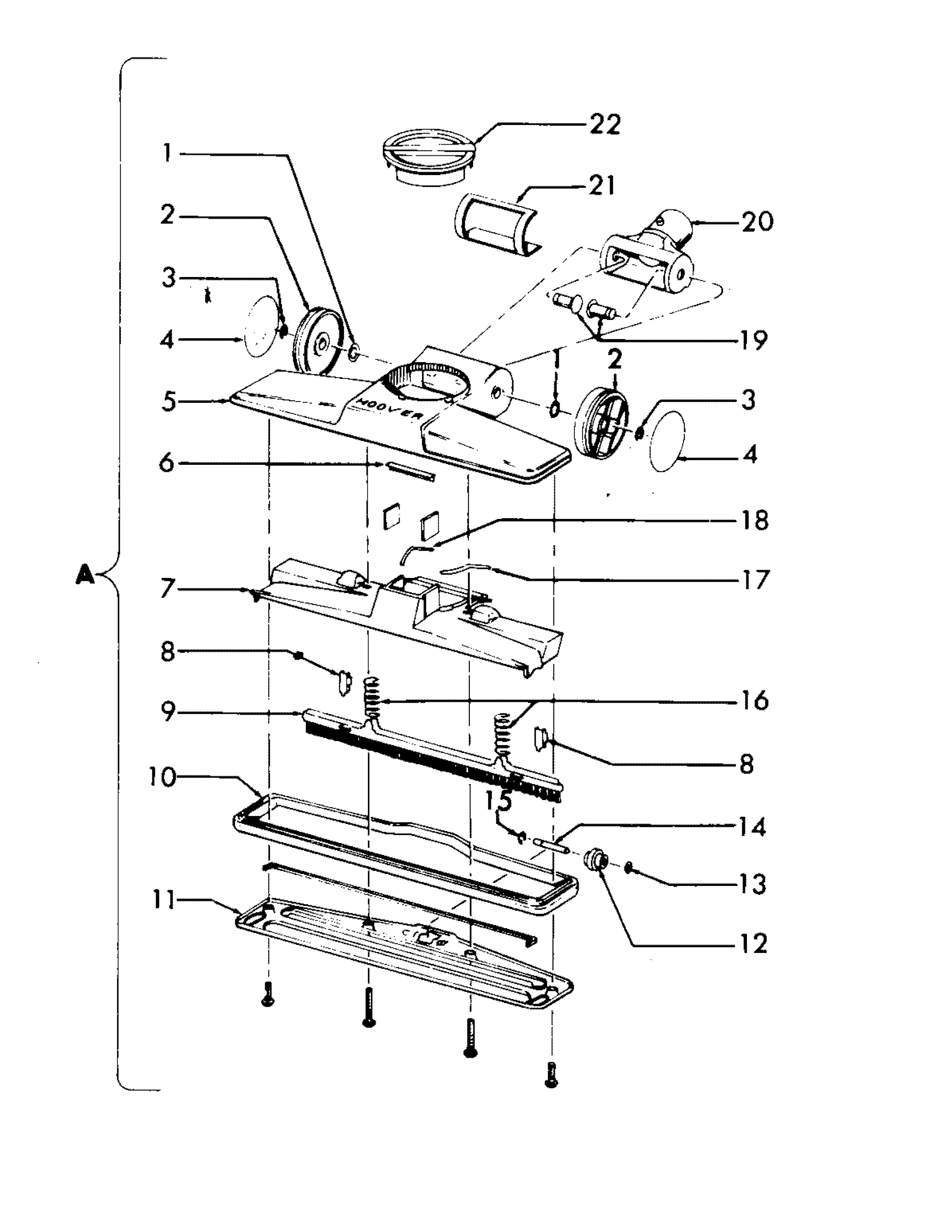

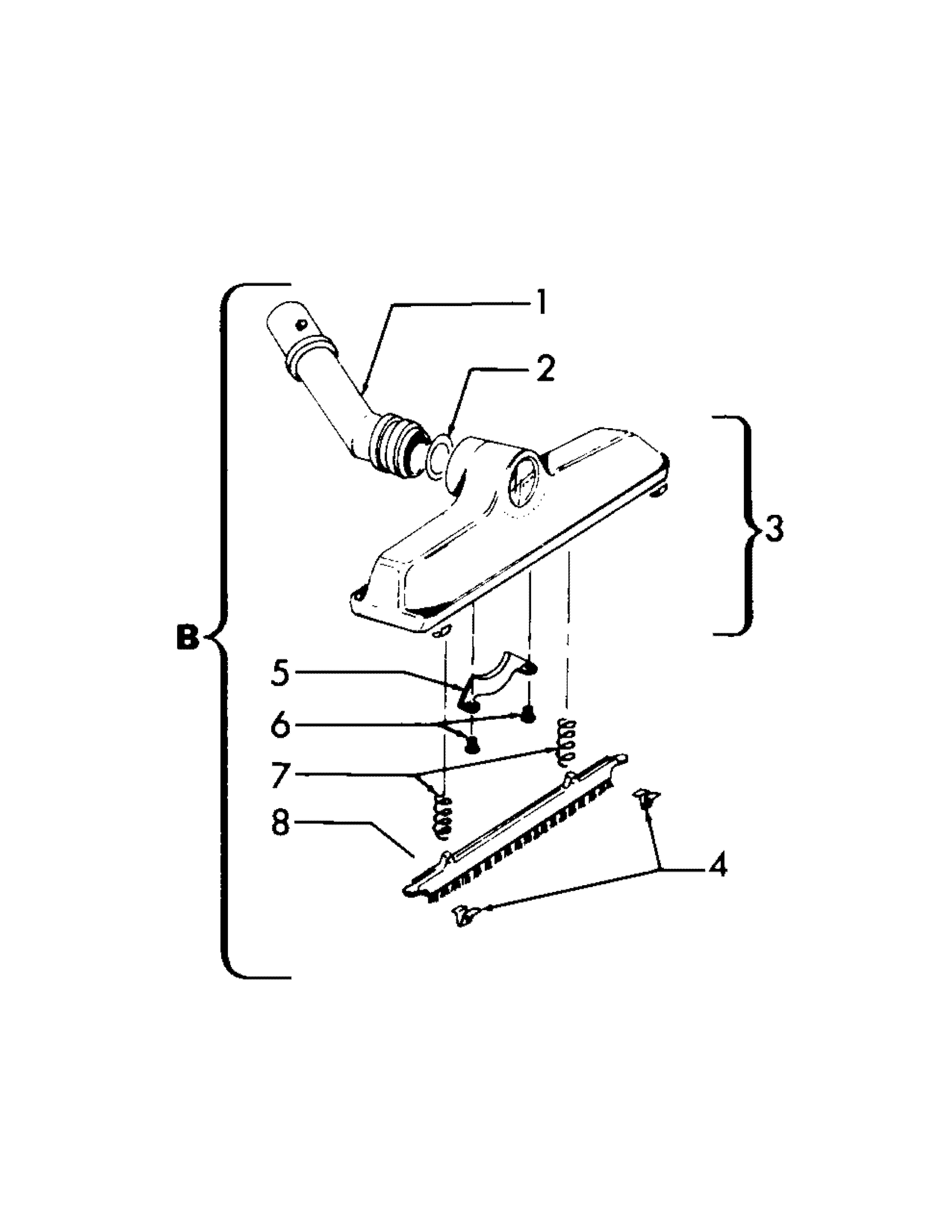

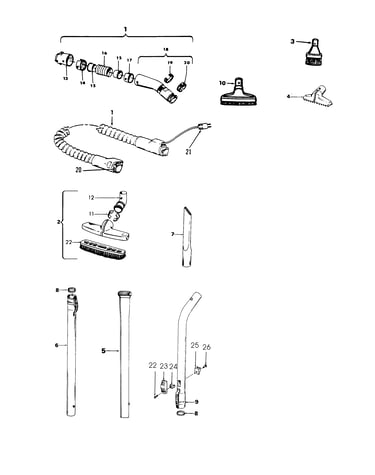

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |

Kenmore Vacuum Light Bulb 27317307
#30

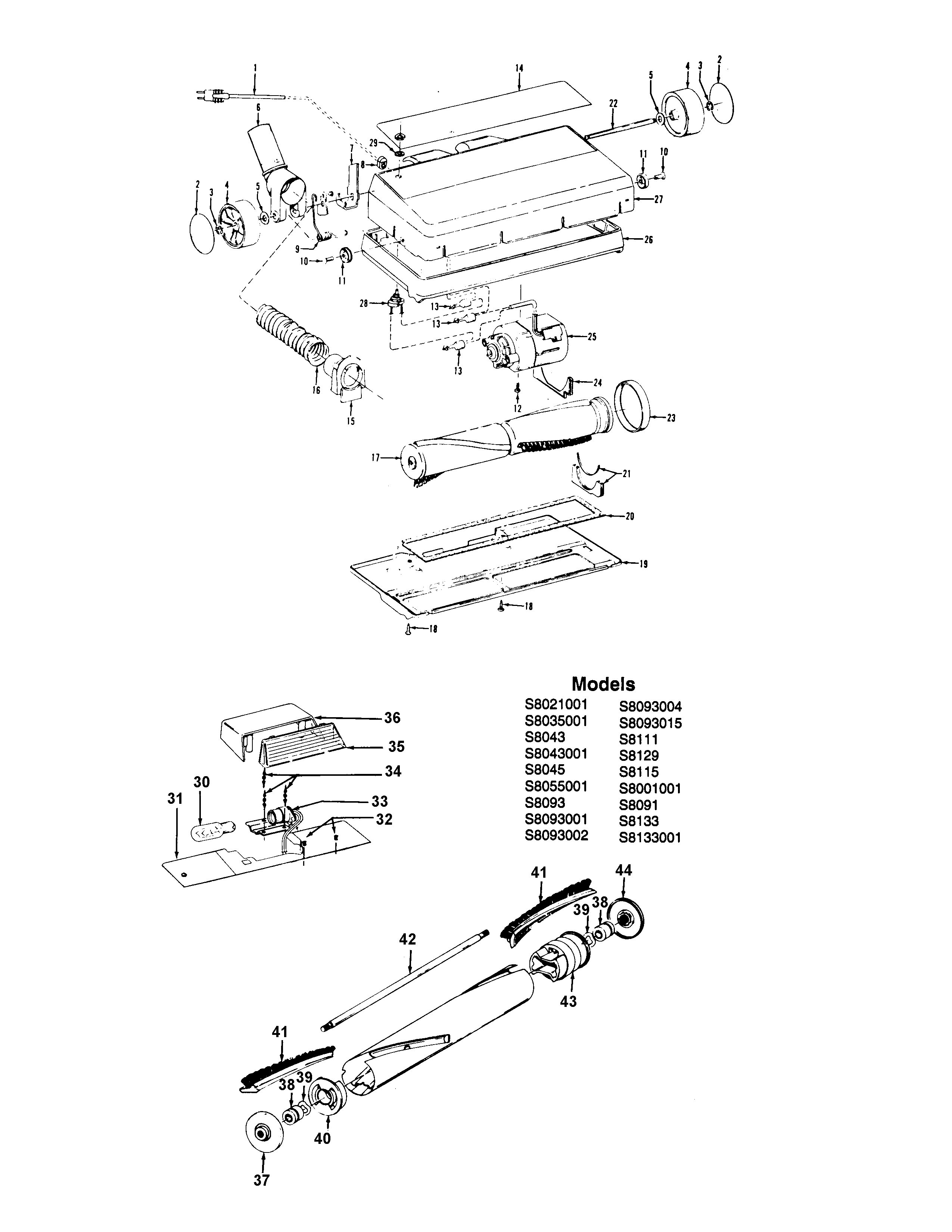

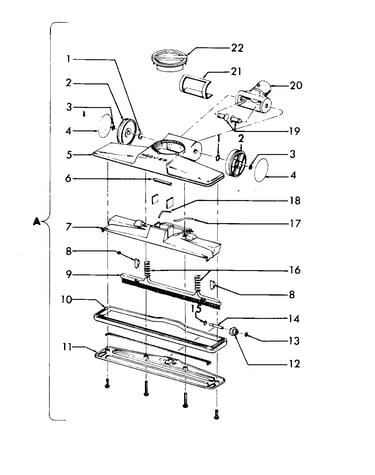

Powerednozzle, agitator diagram

Kenmore vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Commutat Blk 46831076
#46

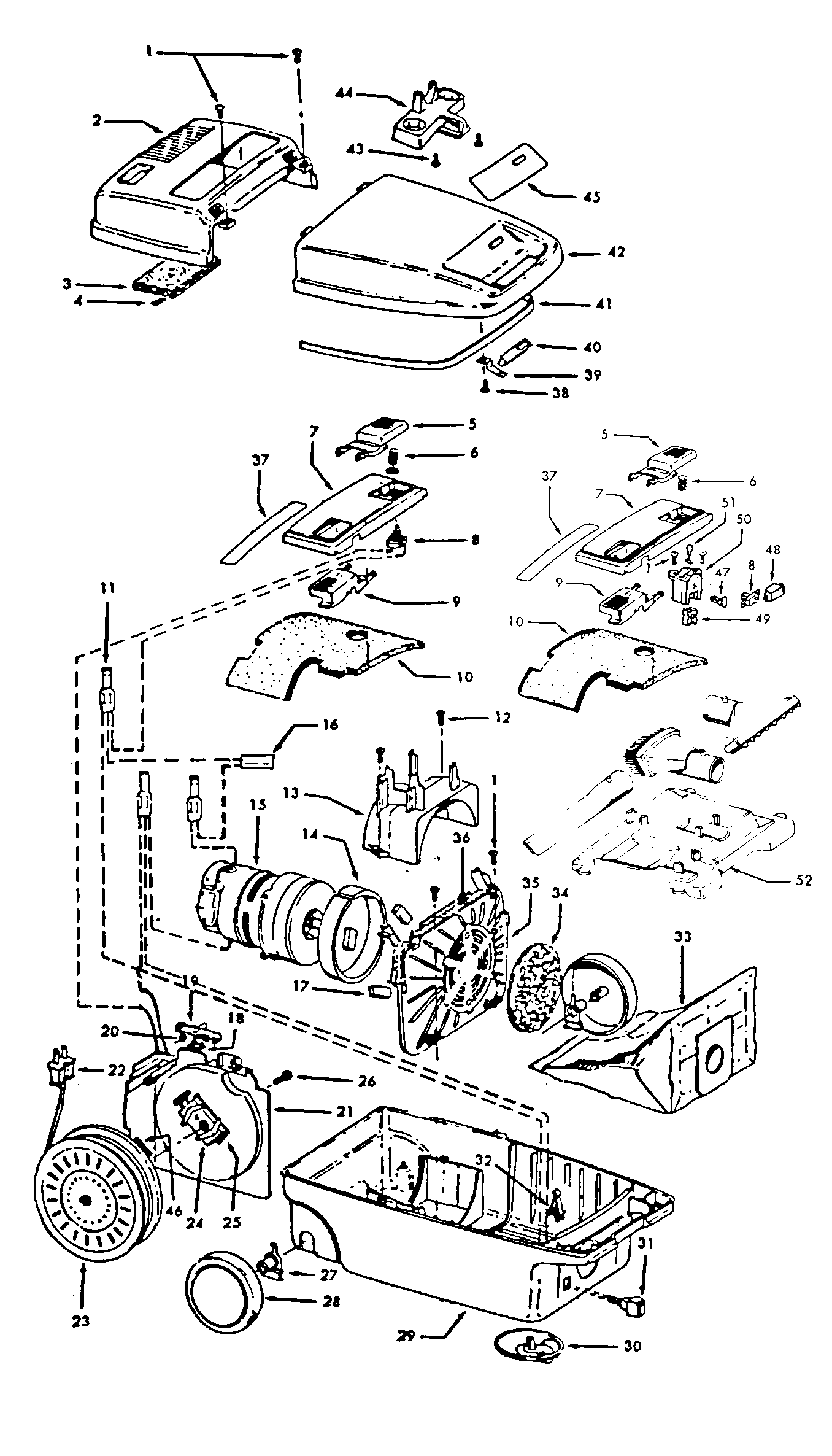

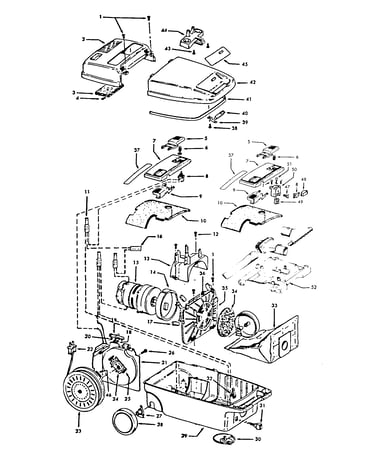

Mainhousing diagram

Commutat blk

Part #46831076

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Wheel 32761001
#11

Powerednozzle, agitator diagram

Kenmore vacuum wheel

Part #32761001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#39

Powerednozzle, agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Depressor 38458002
#51

Mainhousing diagram

Kenmore depressor

Part #38458002

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Brake Pad 36222008
#18

Mainhousing diagram

Kenmore brake pad

Part #36222008

The manufacturer no longer makes this part, and there's no substitute part

Nut 33426001
#1

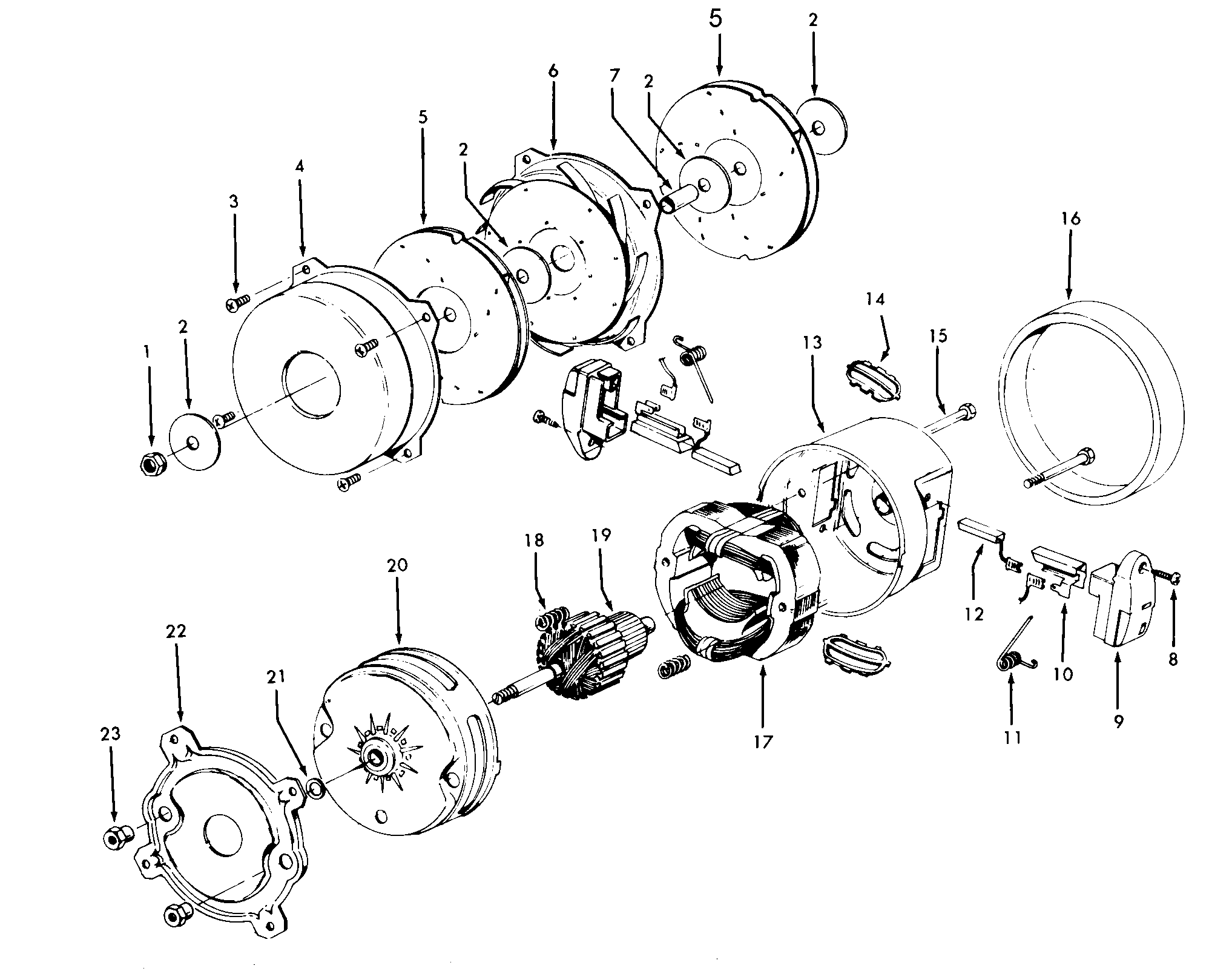

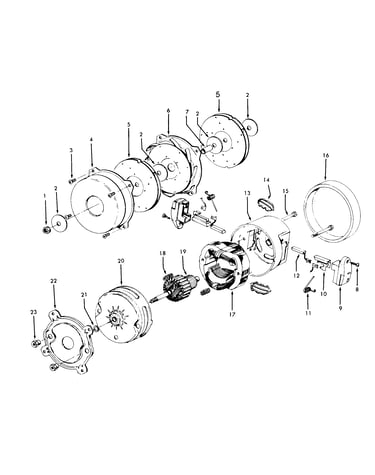

Motor assembly diagram

Nut

Part #33426001

The manufacturer no longer makes this part, and there's no substitute part

Armature 44765171
#19

Motor assembly diagram

Armature

Part #44765171

The manufacturer no longer makes this part, and there's no substitute part
