Kenmore Elite
Electric Cooktop

Model # 79045112411 Official Kenmore Elite electric counter unit

Here are the diagrams and repair parts for Official Kenmore Elite 79045112411 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

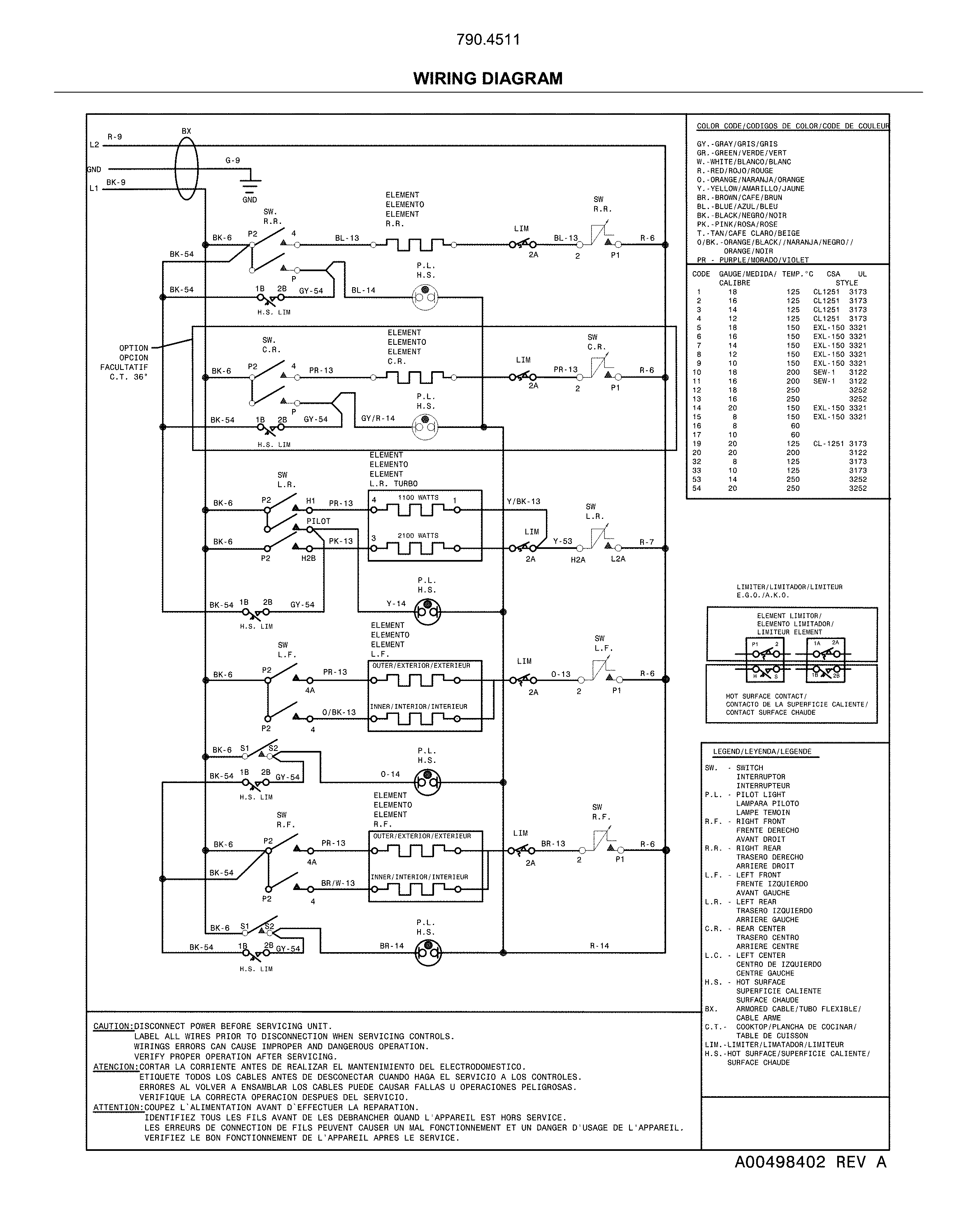

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Range Radiant Surface Element 316530000
#10

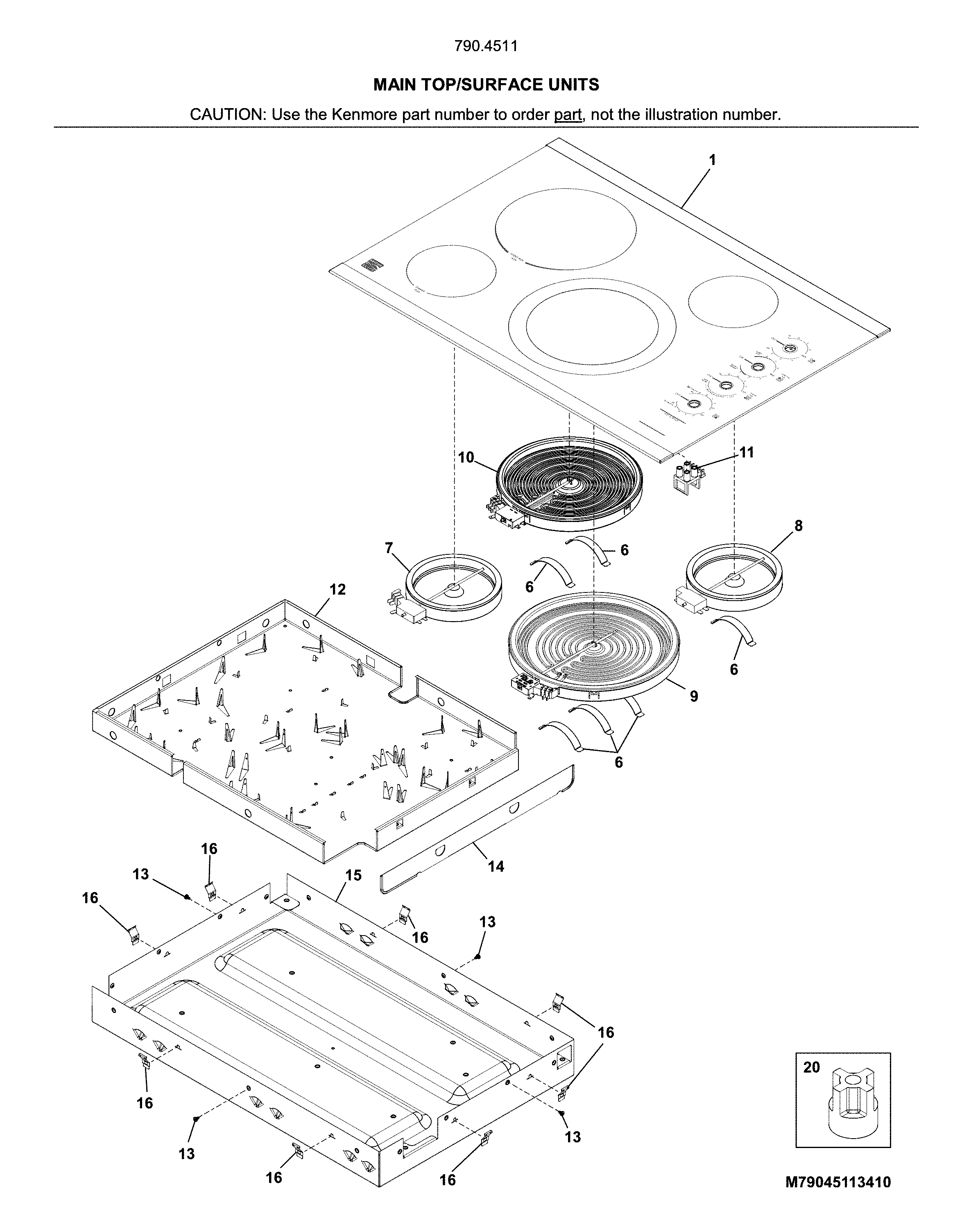

Main top/surface units diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
*infinite 318191001
#5A

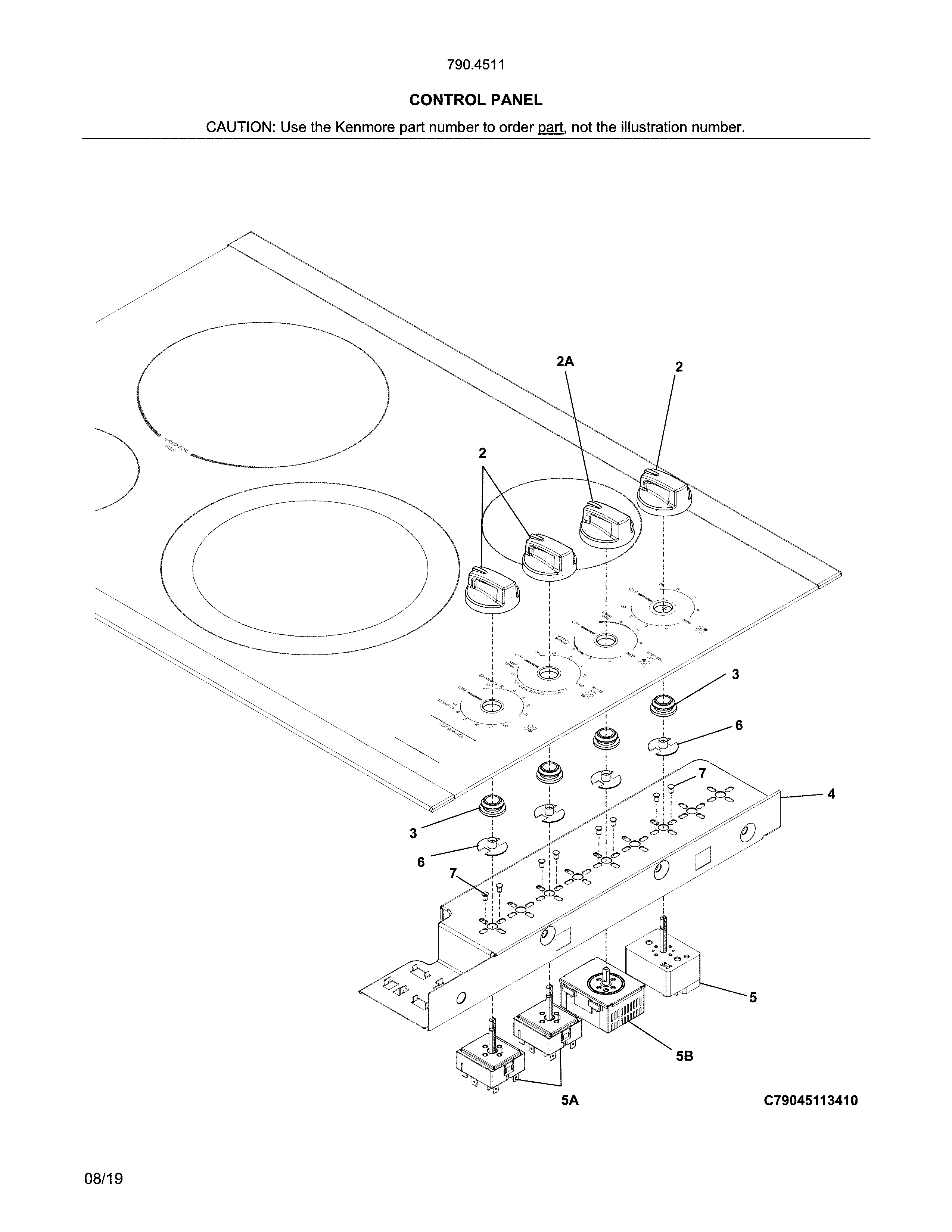

Control panel diagram

*infinite

Part #318191001

Replaced by #903097-9040

?
Manufacturer substitution
This part replaces 318191001. Substitute parts can look different from the original.
BEST SELLER
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Cooktop Element Control Switch 305458905
#5

Control panel diagram

Cooktop element control switch

Part #305458905

Replaced by #5304526190

?
Manufacturer substitution
This part replaces 305458905. Substitute parts can look different from the original.
$58.18 |
9% OFF Phone Price : $64.18
In Stock
Screw 305376101
#NI

Main top/surface units diagram

Screw

Part #305376101

Replaced by #5308014215

?
Manufacturer substitution
This part replaces 305376101. Substitute parts can look different from the original.
This item is not returnable
$2.49
In Stock
Kenmore Cooktop Turbo Element Control Switch 316305102
#5B

Control panel diagram

Kenmore cooktop turbo element control switch

Part #316305102

$126.69 |
9% OFF Phone Price : $138.69
In Stock
Cooktop Centering Spring 387174602
#16

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable
$6.63
In Stock
Cooktop Element Control Knob Bushing 387316100
#3

Control panel diagram

Cooktop element control knob bushing

Part #387316100

$13.26
In Stock
Cooktop Installation Bracket 387627700
#NI

Main top/surface units diagram

Cooktop installation bracket

Part #387627700

$26.63 |
18% OFF Phone Price : $32.63
In Stock
Main Top 305543530
#1

Main top/surface units diagram

Main top

Part #305543530

Replaced by #305638931

?
Manufacturer substitution
This part replaces 305543530. Substitute parts can look different from the original.
$354.96 |
$12.00 OFF Phone Price : $366.96
Back Order
Cooktop Radiant Element Support Bracket 387683300
#NI

Main top/surface units diagram

Cooktop radiant element support bracket

Part #387683300

$12.57
In Stock
