Universal/Multiflex (Frigidaire)
Electric Range

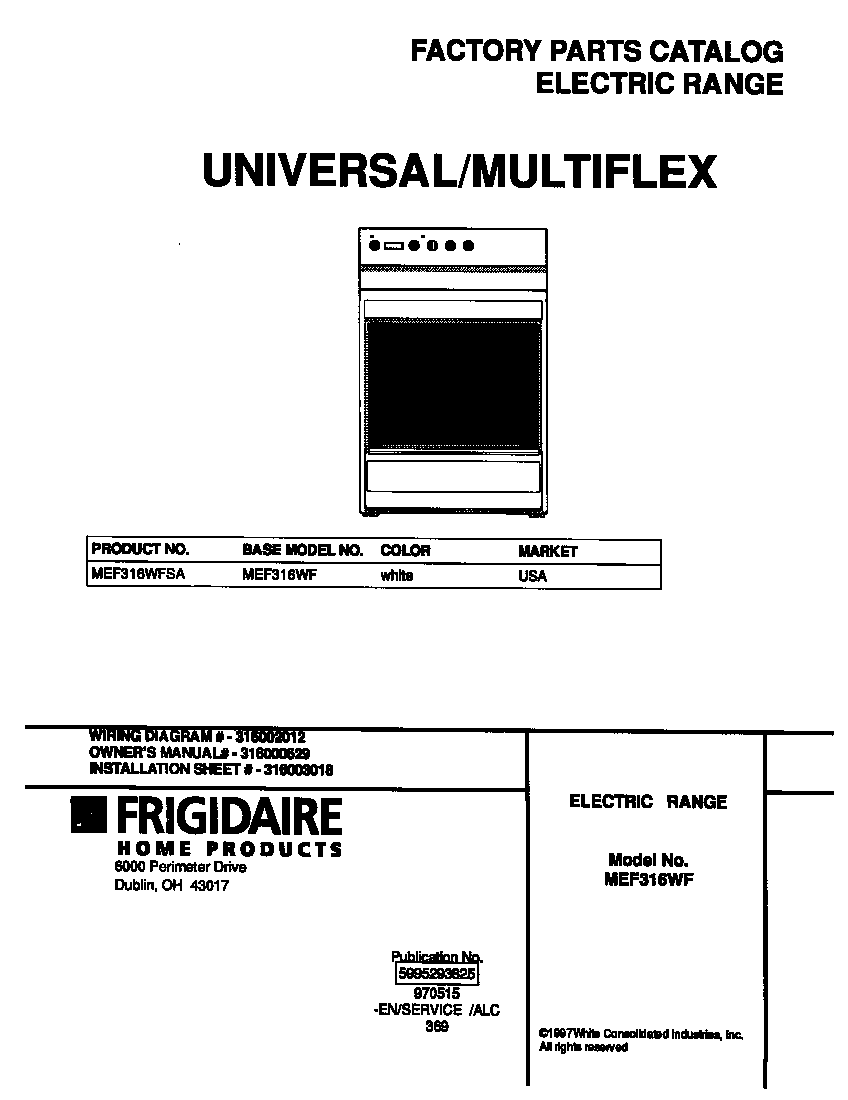

Model # MEF316WFSA Official Universal/Multiflex (Frigidaire) electric range - 5995293825

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MEF316WFSA electric range - 5995293825, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

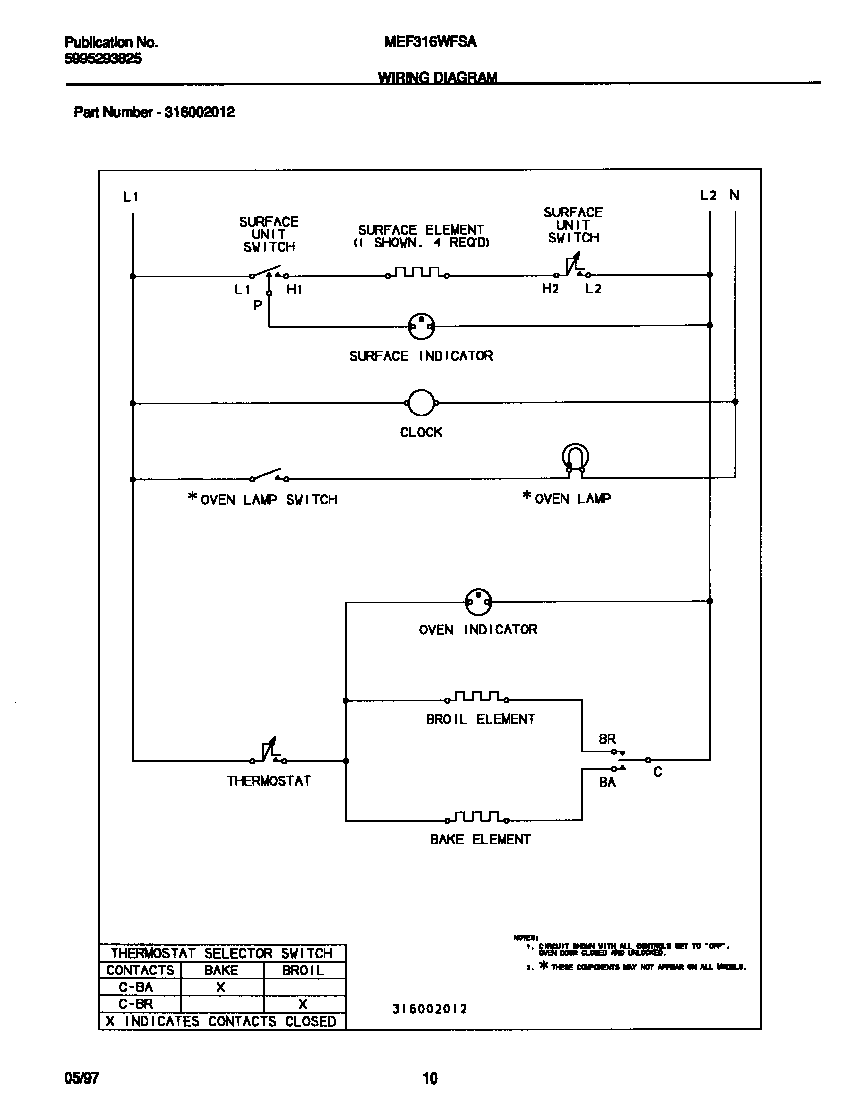

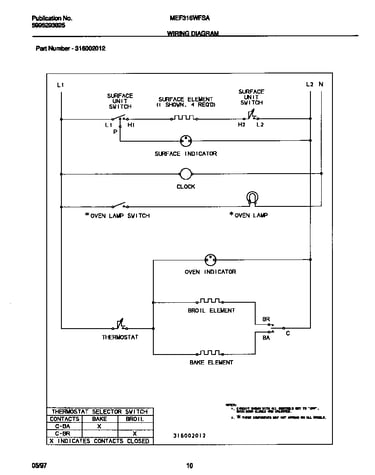

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Bake Element 316075102
#67

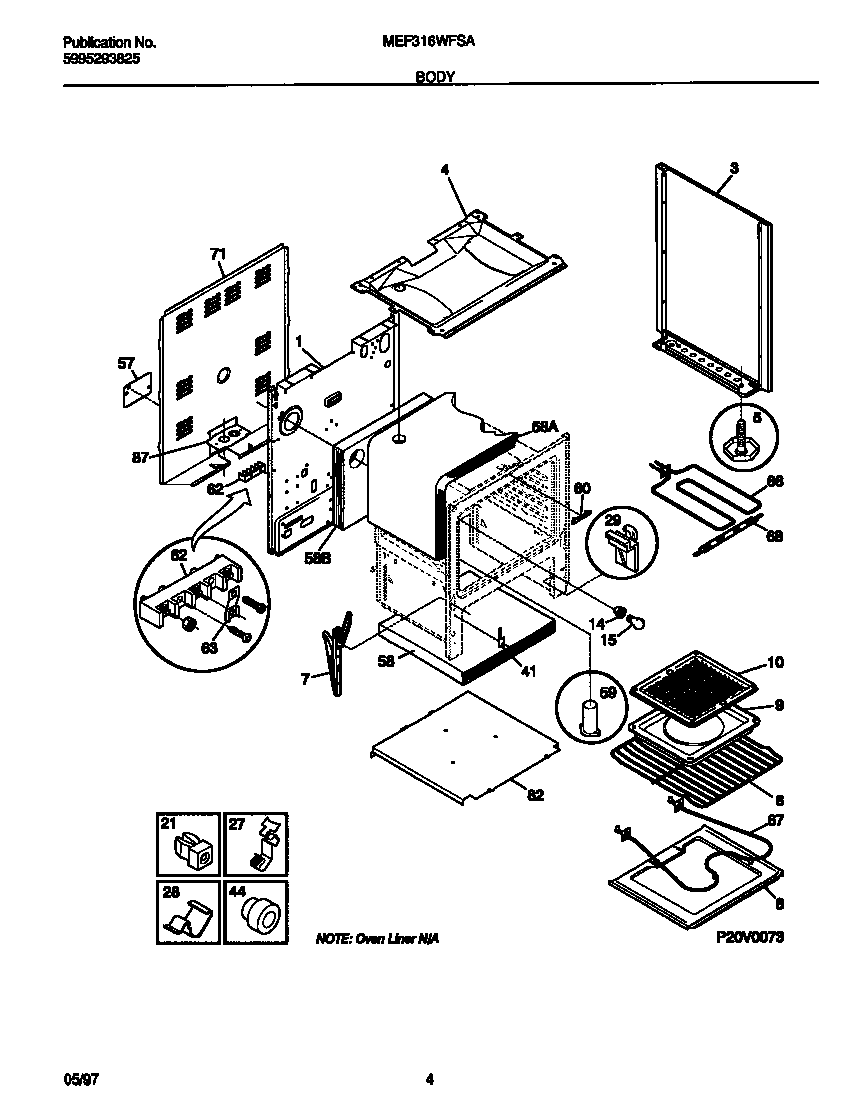

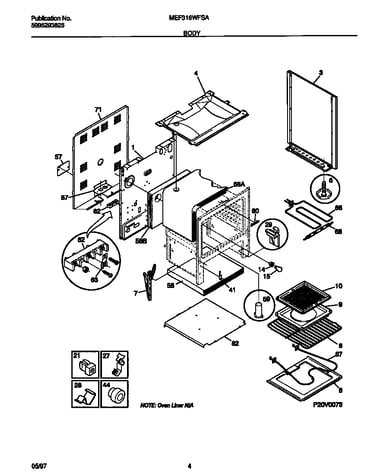

Body diagram

Bake element

Part #316075102

Replaced by #316075103

?
Manufacturer substitution
This part replaces 316075102. Substitute parts can look different from the original.
BEST SELLER
$25.77 |
19% OFF Phone Price : $31.77
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Coil Surface Element, 8-in 5303015715
#15

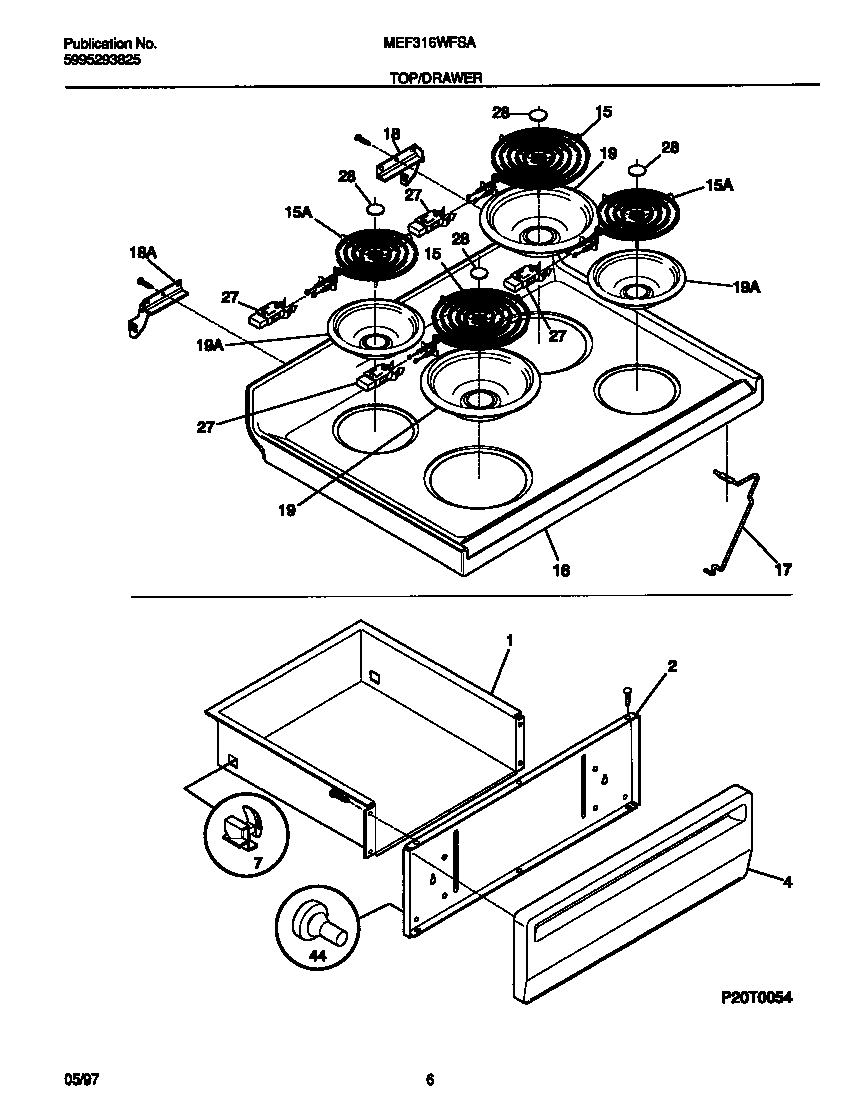

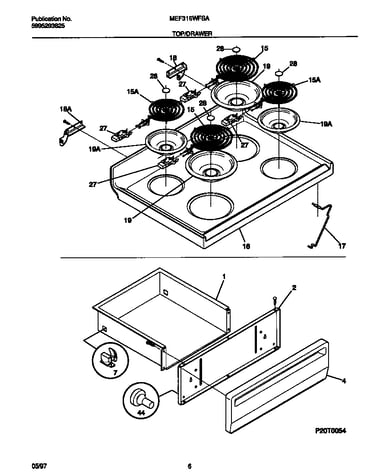

Top/drawer diagram

Range coil surface element, 8-in

Part #5303015715

Replaced by #316442300

?
Manufacturer substitution
This part replaces 5303015715. Substitute parts can look different from the original.
BEST SELLER
$26.03 |
19% OFF Phone Price : $32.03
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

Top/drawer diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Range Coil Surface Element, 6-in 5303015716
#15

Top/drawer diagram

Range coil surface element, 6-in

Part #5303015716

Replaced by #318372210

?
Manufacturer substitution
This part replaces 5303015716. Substitute parts can look different from the original.
BEST SELLER
$24.97 |
19% OFF Phone Price : $30.97
In Stock
Socket 3014073
#14A

Body diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Rocker Switch 316005607
#24

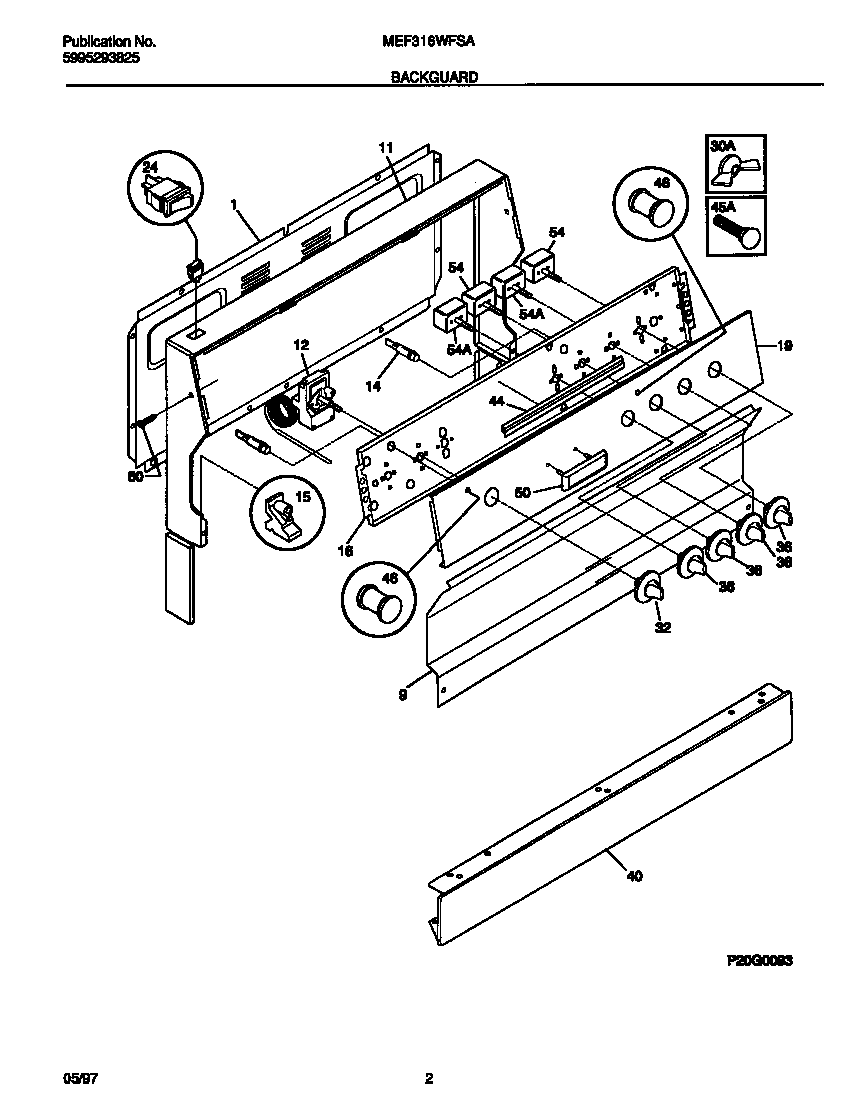

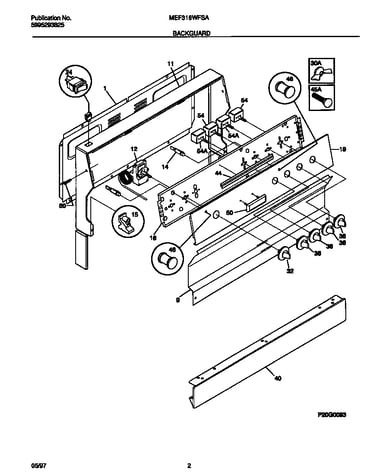

Backguard diagram

Rocker switch

Part #316005607

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316005607. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Range Broil Element (replaces 08067760, 3012210, 3051140) 5303051140
#66

Body diagram

Range broil element (replaces 08067760, 3012210, 3051140)

Part #5303051140

This item is not returnable
$136.99 |
8% OFF Phone Price : $148.99
In Stock
Range Screw (replaces 5303270172, 636t142p01, 75303285179) 5303285179

#NI

All parts diagram

Range screw (replaces 5303270172, 636t142p01, 75303285179)

Part #5303285179

This item is not returnable
$13.29
In Stock
Range Oven Insulation, Rear 316054202
#58

Body diagram

Range oven insulation, rear

Part #316054202

$58.39 |
9% OFF Phone Price : $64.39
In Stock
