GE
Bottom-Mount Refrigerator

Model # ABE20EGHBRWS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE ABE20EGHBRWS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

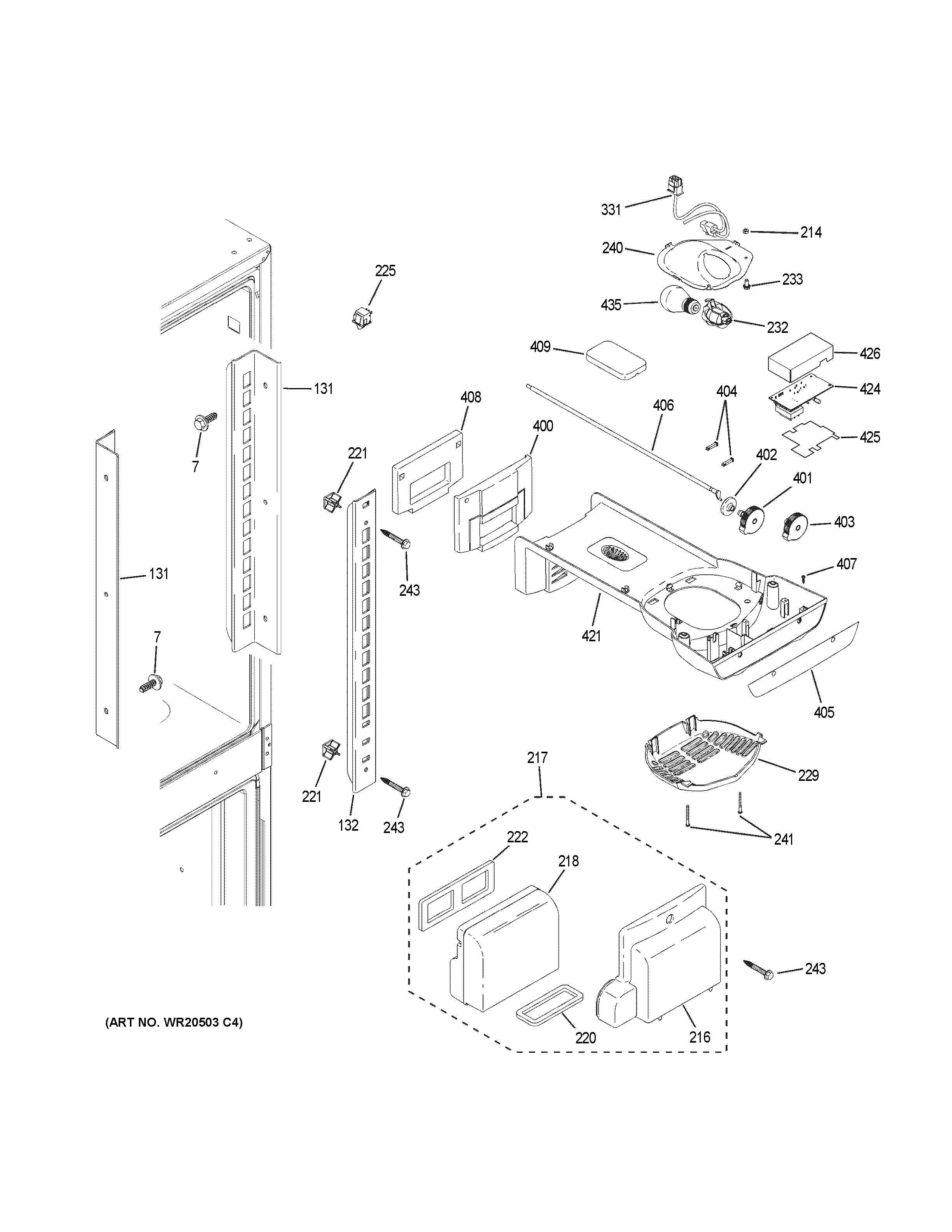

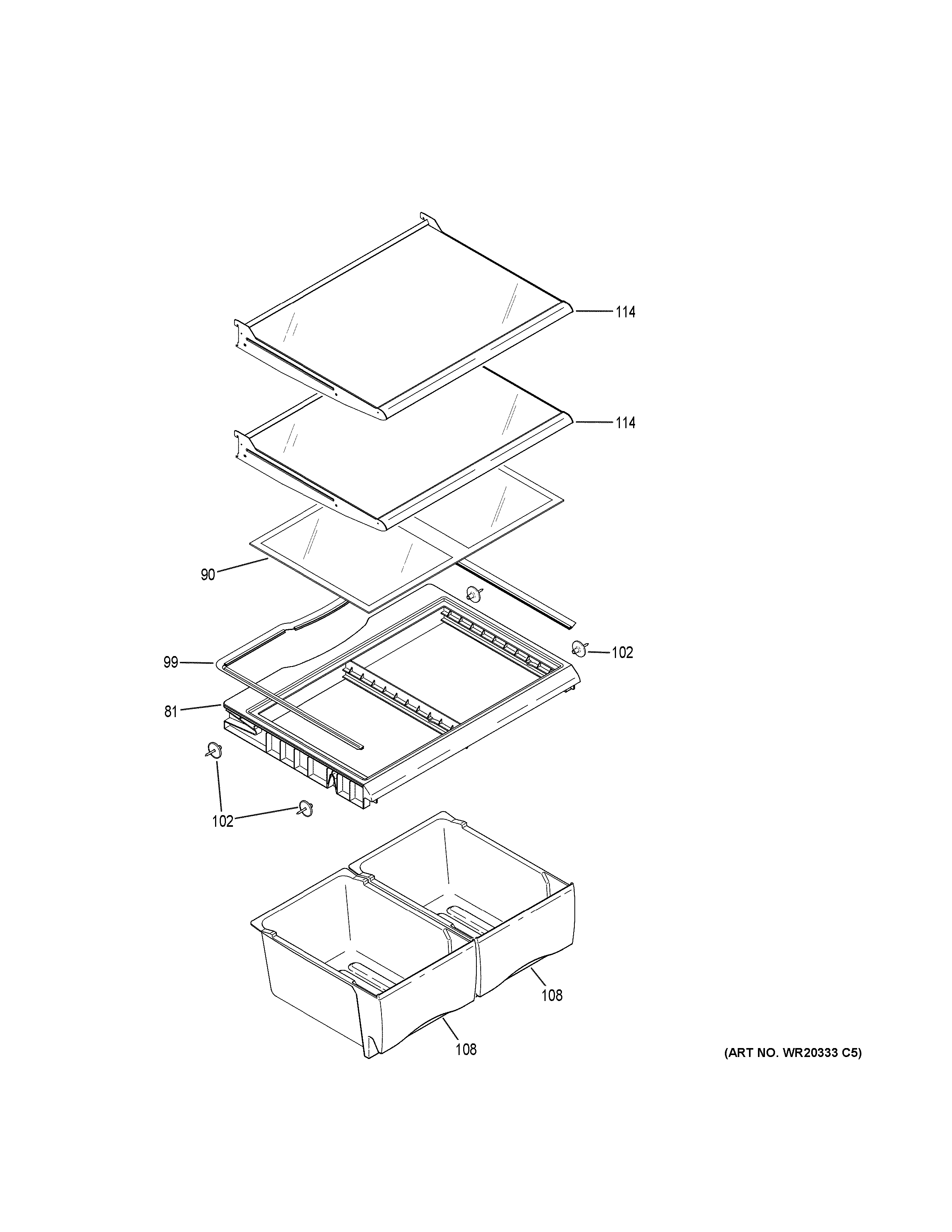

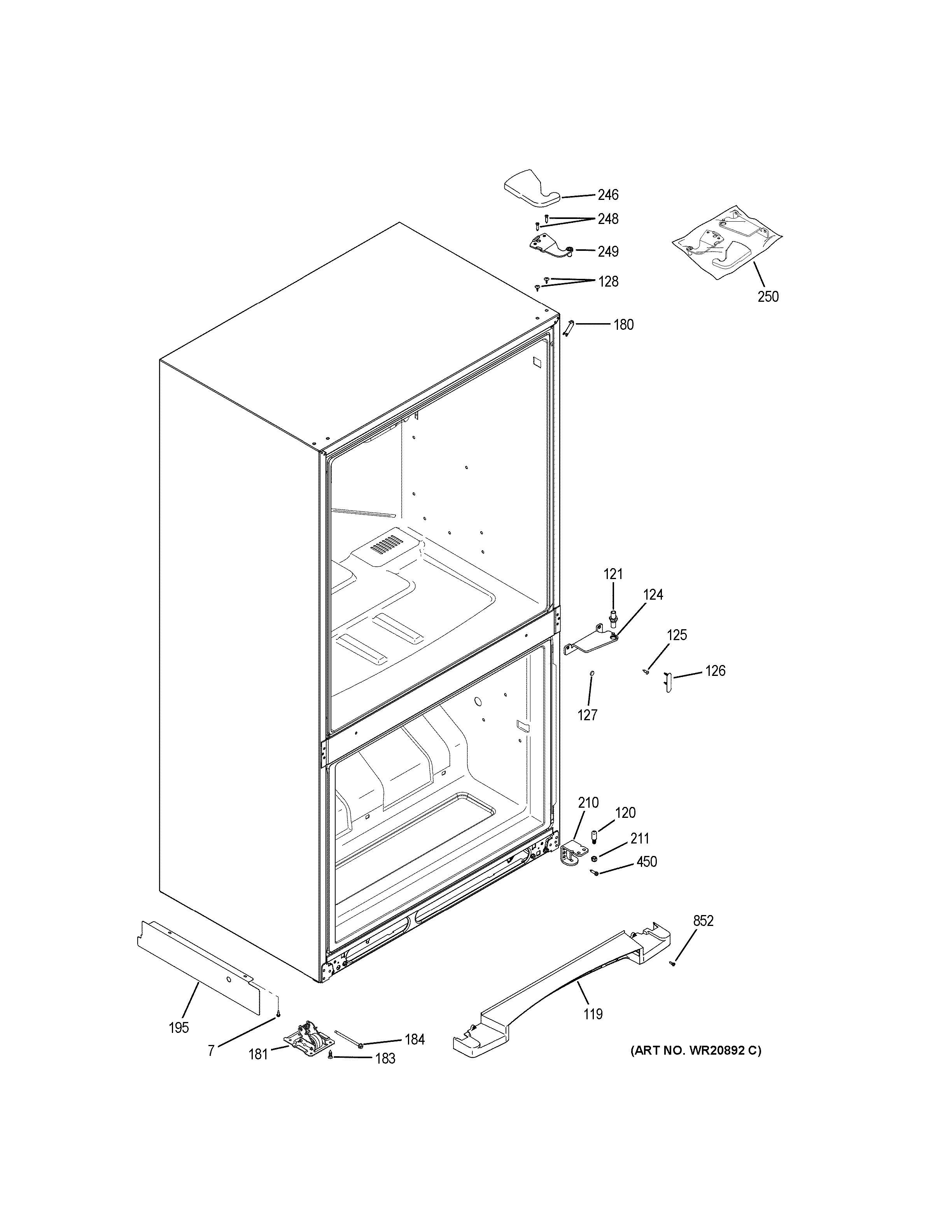

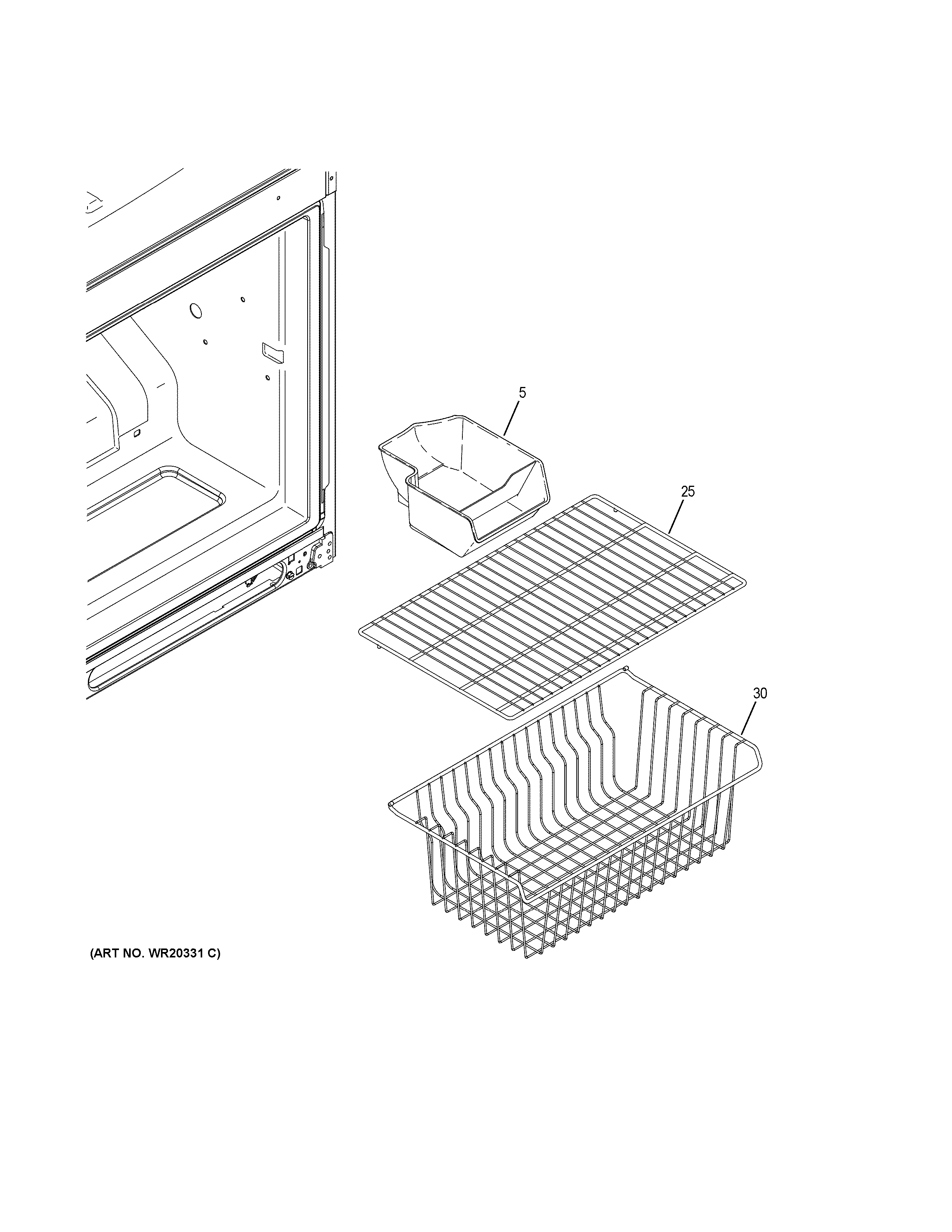

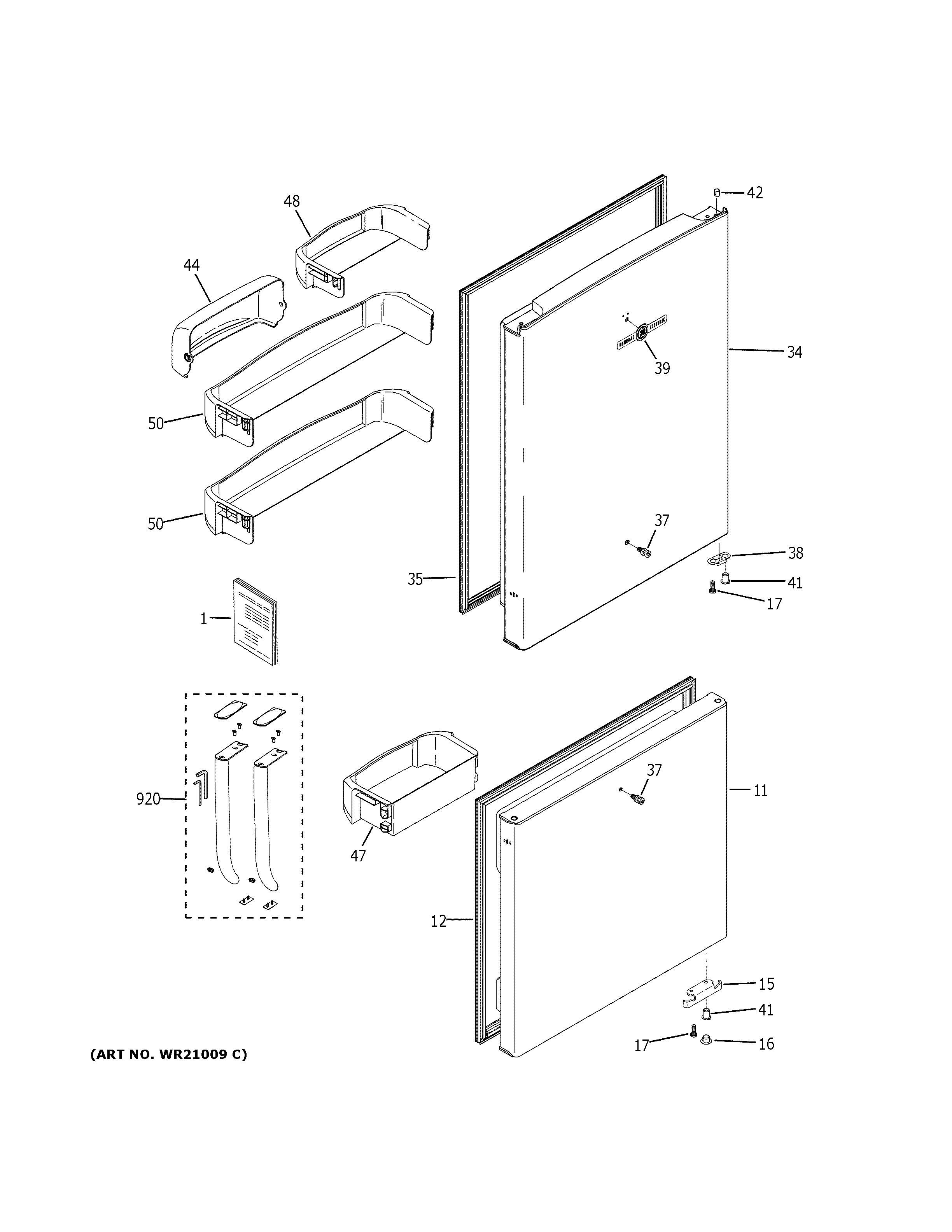

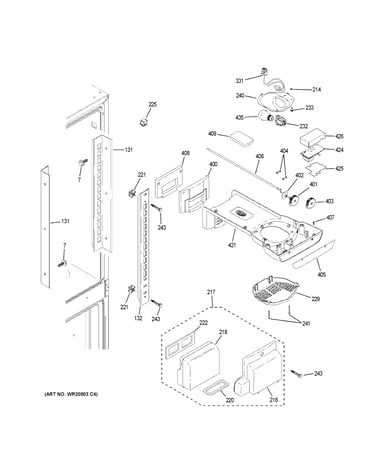

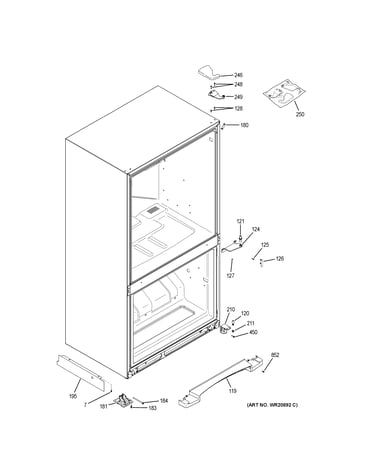

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Dryer Filter WR86X0096
#740

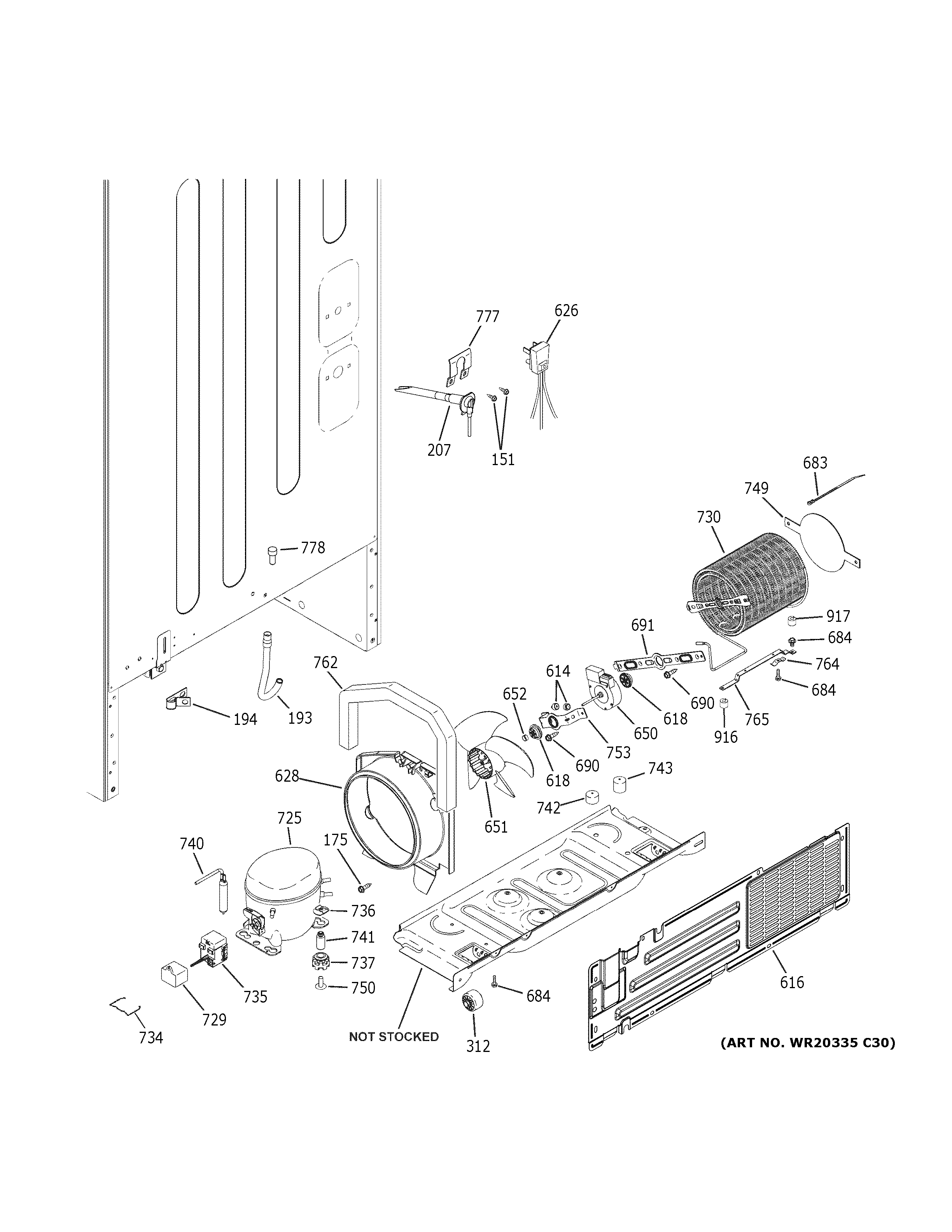

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#252

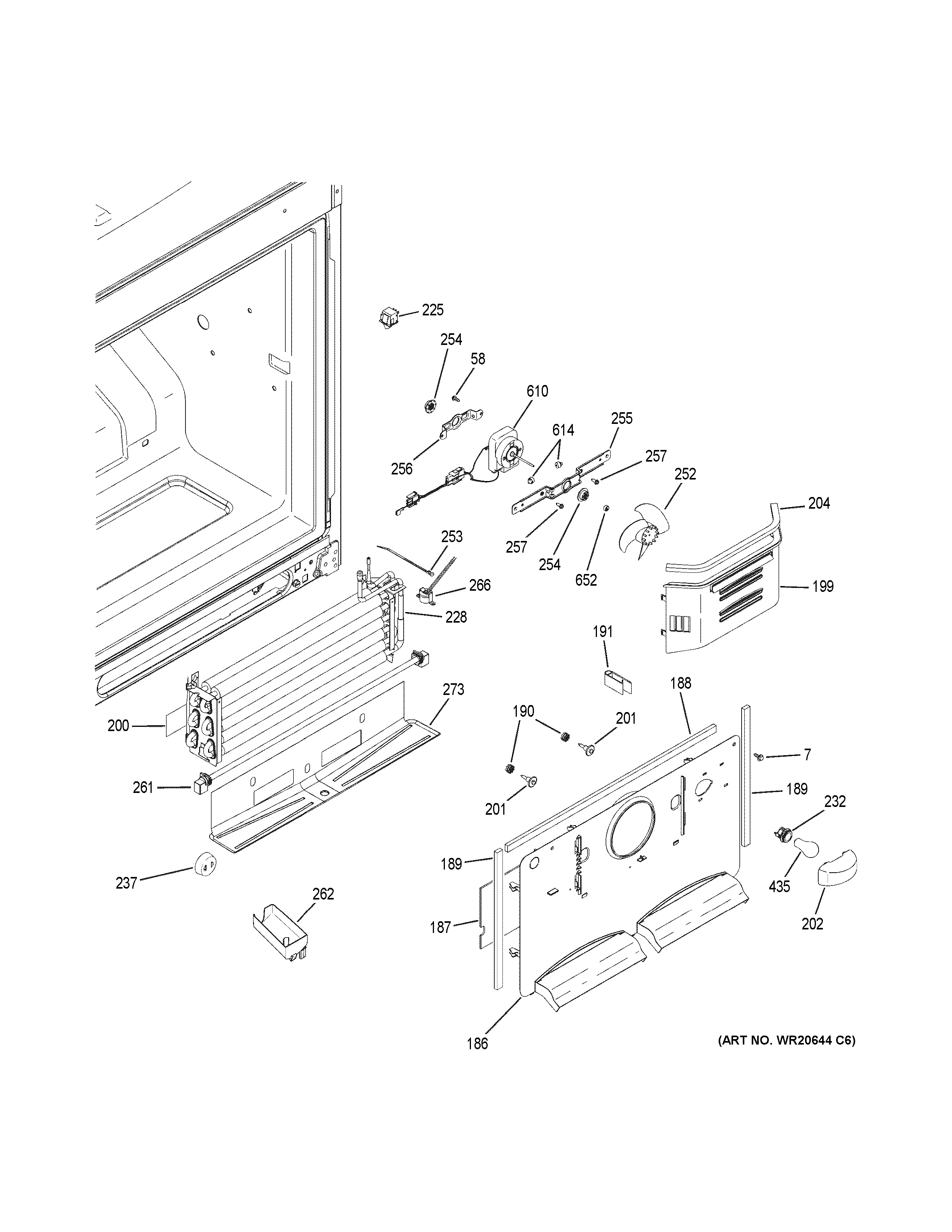

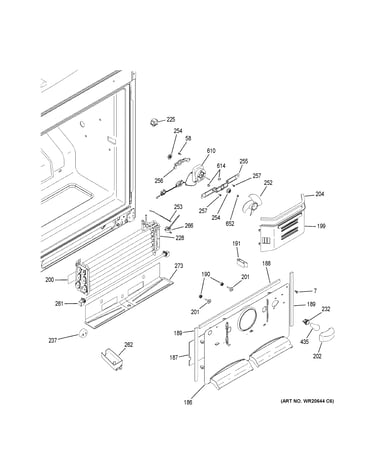

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Refrigerator Compressor Kit (replaces Wr84x26734, Wr87x10096, Wr87x10131, Wr87x27951, Wr87x28008, Wr87x31410, Wr87x31587, Wr87x32004, Wr87x35145, Wr87x37645) WR87X10224
#725

Machine compartment diagram

Refrigerator compressor kit (replaces wr84x26734, wr87x10096, wr87x10131, wr87x27951, wr87x28008, wr87x31410, wr87x31587, wr87x32004, wr87x35145, wr87x37645)

Part #WR87X10224

BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Drain Tube (replaces Wr02x10661, Wr02x12058) WR02X11426
#193

Machine compartment diagram

Refrigerator drain tube (replaces wr02x10661, wr02x12058)

Part #WR02X11426

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Terminal Socket WR02X9391
Terminal socket

Part #WR02X9391

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR02X9391. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr17x12252) WR02X11331
#254

Freezer section diagram

Refrigerator evaporator fan motor grommet (replaces wr17x12252)

Part #WR02X11331

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Grommet Evaporator WR17X12252
#190

Freezer section diagram

Grommet evaporator

Part #WR17X12252

Replaced by #WR02X11331

?
Manufacturer substitution
This part replaces WR17X12252. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Light Switch WR23X10143
Refrigerator light switch

Part #WR23X10143

The manufacturer no longer makes this part, and there's no substitute part
