Magic Chef
Gas Range

Model # S34GN-4TKXW Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef S34GN-4TKXW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Igniter 1482224
#10

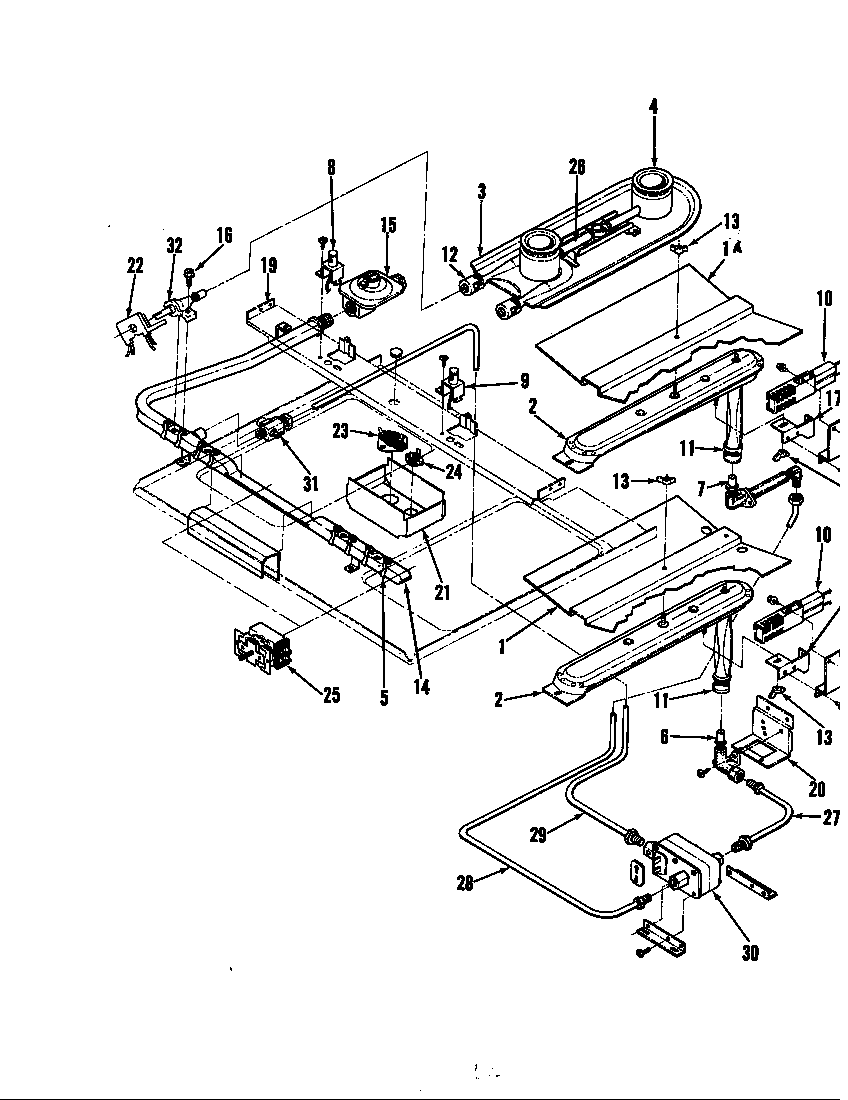

Gas controls diagram

Igniter

Part #1482224

Replaced by #12400035

?
Manufacturer substitution
This part replaces 1482224. Substitute parts can look different from the original.
BEST SELLER
$40.08 |
13% OFF Phone Price : $46.08
In Stock
Oven Probe 7430P001-60
#55A

Body diagram

Oven probe

Part #7430P001-60

Replaced by #12001655

?
Manufacturer substitution
This part replaces 7430P001-60. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Oven Probe 7430P004-60
#55B

Body diagram

Oven probe

Part #7430P004-60

Replaced by #12001655

?
Manufacturer substitution
This part replaces 7430P004-60. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Screw 1986341
#21

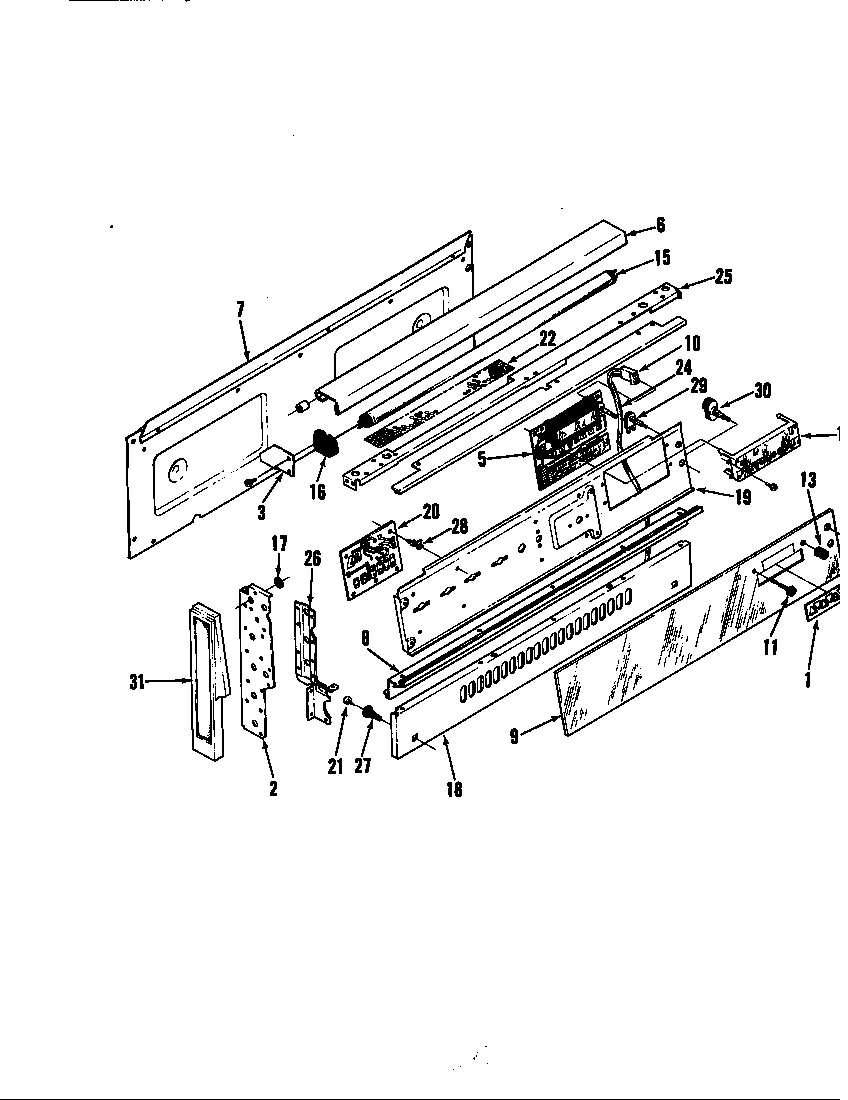

Control panel diagram

Screw

Part #1986341

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 1986341. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Pan 0663215
#45A

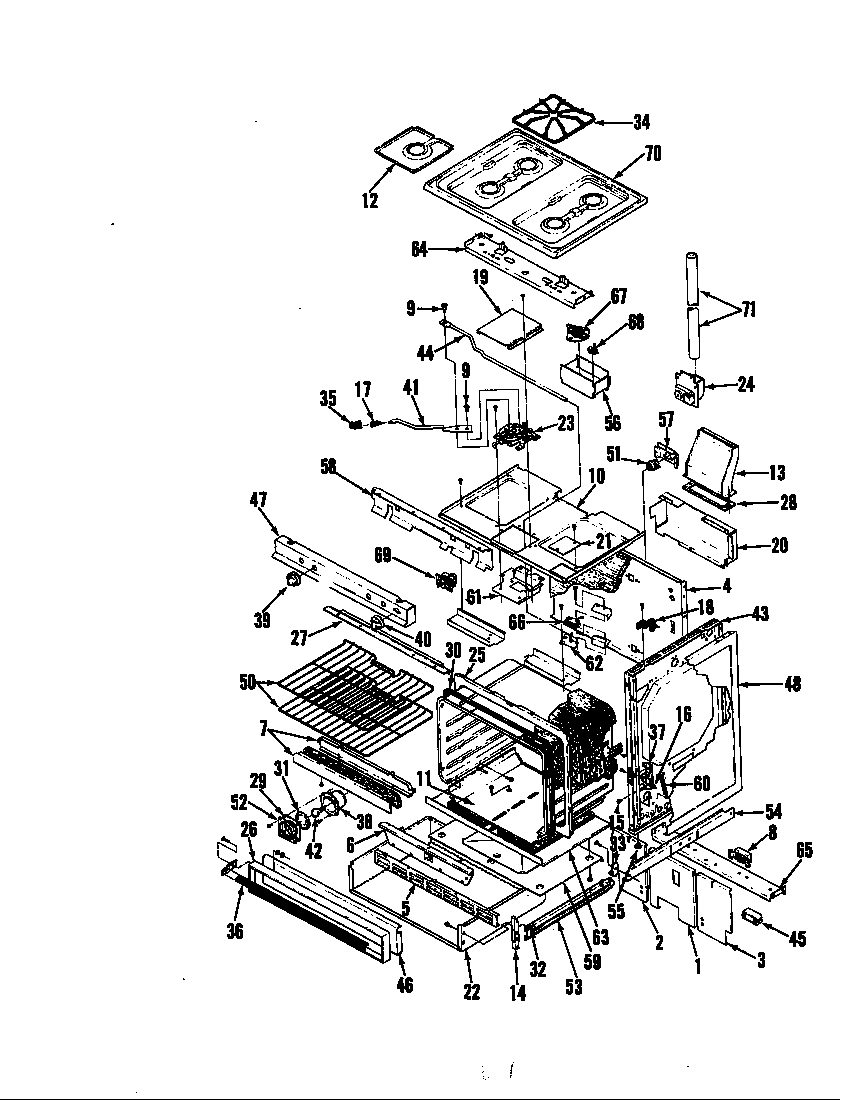

Body diagram

Broiler pan

Part #0663215

Replaced by #4396923

?
Manufacturer substitution
This part replaces 0663215. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Door Handle 7701P032-60
#36B

Body diagram

Door handle

Part #7701P032-60

$30.24
In Stock
Range Drip Pan 1430283
#12

Body diagram

Range drip pan

Part #1430283

$64.69
In Stock
Switch 1832395
#22

Gas controls diagram

Switch

Part #1832395

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 1832395. Substitute parts can look different from the original.
$54.58 |
10% OFF Phone Price : $60.58
In Stock
Fluorescent Light 1447200
#15

Control panel diagram

Fluorescent light

Part #1447200

Replaced by #WP95292

?
Manufacturer substitution
This part replaces 1447200. Substitute parts can look different from the original.
$60.36
In Stock
Door Handle 1355304N
#8B

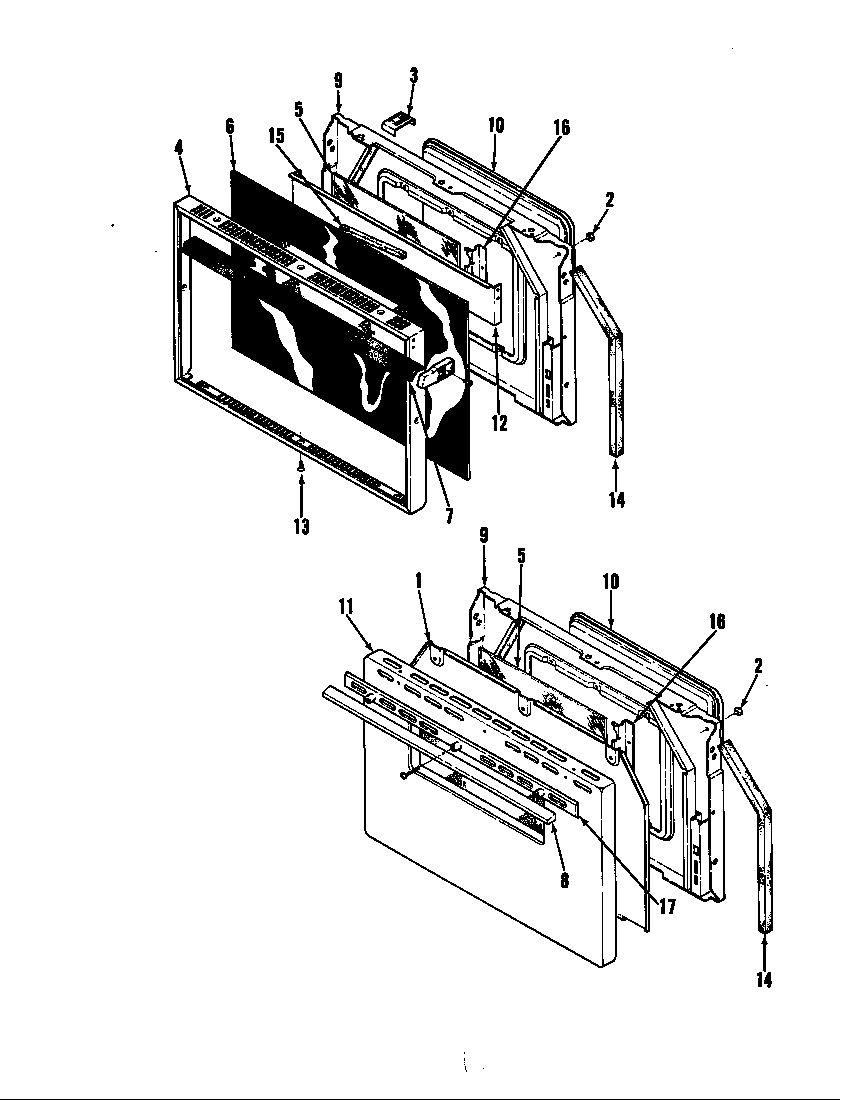

Door diagram

Door handle

Part #1355304N

Replaced by #WP2411F013-71

?
Manufacturer substitution
This part replaces 1355304N. Substitute parts can look different from the original.
$76.89 |
7% OFF Phone Price : $82.89
In Stock
