Universal/Multiflex (Frigidaire)
Electric Cooktop

Model # RC36DE60PBC Official Universal/Multiflex (Frigidaire) electric counter unit

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) RC36DE60PBC electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

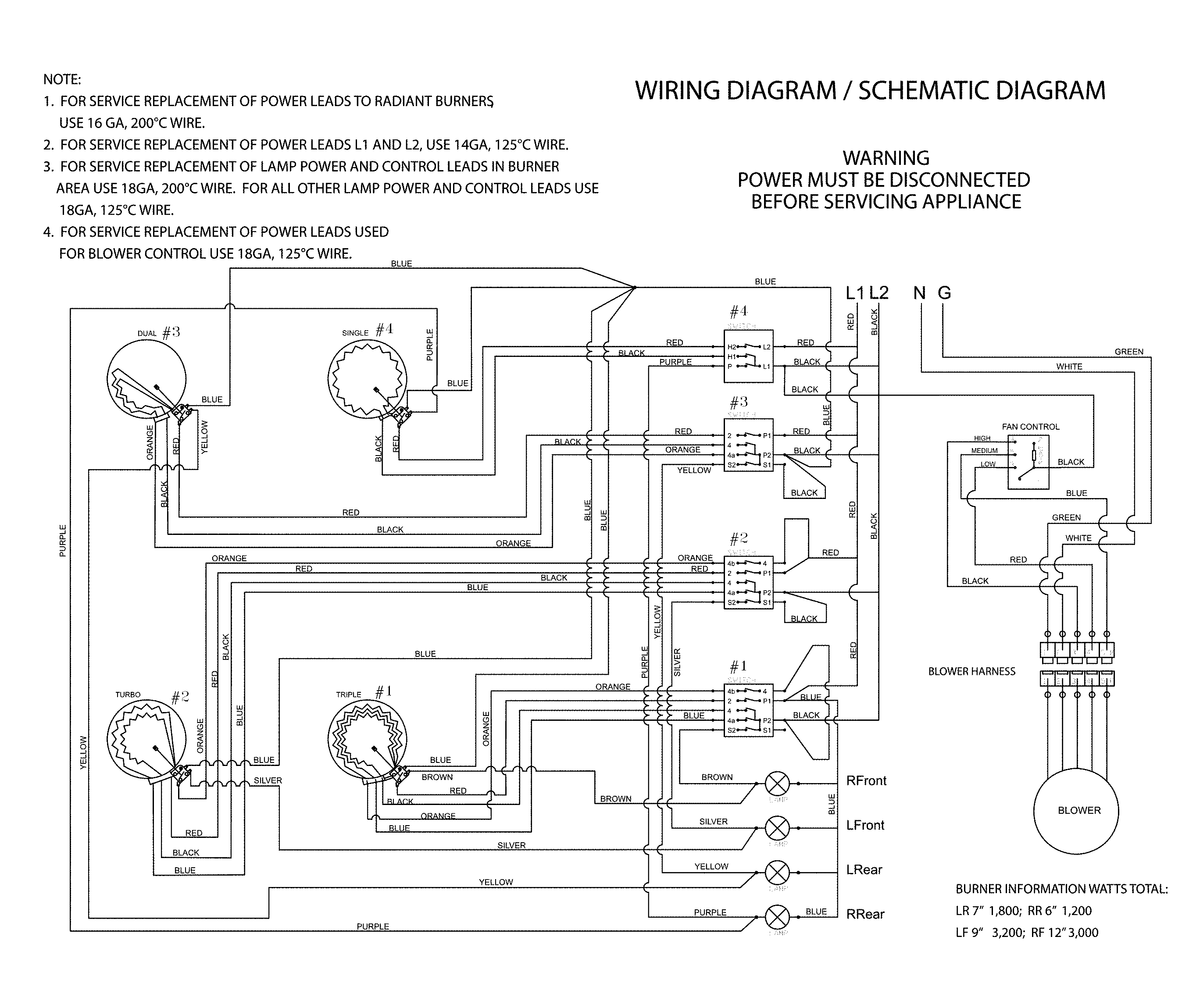

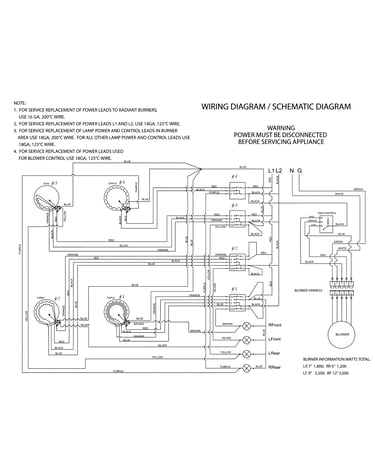

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Element 318198830
#17

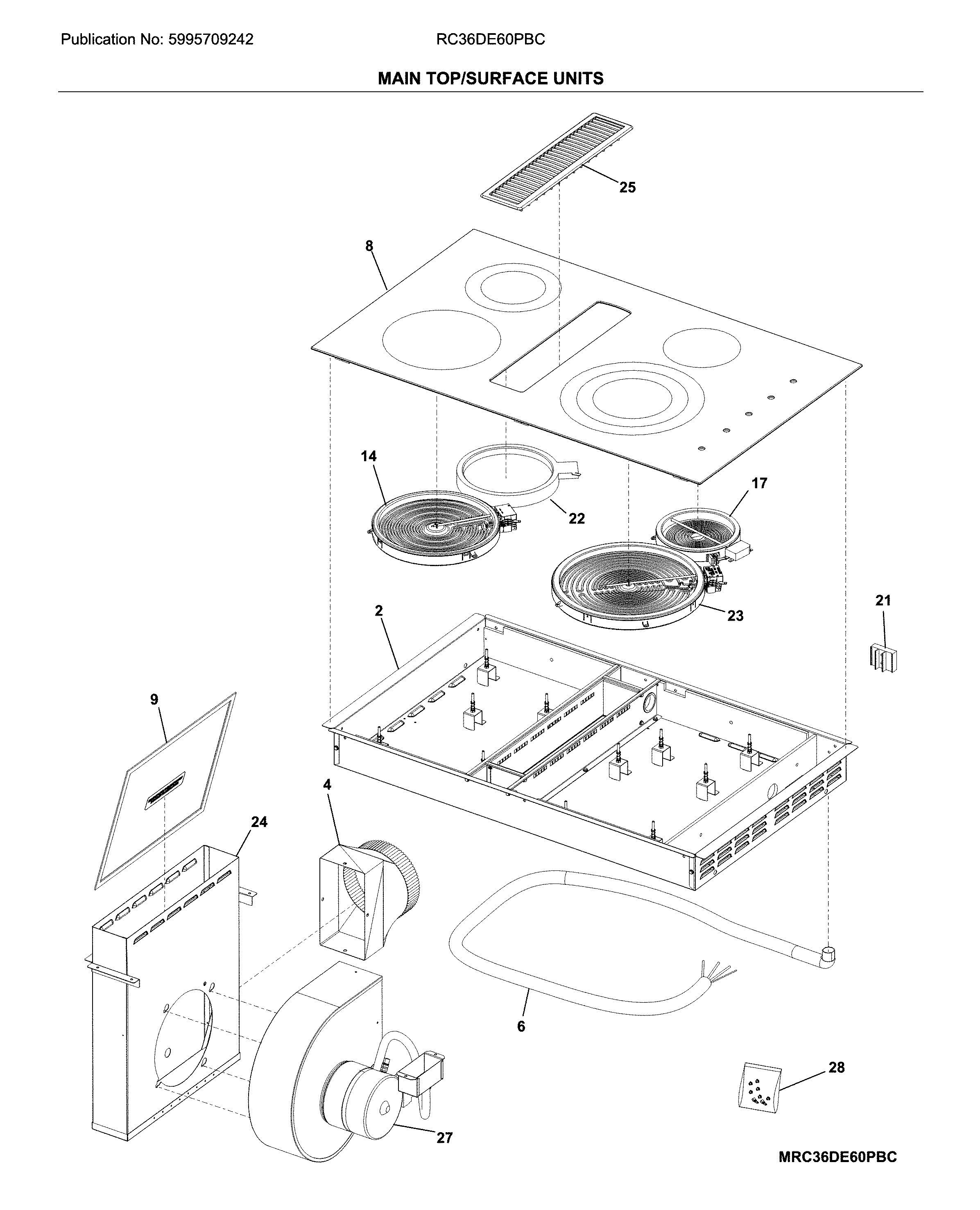

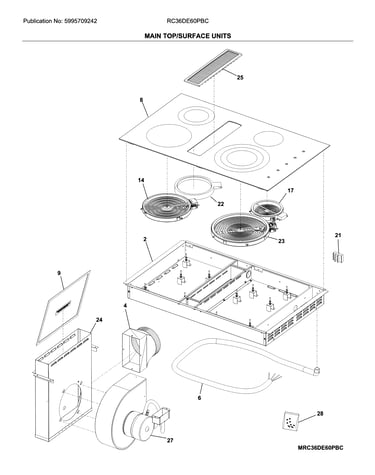

Main top/surface units diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$138.09 |
8% OFF Phone Price : $150.09
In Stock
Range Radiant Surface Element 316530000
#14

Main top/surface units diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Range Surface Element Control Switch (replaces 903097-9050) 318191000
#16

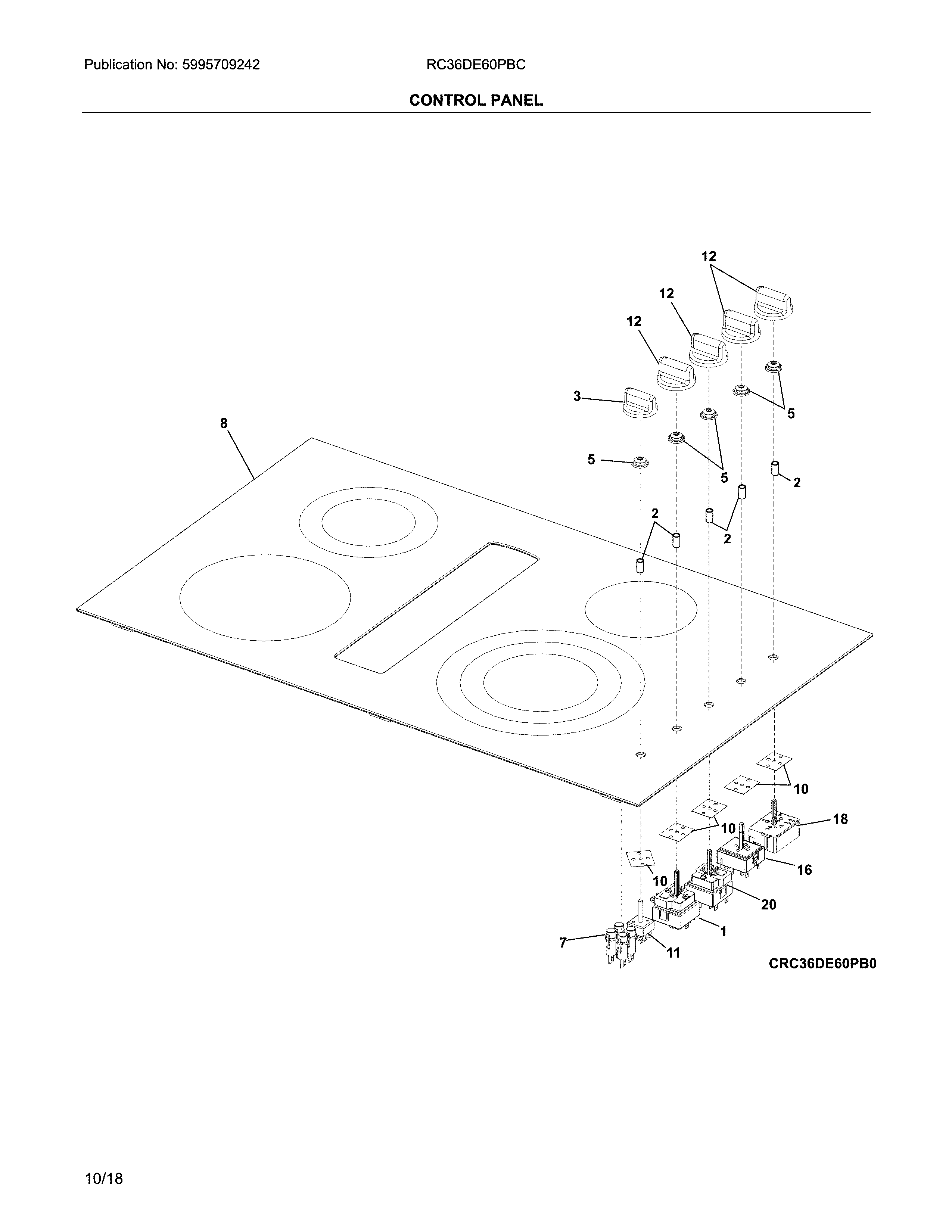

Control panel diagram

Range surface element control switch (replaces 903097-9050)

Part #318191000

BEST SELLER
$67.09 |
8% OFF Phone Price : $73.09
In Stock
Cooktop Element 318297809
#23

Main top/surface units diagram

Cooktop element

Part #318297809

Replaced by #318297810

?
Manufacturer substitution
This part replaces 318297809. Substitute parts can look different from the original.
BEST SELLER
$245.54 |
5% OFF Phone Price : $257.54
In Stock
Cooktop Element Control Switch 318531500
#20

Control panel diagram

Cooktop element control switch

Part #318531500

$82.28 |
7% OFF Phone Price : $88.28
In Stock
Cooktop Downdraft Blower Assembly 5304485487
#27

Main top/surface units diagram

Cooktop downdraft blower assembly

Part #5304485487

$836.45
In Stock
Universal/multiflex (frigidaire) Switch,infinite ,triple Element 5304519993
#1

Control panel diagram

Universal/multiflex (frigidaire) switch,infinite ,triple element

Part #5304519993

$215.71
In Stock
Conduit Asse 5304485475
#6

Main top/surface units diagram

Conduit asse

Part #5304485475

$389.85
In Stock
Range Surface Element Control Switch (replaces 318220011, 318369609) 318293824
#18

Control panel diagram

Range surface element control switch (replaces 318220011, 318369609)

Part #318293824

$70.51 |
8% OFF Phone Price : $76.51
In Stock
Cooktop Element Control Switch Seal 5304485480
#10

Control panel diagram

Cooktop element control switch seal

Part #5304485480

$37.53 |
14% OFF Phone Price : $43.53
In Stock
