KitchenAid
Washer

Model # KAWE564WWH0 Official KitchenAid washer

Here are the diagrams and repair parts for Official KitchenAid KAWE564WWH0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

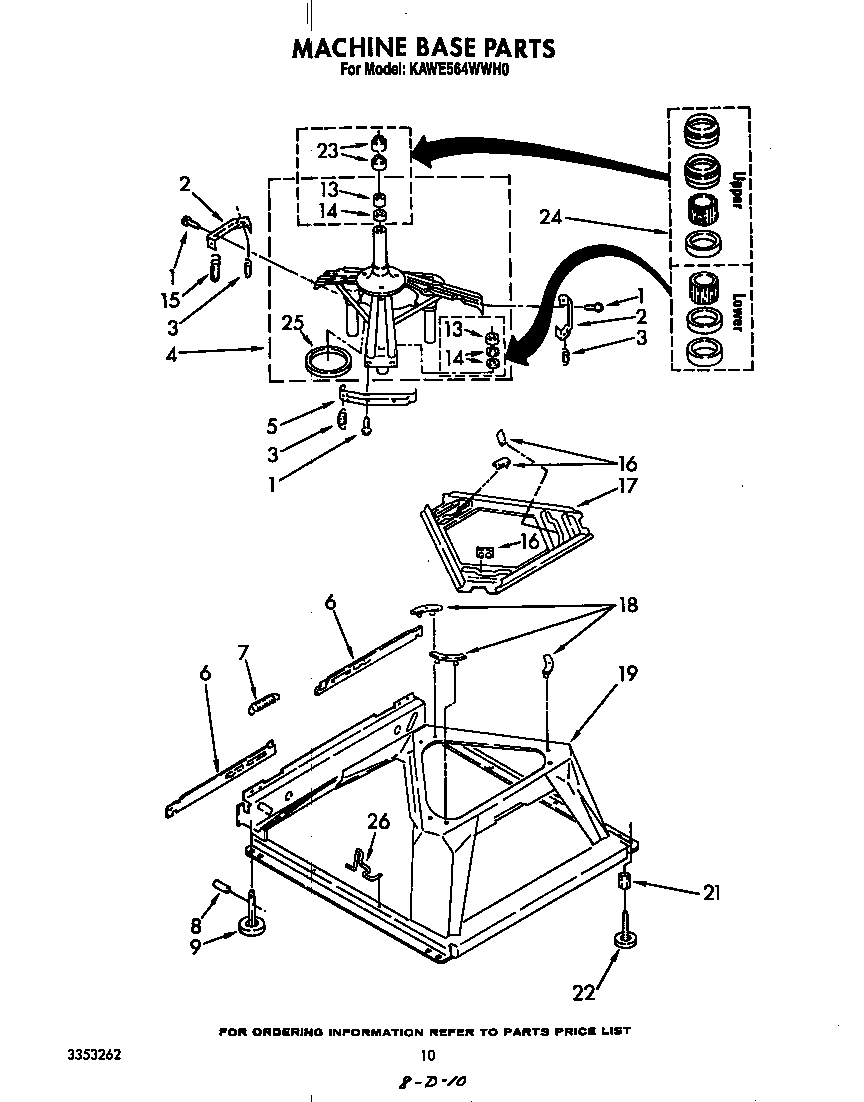

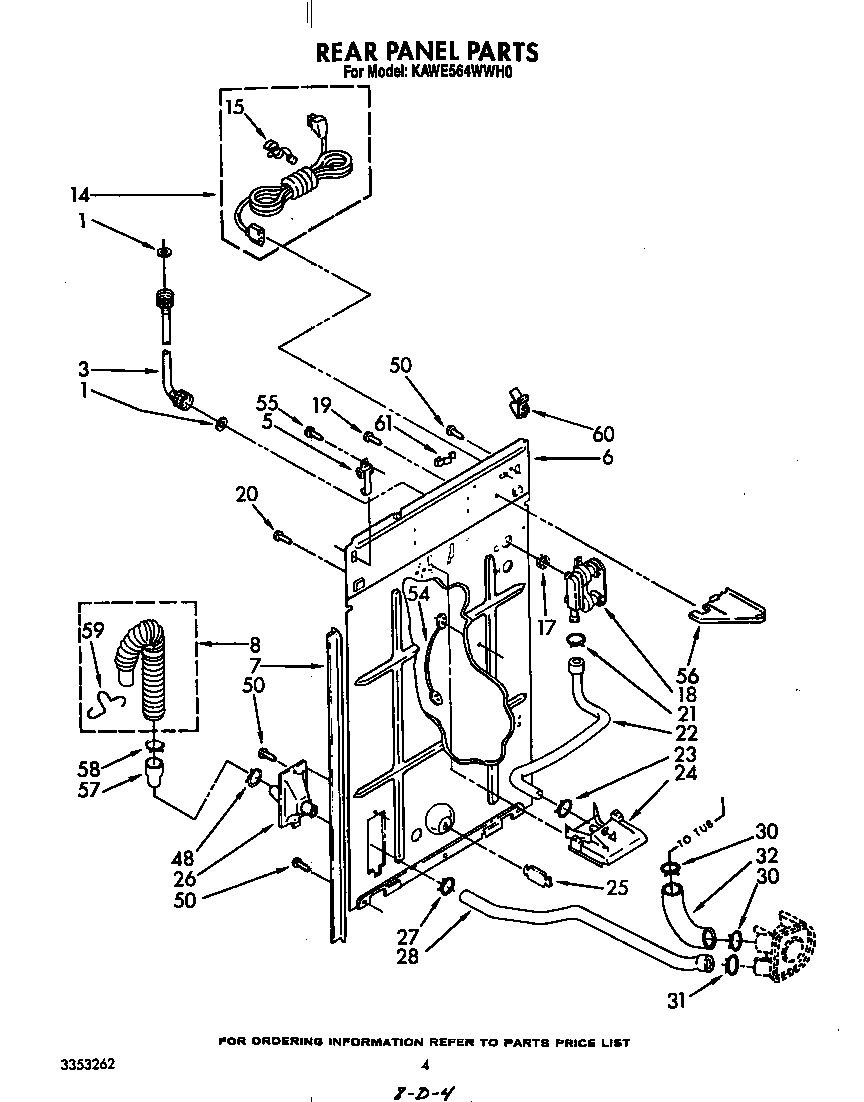

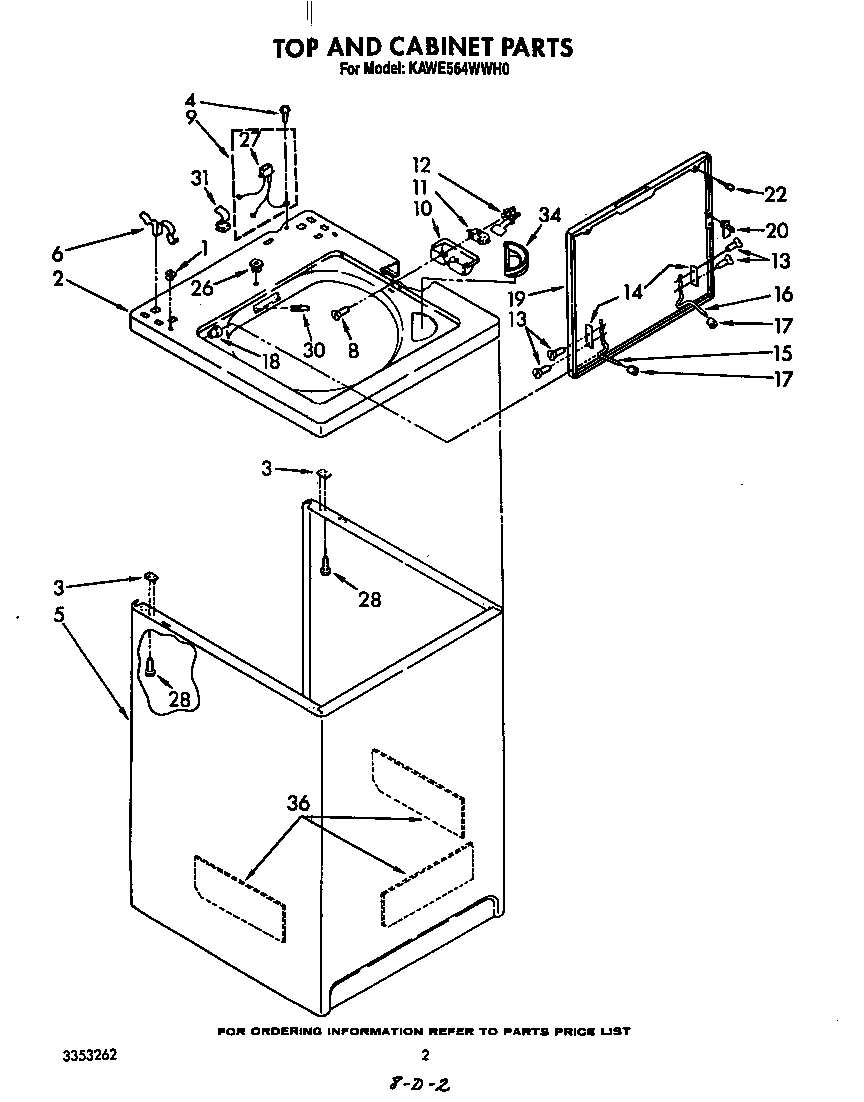

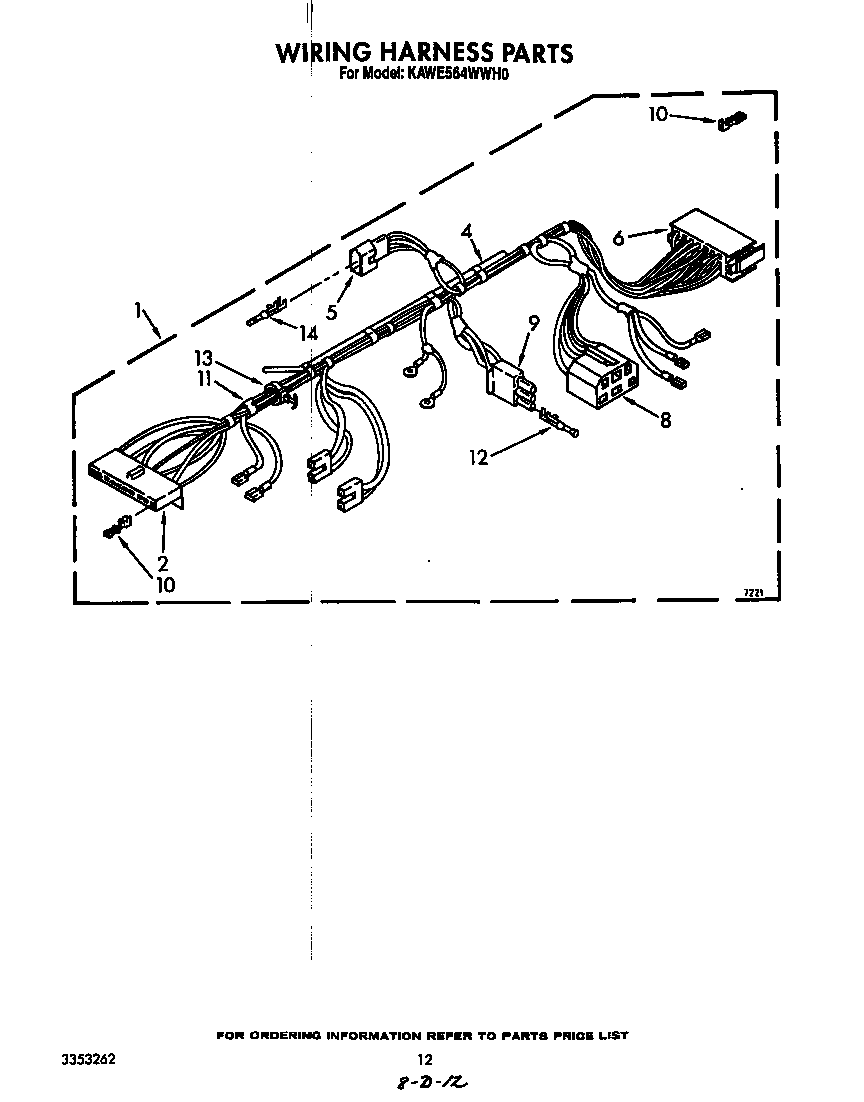

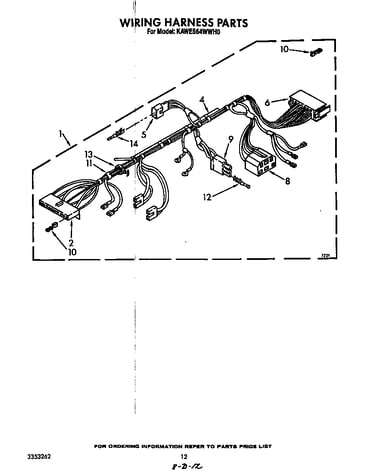

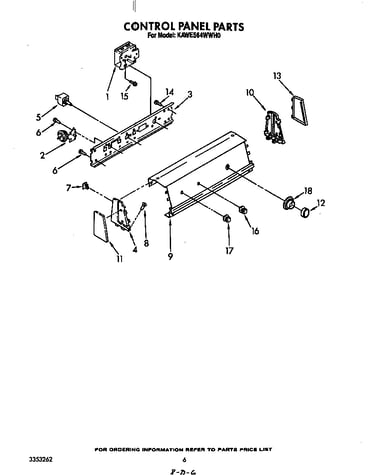

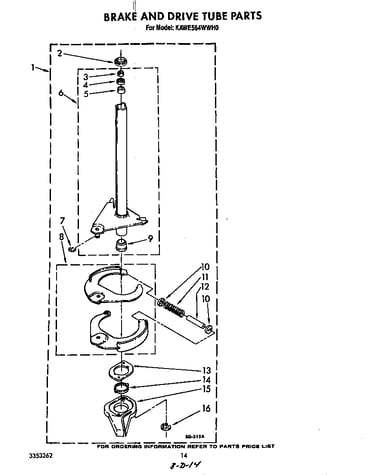

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 235 parts  |
Agitator Dog 387091
#17

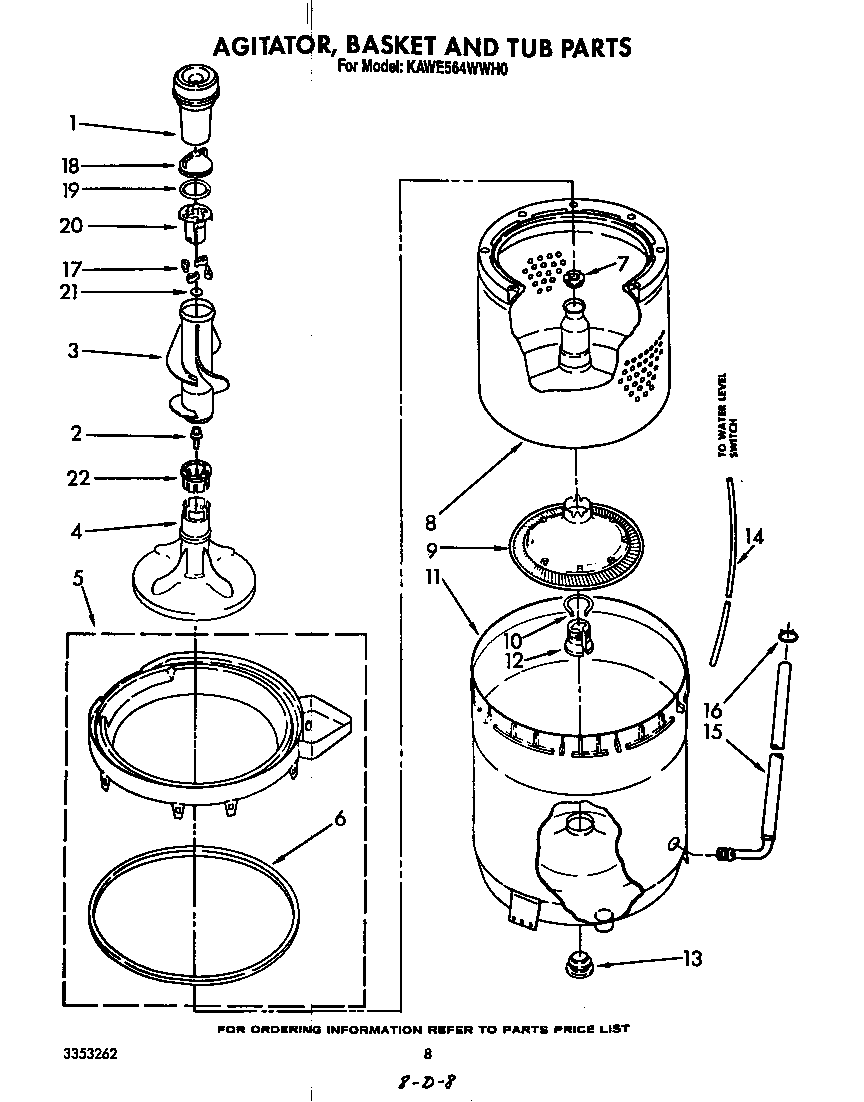

Agitator basket and tub diagram

Agitator dog

Part #387091

Replaced by #80040

?
Manufacturer substitution
This part replaces 387091. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Coupling 661560
Coupling

Part #661560

Replaced by #285753A

?
Manufacturer substitution
This part replaces 661560. Substitute parts can look different from the original.
BEST SELLER
$23.24 |
21% OFF Phone Price : $29.24
In Stock
Gear 62570
#25

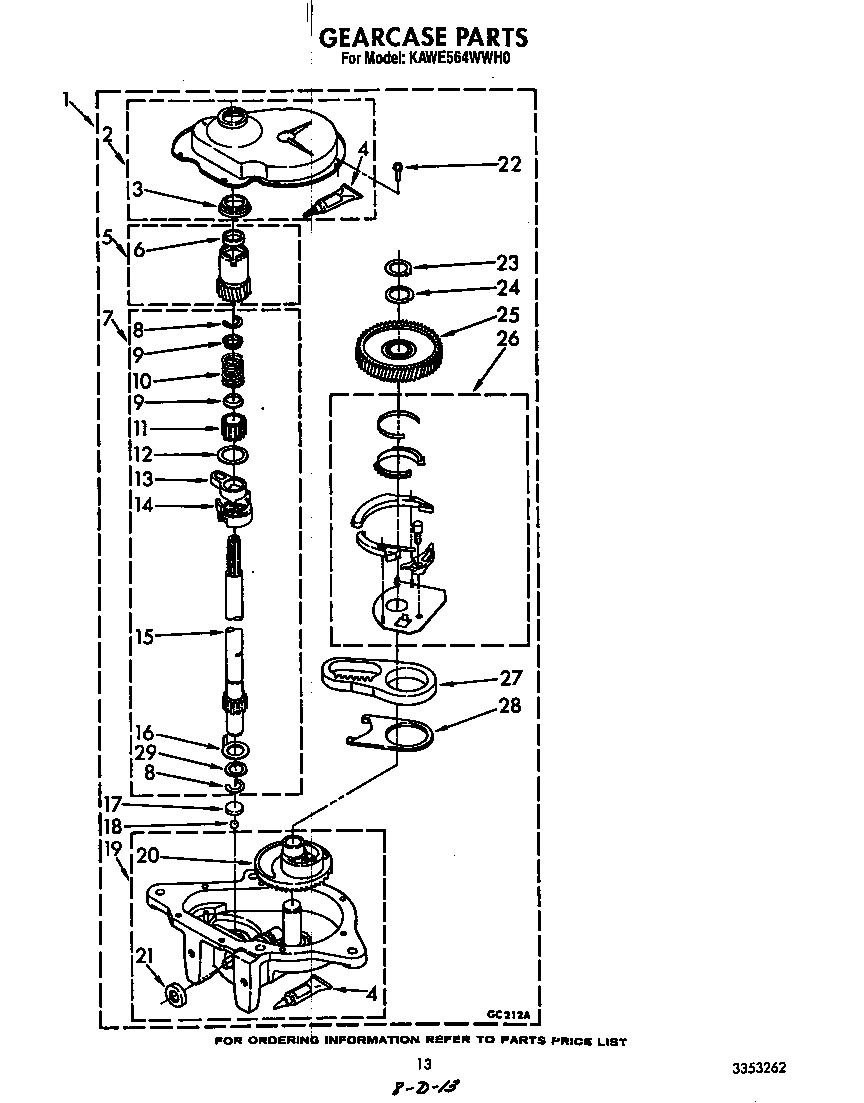

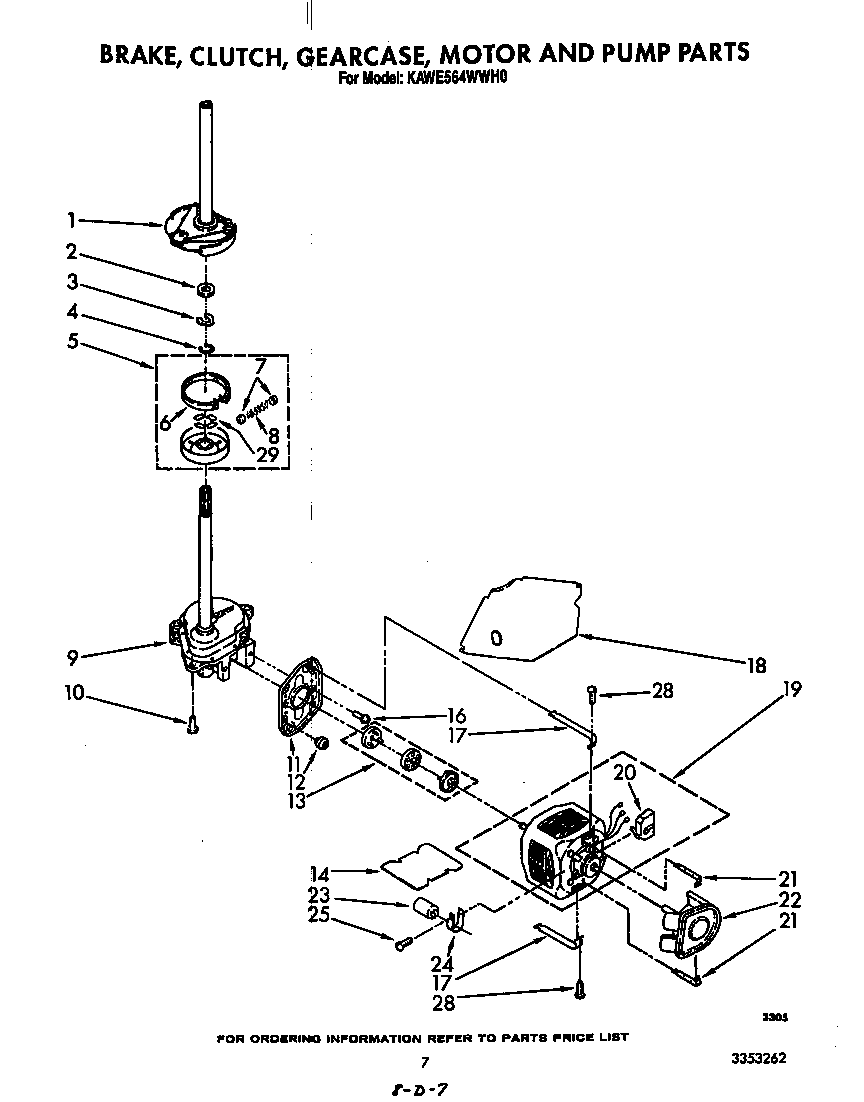

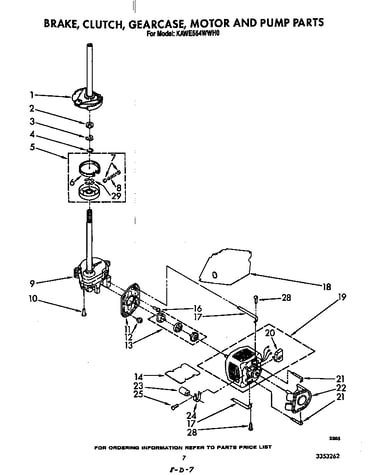

Gearcase diagram

Gear

Part #62570

Replaced by #3360629

?
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
BEST SELLER
$247.87 |
5% OFF Phone Price : $259.87
In Stock
Clutch 3350115
Clutch

Part #3350115

Replaced by #285785

?
Manufacturer substitution
This part replaces 3350115. Substitute parts can look different from the original.
BEST SELLER
$29.44 |
17% OFF Phone Price : $35.44
In Stock
Drive Basket 388952
Drive basket

Part #388952

Replaced by #W10820043

?
Manufacturer substitution
This part replaces 388952. Substitute parts can look different from the original.
BEST SELLER
$118.18 |
9% OFF Phone Price : $130.18
In Stock
Washer Drive Block 389140
#12

Agitator basket and tub diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$23.94 |
20% OFF Phone Price : $29.94
In Stock
Washer Spanner Nut 21366
#7

Agitator basket and tub diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Agitator Bolt 358237
#2

Agitator basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.75 |
15% OFF Phone Price : $6.75
In Stock
Washer Tub Gasket 383727
#13

Agitator basket and tub diagram

Washer tub gasket

Part #383727

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 383727. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Gear Case 389246
Gear case

Part #389246

The manufacturer no longer makes this part, and there's no substitute part
