Model # 1165419180 Official Kenmore powermate vacuum attachment parts

Here are the diagrams and repair parts for Official Kenmore 1165419180 powermate vacuum attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

(not Serviced, Use Old ) Screw, Motor  Brush N/P
#50

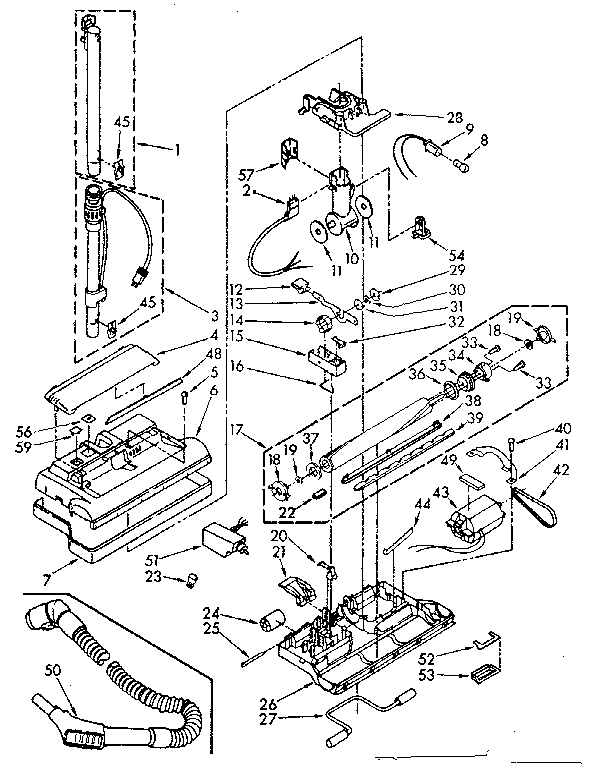

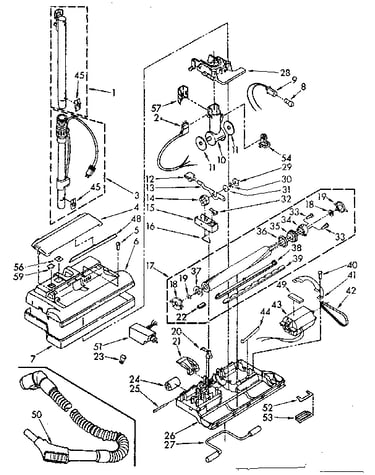

Power mate diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 596181
#8

Power mate diagram

Light bulb

Part #596181

The manufacturer no longer makes this part, and there's no substitute part

Lifter 742013
#20

Power mate diagram

Lifter

Part #742013

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 747216
#2

Power mate diagram

Power cord

Part #747216

The manufacturer no longer makes this part, and there's no substitute part

Screw 681297
#40

Power mate diagram

Screw

Part #681297

The manufacturer no longer makes this part, and there's no substitute part

Lens Bulb 747286
#48

Power mate diagram

Lens bulb

Part #747286

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Lever 747287
#13

Power mate diagram

Adjustment lever

Part #747287

The manufacturer no longer makes this part, and there's no substitute part

Swivel 747210
#10

Power mate diagram

Swivel

Part #747210

The manufacturer no longer makes this part, and there's no substitute part

Roller Shaft 742006
#25

Power mate diagram

Roller shaft

Part #742006

The manufacturer no longer makes this part, and there's no substitute part

Axle 747116
#27

Power mate diagram

Axle

Part #747116

The manufacturer no longer makes this part, and there's no substitute part
