KitchenAid
Gas Cooktop

Model # KGCV465MSS00 Official KitchenAid gas counter unit

Here are the diagrams and repair parts for Official KitchenAid KGCV465MSS00 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Range Screw 3368921
#20

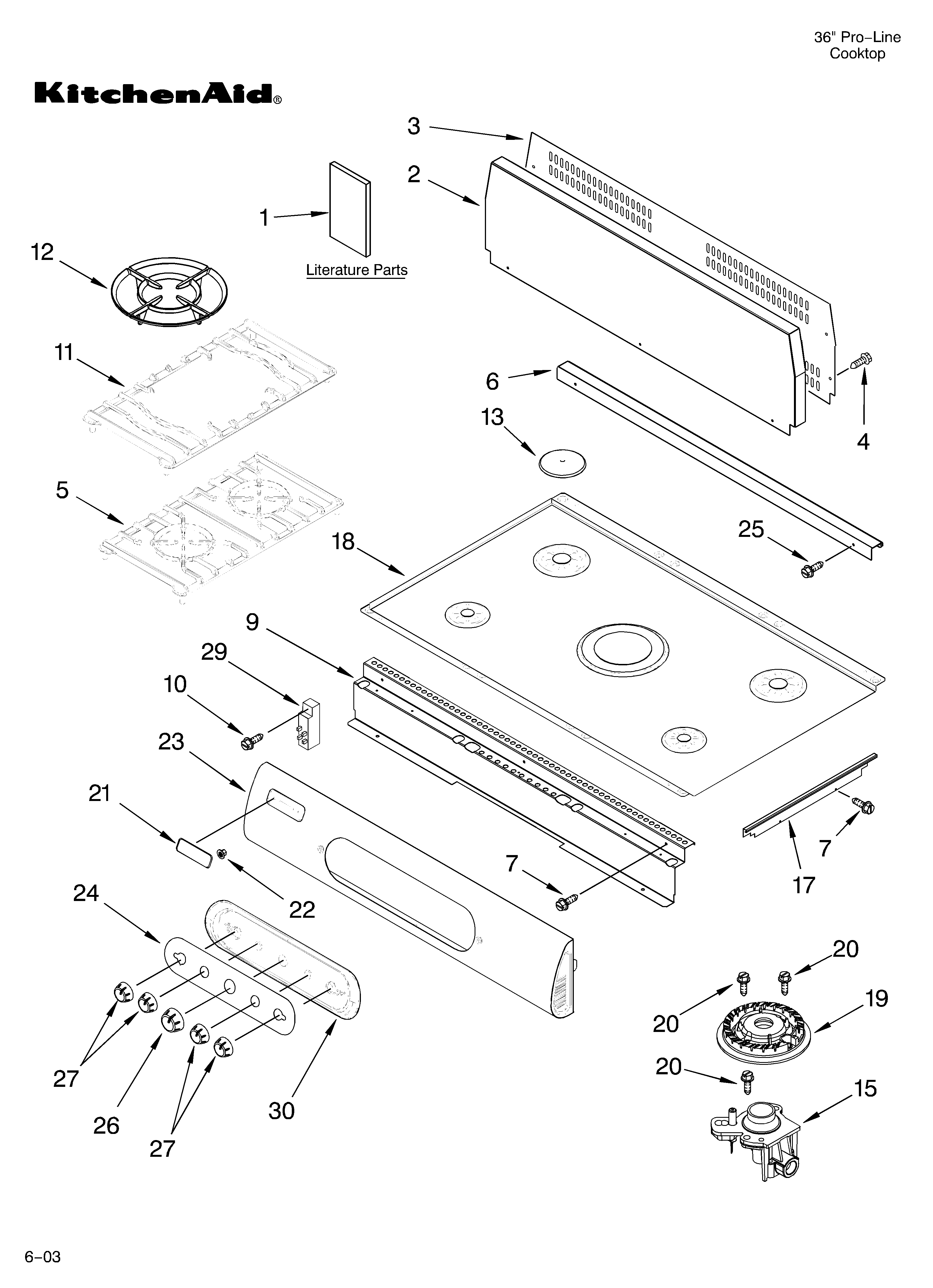

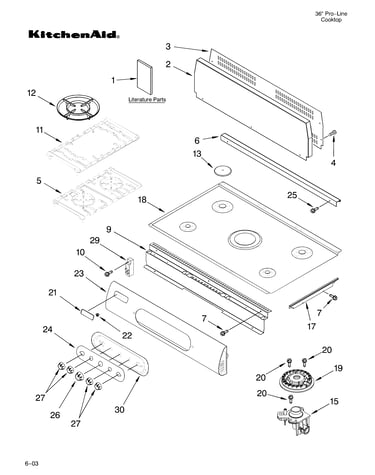

Cooktop, burner and grate parts diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.23 |
14% OFF Phone Price : $7.23
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Gasket Switch 3191387
#10A

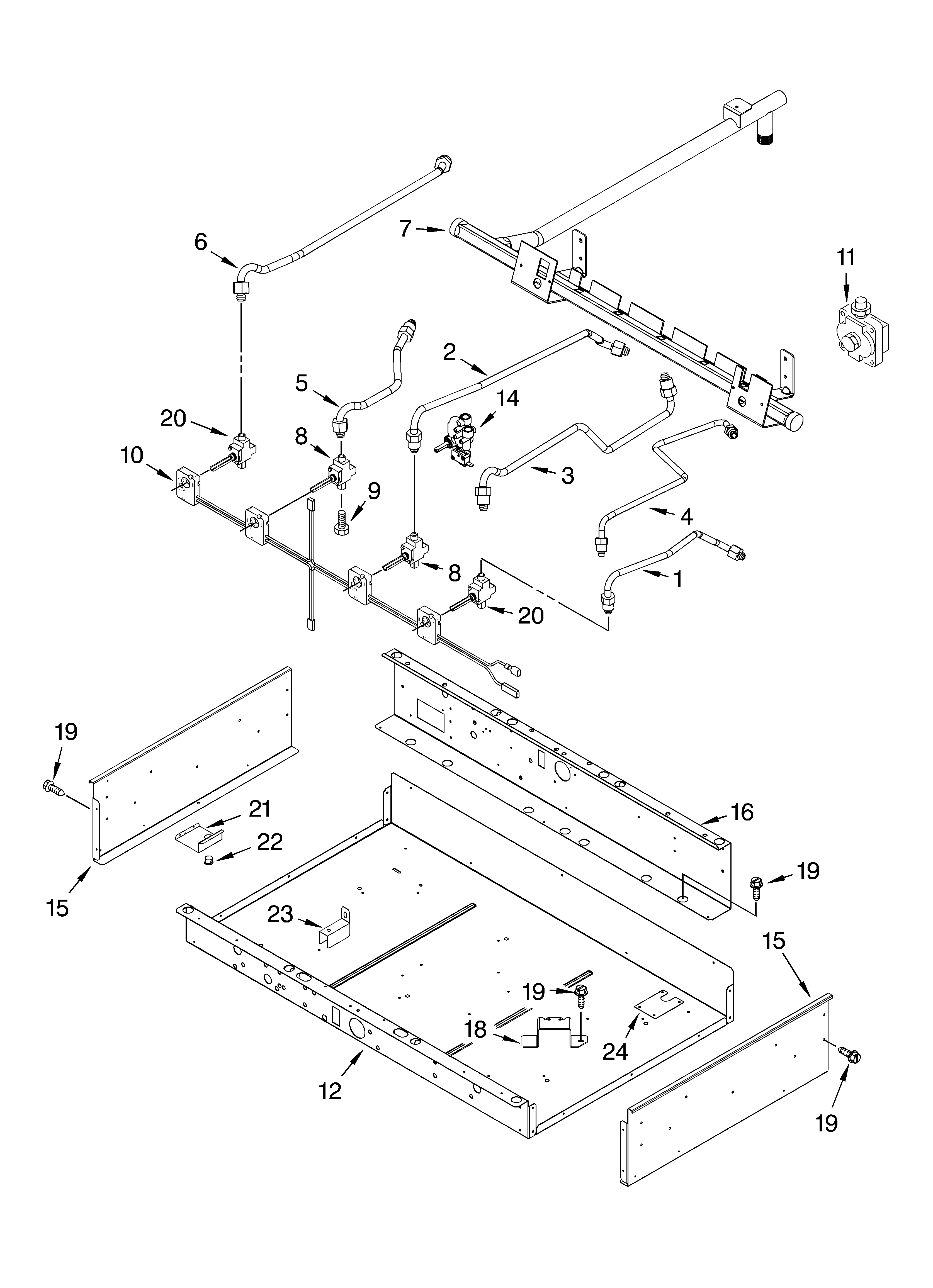

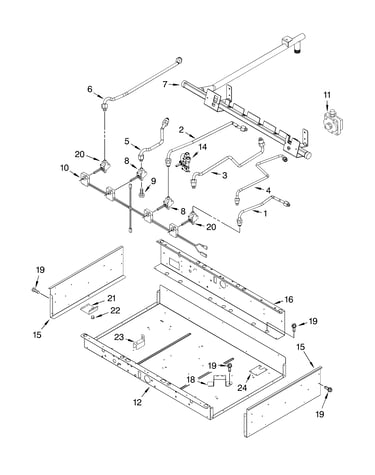

Burner box, gas valves, and switches diagram

Gasket switch

Part #3191387

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3191387. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Range Screw 3400702
#7

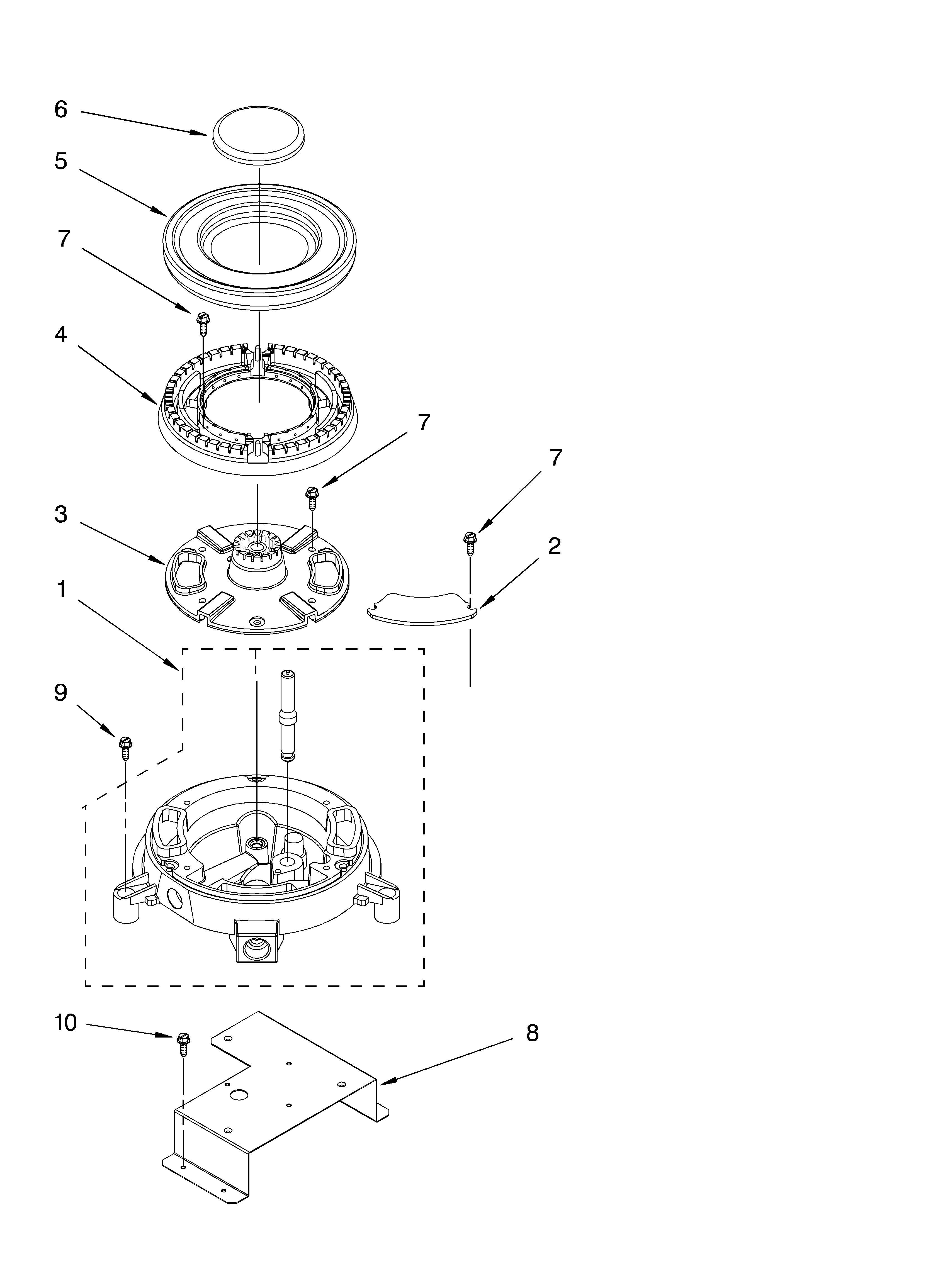

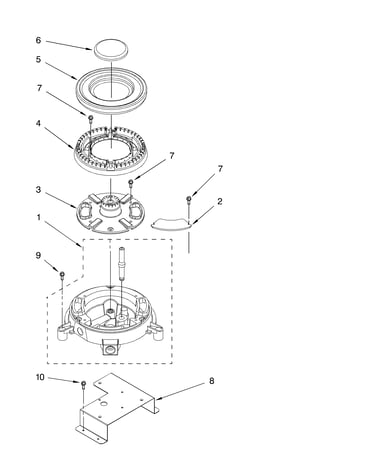

Triple crown burner diagram

Range screw

Part #3400702

Replaced by #WP3400702

?
Manufacturer substitution
This part replaces 3400702. Substitute parts can look different from the original.
This item is not returnable
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Burner Valve 8285247
#14

Burner box, gas valves, and switches diagram

Burner valve

Part #8285247

$34.76
In Stock
Cooktop Grounding Strap 8285402
#NI

Burner box, gas valves, and switches diagram

Cooktop grounding strap

Part #8285402

$32.87
In Stock
Range Surface Burner External Orifice Cover Plate 8285250
#2

Triple crown burner diagram

Range surface burner external orifice cover plate

Part #8285250

$7.80
In Stock
Bushing 4173634
#NI

Burner box, gas valves, and switches diagram

Bushing

Part #4173634

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Screw 3196537
#4

Cooktop, burner and grate parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Spark Module 8522424
#29

Cooktop, burner and grate parts diagram

Spark module

Part #8522424

Replaced by #WPW10110486

?
Manufacturer substitution
This part replaces 8522424. Substitute parts can look different from the original.
$112.14 |
10% OFF Phone Price : $124.14
In Stock
