Maytag
Bottom-Mount Refrigerator

Model # MBR1953XES0 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MBR1953XES0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

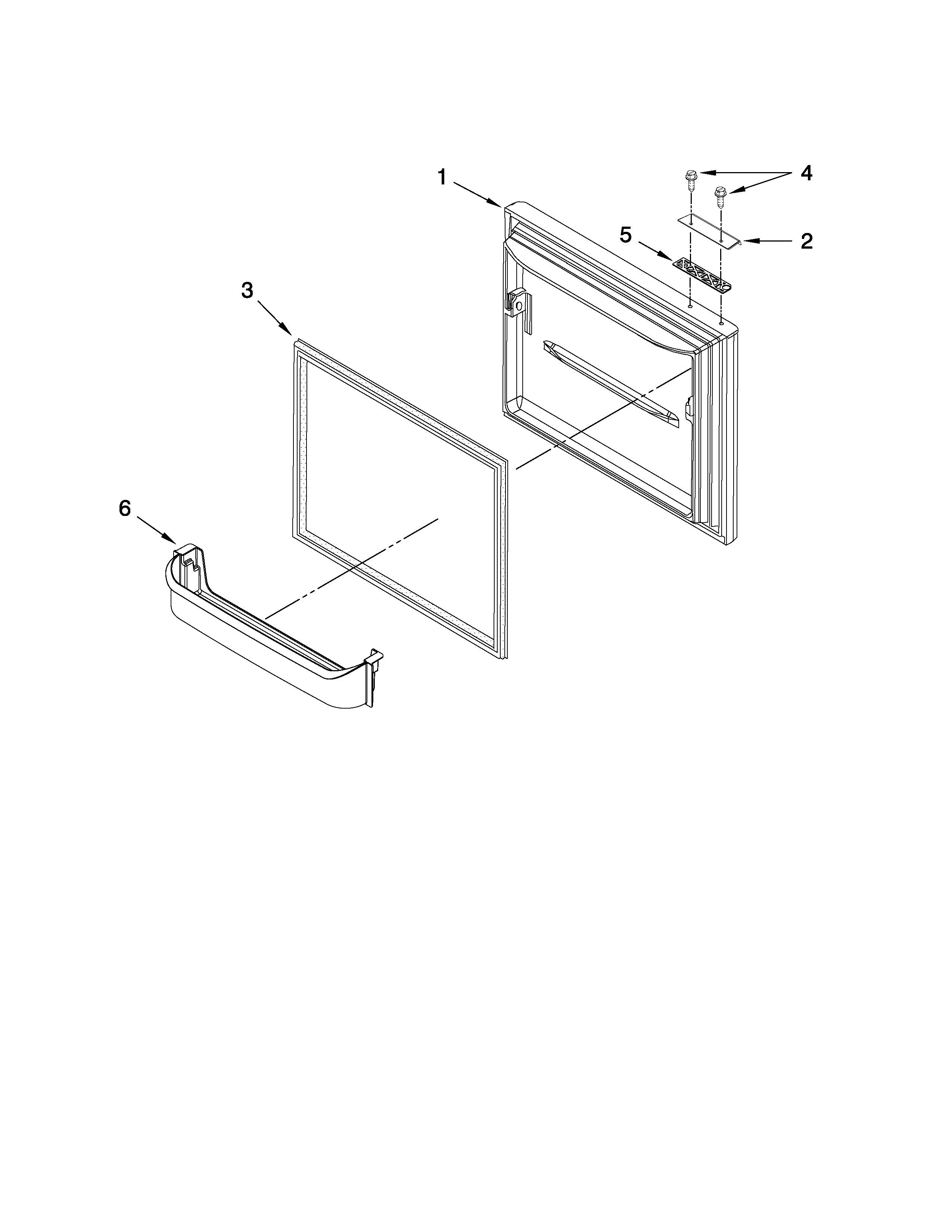

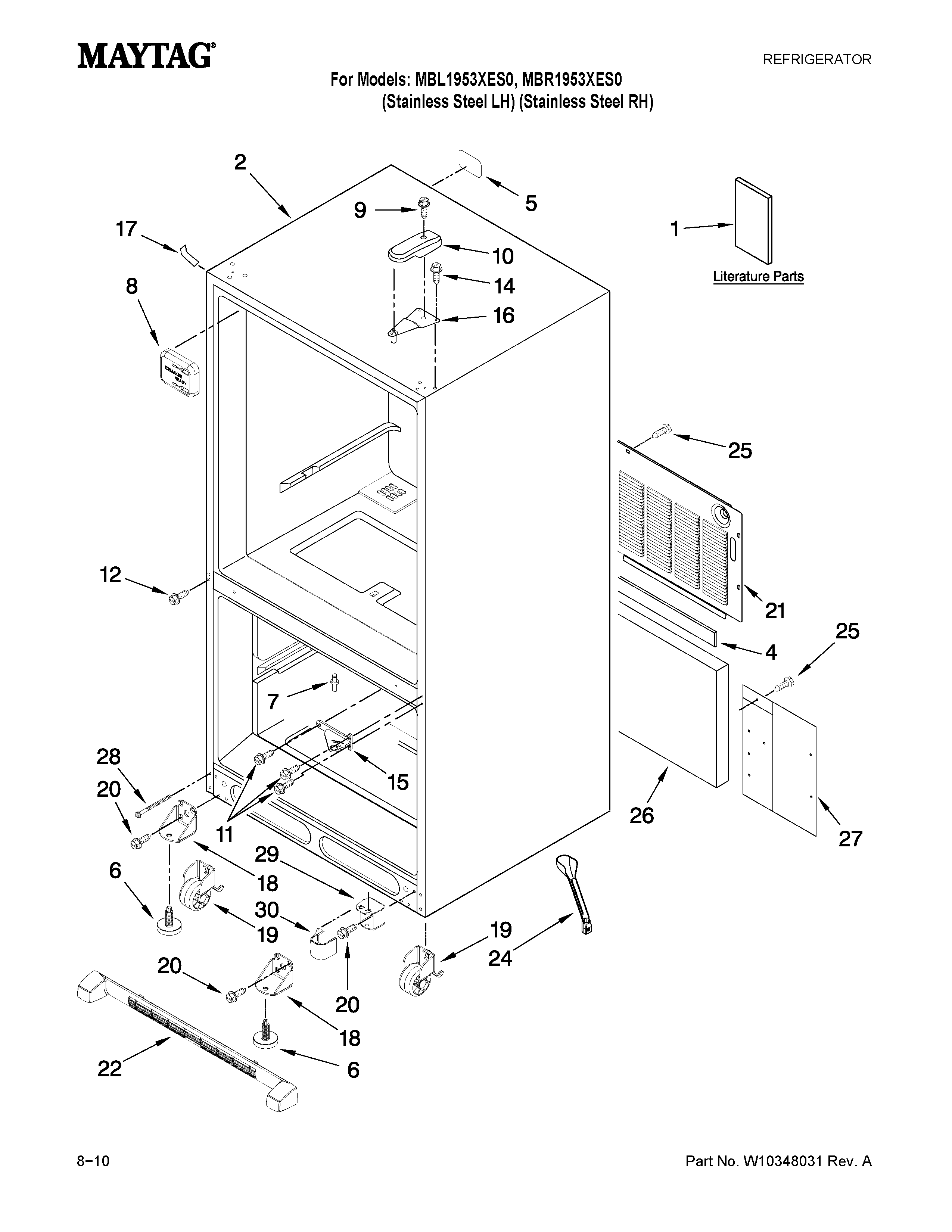

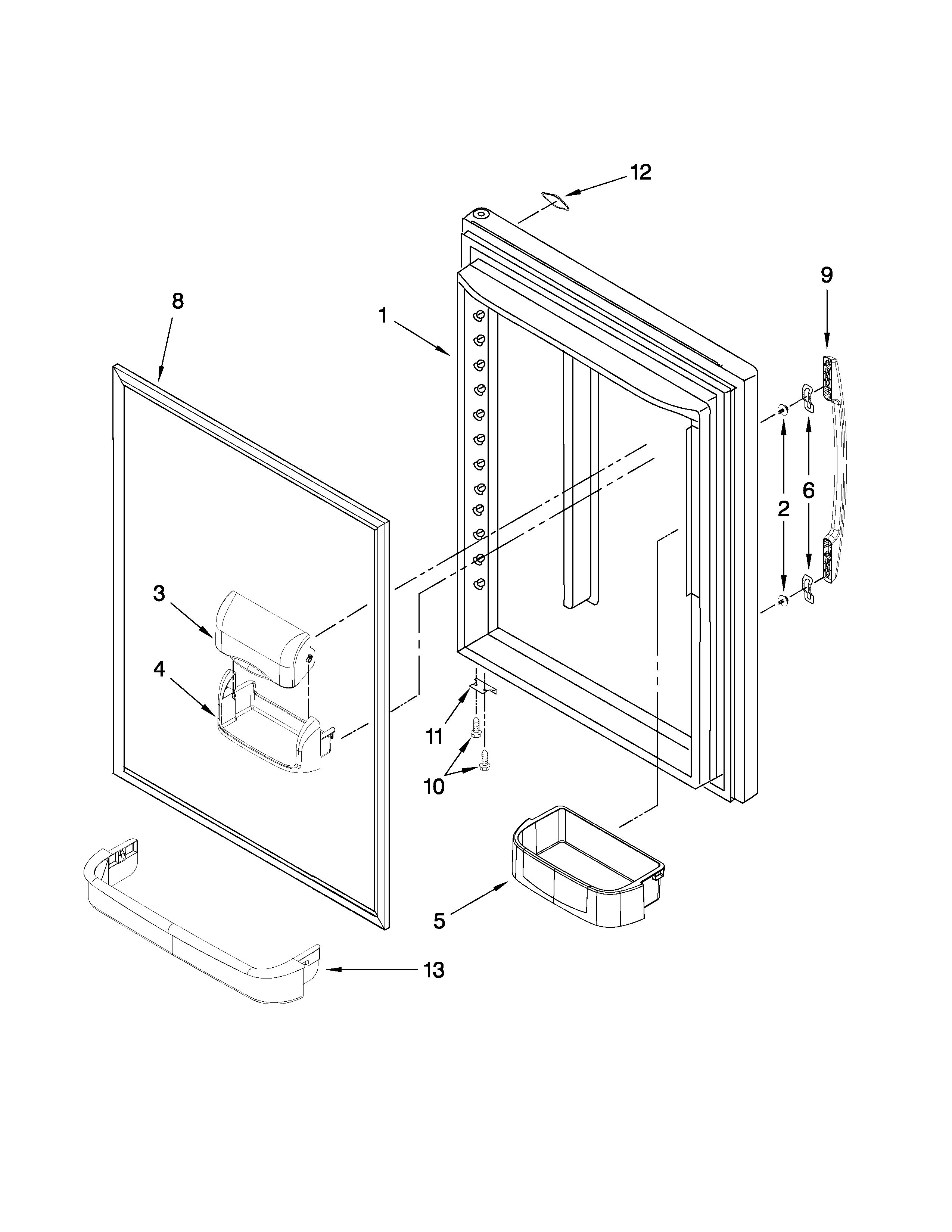

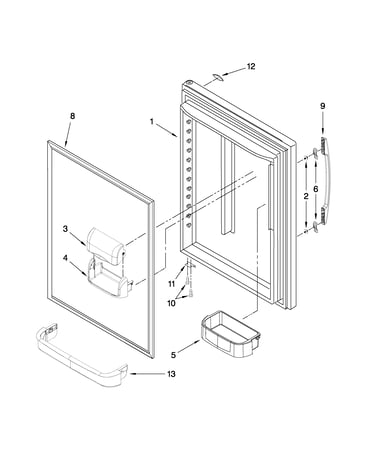

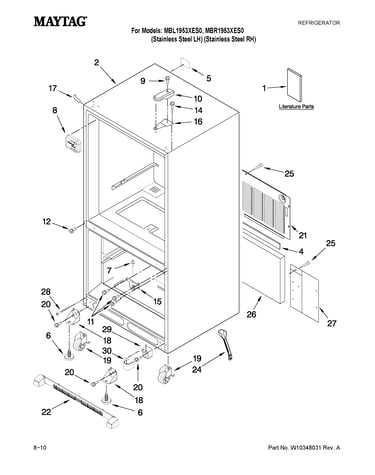

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Refrigerator Uv Filter Dryer W10143759
#27

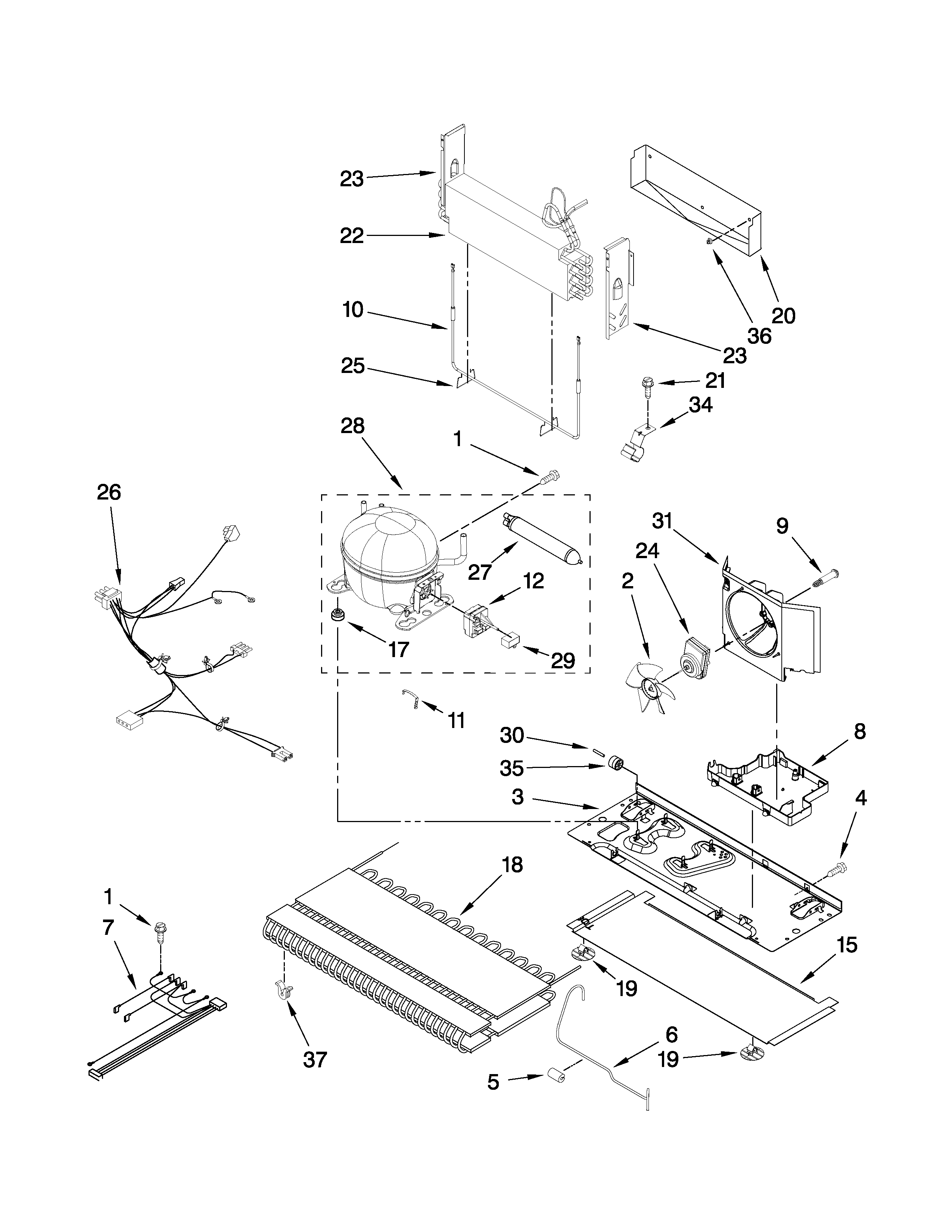

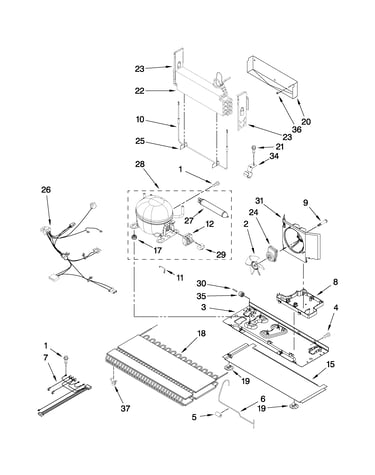

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Bulb-light 2255743N
Bulb-light

Part #2255743N

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2255743N. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Electronic Control 12784415V
#5

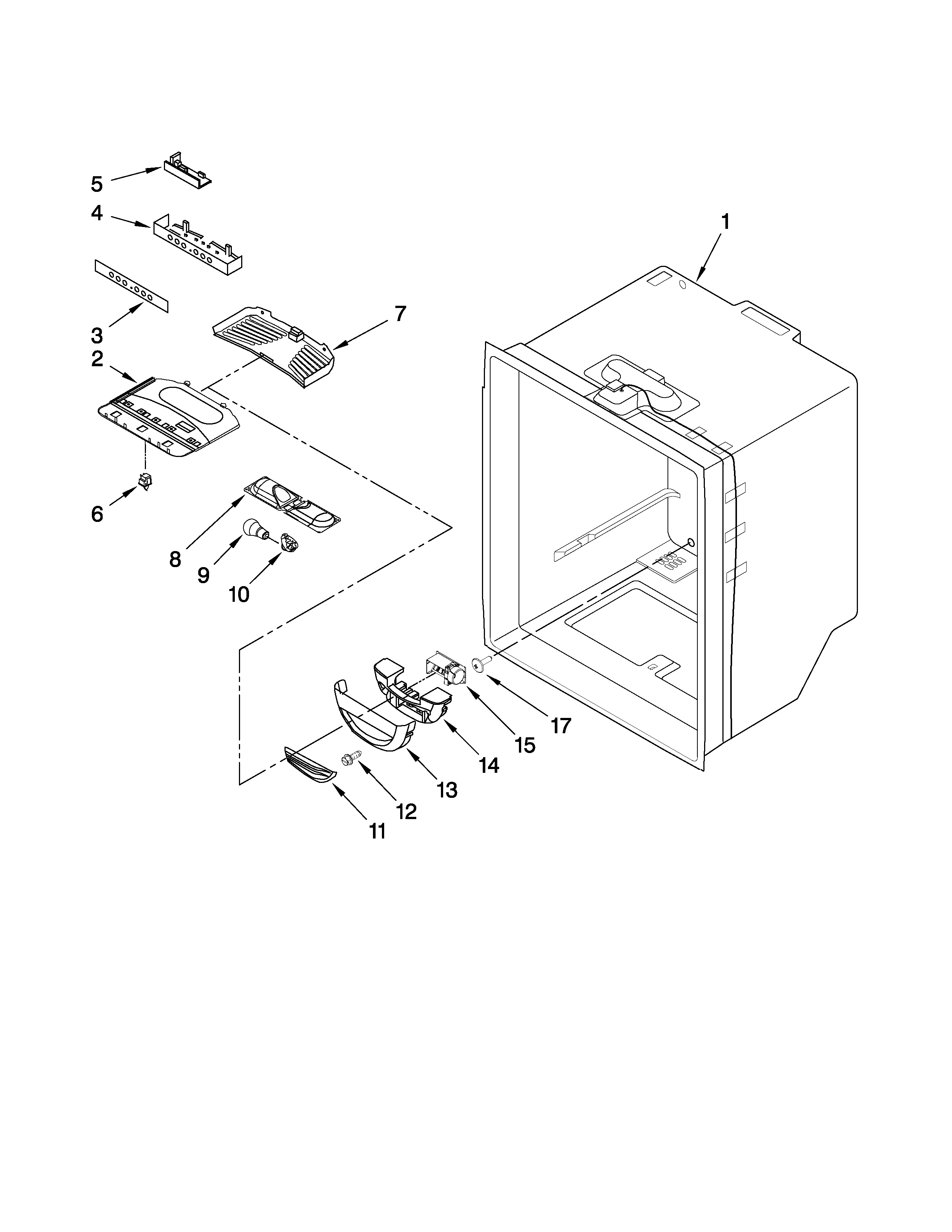

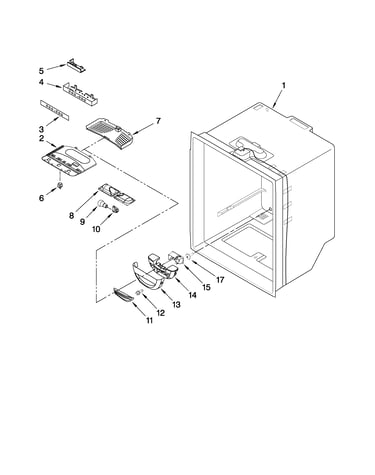

Refrigerator liner parts diagram

Refrigerator electronic control

Part #12784415V

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 12784415V. Substitute parts can look different from the original.
BEST SELLER
$156.48 |
7% OFF Phone Price : $168.48
In Stock
Refrigerator Switch C3680310V
#6

Refrigerator liner parts diagram

Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Evaporator Fan Blade 2169142
#24

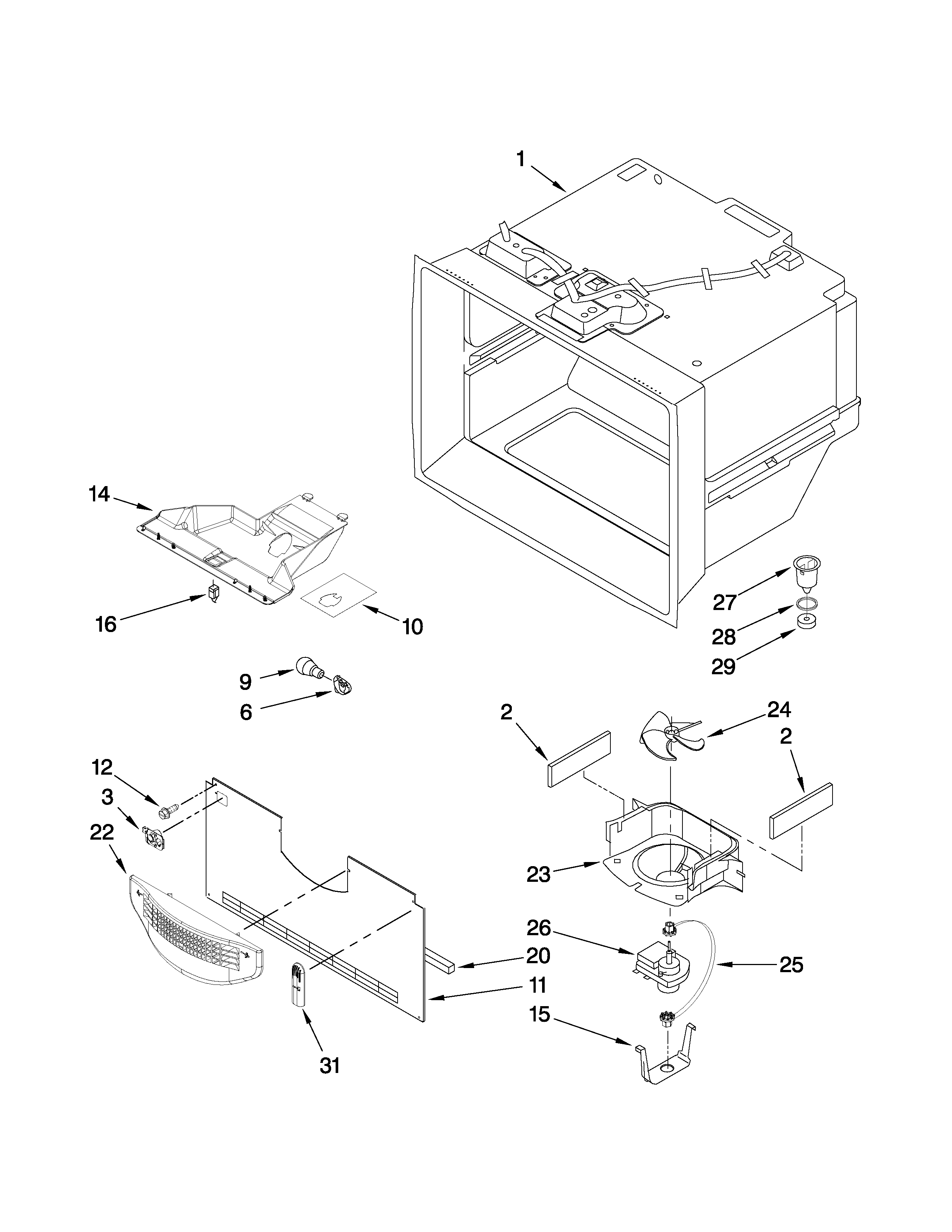

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$37.11 |
14% OFF Phone Price : $43.11
In Stock
Refrigerator Central Rail 12530701N
#1

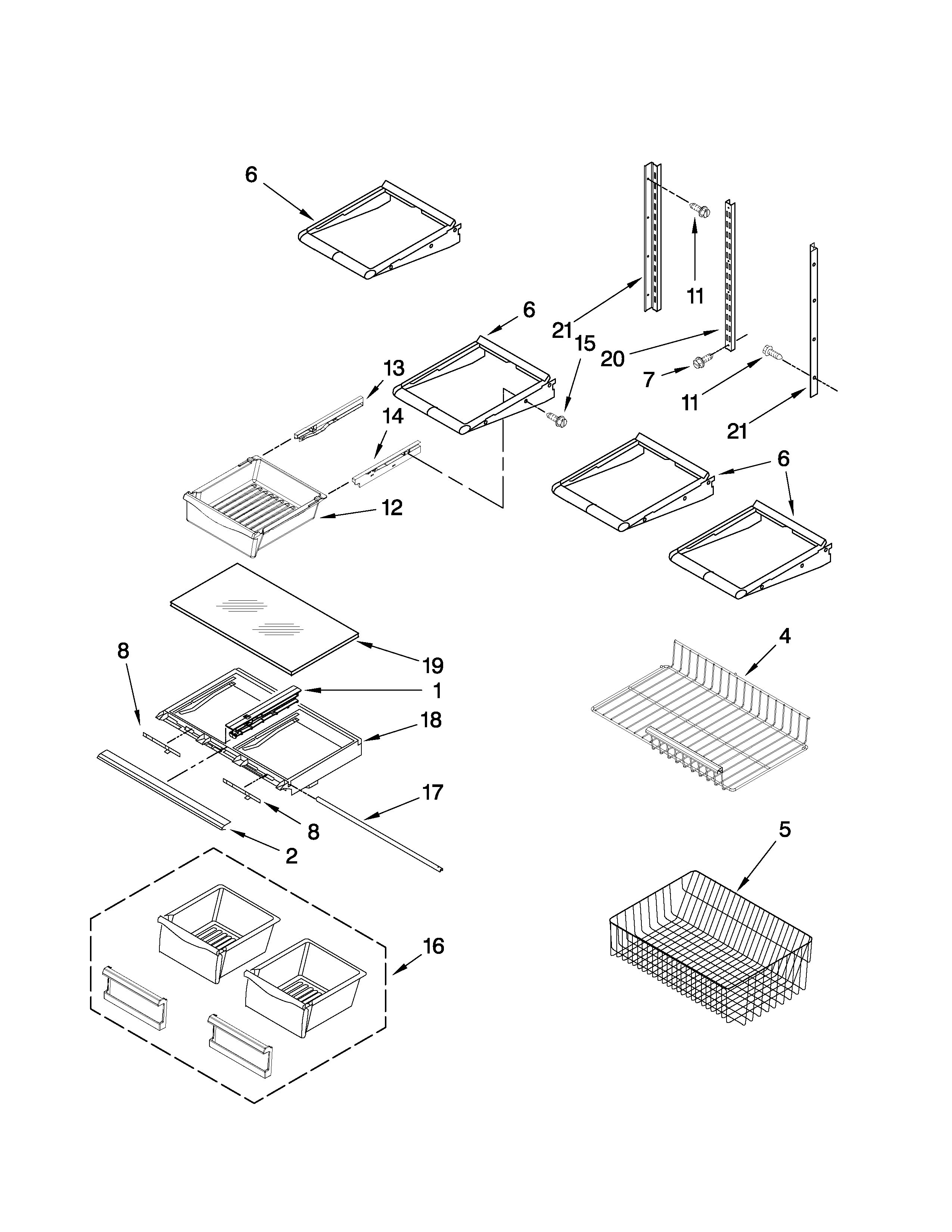

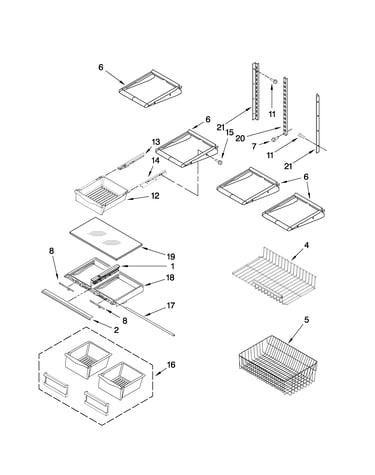

Shelf parts diagram

Refrigerator central rail

Part #12530701N

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 12530701N. Substitute parts can look different from the original.
BEST SELLER
$46.40 |
11% OFF Phone Price : $52.40
In Stock
Refrigerator Evaporator Fan Motor W10128551
#26

Freezer liner parts diagram

Refrigerator evaporator fan motor

Part #W10128551

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces W10128551. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
8% OFF Phone Price : $71.76
In Stock
Spray Paint (white) 350930
#NI

Optional parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Refrigerator Condenser Fan Motor W10239053
#24

Unit parts diagram

Refrigerator condenser fan motor

Part #W10239053

Replaced by #W11387394

?
Manufacturer substitution
This part replaces W10239053. Substitute parts can look different from the original.
BEST SELLER
$101.22 |
11% OFF Phone Price : $113.22
In Stock
Refrigerator Socket 12570701V
Refrigerator socket

Part #12570701V

Replaced by #W11447232

?
Manufacturer substitution
This part replaces 12570701V. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
